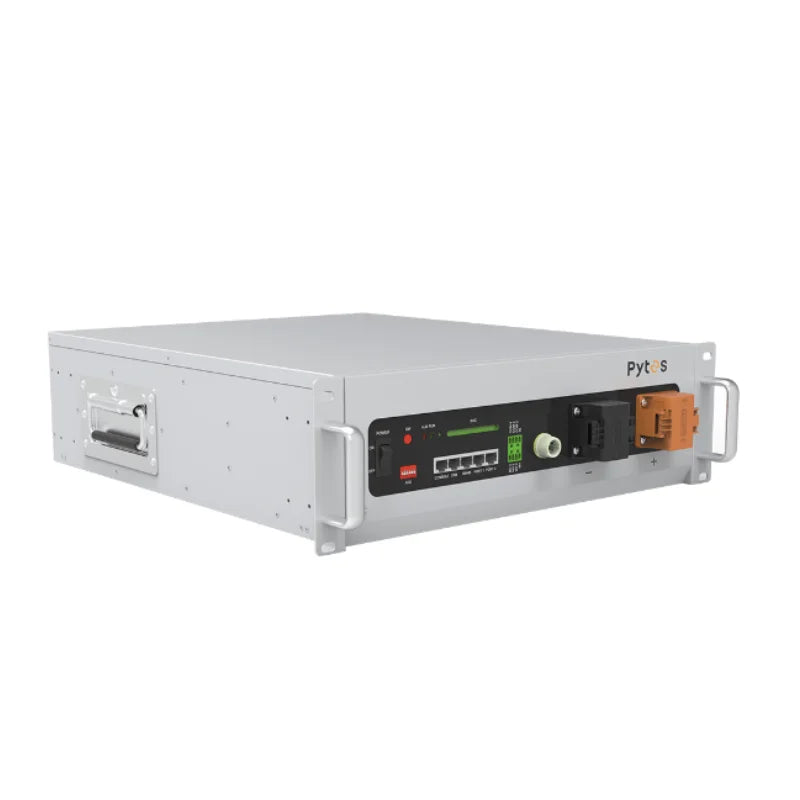

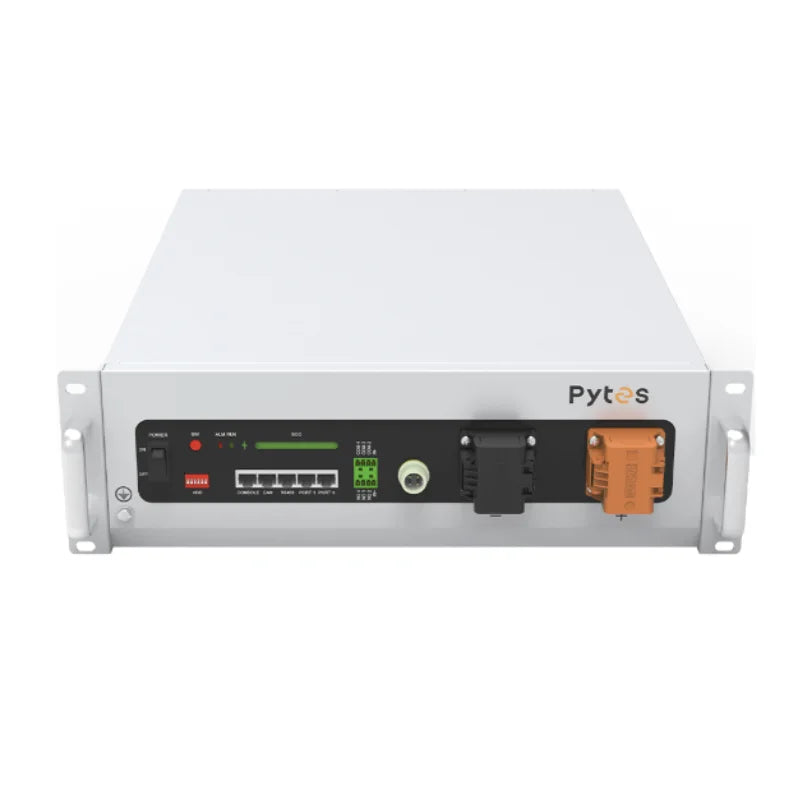

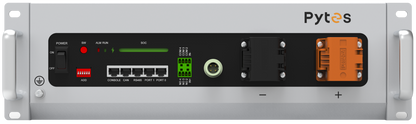

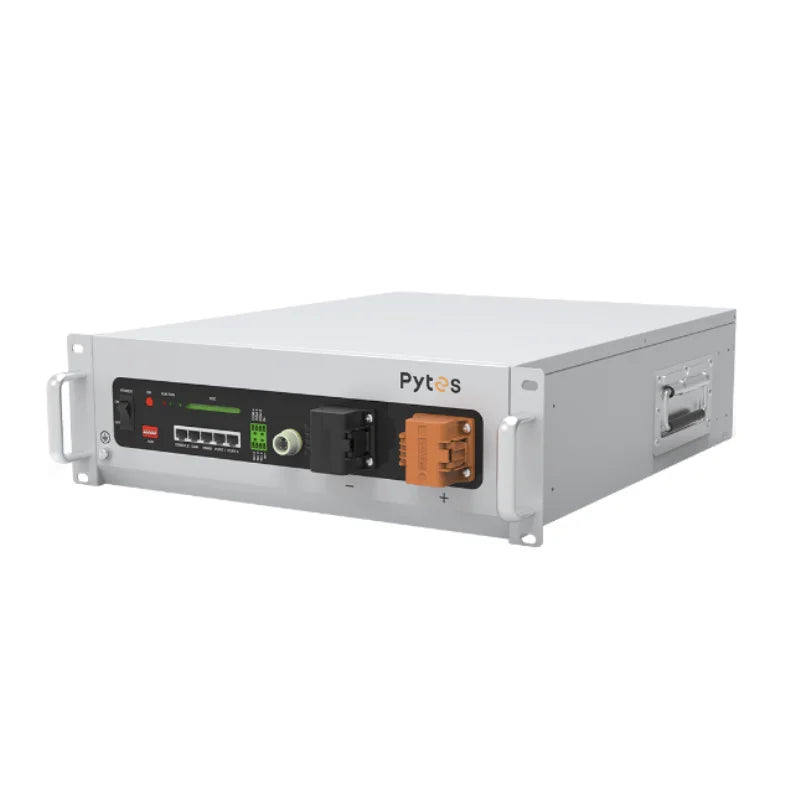

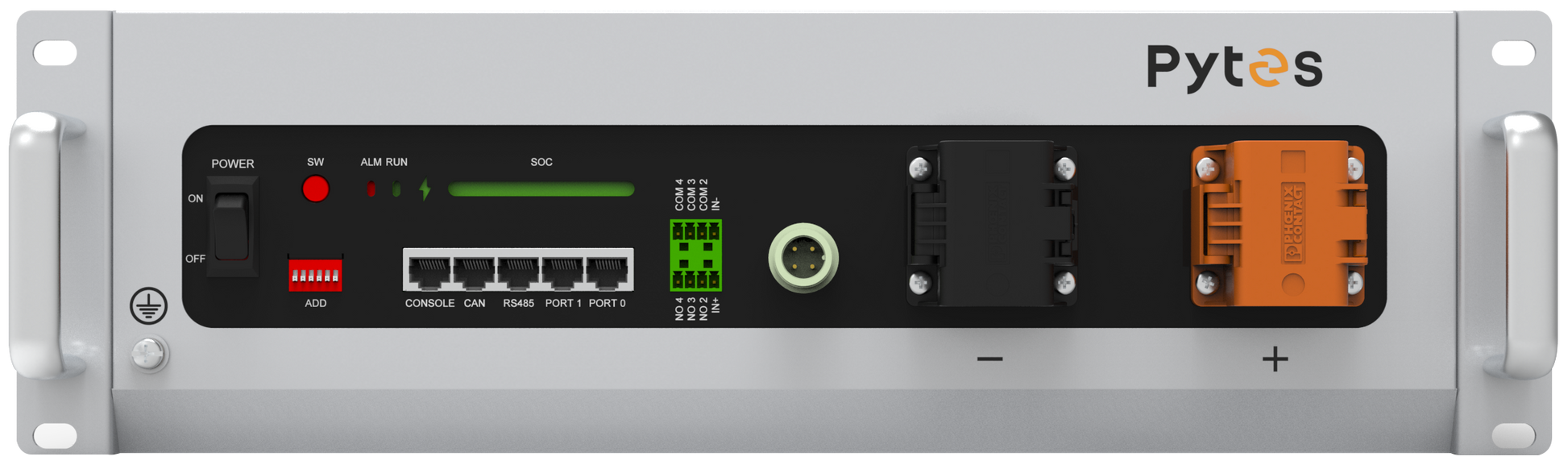

Pytes V5 5.12kWh Battery - ESS Residential Solar LifePo4 LFP

The Pytes V5 5.12 kWh Battery (SKU 110402100159) is a high-performance, residential-quality LiFePO₄ (LFP) battery module, designed for solar energy storage. Built for both self-consumption and backup applications, this unit delivers reliable energy storage in a rugged, scalable form.

Rated at a nominal voltage of 51.2 V and a capacity of 100 Ah, the V5 provides 5.12 kWh of usable energy, making it suitable for typical household systems or hybrid setups. Its power controls are robust, supporting a continuous charge/discharge current of 75 A, a maximum continuous current of 100 A, and short-term peak currents of 121–180 A. This ensures the battery can handle bursts of power as well as steady long-term use.

Safety and resilience are built in. The V5 includes an integrated heating pad to maintain operation in colder climates, with an operating temperature range of –10 °C to +50 °C. It supports remote monitoring and firmware upgrades via CAN or RS‑485, with an optional Wi‑Fi module for real-time status and system control.

Designed for longevity, the Pytes V5 offers at least 6,000 cycles at 90% depth of discharge, supporting many years of daily use. The integrated BMS protects against over-current, short circuits, and other electrical risks.

Physically, the module measures 442 × 530 × 140 mm and weighs 44 kg, making it suitable for wall-mounted or floor installations. Expansion is straightforward, with support for up to 16 units per group, and multiple groups can create larger capacity systems for growing energy demands.

Trade customers benefit from a 10-year warranty, providing peace of mind for residential or light commercial installations.

Pytes V5 5.12kWh Battery - ESS Residential Solar LifePo4 LFP – Manual
