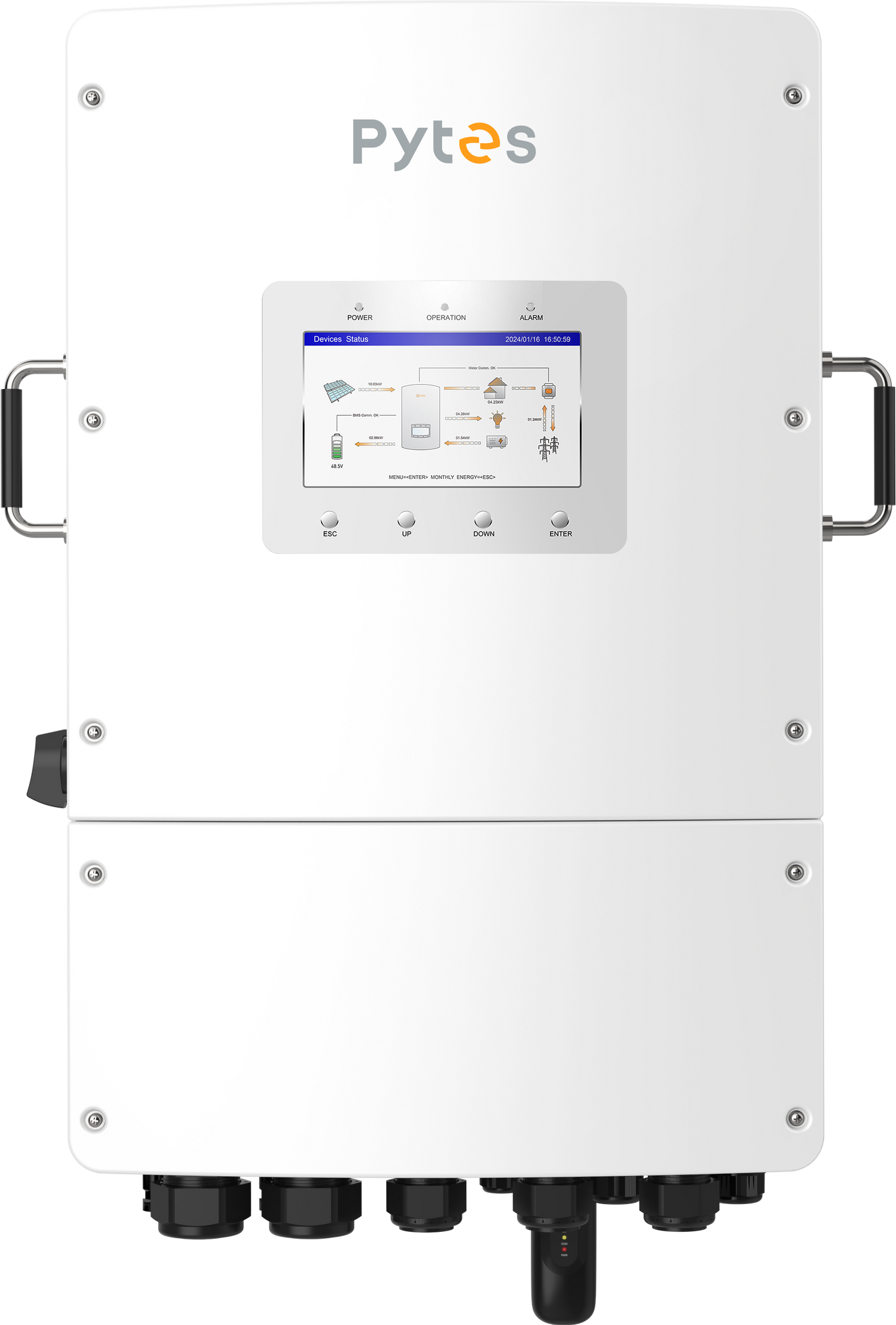

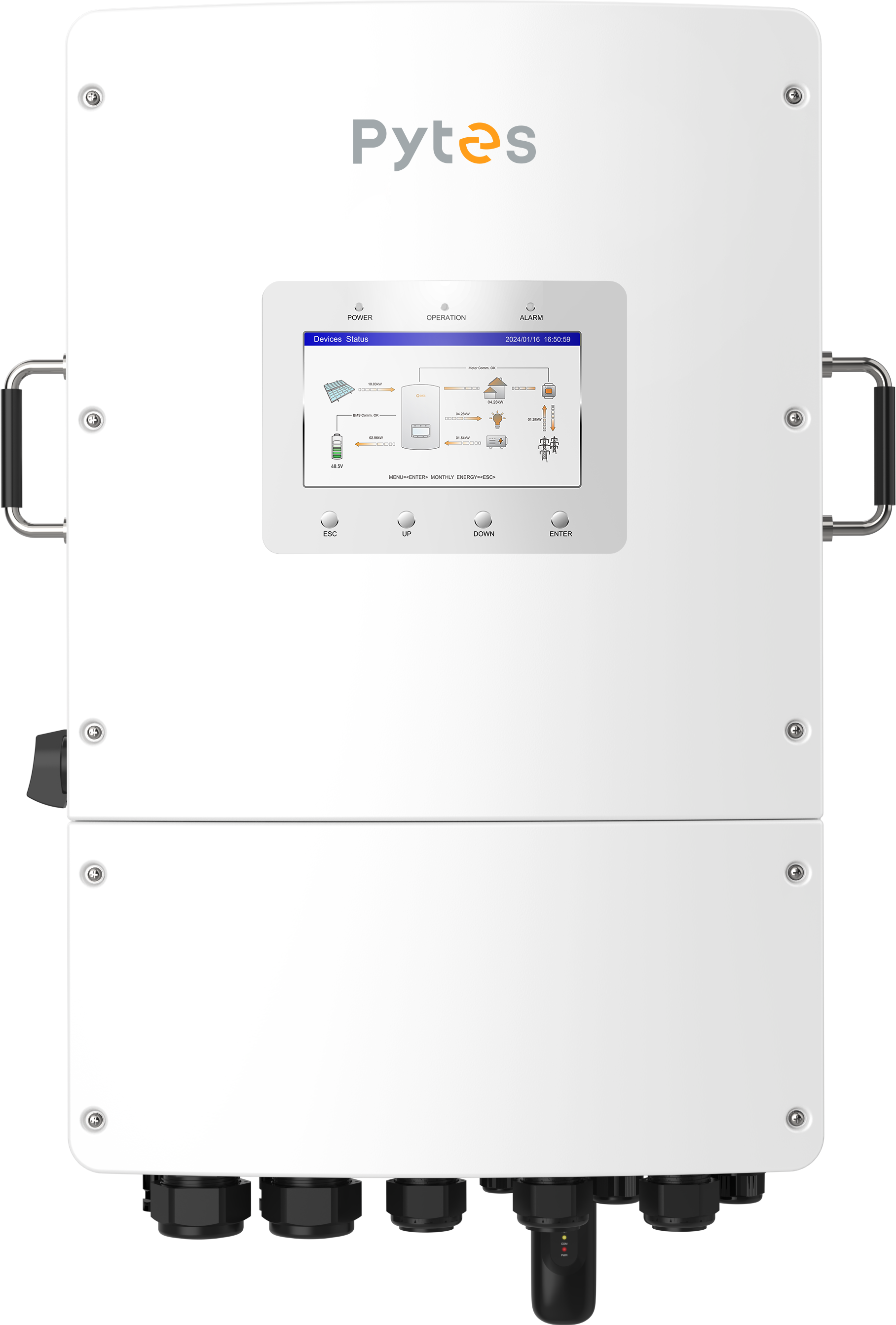

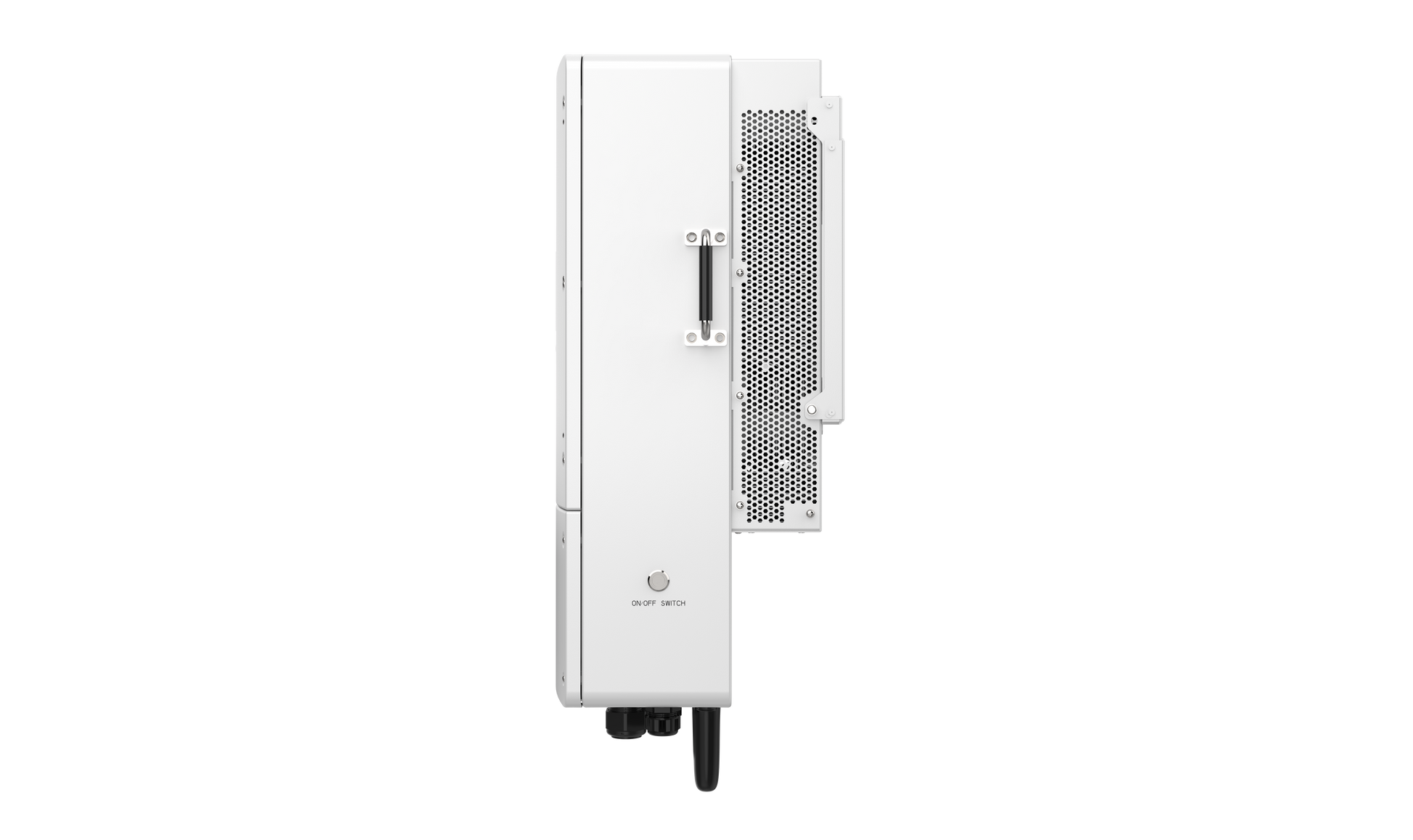

The Pytes JS Series Hybrid Inverter is a powerful 3-phase solar inverter designed for flexible and resilient energy storage systems. Available in 10kW, 12kW, and 15kW models, it supports both on-grid and off-grid operations with seamless backup switching in under 10ms. Featuring up to 200% overload capacity and smart load management, it’s ideal for households, small businesses, or microgrids.

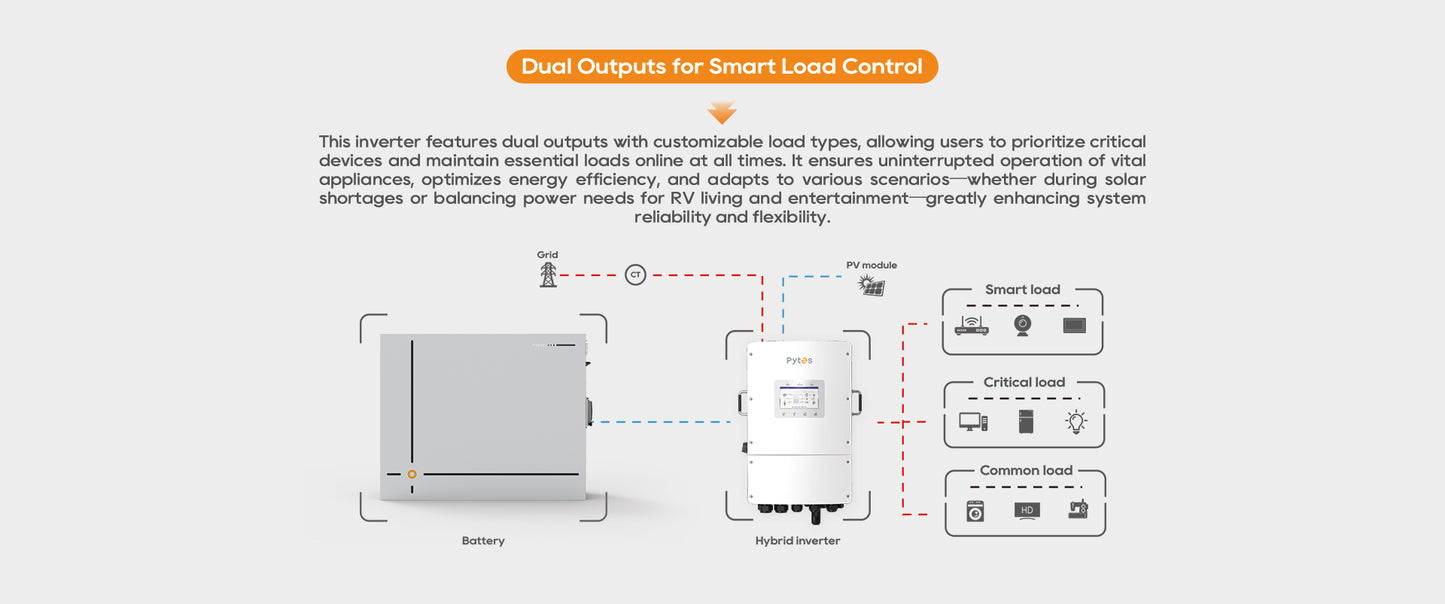

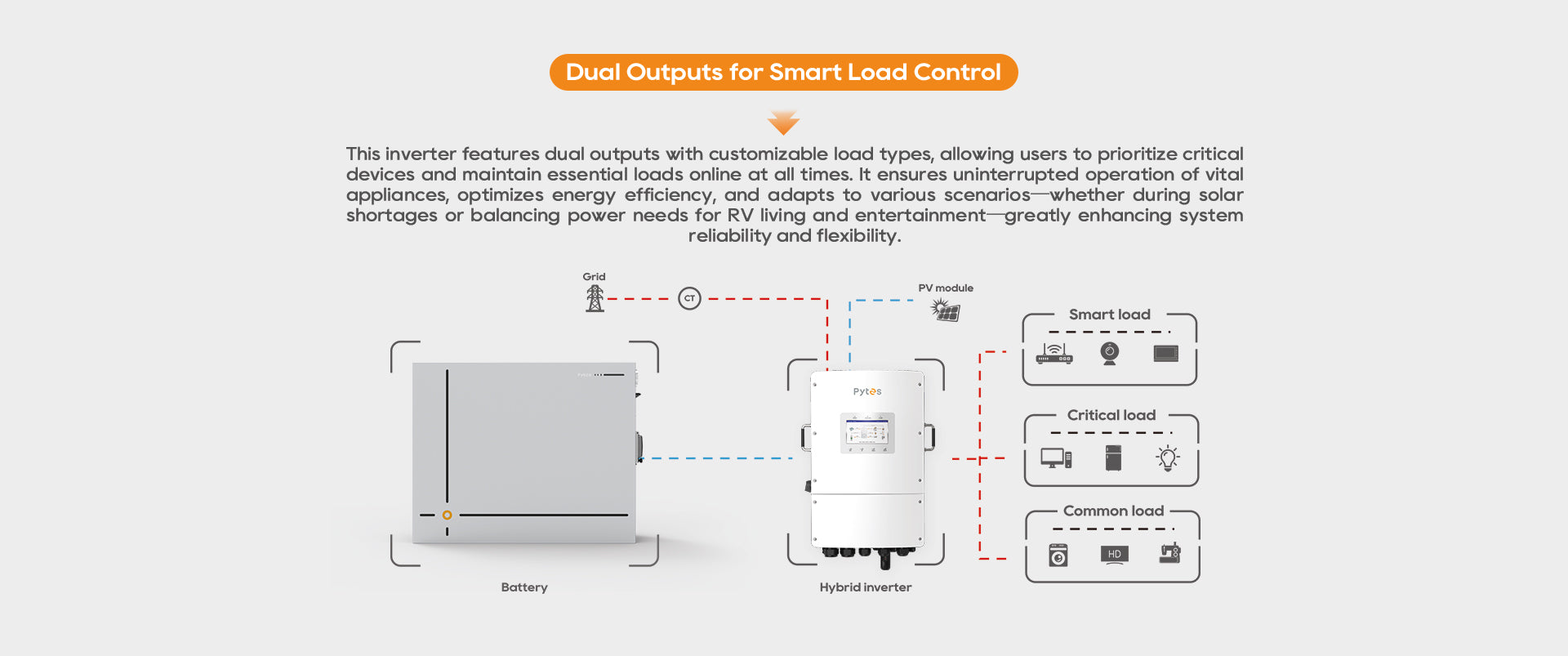

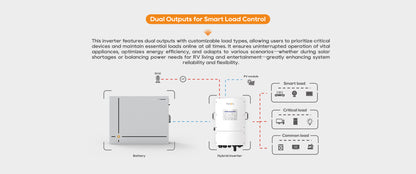

Dual AC Backup Ports
- Supports customized backup loads for both critical and common usage scenarios.
- Ideal for residential homes with mixed load priorities.
Generator Compatible
- Supports dual power sources (PV + Generator), providing reliable backup during grid outages.
200% Overload Capability
- Can deliver double rated power for 10 seconds, ensuring stable performance during peak load startup (like pumps or compressors).
3-Phase, Unbalanced Load Support
- Allows 50% rated power per phase, enabling flexible power distribution across different phases in real-world applications.
AC Coupling Compatibility
- Can be retrofitted to existing PV systems using AC coupling — maximize legacy investment while upgrading to a hybrid system.
Scalable Up to 90kW
- Multiple inverters can be paralleled to form a microgrid, perfect for villas, farms, or small factories.
Specifications
Battery
- Battery type: Li-ion / Lead-acid
JSPL10K
Max Useable PV input: 16kW
Max. charge / discharge current: 220A
JSPL12K
Max Useable PV input: 19.2kW
Max. charge / discharge current: 250A
JSPL15K
Max Useable PV input: 24kW
Max. charge / discharge current: 290A
Efficiency
Max. efficiency: 97.6%
EU efficiency: 97.00%
Protection: Anti-islanding , Output over current, Short circuit, DC reverse-polarity, Surge
General Data
Dimensions (W x H x D): 430 x 660 x 305 mm
Weight: 42kg
Topology: Non-isolated
Operating Ambient Temperature: -40 ~ +60°C
Ingress protection: IP66
Noise Emission (typical): <65 dB(A)
Cooling Concept: Intelligent fan-cooling
Max. Operation Altitude: 4000m
Features
Display: 7.0"LCD Display & Bluetooth + APP
Communication: CAN, RS485, Ethernet, Optional: Wi-Fi, Cellular, LAN
