Plug 32A/250Vac (2p/3w) for Power Inlet stainless steel 32A
Plug 32A/250Vac (2p/3w) for Power Inlet stainless steel 32A
SKU:SHP303204000
Brand: Victron
In stock
This is pre-order - Available in 7 – 10 days
Couldn't load pickup availability
Product Details
Product Details

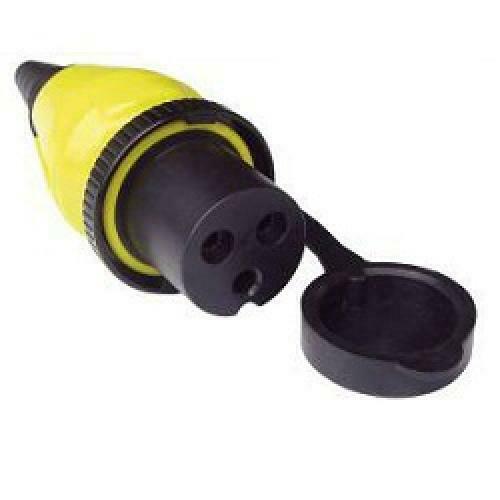

The Victron Plug 32A/250Vac is a high-quality, robust plug designed for use with Victron's 32A stainless steel Shore Power Inlet. This 32 A/250 Vac (2-pole/3-wire) shore power accessory is built to the IEC 60309 3-Pole standard to ensure a safe and reliable electrical connection.
Constructed from nickel plated brass pins and housed within a durable PA6 body, this plug offers long-term performance. It is a CE certified component, verifying compliance with necessary European safety standards.
When paired with the appropriate Victron inlet and cable, this system ensures a waterproof connection rated to IP56.
Product Specifications
Product Specifications
Technical Specifications
- SKU: SHP303204000
- Current Rating: 32A
- Voltage Rating: 250Vac
- Configuration: 2-pole, 3-wire (2p/3w)
- Standard: IEC 60309, 2p+E
- Waterproof Rating: IP56 (when used with compatible inlet)
Material Construction
- Plug Body: PA6 (Polyamide)
- Pins/Contacts: Brass, Nickel plated for superior corrosion resistance and conductivity
Key Features
- Power Indication LED: Features an integrated LED light that provides a clear visual confirmation when live shore power is present.
- Weatherproof Protection: Rated to IP56 standards to provide protection against dust and high-pressure water jets, essential for marine applications.
- Moulded Design: Utilizes a robust moulded construction for increased durability and strain relief at the cable entry point.
- Protection Cap: Includes a dedicated protection cap for the female connector to keep contacts clean and dry when not in use.
System Compatibility
- Primary Mate: Specifically designed for use with the Victron Power Inlet stainless steel 32A (SHP303202000).
- Cable Recommendation: Suitable for use with heavy-duty H07BQ-F 3x 6.00mm² shore power cables.
Quality & Warranty
- Warranty: Backed by Victron Energy's industry-leading 5-year standard warranty.
- Certifications: Fully CE certified and manufactured in ISO 9001 certified facilities.
