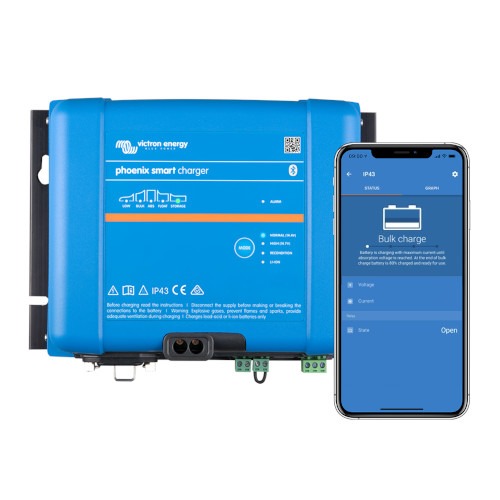

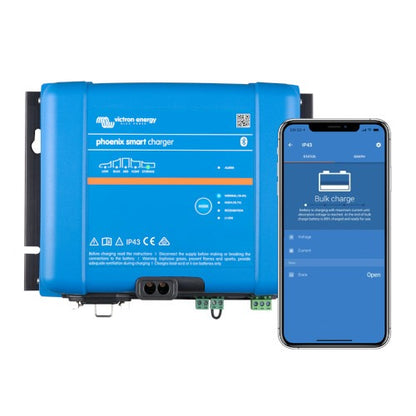

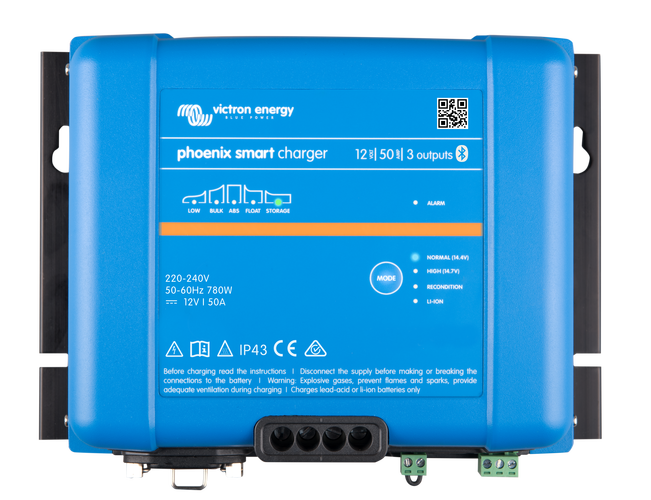

Victron 12V 50A Phoenix Smart IP43 Charger - 3 Outputs 230V

The Victron 12V 50A Phoenix Smart IP43 Charger – 3 Outputs is engineered for demanding applications requiring reliable and efficient battery charging.

• Adaptive 5-Step Charging: Utilises Bulk, Absorption, Float, Storage, and Recondition stages to optimise battery health and longevity.
• Automatic Voltage Compensation: Combat voltage drop over DC cabling with automatic voltage compensation. The charger adjusts output voltage to account for increased DC current, ensuring a stable charge.
• Three Independent Outputs: Simultaneously charges up to three separate battery banks, each with the full rated output current, while maintaining isolation between them.
• Bluetooth Connectivity: Stay in control effortlessly with Bluetooth-enabled monitoring. Use your smartphone, tablet, or any Bluetooth-enabled device to monitor the charger, change settings, and update software features as they become available.
• VE.Direct Interface for Connectivity: For wired data connections, use the VE.Direct interface to connect to a Color Control panel, PC, or other devices.
• IP43 Protection: Designed with an IP43-rated enclosure, providing protection against dust and water ingress, suitable for both indoor and outdoor installations.
• BatterySafe Mode: Prevent damage due to excessive gassing with the BatterySafe mode. The charger limits the rate of voltage increase once the gassing voltage is reached, ensuring the safety of your batteries.
• Storage Mode for Longevity: Minimize maintenance and aging during periods of inactivity with the Storage Mode. This feature reduces the float voltage to prevent gassing and corrosion, promoting battery longevity.
• Versatility with Li-ion Batteries: Not just limited to traditional batteries, the Phoenix Smart Charger can also charge Li-ion (LiFePO4) batteries. Achieve full control of voltage and current through Bluetooth or connect a relay for on-off control.
• Fully Programmable Charge Algorithm: Take charge of your charging process with a fully programmable charge algorithm. Use Bluetooth or the VE.Direct interface to customize settings according to your preferences.
• Remote On-Off Functionality: Enjoy convenient remote on-off control with two terminals, Remote H and Remote L. Connect a switch or relay contact to manage the charger from a distance.
• Compact and Robust Design: Constructed with a durable aluminium housing, ensuring longevity and reliability in various environments.
• Smart Charging for Boat Owners: Tailored for boat owners, this adaptive 5-step charger can provide 50A of charge to three battery banks.

Technical Specifications:

• Input Voltage: 230V AC
• Output Voltage: 12V DC
• Output Current: 50A (total across all outputs)
• Enclosure Dimensions: 180 x 249 x 116 mm
• Weight: 2.7 kg
• Battery Connection: Screw terminals (16 mm² / AWG6)
• AC Connection: IEC 320 C14 inlet
• Protection Category: IP43 (electronics), IP22 (connection area)
• Bluetooth Power: -4 dBm
• Frequency Range: 2402 - 2480 MHz

This product doesn't come with a UK mains plug which must be purchased separately.
