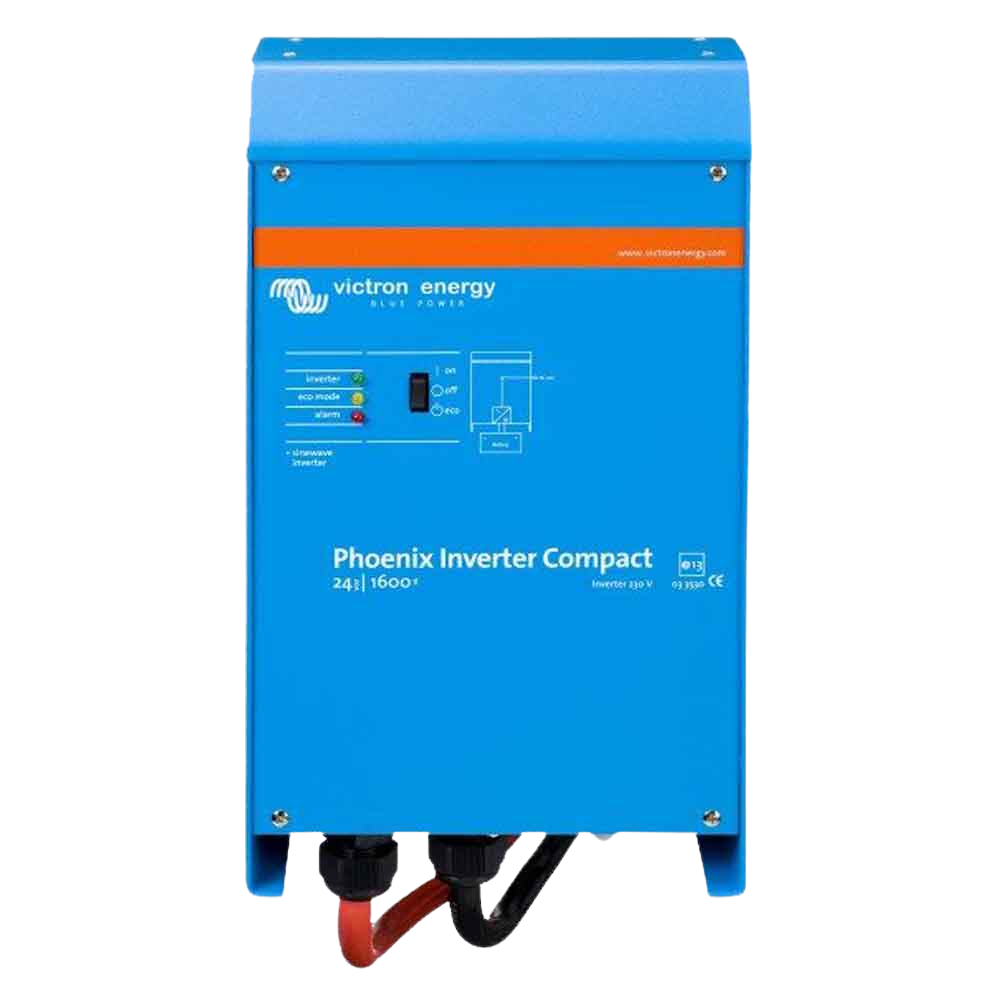

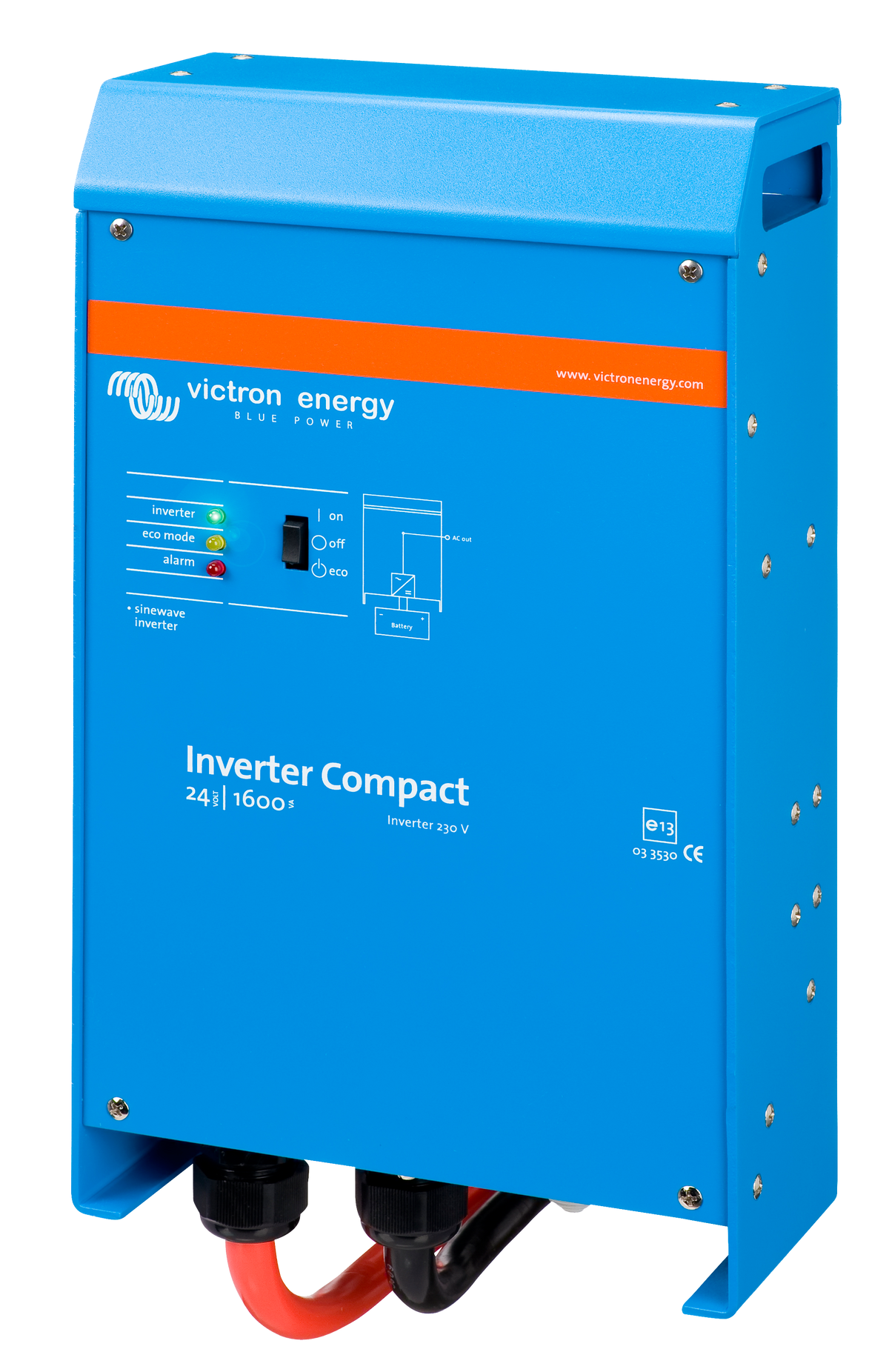

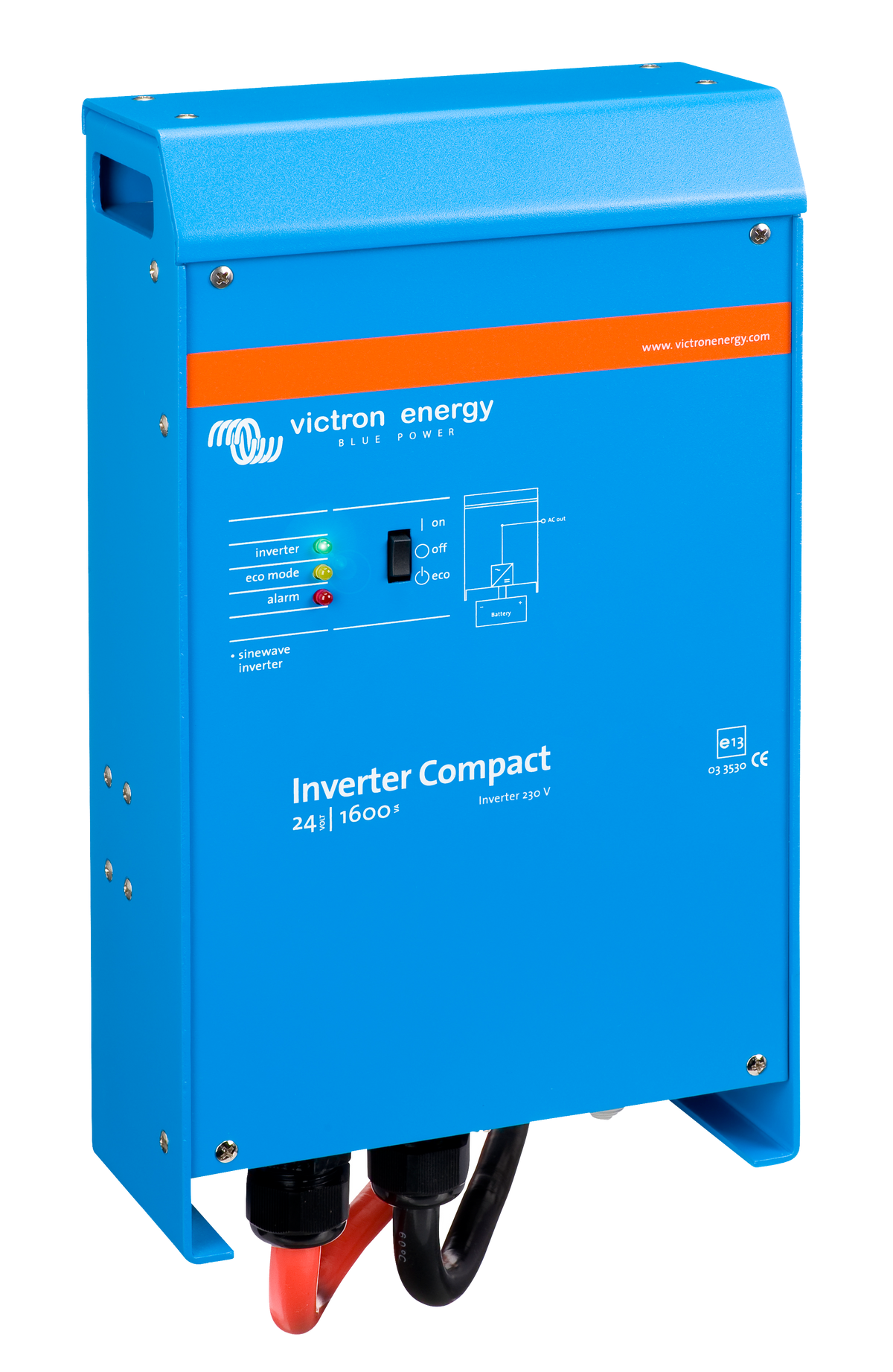

Victron Inverter Compact 24/1600 230V VE.Bus - CIN242160000
Victron Inverter Compact 24/1600 230V VE.Bus - CIN242160000
SKU:CIN242160000
Brand: Victron
In stock
This is pre-order - Available in 7 – 10 days
Couldn't load pickup availability
Product Details
Product Details
The Victron Inverter Compact 24/1600 230V VE.Bus is engineered to provide reliable and efficient AC power for 24V systems. With a continuous output of 1600VA, it ensures stable operation of sensitive equipment. The inverter's pure sine wave output is suitable for a wide range of applications, including off-grid solar systems, marine vessels, and mobile setups.
Key Features:
- Pure Sine Wave Output: Delivers clean and stable power for sensitive electronics.
- VE.Bus Communication: Enables integration with other Victron devices and remote monitoring.
- Compact Design: Space-saving enclosure suitable for installations with limited space.
- High Efficiency: Optimises energy use, reducing operational costs.
- Professional Duty: Built to withstand demanding conditions and provide long-term reliability.
Whether you're outfitting a boat, RV, or off-grid cabin, the Victron Inverter Compact 24/1600 offers the performance and reliability needed to power your essential devices.
Product Specifications
Product Specifications
Inverter Specifications
- Input Voltage Range: 19 – 33 VDC
- Output Voltage: 230 VAC ± 2% (Adjustable to 240 VAC)
- Output Frequency: 50 Hz ± 0.1% (Adjustable to 60 Hz)
- Cont. Output Power at 25°C: 1600 VA
- Cont. Output Power at 25°C: 1300 W
- Cont. Output Power at 40°C: 1200 W
- Cont. Output Power at 65°C: 800 W
- Peak Power: 3000 W
- Maximum Efficiency: 94%
- Zero-Load Power: 10 W
- Zero-Load Power (AES Mode): 8 W
- Zero-Load Power (Search Mode): 3 W
Features & Connectivity
- Parallel and 3-Phase Operation: Up to 6 units can operate in parallel to achieve higher power output; operation in 3-phase configuration is also supported.
- VE.Bus Communication Port: Enables parallel and three-phase operation, remote monitoring, and system integration.
- Programmable Relay: Can be configured for general alarms, DC under-voltage signaling, or generator start/stop functions (AC rating: 230V/4A, DC rating: 4A up to 35VDC).
- Remote On/Off: Dedicated terminal included for remote control.
- Computer Integration: Parameters such as output voltage, frequency, and alarm settings can be customized via VictronConnect or VEConfigure software using an MK3-USB interface.
- GX Device Compatibility: Can be connected to a GX device (e.g., Cerbo GX) for intuitive system control and monitoring.
Mechanical & Enclosure
- Dimensions (H x W x D): 375 x 214 x 110 mm
- Weight: 10 kg
- Material & Colour: Aluminium (Blue RAL 5012)
- Protection Category: IP21
- Battery Connection: 1.5-meter battery cables included
- 230V AC Connection: G-ST18i plug
Environmental & Standards
- Operating Temperature Range: -40 to +65°C (Fan-assisted cooling)
- Humidity: Max 95% (Non-condensing)
- Safety Standard: EN 60335-1
- Emission/Immunity: EN 55014-1 / EN 55014-2
- Integrated Protections: Output short circuit, overload, battery voltage too high/low, temperature too high, 230 VAC on inverter output, and input voltage ripple too high.
Technical Specifications
Technical Specifications
| Inverter Rating | 1600VA |
|---|---|
| Voltage | 24V |
| Protection | IP21 - Indoor |
| Weight KG | 10 |
