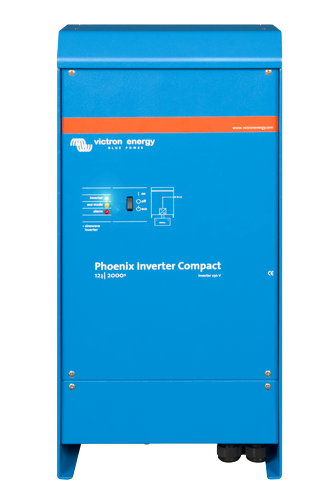

Victron Phoenix Inverter Compact 12/2000 230V VE.Bus
Victron Phoenix Inverter Compact 12/2000 230V VE.Bus
SKU:CIN122200000
Brand: Victron
Pure Sine Wave Output
High Efficiency & Compact Design
Professional Duty Reliability
Communication Capable (VE.Bus)
Multiple Variant Range (1200-2000VA)
Dimensions: 520 x 255 x 125mm
Weight: 12kg
In stock
This is pre-order - Available in 7 – 10 days
Regular price
£610.00 GBP
Regular price
Sale price
£610.00 GBP
Quantity
Couldn't load pickup availability
Product Details
Product Details
The Victron Phoenix Inverter Compact 1200-2000VA is a robust, high-efficiency inverter built for demanding applications. It delivers a pure sine wave AC output from a DC source (12 V or 24 V), with efficiency and reliability prioritised.
It is engineered for professional duty and is suitable for marine, off-grid, vehicle and mobile installations, allowing reliable operation of sensitive electronics.
The inverter supports VE.Bus communication for system integration and monitoring.
Product Specifications
Product Specifications
Inverter Specifications
- Input Voltage Range: 9.5 – 17 VDC
- Output Voltage: 230 VAC ± 2% (Adjustable to 240 VAC)
- Output Frequency: 50 Hz ± 0.1% (Adjustable to 60 Hz)
- Cont. Output Power at 25°C: 2000 VA
- Cont. Output Power at 25°C: 1600 W
- Cont. Output Power at 40°C: 1450 W
- Cont. Output Power at 65°C: 1000 W
- Peak Power: 4000 W
- Maximum Efficiency: 92%
- Zero-Load Power: 9 W
- Zero-Load Power (AES Mode): 7 W
- Zero-Load Power (Search Mode): 3 W
Features & Connectivity
- SinusMax Technology: Specifically engineered to provide very high start-up power for high-surge appliances.
- Parallel and 3-Phase Operation: Up to 6 units can operate in parallel to achieve higher power output; operation in 3-phase configuration is also supported.
- VE.Bus Communication Port: Enables seamless parallel and three-phase operation, remote monitoring, and system integration.
- Programmable Relay: Can be configured for general alarms, DC under-voltage signaling, or generator start/stop functions (AC rating: 230V/4A, DC rating: 4A up to 35VDC).
- Remote On/Off: Includes a dedicated terminal for remote control operation.
- Software Customization: Parameters like output voltage, frequency, and alarm settings can be tailored using VictronConnect or VEConfigure software via an MK3-USB interface.
- GX Device Compatibility: Can be connected to a GX device (e.g., Cerbo GX) for intuitive system control and monitoring.
Mechanical & Enclosure
- Dimensions (H x W x D): 520 x 255 x 125 mm
- Weight: 12 kg
- Material & Colour: Aluminium (Blue RAL 5012)
- Protection Category: IP21
- Battery Connection: 1.5-meter battery cables included
- 230V AC Connection: G-ST18i plug
Environmental & Standards
- Operating Temperature Range: -40 to +65°C (Fan-assisted cooling)
- Humidity: Max 95% (Non-condensing)
- Safety Standard: EN 60335-1
- Emission/Immunity: EN 55014-1 / EN 55014-2
- Integrated Protections: Output short circuit, overload, battery voltage too high/low, temperature too high, 230 VAC on inverter output, and input voltage ripple too high.
Technical Specifications
Technical Specifications
| Inverter Rating | 2000VA |
|---|
