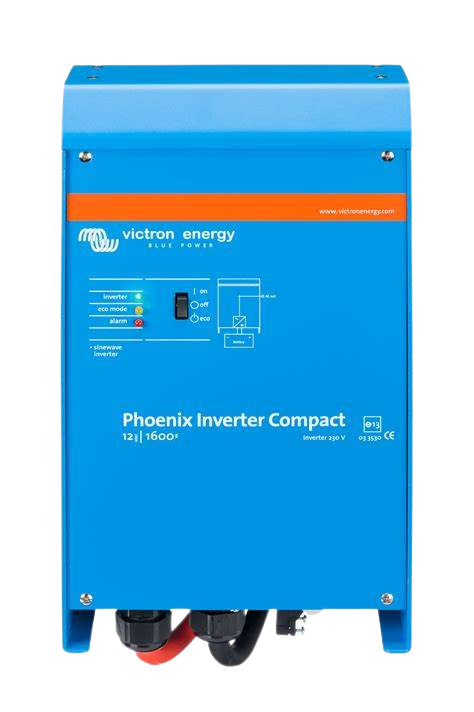

Victron Phoenix Inverter Compact 12/1600 230V VE.Bus
Victron Phoenix Inverter Compact 12/1600 230V VE.Bus
SKU:CIN122160000
Brand: Victron
In stock
This is pre-order - Available in 7 – 10 days
Couldn't load pickup availability
Product Details
Product Details
Reliable, compact, and built for performance the Victron Phoenix Inverter Compact 12/1600 230V VE.Bus delivers dependable 230V AC power from a 12V DC source, making it the perfect solution for off-grid, marine, and mobile energy systems. Designed for professionals who value both quality and practicality, this inverter combines high efficiency with exceptional power handling in a lightweight, space-saving design.
Powered by Victron’s advanced SinusMax technology, the Phoenix Compact delivers a pure sine wave output with a continuous 1600VA power capacity and remarkable peak power for demanding appliances such as fridges, pumps, or compressors. This ensures stable, clean energy suitable for sensitive electronics, giving you household-quality power wherever you are.
With a high efficiency rating of up to 92%, it makes the most of every amp-hour, reducing energy loss and preserving battery life. Its compact size (approximately 375 mm × 214 mm × 110 mm, weight around 10 kg) makes installation straightforward in tight spaces, whether it’s a campervan, boat, or remote cabin setup.
The integrated VE.Bus communication port allows for seamless connection with Victron’s GX devices for full system monitoring and remote management. You can easily expand your setup by running multiple inverters in parallel or three-phase configurations, offering flexibility as your power needs grow.
Built with durability in mind, the Phoenix Compact features comprehensive electronic protection against overload, short-circuit, and temperature extremes, ensuring safe and reliable operation even in challenging conditions. Its quiet operation and robust design make it a trusted choice for anyone seeking dependable off-grid power.
Whether you’re powering your campervan adventures, running essential systems onboard a yacht, or ensuring backup energy for remote applications, the Victron Phoenix Inverter Compact 12/1600 offers the perfect balance of performance, safety, and efficiency.
Ideal for: Off-grid power systems, campervans, marine installations, mobile workshops, and remote energy setups.
Product Specifications
Product Specifications
Inverter Performance
- Cont. Output Power at 25°C: 1600 VA
- Cont. Output Power at 25°C: 1300 W
- Cont. Output Power at 40°C: 1200 W
- Cont. Output Power at 65°C: 800 W
- Peak Power: 3000 W
- Output Voltage: 230 VAC ± 2% (Adjustable to 240V)
- Frequency: 50 Hz ± 0.1% (Adjustable to 60 Hz)
- Nominal Input Voltage: 12 VDC
- Input Voltage Range: 9.5 – 17 VDC
- Maximum Efficiency: 92%
Power Consumption
- Zero Load Power: 8 W
- Zero Load Power (AES Mode): 5 W
- Zero Load Power (Search Mode): 2 W
Functional Features
- SinusMax Technology: Provides very high start-up power for difficult inductive loads.
- VE.Bus Communication Port: Supports parallel operation (up to 6 units), three-phase configuration, and remote monitoring/system integration.
- Programmable Relay: Can be configured for general alarms, DC under-voltage, or generator start/stop functions (AC rating: 230V / 4A; DC rating: 4A up to 35VDC).
- Remote On-Off: Features dedicated terminals for remote switching.
- Customizable Parameters: Using a PC and the MK3-USB interface, users can adjust output voltage, frequency, and voltage thresholds.
Protection & Environmental
- Integrated Protections: Output short circuit, overload, battery voltage (too high/low), temperature (too high), 230 VAC on inverter output, and input voltage ripple (too high).
- Operating Temperature Range: -40 to +65°C (fan-assisted cooling).
- Humidity: Maximum 95% (non-condensing).
Mechanical Specifications
- Enclosure Material: Aluminium
- Enclosure Color: Blue RAL 5012
- Protection Category: IP21
- Dimensions (h x w x d): 375 x 214 x 110 mm
- Unit Weight: 10 kg
- Battery Connection: 1.5-meter battery cables included.
- 230V AC Connection: G-ST18i plug.
Standards & Compliance
- Safety: EN 60335-1
- Emission / Immunity: EN 55014-1 / EN 55014-2
Technical Specifications
Technical Specifications
| Inverter Rating | 1600VA |
|---|
