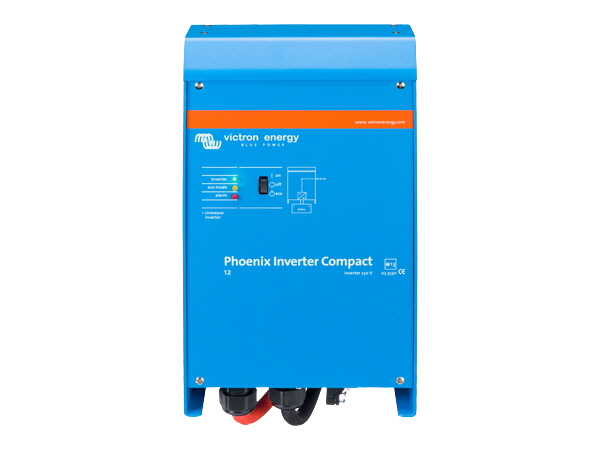

Victron Phoenix Inverter Compact 12/1200 VE.Bus – 12V 1200VA Pure Sine Wave Inverter
Victron Phoenix Inverter Compact 12/1200 VE.Bus – 12V 1200VA Pure Sine Wave Inverter
SKU:CIN122120000
Brand: Victron
Max constant power 1200VA.
Pure sine wave inverter.
For 12V systems.
Quiet, efficient and reliable.
Dimensions: 375 x 214 x 110 mm
Weight: 10kg
In stock
This is pre-order - Available in 7 – 10 days
Regular price
£378.00 GBP
Regular price
Sale price
£378.00 GBP
Quantity
Couldn't load pickup availability
Product Details
Product Details
Victron Phoenix Inverter Compact 12/1200 230V VE.Bus – CIN122120000
The Phoenix Inverter Compact 12/1200 by Victron is a high-efficiency, pure sine wave inverter designed for professional duty, catering to a diverse range of applications. With a compact size, lightweight design, and advanced SinusMax technology, this inverter ensures optimal performance without compromising efficiency.
Key Features:
SinusMax Technology: Superior Engineering
Engineered for professional duty, the Phoenix Inverter Compact delivers a true sine wave with optimized efficiency.
Hybrid HF (high frequency) technology ensures a top-quality product with compact dimensions and lightweight construction.
Key Features:
SinusMax Technology: Superior Engineering
Engineered for professional duty, the Phoenix Inverter Compact delivers a true sine wave with optimized efficiency.
Hybrid HF (high frequency) technology ensures a top-quality product with compact dimensions and lightweight construction.
Extra Start-Up Power:
SinusMax technology provides exceptionally high start-up power, making it suitable for challenging loads like refrigeration compressors and electric motors.
Parallel and 3-Phase Operation:
Achieve virtually unlimited power by operating up to 6 units in parallel.
3-phase configuration is possible, enhancing flexibility for different power setups.
Automatic Transfer Switch:
For transferring the load to another AC source, an automatic transfer switch is recommended (MultiPlus inverter/charger).
The MultiPlus offers a short switchover time (less than 20 milliseconds), ensuring uninterrupted operation for computers and electronic equipment.
Communications Interface:
Equipped with a VE.Bus port for seamless communication.
Connect to a PC using the MK3-USB VE.Bus to USB interface and customize inverter parameters with VictronConnect or VEConfigure software.
VE.Bus port allows connection to a GX device (e.g., Cerbo GX) for monitoring and control.
Control Over System:
Connect to the Victron Remote Management (VRM) portal through the Cerbo GX for remote monitoring and control.
Direct access via GX Touch, a Multi-Function Display (MFD), or the VictronConnect App with Bluetooth capability.
Redefines smart power solutions with advanced connectivity options.
Product Specifications
Product Specifications
Inverter Specifications
- Nominal Battery Voltage: 12 V
- Input Voltage Range: 9.5 – 17 V
- Continuous Output Power at 25°C: 1200 VA
- Continuous Output Power at 25°C: 1000 W
- Continuous Output Power at 40°C: 900 W
- Continuous Output Power at 65°C: 600 W
- Peak Power: 2400 W
- Maximum Efficiency: 92 %
- Zero Load Power: 8 W
- Zero Load Power (AES Mode): 5 W
- Zero Load Power (Search Mode): 2 W
- Output Voltage: 230 VAC ± 2 % (Adjustable to 240 VAC)
- Output Frequency: 50 Hz ± 0.1 % (Adjustable to 60 Hz)
General & Smart Features
- SinusMax Technology: Provides very high start-up power, making it suitable for difficult loads that conventional high-frequency technology cannot handle.
- Parallel and 3-Phase Operation: Up to 6 units can operate in parallel to achieve higher power output. It can also be configured for three-phase operation.
- VE.Bus Communication Port: Used for parallel and three-phase operation, remote monitoring, and system integration.
- Programmable Relay: Features a relay that can be set for general alarms, DC under-voltage, or generator start/stop functions.
- Remote On-Off: Yes
- Computer Integration: Connect to a PC via an MK3-USB interface for custom parameter settings (voltage, frequency, alarms) using VictronConnect or VEConfigure software.
- System Monitoring: Compatible with GX devices (such as a Cerbo GX) for comprehensive monitoring and control.
Mechanical Specifications
- Enclosure Material & Colour: Aluminium (Blue RAL 5012)
- Protection Category: IP21
- Dimensions (h x w x d): 375 x 214 x 110 mm
- Weight: 10 kg
- Battery Connection: 1.5-meter battery cables included
- 230 VAC Connection: G-ST18i plug
- Operating Temperature Range: -40 to +65 °C (fan assisted cooling)
- Humidity: Max 95 % (non-condensing)
Protection & Standards
- Integrated Protection: Output short circuit, overload, battery voltage high, battery voltage low, temperature high, 230 VAC on inverter output, and input voltage ripple high.
- Safety: EN 60335-1
- Emission / Immunity: EN 55014-1 / EN 55014-2
Technical Specifications
Technical Specifications
| Inverter Rating | 1200VA |
|---|
