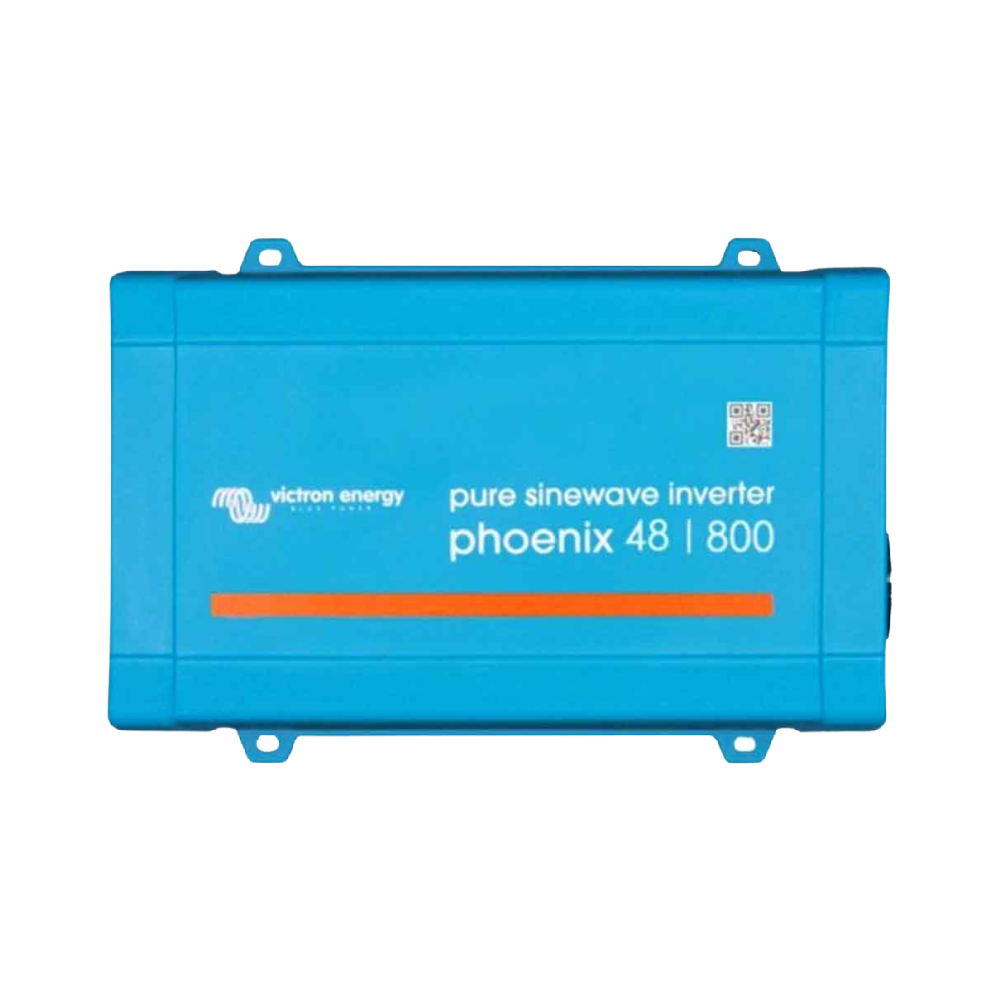

Victron Phoenix Inverter 48/800 230V VE.Direct UK

Technical Specifications

Combined for SKUs: PIN481801400

A COutlet Socket: UK (BS 1363)

AC Output Voltage: 230 V

Automotive Directive: ECE R10-4

Battery Charged Detection Voltage: 56 V

Battery Voltage Nominal: 48 V

Colour: Blue (RAL 5012)

Communication Port: VE.Direct

Continuous Power (VA, 25°C): 800 VA

Continuous Power (W, 25°C): 650 W

Continuous Power (W, 40°C): 560 W

D CLow Restart Alarm: 43.6 V

D CLow Shut Down: 37.2 V

DC Input Voltage Range: [36.8, 62] V

Depth: 305 mm

Dynamic Low DCShutdown: Yes

E MC: EN 55014-1,EN 55014-2,EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-6-3

Eco Mode Retry Interval: 2.5 s

Eco Mode Stop Start Power Setting: Adjustable

Frequency: 50 Hz

Fully Programable: Yes

Height: 105 mm

Material: Steel chassis and plastic cover

Max Efficiency: 91 %

Max Humidity: 95 %

Peak Power Rating: 1,500 W

Power Deration: 1.25 %

Protection Category: IP21

Protections: Excessive DC ripple,High battery voltage,Low battery voltage,Output short-circuit,Over temperature,Overload

Remote On Off Terminal: Yes

Remote Terminal: Screw terminal two pole

Safety: EN-IEC 60335-1,EN-IEC 62109-1

Weight: 5.5 kg

Width: 216 mm

Zero Load Power: 6.5 W

Zero Load Power Eco Mode: 3 W

Source: Victron
