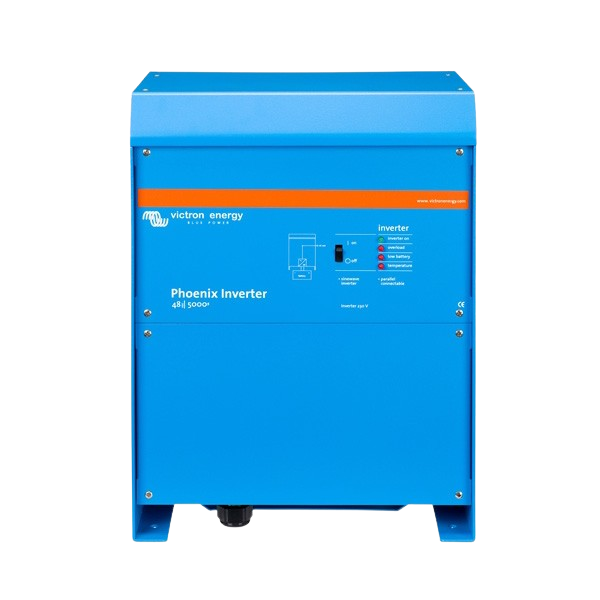

Victron Phoenix Inverter 48/5000 230V VE.Bus
Victron Phoenix Inverter 48/5000 230V VE.Bus
SKU:PIN485020000
Brand: Victron
In stock
This is pre-order - Available in 7 – 10 days
Couldn't load pickup availability
Product Details
Product Details
Phoenix Inverter
Pure sine wave output, high peak power and high efficiency. Combined high frequency and line frequency technologies ensure the best of both worlds.
SinusMax - Superior engineering
Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimised efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem free, to any load.
Parallel and 3-phase operation capability
Up to 6 Phoenix Inverters can operate in parallel to achieve higher power output. Six 24V 5000VA units, for example, will provide 24kW / 30kVA output power. Operation in 3-phase configuration is also possible.
Models:
3000VA - 5000VA
UD1122
Product Specifications
Product Specifications
Technical Specifications
Combined for SKUs: PIN485020000
AC Output Voltage: 230 V
Ac Connection: Screw terminals
Battery Connection: M8 bolts (two for positive and two for negative connection)
Battery Voltage Nominal: 48 V
Colour: Blue (RAL 5012)
Communication Port: VE.Bus
Continuous Power (VA, 25°C): 5,000 VA
Continuous Power (W, 25°C): 4,000 W
Continuous Power (W, 40°C): 3,700 W
Continuous Power (W, 65°C): 3,000 W
Cooling: Yes
DC Input Voltage Range: [38, 66] V
Depth: 240 mm
E MC: EN 55014-1,EN 55014-2
Frequency Select: 50Hz or 60Hz
Fully Programable: Yes
Height: 444 mm
Material: Aluminium
Max Efficiency: 95 %
Max Humidity: 95 %
Parallel3phase: Yes
Peak Power Rating: 10,000 W
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Protection Category: IP21
Protections: Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,AC voltage on inverter output,Excessive DC ripple
Relay Terminal: Screw terminal 3-pole
Remote On Off Terminal: Yes
Remote Terminal: Screw terminal two pole
Safety: EN-IEC 60335-1
Weight: 30 kg
Width: 328 mm
Zero Load Power: 35 W
Zero Load Power (AES): 30 W
Zero Load Power (Search): 15 W
Source: Victron
Shipping & Collection
Shipping & Collection
Technical Specifications
Technical Specifications
| Inverter Rating | 5000VA |
|---|
