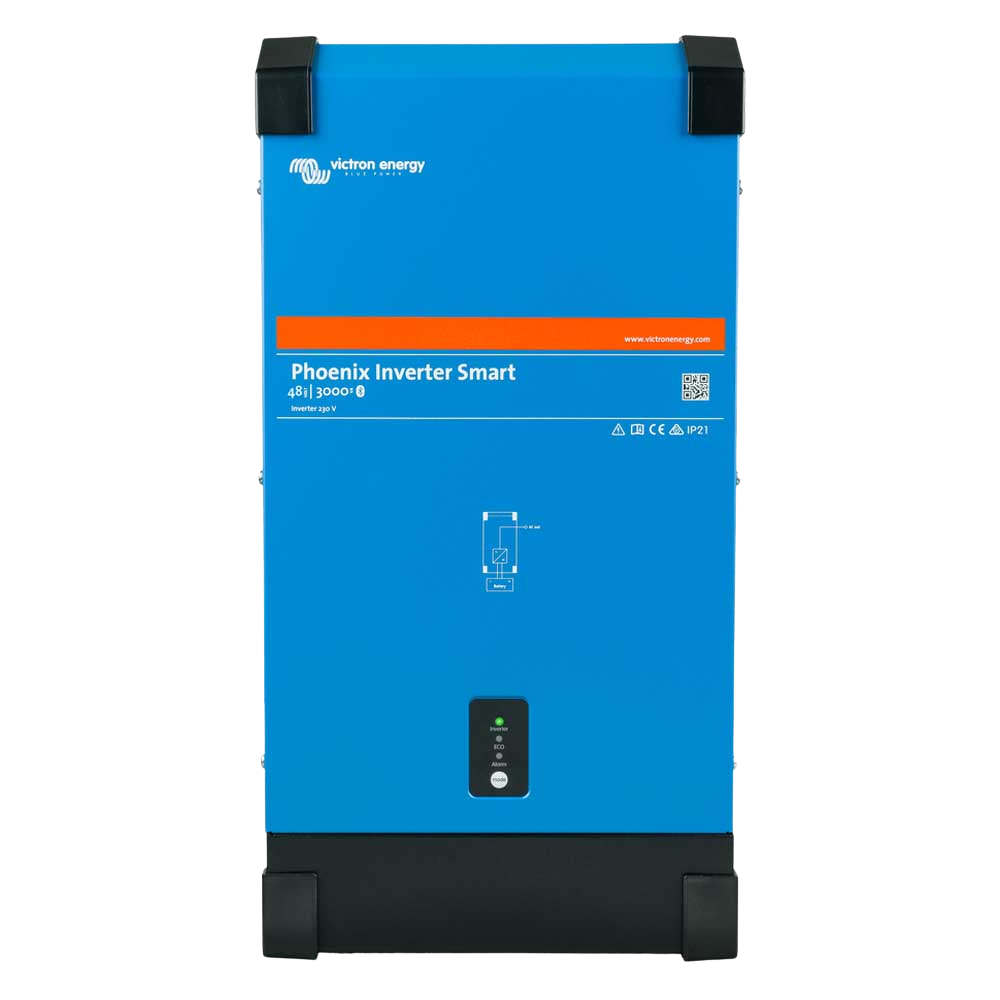

Victron Phoenix Inverter 48/3000 230V Smart
Victron Phoenix Inverter 48/3000 230V Smart
SKU:PIN482300000
Brand: Victron
In stock
This is pre-order - Available in 7 – 10 days
Couldn't load pickup availability
Product Details
Product Details
The Victron Energy Phoenix Inverter 48/3000 230 V Smart (SKU: PIN482300000) is a high-performance power inverter designed for professional, off-grid, and mobile applications. Built for reliability and efficiency, it converts 48 V DC battery power into a stable 230 V AC true sine-wave output, delivering 3000 VA continuous power with robust surge capability.
Constructed with a durable metal casing and a toroidal transformer, the Phoenix 48/3000 Smart provides consistent, low-noise operation and high surge power for demanding loads such as refrigeration units, power tools, and other inductive equipment. It is engineered for long-term use in trade environments where consistent performance and electrical integrity are essential.
Smart connectivity is built in. Bluetooth and VE.Direct interfaces allow users to configure and monitor the inverter from a smartphone, tablet, or computer. Settings such as alarm thresholds, voltage cut-offs, and ECO-mode can be adjusted in real time using the VictronConnect app. This makes system management simple for installers and operators working in the field.
Efficiency is another key strength. Typical operating efficiency is around 94 %, helping extend battery life and reduce wasted energy. The inverter’s ECO-mode automatically reduces power consumption during periods of low load, improving overall system sustainability.
Designed for versatility, it’s ideal for mobile workshops, remote power installations, backup systems, and off-grid commercial operations. Built-in protection against overload, short circuit, high or low battery voltage, and overheating ensures dependable operation in demanding conditions.
Product Specifications
Product Specifications
Inverter Specifications
- Nominal Battery Voltage: 12 VDC
- Input Voltage Range: 9.5 – 17 VDC
- Continuous Output Power at 25°C: 5000 VA
- Continuous Output Power at 25°C: 4000 W
- Continuous Output Power at 40°C: 3700 W
- Continuous Output Power at 65°C: 3000 W
- Peak Power: 10000 W
- Output Voltage: 230 VAC ± 2%
- Output Frequency: 50 Hz ± 0.1% (Adjustable to 60 Hz)
- Maximum Efficiency: 94%
- Zero Load Power: 30 W
- Zero Load Power in AES Mode: 20 W
- Zero Load Power in Search Mode: 10 W
- Maximum Continuous Output Current: 19 A
- Maximum Output Fault Current: 53 A peak (1 sec)
Charger Specifications
- AC Input Voltage Range: 187 – 250 VAC
- Input Frequency: 50/60 Hz
- Charge Voltage 'Absorption': 14.4 VDC
- Charge Voltage 'Float': 13.8 VDC
- Storage Mode: 13.2 VDC
- Charge Current House Battery: 220 A
- Charge Current Starter Battery: 4 A
- Battery Temperature Sensor: Yes
Key Features & Connectivity
- Two AC Inputs: Integrated transfer switch for automatic connection to the active source.
- Two AC Outputs: Main output (no-break) and a second output that is only live when AC is available on one of the inputs (ideal for heavy loads like water heaters).
- Maximum Feed-Through Current: 2x 100 A
- PowerControl & PowerAssist: Allows for setting a current limit on AC inputs to prevent overloading generators or shore power, and supplements the capacity of the alternative source with battery power during peak loads.
- Parallel Operation: Up to 6 units can be parallel connected to achieve higher power output.
- Three-Phase Capability: Three units can be configured for three-phase output.
- Programmable Relays: 3x (Can be set for general alarm, DC under-voltage, or generator start/stop functions).
- Auxiliary Output: 50 A (Switches off when no external AC source is available).
- Communication Ports: VE.Bus for parallel/three-phase operation and remote monitoring; 2x general purpose COM ports.
- Remote Monitoring and Control: Compatible with Cerbo GX, smartphone or tablet (Bluetooth Smart), and PC (USB or RS232).
Mechanical Specifications
- Dimensions (H x W x D): 470 x 350 x 280 mm
- Weight: 34 kg
- Material & Colour: Aluminium (Blue RAL 5012)
- Protection Category: IP20
- Battery Connection: Four M8 bolts (2 positive and 2 negative)
- 230V AC Connection: M6 Bolts
- Operating Temperature Range: -20 to +60°C
- Humidity: Max 95% (non-condensing)
Standards & Protections
- Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
- Emission/Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
- Road Vehicles: ECE R10-4
- Integrated Protections: Output short circuit, overload, battery voltage too high/low, temperature too high, 230 VAC on inverter output, and input voltage ripple too high.
Technical Specifications
Technical Specifications
| Inverter Rating | 3000VA |
|---|
