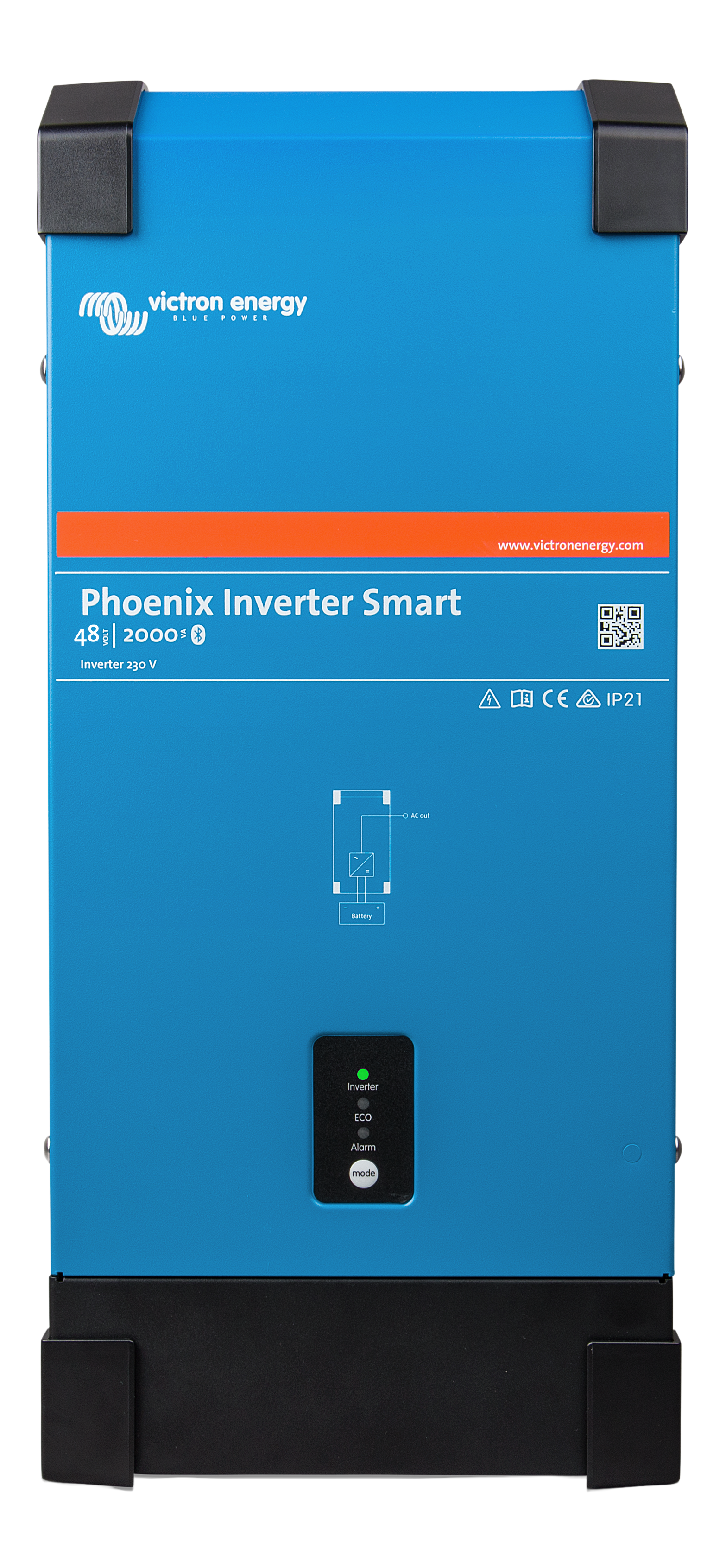

Victron Phoenix Inverter 48/2000 230V Smart
Victron Phoenix Inverter 48/2000 230V Smart
SKU:PIN482201000
Brand: Victron
In stock
This is pre-order - Available in 7 – 10 days
Couldn't load pickup availability
Product Details
Product Details
The Victron Phoenix Inverter 48/2000 230V Smart is a dependable power solution designed for professional installations that demand consistent, high quality output. Built for use across commercial vehicles, workshops, mobile welfare units, off grid systems and marine environments, it provides a stable 230V AC supply from a 48V battery bank. This makes it suitable for powering tools, appliances and electronic devices where mains access is unavailable.
This inverter uses advanced pure sine wave technology to protect equipment from irregular power delivery. Many sensitive items, such as computers, chargers and audio equipment, rely on clean power to operate correctly. The Phoenix range is known for durability, offering long service life under regular, heavy use. Its compact design helps installers fit the unit into tight spaces without sacrificing ventilation requirements.
Smart connectivity is a key advantage. Using the VictronConnect app, users can monitor performance, complete configuration tasks and update firmware via Bluetooth. This adds practical control during commissioning and reduces on site support time. Safety features include alarms for low battery voltage and overload, helping prevent damage to the inverter and connected systems.
The 2000VA output rating offers reliable capacity for a range of common equipment, and high peak power allows the unit to manage short demand spikes from devices with start up surge. High efficiency performance helps conserve battery energy, increasing system run time. The cooling system is engineered for reduced noise compared to lower grade inverters, which is useful in mobile welfare or marine environments where workspace comfort matters.
Victron products are supported by an established ecosystem of charge controllers, batteries, shunts and monitoring hardware. This makes the Phoenix Inverter 48/2000 230V Smart an ideal choice for installers building scalable systems. Its strong metal enclosure adds resilience, reducing the risk of damage during installation or transportation.
Choose the Victron Phoenix Inverter 48/2000 230V Smart when clean, dependable AC power is needed in off grid or mobile settings. Designed by a respected manufacturer with a proven track record, it offers consistent output, flexible configuration options and long term value for professional users.
Product Specifications
Product Specifications
Inverter Specifications
- Nominal Battery Voltage: 48 V
- Continuous Output Power at 25°C: 2000 VA
- Continuous Output Power at 25°C: 1600 W
- Continuous Output Power at 40°C: 1450 W
- Continuous Output Power at 65°C: 1000 W
- Peak Power: 4000 W
- Maximum Efficiency: 94%
- Zero-Load Power: 11 W
- Zero-Load Power in ECO Mode: 2.1 W
- Output Voltage: 210 – 245 V (Configurable)
- Output Frequency: 50 Hz or 60 Hz (Configurable)
- Dynamic Cut-off: Load-dependent DC low shut-down (Fully configurable)
Features & Connectivity
- Bluetooth Smart Built-in: Wireless monitoring and configuration of alarms, low battery cut-off and restart levels, output voltage, frequency, and ECO mode settings via the VictronConnect app.
- VE.Direct Communication Port: Allows for a wired connection to a computer (VE.Direct to USB cable needed) or a GX device (such as a Cerbo GX) for system integration and monitoring.
- ECO Mode: Automatically switches the inverter to standby when the load decreases below a preset value. In standby, the inverter searches for a load every 2.5 seconds (adjustable).
- Programmable Relay: Can be configured for a general alarm, DC under-voltage, or generator start/stop functions. (AC rating: 230V / 4A; DC rating: 4A up to 35VDC, 1A up to 60VDC).
- Remote On-Off: Features a two-pole connector for a remote switch or relay contact.
- LED Diagnosis: Provides visual status and alarm descriptions for easy troubleshooting.
- High Start-up Power: Capable of starting difficult loads such as power converters for LED lamps, halogen lamps, or electric tools.
Mechanical & Enclosure
- Dimensions (H x W x D): 485 x 219 x 125 mm
- Weight: 13 kg
- Enclosure Material & Colour: Steel (Blue RAL 5012 and Black RAL 9017)
- Protection Category: IP21
- Battery Connection: M8 bolts
- 230V AC Connection: Screw terminals
Environmental & Protection
- Operating Temperature Range: -40 to +65°C (Fan-assisted cooling)
- Humidity: Max 95% (Non-condensing)
- Integrated Electronic Protections:
- Output short circuit
- Overload
- Battery voltage too high / too low
- Temperature too high
- 230 VAC on inverter output
- Input voltage ripple too high
Standards & Certifications
- Safety Standards: EN 60335-1
- Emission/Immunity Standards: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
- Automotive Directive: ECE R10-5
Technical Specifications
Technical Specifications
| Inverter Rating | 2000VA |
|---|
