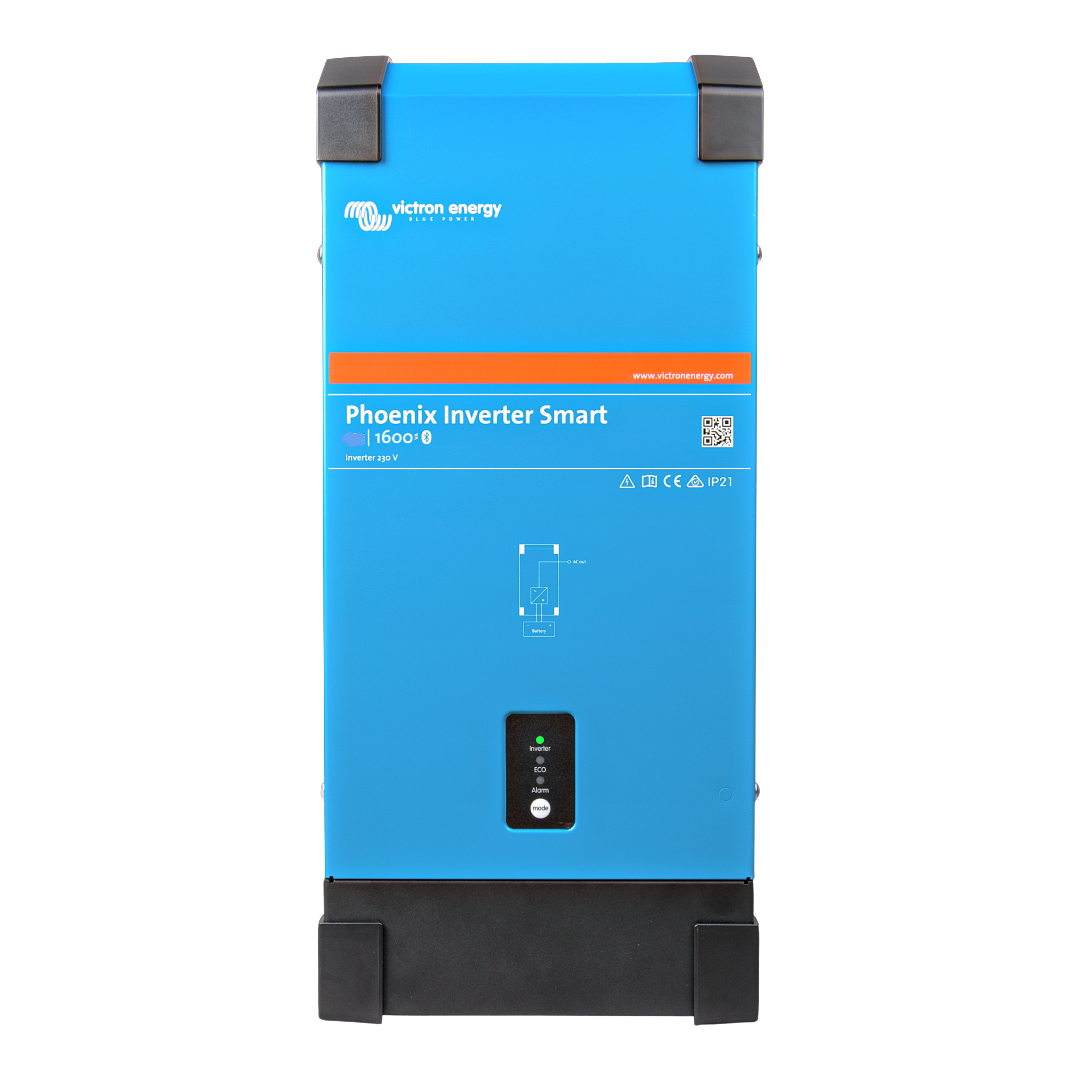

Victron Phoenix Inverter 48/1600 230V Smart
Victron Phoenix Inverter 48/1600 230V Smart
SKU:PIN482160000
Brand: Victron
In stock
This is pre-order - Available in 7 – 10 days
Couldn't load pickup availability
Product Details
Product Details
The Victron Phoenix Inverter 48/1600 230V Smart is designed for reliable power conversion in demanding commercial and industrial settings. Built on Victron’s high efficiency platform, it converts 48V DC battery power into a stable 230V AC output suitable for a wide range of professional equipment. This model combines performance, connectivity, and long-term durability, making it an ideal choice for mobile workshops, off-grid systems, marine installations, and backup applications.
Featuring a robust toroidal transformer, the inverter maintains high surge capability and low electrical noise. Sensitive electronics benefit from its pure sine wave output, ensuring clean and stable power. Trade users can depend on its ability to start motor-driven loads, power tools, lighting circuits, chargers, and communication equipment without voltage drop or flicker.
Smart compatibility sets this unit apart. Integrated Bluetooth allows configuration and monitoring through the VictronConnect app, providing access to system status, alarms, and performance metrics without the need for external hardware. Installers can fine-tune output settings, adjust alarms, and update firmware directly from a phone or tablet, improving service efficiency.
Energy usage can be further optimised with Eco mode. When enabled, the inverter automatically reduces output when loads are minimal and returns to full output when consumption increases. This feature helps reduce battery drain, extending run time and protecting system capacity.
The Phoenix range is engineered with safety in mind. It offers protection against overheating, short circuits, and battery polarity issues. Continuous output ratings are maintained even at high ambient temperatures, and short-term peak capacity supports equipment start-up demands.
Compact, lightweight, and simple to install, the Victron Phoenix Inverter 48/1600 230V Smart delivers dependable performance for trade professionals who require stable AC power anywhere. Backed by Victron’s proven reputation, it offers excellent system integration, long service life, and reliable operation under challenging conditions. For workshops, site vehicles, solar battery banks, or marine power systems, this inverter provides a professional-grade solution that maintains power quality when it is needed most.
Product Specifications
Product Specifications
Performance & Electrical Specifications
- Continuous Power at 25°C: 1600 VA
- Continuous Power at 25°C: 1300 W
- Continuous Power at 40°C: 1200 W
- Continuous Power at 65°C: 800 W
- Peak Power: 3000 W
- Output AC Voltage: 230 VAC ± 2% (Adjustable 210 – 245 V)
- Frequency: 50 Hz or 60 Hz ± 0.1%
- Nominal Input Voltage: 48 VDC
- Input Voltage Range: 37.2 – 68 V
- Maximum Efficiency: 94%
- Zero-load Power: 11 W
- Zero-load Power in ECO Mode: 2.1 W
Smart Features & Configuration
- Bluetooth Built-in: Fully configurable using a tablet or smartphone via the VictronConnect app.
- VE.Direct Communication Port: Allows connection to a computer (via VE.Direct to USB interface) or GX device (such as Cerbo GX) for advanced system monitoring and integration.
- ECO Mode: Automatically switches the inverter to standby when the load drops below a preset value. While in standby, the inverter pulses every 2.5 seconds (adjustable) to check for a load.
- Programmable Relay: Can be configured for general alarms, DC under-voltage, or generator start/stop functions.
- Remote On/Off: Features a dedicated two-pole connector for remote switching via a switch or relay contact.
- Monitoring Capabilities: Real-time tracking of input and output voltage, load percentage, and system alarms.
Protection & Environmental
- Integrated Protections: Output short circuit, overload, battery voltage (too high/low), temperature (too high), 230 VAC on inverter output, and input voltage ripple (too high).
- Operating Temperature Range: -40 to +65°C (fan-assisted cooling).
- Humidity: Maximum 95% (non-condensing).
Mechanical Specifications
- Enclosure Material: Steel (Blue RAL 5012 and Black RAL 9017)
- Protection Category: IP21
- Battery Connection: M8 bolts
- 230 VAC Connection: Screw terminals
- Dimensions (h x w x d): 485 x 219 x 125 mm
- Unit Weight: 12 kg
Standards & Compliance
- Safety: EN 60335-1
- Emission / Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
- Automotive Directive: ECE R10-5
Technical Specifications
Technical Specifications
| Inverter Rating | 1600VA |
|---|
