Victron Phoenix Inverter 24/5000 230V VE.Bus
Victron Phoenix Inverter 24/5000 230V VE.Bus
SKU:PIN245020000
Brand: Victron
In stock
This is pre-order - Available in 7 – 10 days
Couldn't load pickup availability
Product Details
Product Details
The Victron Phoenix Inverter 24/5000 (SKU PIN245020000) is a high-capacity, pure-sine wave inverter optimised for off-grid, backup and hybrid power systems. Operating from a 24 V DC supply, it delivers up to 5,000 VA (4,000 W) continuous output at 25 °C, making it suitable for demanding applications like pumps, motors, power tools and high-draw appliances. At higher ambient temperatures, it still provides a strong 3,700 W at 40 °C, and 3,000 W at 65 °C.
Built with Victron's SinusMax hybrid technology, this inverter delivers exceptional surge capacity—peaking at 10,000 W for starting large inductive loads. A built-in VE.Bus communication port enables system integrators to configure settings, monitor performance, and scale units by operating them in parallel (up to 6 units) or in 3-phase configurations.

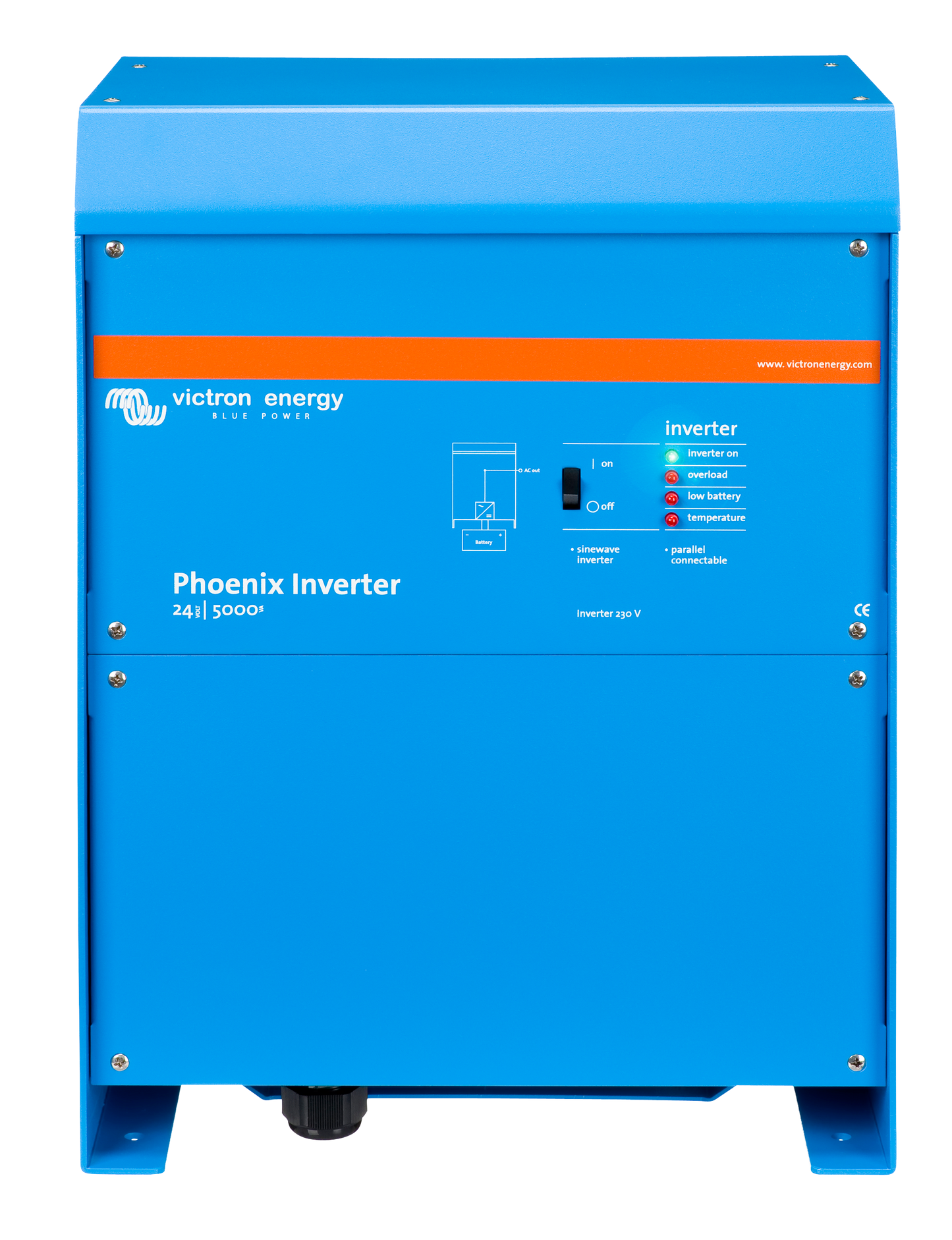

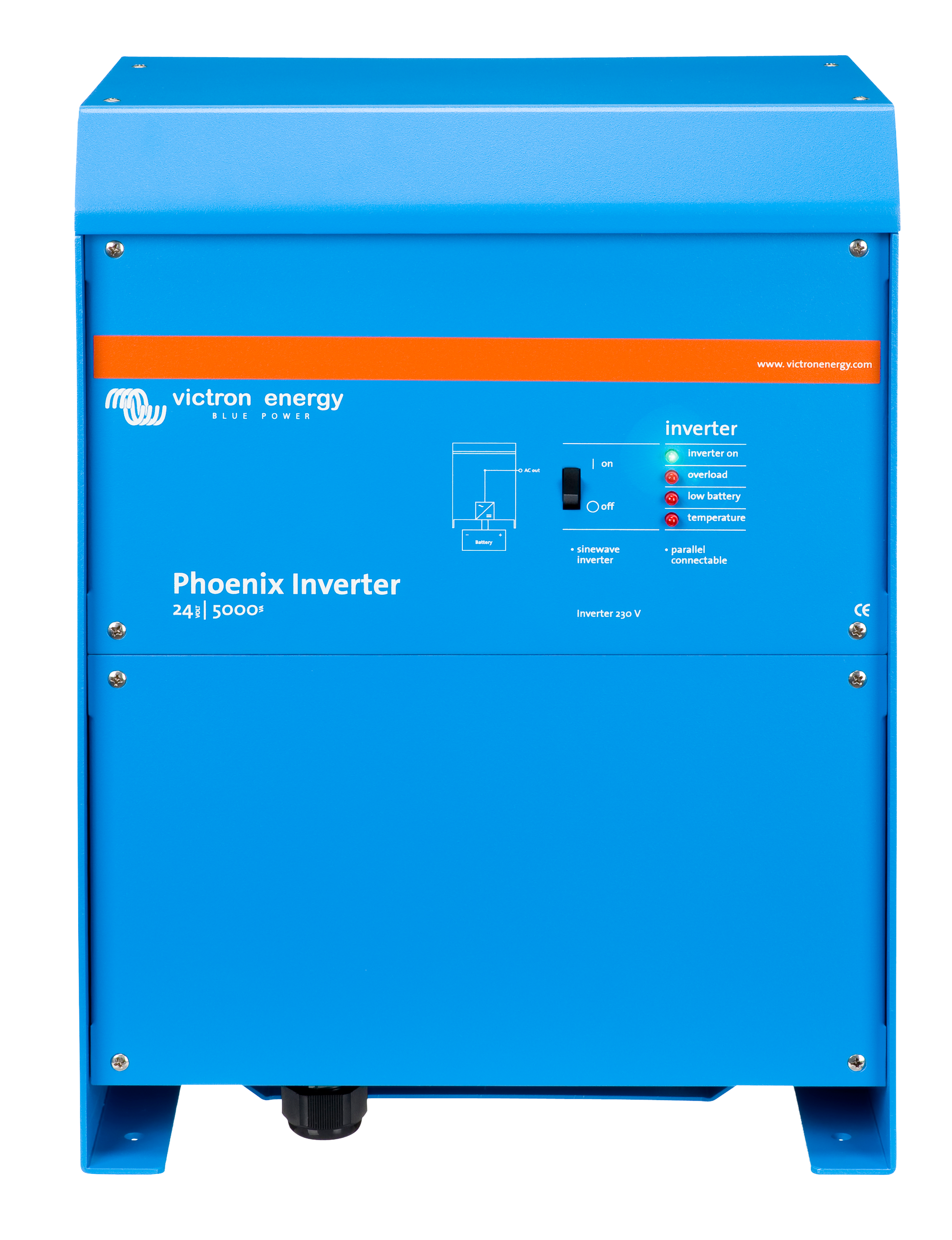

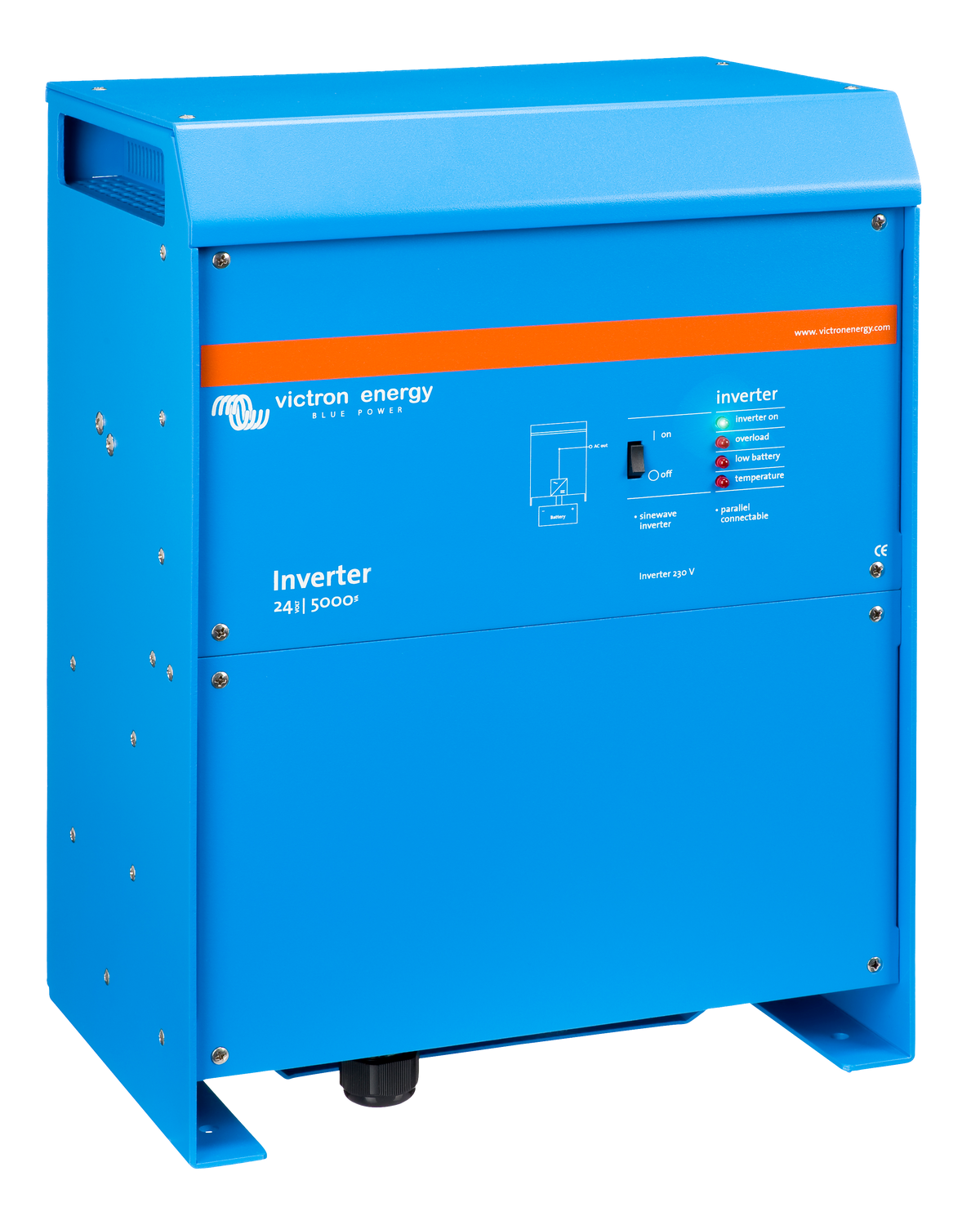

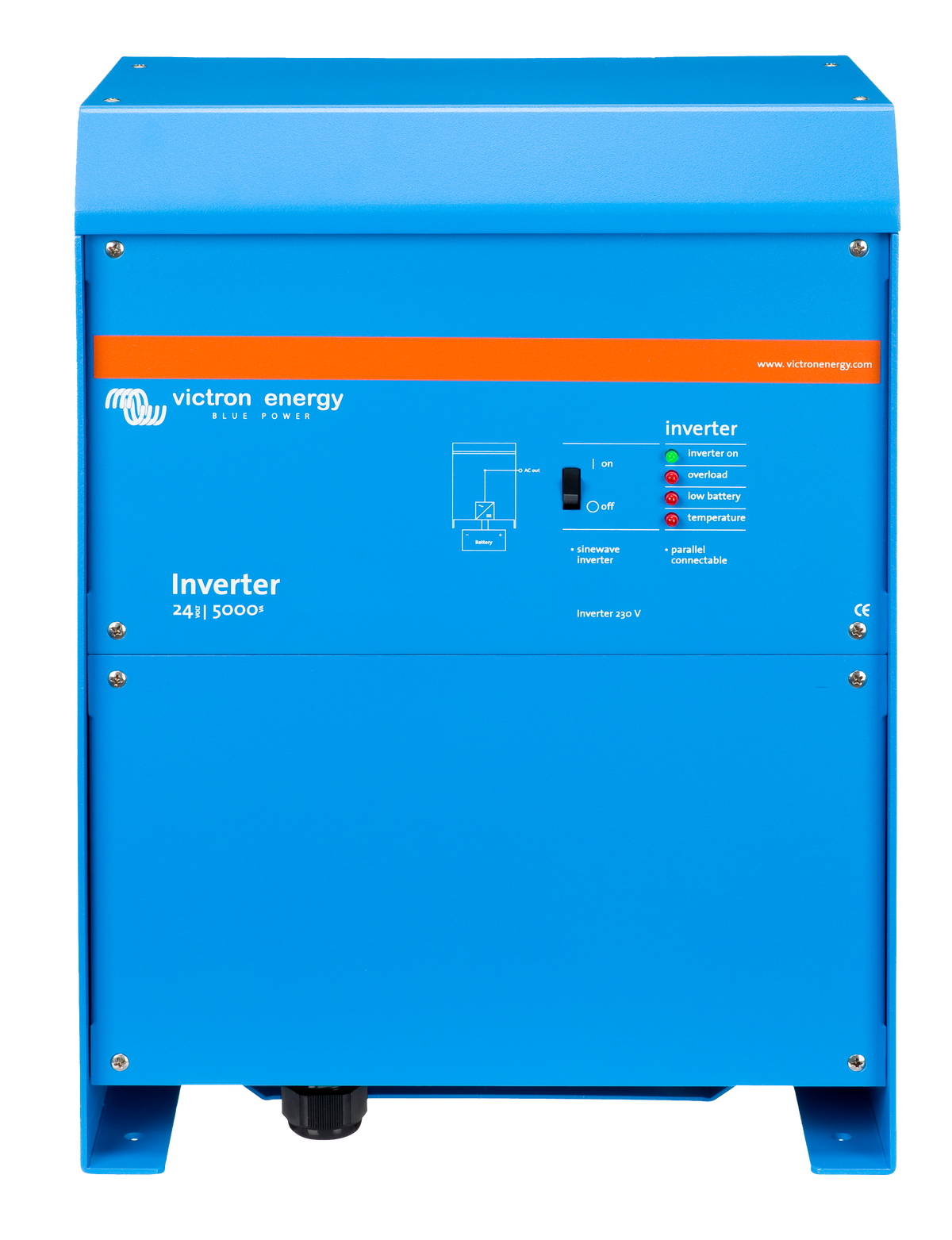

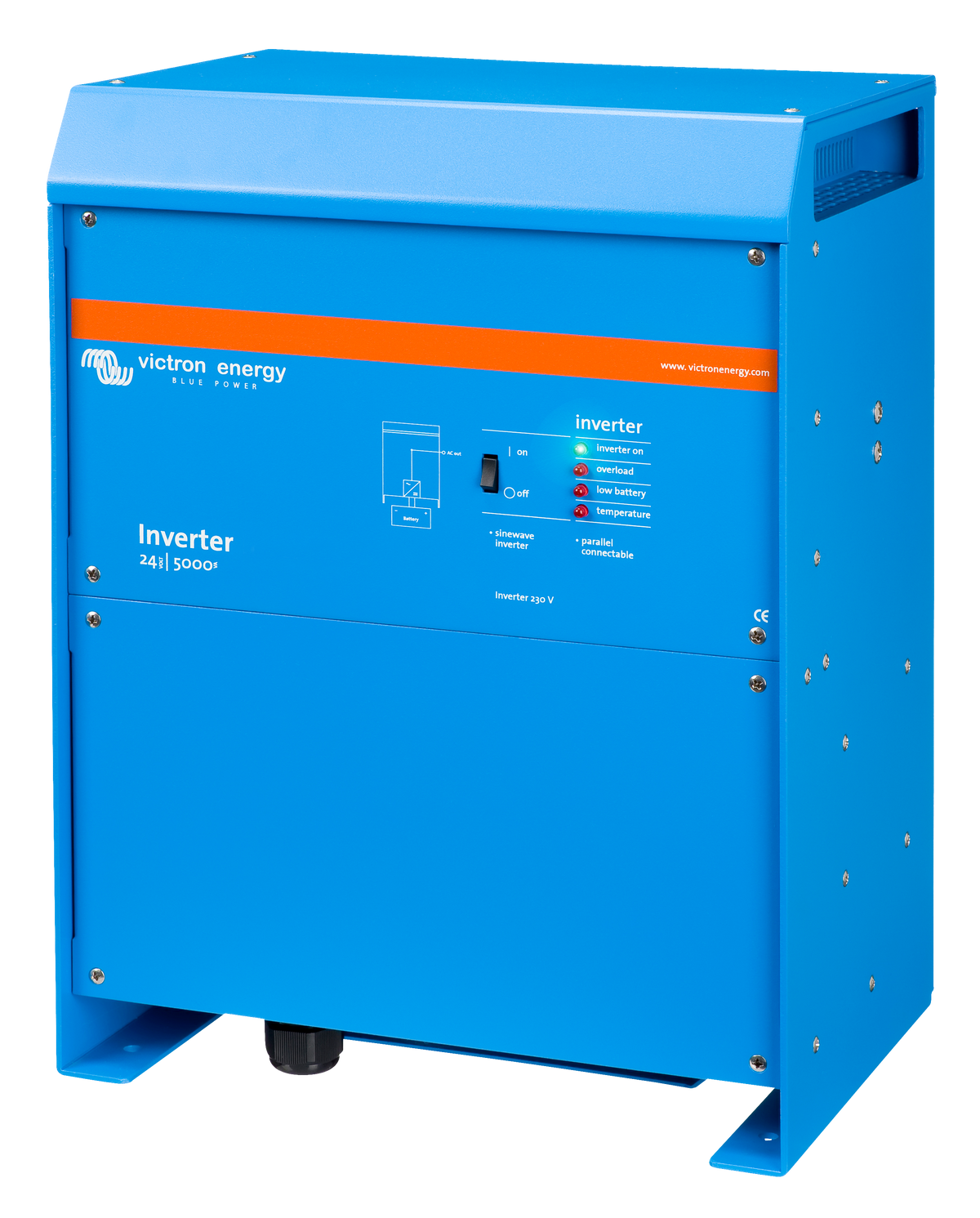

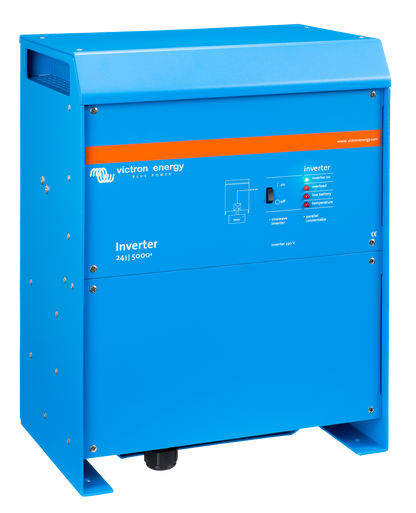

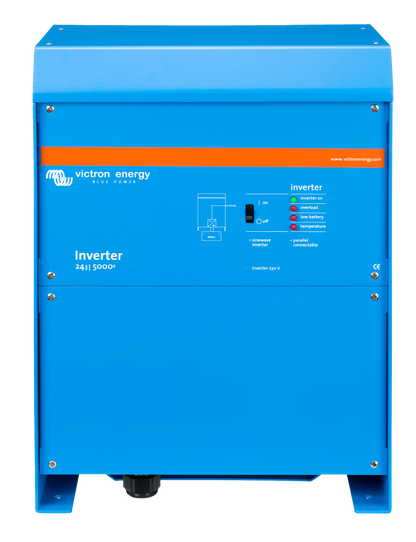

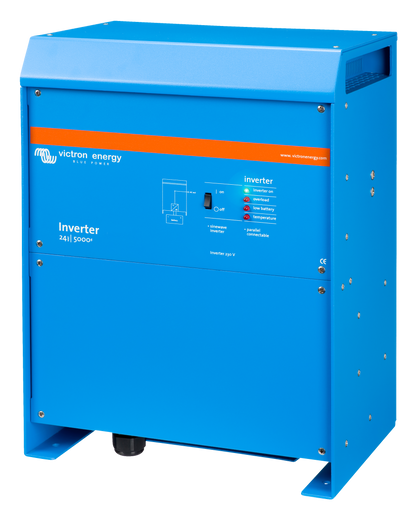

With a rugged aluminium housing in Victron’s signature blue, the unit is durable yet compact (444 × 328 × 240 mm) and weighs approximately 30 kg. It features M8 bolt battery connections (2 positive, 2 negative) for secure and reliable DC linkages.
The input voltage range is 19–33 V DC, allowing stable performance across typical 24 V battery banks and accommodating voltage fluctuations. For system safety and flexibility, the inverter offers protection against output short-circuits, overload, high or low battery voltage, over-temperature and excessive DC ripple. It also has a programmable relay for custom control and alarm logic.
The device can run in parallel or 3-phase setups, making it ideal for scalable systems where demand may grow or where redundancy is required. It's also built for professional installation, with screw terminals for AC output and efficient cooling via thermally controlled fan.
This model is IP21 rated, designed for dry, protected environments. It is commonly used in industrial battery systems, off-grid homes, commercial installations, and mobile applications where a reliable 230 V AC source is required. The 94% maximum efficiency and low idle power draw improve system efficiency, reducing waste and preserving battery capacity.
Product Specifications
Product Specifications
Technical Specifications
Combined for SKUs: PIN245020000
AC Output Voltage: 230 V
Ac Connection: Screw terminals
Battery Connection: M8 bolts (two for positive and two for negative connection)
Battery Voltage Nominal: 24 V
Colour: Blue (RAL 5012)
Communication Port: VE.Bus
Continuous Power (VA, 25°C): 5,000 VA
Continuous Power (W, 25°C): 4,000 W
Continuous Power (W, 40°C): 3,700 W
Continuous Power (W, 65°C): 3,000 W
Cooling: Yes
DC Input Voltage Range: [19, 33] V
Depth: 240 mm
E MC: EN 55014-1,EN 55014-2
Frequency Select: 50Hz or 60Hz
Fully Programable: Yes
Height: 4,444 mm
Material: Aluminium
Max Efficiency: 94 %
Max Humidity: 95 %
Parallel3phase: Yes
Peak Power Rating: 10,000 W
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Protection Category: IP21
Protections: Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,AC voltage on inverter output,Excessive DC ripple
Relay Terminal: Screw terminal 3-pole
Remote On Off Terminal: Yes
Remote Terminal: Screw terminal two pole
Safety: EN-IEC 60335-1
Weight: 30 kg
Width: 328 mm
Zero Load Power: 30 W
Zero Load Power (AES): 25 W
Zero Load Power (Search): 10 W
Source: Victron
Technical Specifications
Technical Specifications
| Inverter Rating | 5000VA |
|---|
