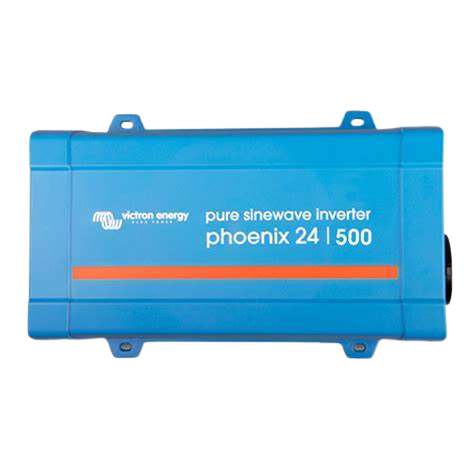

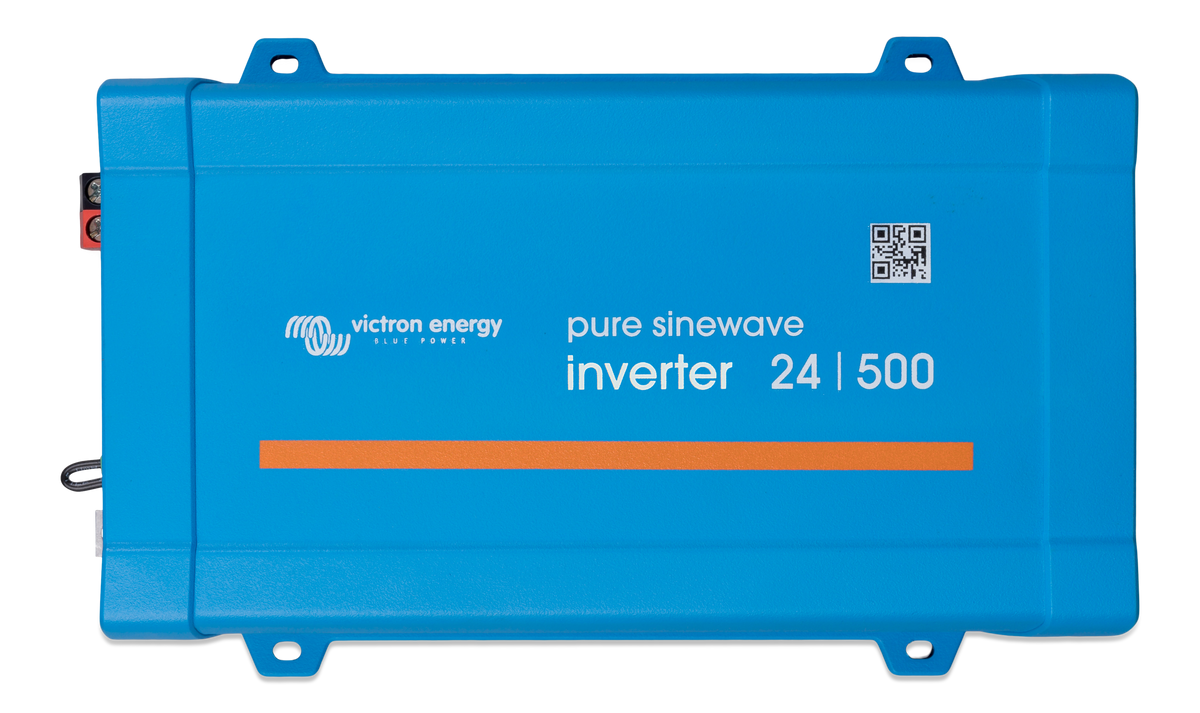

Victron Phoenix Inverter 24/500 230V VE.Direct UK
Victron Phoenix Inverter 24/500 230V VE.Direct UK
SKU:PIN241501400
Brand: Victron
Reliable Power Conversion: Delivers stable and clean AC power for sensitive devices.
Remote Monitoring: Easily monitor and configure settings via VictronConnect.
Space-Saving Design: Compact size fits into various installation spaces.
Direct UK Compatibility: Comes with a UK plug for straightforward integration.
Versatile Applications: Ideal for off-grid, marine, and mobile power setups.
Dimensions: 86 x 172 x 275mm
Weight: 4.1kg
Low stock: 4 left
Regular price
£150.00 GBP
Regular price
Sale price
£150.00 GBP
Quantity
Couldn't load pickup availability
Product Details
Product Details
The Victron Phoenix Inverter 24/500 230V VE.Direct UK is engineered for reliable and efficient power conversion in 24V DC systems. Delivering a continuous output of 500VA (approximately 400W), this inverter provides pure sine wave AC power, making it ideal for running sensitive equipment like laptops, TVs, and medical devices.
Key features include:
- Pure Sine Wave Output: Ensures clean and stable power for sensitive electronics.
- VE.Direct Connectivity: Enables remote monitoring and configuration via VictronConnect.
- Compact Design: Space-saving dimensions for easy installation in various applications.
- UK Plug: Direct compatibility with UK mains sockets for convenience.
- Wide Application Range: Suitable for off-grid, marine, and mobile power systems.
Product Specifications
Product Specifications
Performance & Electrical
- Cont. Power at 25°C: 500 VA
- Peak Power: 900 W
- Output AC Voltage: 230 VAC (Adjustable 210 – 245V)
- Output Frequency: 50 Hz or 60 Hz (Adjustable +/- 0.1%)
- Maximum Efficiency: 90%
- Zero-Load Power: 6.5 W
- Zero-Load Power in ECO Mode: 1.5 W (Default 2.5s retry interval)
Battery & DC Input
- Nominal Battery Voltage: 24 V
- Input Voltage Range: 18.4 – 34.0 VDC
- Low Battery Shut Down: 18.6 V (Fully adjustable)
- Low Battery Restart & Alarm: 21.8 V (Fully adjustable)
- Battery Charged Detect: 28.0 V (Fully adjustable)
- DC Connection: Screw terminals (Maximum cable cross-section: 10mm² / AWG8)
Features & Connectivity
- VE.Direct Communication Port: Connect to a computer (requires VE.Direct to USB cable) or smartphones/tablets (requires VE.Direct Bluetooth Smart dongle) for monitoring and configuration.
- ECO Mode: Automatically switches to standby when the load decreases below 15W to conserve battery energy.
- Remote On/Off: Integrated two-pole connector for remote switch operation.
- Programmable Settings: Configurable low battery alarms, cut-off levels, output voltage, frequency, and ECO mode sense levels.
- Monitoring Capabilities: Real-time tracking of input/output voltage, % load, and system alarms.
Protections & Reliability
- Built-in Protection: Output short circuit, overload, battery voltage too high/low, high temperature, and high DC ripple.
- Reliable Topology: Full bridge plus toroidal transformer for long-term durability.
- Diagnostics: Visual LED indicators for power, alarms, and ECO mode status.
Mechanical Specifications
- Dimensions (H x W x D): 86 x 172 x 275 mm
- Weight: 3.9 kg
- Enclosure Material: Steel chassis with plastic cover
- Colour: Blue (RAL 5012)
- Protection Category: IP21
- AC Outlet: UK (BS 1363)
- Operating Temperature Range: -40 to +65°C (Fan-assisted cooling; derating above 40°C)
- Humidity: Max 95% (Non-condensing)
Standards & Compliance
- Safety: EN-IEC 60335-1, EN-IEC 62109-1
- EMC: EN 55014-1, EN 55014-2, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
- Automotive Directive: ECE R10-4
Technical Specifications
Technical Specifications
| Inverter Rating | 500VA |
|---|
