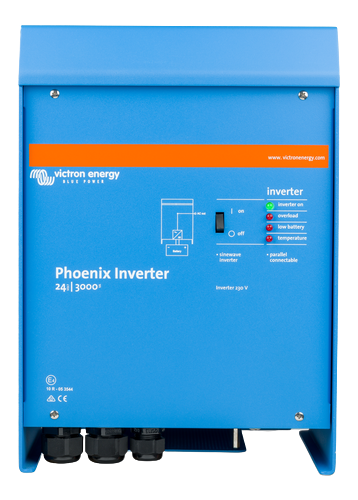

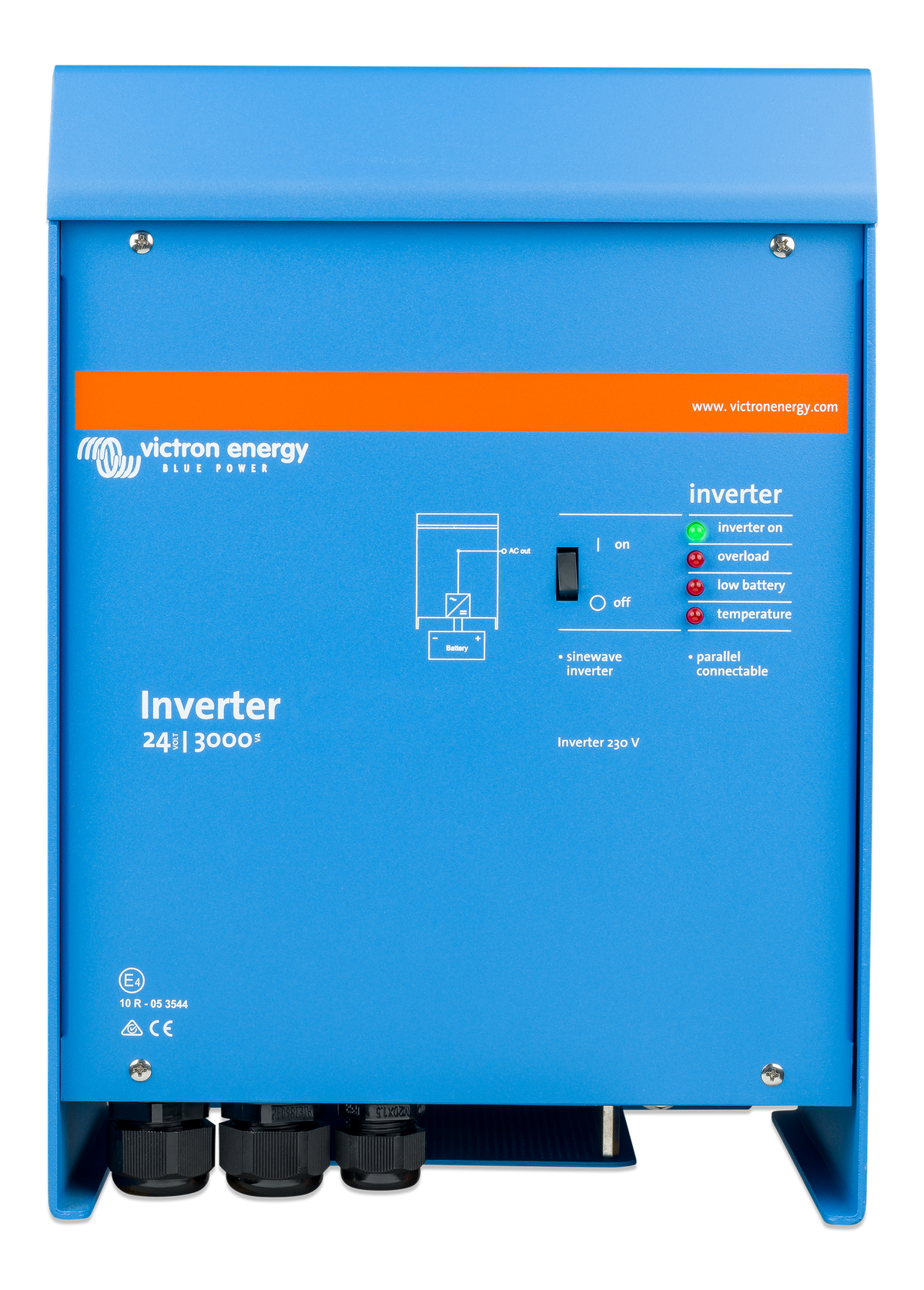

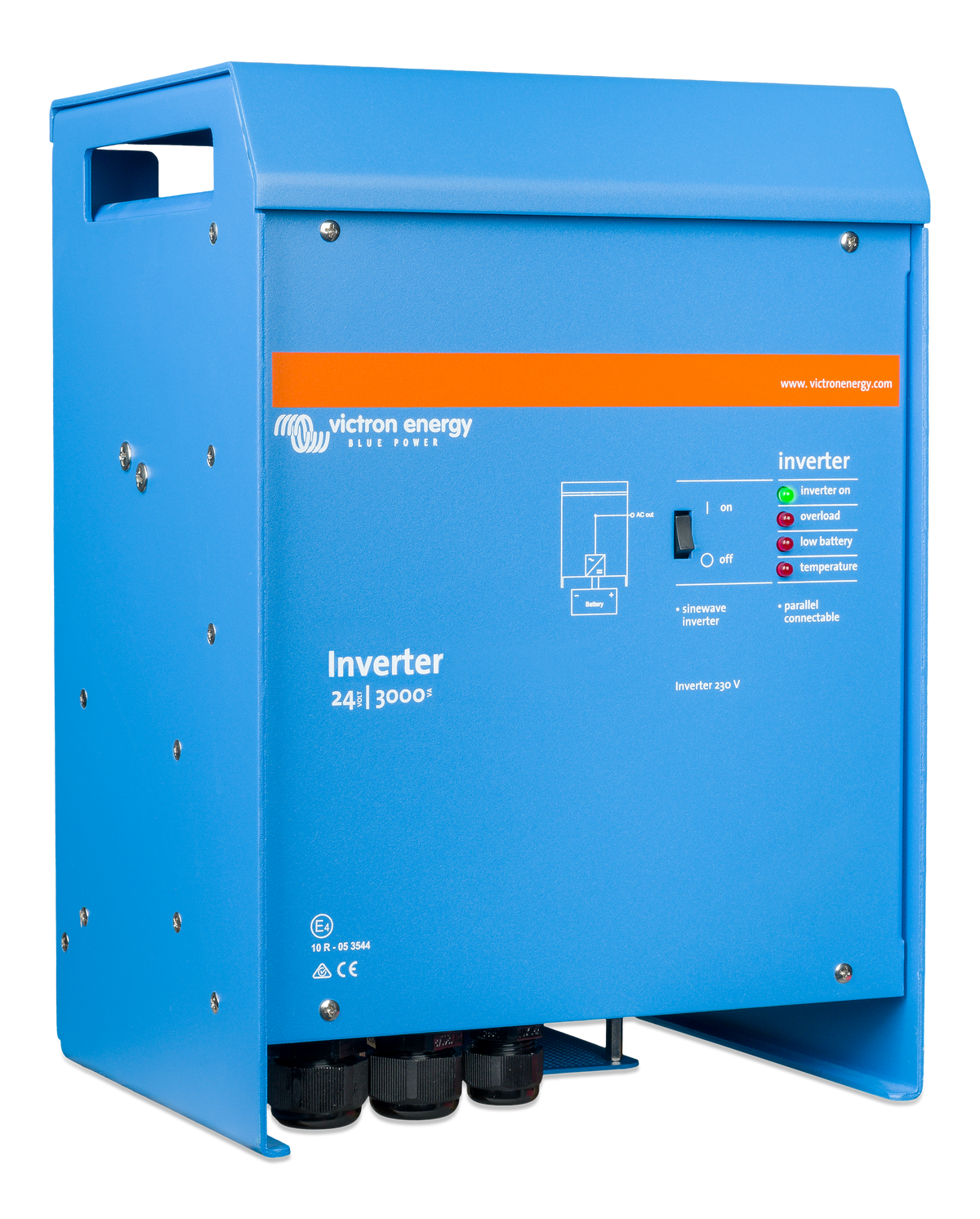

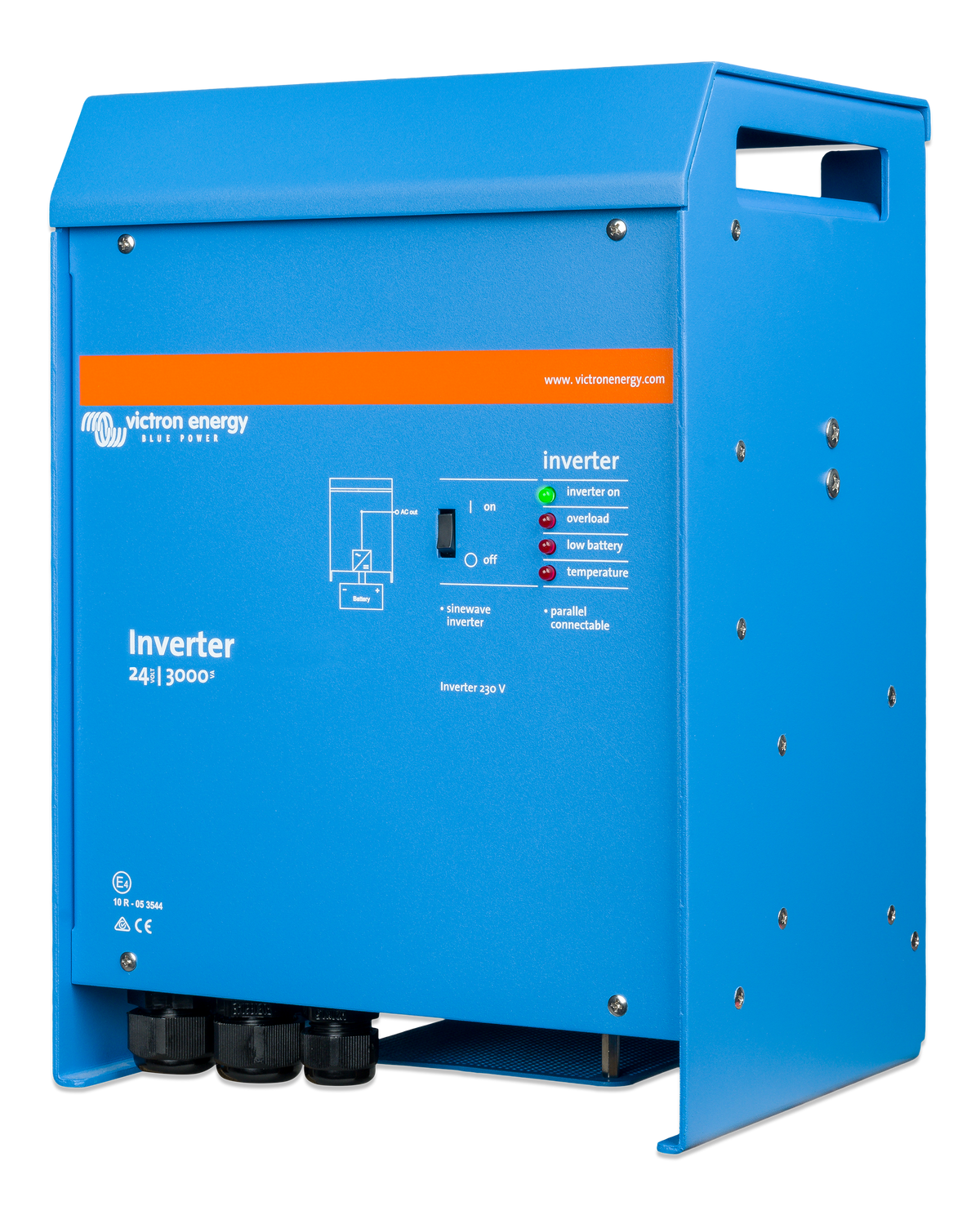

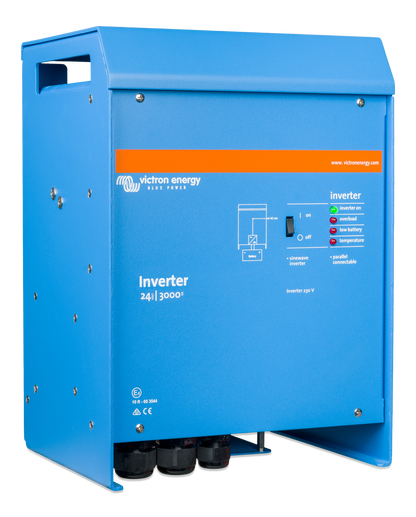

Victron Phoenix Inverter 24/3000 230V VE.Bus
Victron Phoenix Inverter 24/3000 230V VE.Bus
SKU:PIN243020000
Brand: Victron
High Power Output: Supports loads up to 3000VA (2400W).
Seamless Integration: VE.Bus compatibility for system expansion.
Compact and Robust: Designed for durability in various environments.
Versatile Applications: Ideal for off-grid, marine, and mobile setups.
Energy Efficient: Minimises energy loss for optimal performance.
Dimensions: 362 x 258 x 218 mm
Weight: 18.5 kg
In stock
This is pre-order - Available in 7 – 10 days
Regular price
£921.00 GBP
Regular price
Sale price
£921.00 GBP
Quantity
Couldn't load pickup availability
Product Details
Product Details
The Victron Phoenix Inverter 24/3000 230V VE.Bus is engineered for high-performance power conversion in 24V DC systems. Delivering a continuous output of 3000VA (approximately 2400W), this inverter provides pure sine wave AC power, ensuring compatibility with sensitive electronics and appliances.
Key features include:
- Pure Sine Wave Output: Delivers clean and stable power for sensitive devices.
- VE.Bus Connectivity: Facilitates integration into larger systems for increased capacity.
- Compact Design: Space-saving dimensions for versatile installation options.
- Wide Application Range: Suitable for off-grid, marine, and mobile power systems.
- High Efficiency: Optimised for minimal energy loss and maximum performance.
Dimensions:
- Length: 362 mm
- Width: 258 mm
- Height: 218 mm
- Weight: 18.5 kg
Product Specifications
Product Specifications
Inverter Specifications
- Input Voltage Range: 19 – 33 VDC
- Output Voltage: 230 VAC ± 2% (Adjustable to 240 V)
- Output Frequency: 50 Hz ± 0.1% (Adjustable to 60 Hz)
- Cont. Output Power at 25°C: 3000 VA
- Cont. Output Power at 25°C: 2400 W
- Cont. Output Power at 40°C: 2200 W
- Cont. Output Power at 65°C: 1700 W
- Peak Power: 6000 W
- Maximum Efficiency: 94%
- Zero Load Power: 20 W
- Zero Load Power in AES Mode: 15 W
- Zero Load Power in Search Mode: 10 W
Features & Connectivity
- Parallel & 3-Phase Operation: Up to 6 units can operate in parallel; 3-phase configuration is also supported.
- Communication Port: VE.Bus for parallel/three-phase operation, remote monitoring, and system integration.
- Programmable Relay: Yes (Can be set for general alarm, DC under voltage, or generator start/stop).
- Remote On-Off: Yes
- Customization: Parameters such as output voltage, frequency, and voltage settings can be customized via VictronConnect or VEConfigure software (requires MK3-USB interface).
Protection
- Output short circuit
- Overload
- Battery voltage too high / too low
- Temperature too high
- 230 VAC on inverter output
- Input voltage ripple too high
Mechanical Specifications
- Dimensions (H x W x D): 362 x 258 x 218 mm
- Weight: 18 kg
- Material & Colour: Aluminium (Blue RAL 5012)
- Protection Category: IP21

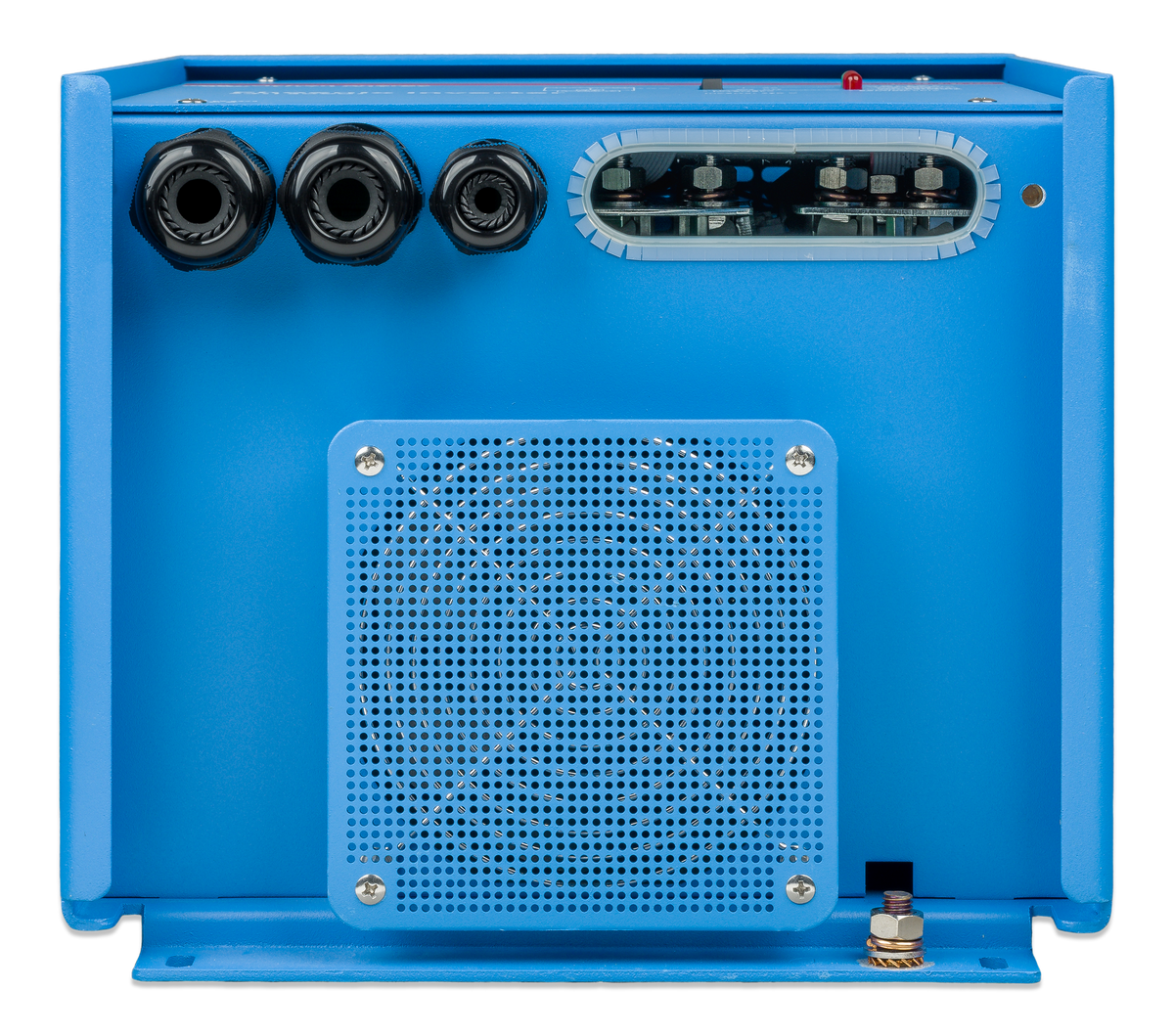

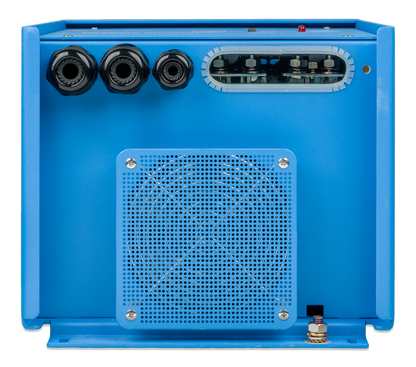

- Battery Connection: M8 Bolts
- 230V AC Connection: Screw terminals
Environmental Standards
- Operating Temperature Range: -40 to +65°C (Fan-assisted cooling)
- Humidity (Non-condensing): Max 95%
- Safety Standard: EN 60335-1
- EMC Standards: EN 55014-1 / EN 55014-2
Technical Specifications
Technical Specifications
| Inverter Rating | 3000VA |
|---|
