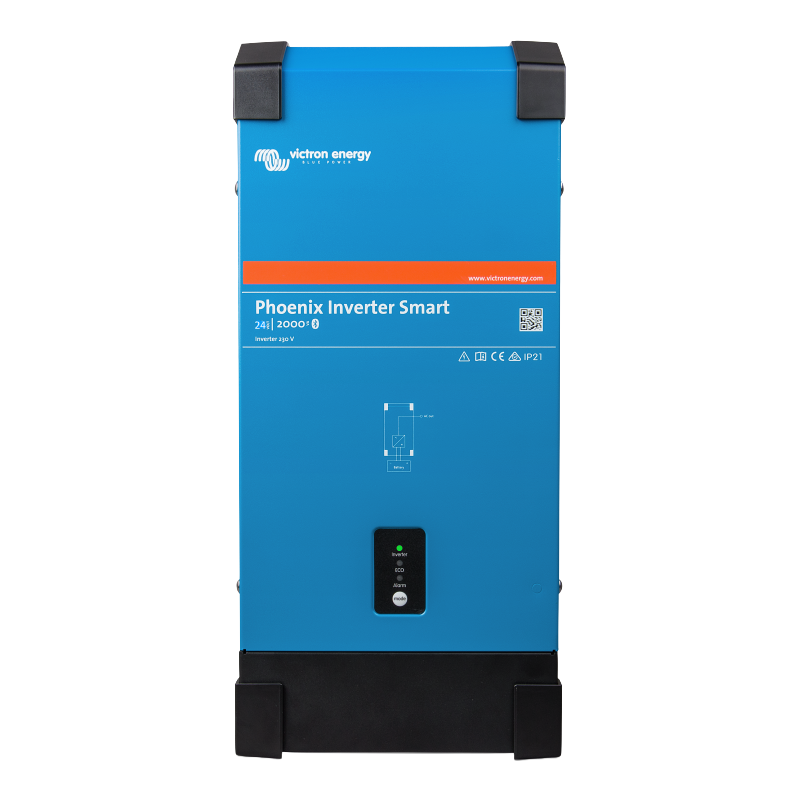

Victron Phoenix Inverter 24/2000 230V Smart
Victron Phoenix Inverter 24/2000 230V Smart
SKU:PIN242200000
Brand: Victron
In stock
This is pre-order - Available in 7 – 10 days
Couldn't load pickup availability
Product Details
Product Details
For trade customers who demand robust, configurable power conversion, the Victron Phoenix Inverter 24/2000 230 V Smart stands out. Designed for a 24 V battery input and delivering a full 2 kVA of continuous 230 V AC output, this inverter is housed in a steel enclosure, measuring 485 × 219 × 125 mm and weighing around 13 kg.
The built-in Bluetooth and VE.Direct interface allow installers to configure and monitor settings such as low battery cut-off, restart levels, ECO-mode thresholds and alarm relay behaviour via the VictronConnect app, enabling full system integration and remote control. With ECO mode activated, the unit drops to stand-by load of just over 1 W, reducing battery drain when loads are minimal.
Thanks to its full-bridge plus toroidal transformer topology, the inverter offers high start-up power to service demanding loads, making it suitable for motor-driven appliances, tools or other surge-capable equipment. Protection features include short-circuit proofing, over-temperature shutdown and dynamic low-battery cut-off (load-dependent), ensuring dependable performance in challenging environments. The IP21 rating covers indoor installations or protected spaces.
Ideal for off-grid installations, marine systems, mobile workshops, caravans or commercial backup systems, this inverter brings trade-grade reliability in a compact package. Whether you’re designing a system for remote telecoms, mobile service vans or customer renewable setups, the Phoenix 24/2000 Smart offers the control, surge capacity and efficiency your project specification requires.
Product Specifications
Product Specifications
Performance & Electrical Specifications
- Continuous Power at 25°C: 2000 VA
- Continuous Power at 25°C: 1600 W
- Continuous Power at 40°C: 1450 W
- Continuous Power at 65°C: 1000 W
- Peak Power: 4000 W
- Output AC Voltage: 230 VAC ± 2%
- Frequency: 50 Hz or 60 Hz ± 0.1%
- Nominal Input Voltage: 24 VDC
- Input Voltage Range: 18.6 – 34 V
- Maximum Efficiency: 94%
- Zero-load Power: 9 W
- Zero-load Power in ECO Mode: 1.3 W
Configurable & Smart Features
- Bluetooth Built-in: Use a tablet or smartphone to configure settings such as low battery alarms, cut-off levels, output voltage (210–245V), frequency, and ECO mode parameters.
- VE.Direct Communication Port: Allows for wired connection to a computer or GX device for advanced system monitoring and integration.
- ECO Mode: Automatically switches the inverter to standby when the load drops below a preset level. In standby, it pulses every 2.5 seconds (adjustable) to check for a load.
- Programmable Relay: Can be set for general alarms, DC under-voltage, or generator start/stop functions.
- Remote On/Off: Dedicated two-pole connector for easy remote control integration via a switch or relay contact.
- High Start-up Power: Specifically designed to start difficult loads such as electric tools, halogen lamps, or power converters for LED lighting.
Protection & Environmental
- Integrated Protections: Output short circuit, overload, battery voltage (too high/low), temperature (too high), 230 VAC on inverter output, and input voltage ripple (too high).
- Operating Temperature Range: -40 to +65°C (fan-assisted cooling).
- Humidity: Maximum 95% (non-condensing).
Mechanical Specifications
- Enclosure Material: Steel
- Enclosure Color: Blue RAL 5012 and Black RAL 9017
- Protection Category: IP21
- Battery Connection: M8 bolts
- 230 VAC Connection: Screw terminals
- Dimensions (h x w x d): 485 x 219 x 125 mm
- Unit Weight: 13 kg
Standards & Compliance
- Safety: EN 60335-1
- Emission/Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
- Automotive Directive: ECE R10-5
Technical Specifications
Technical Specifications
| Inverter Rating | 2000VA |
|---|
