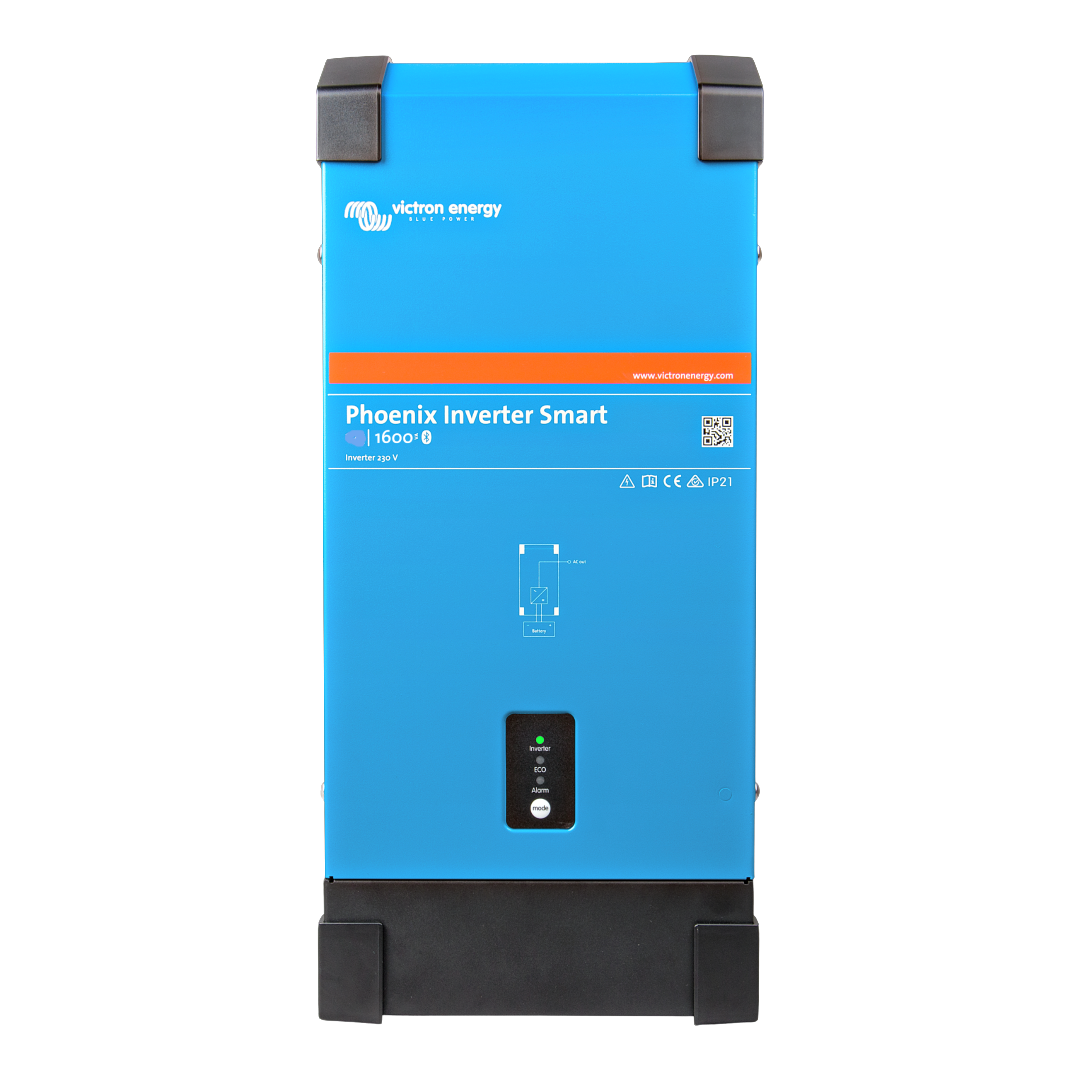

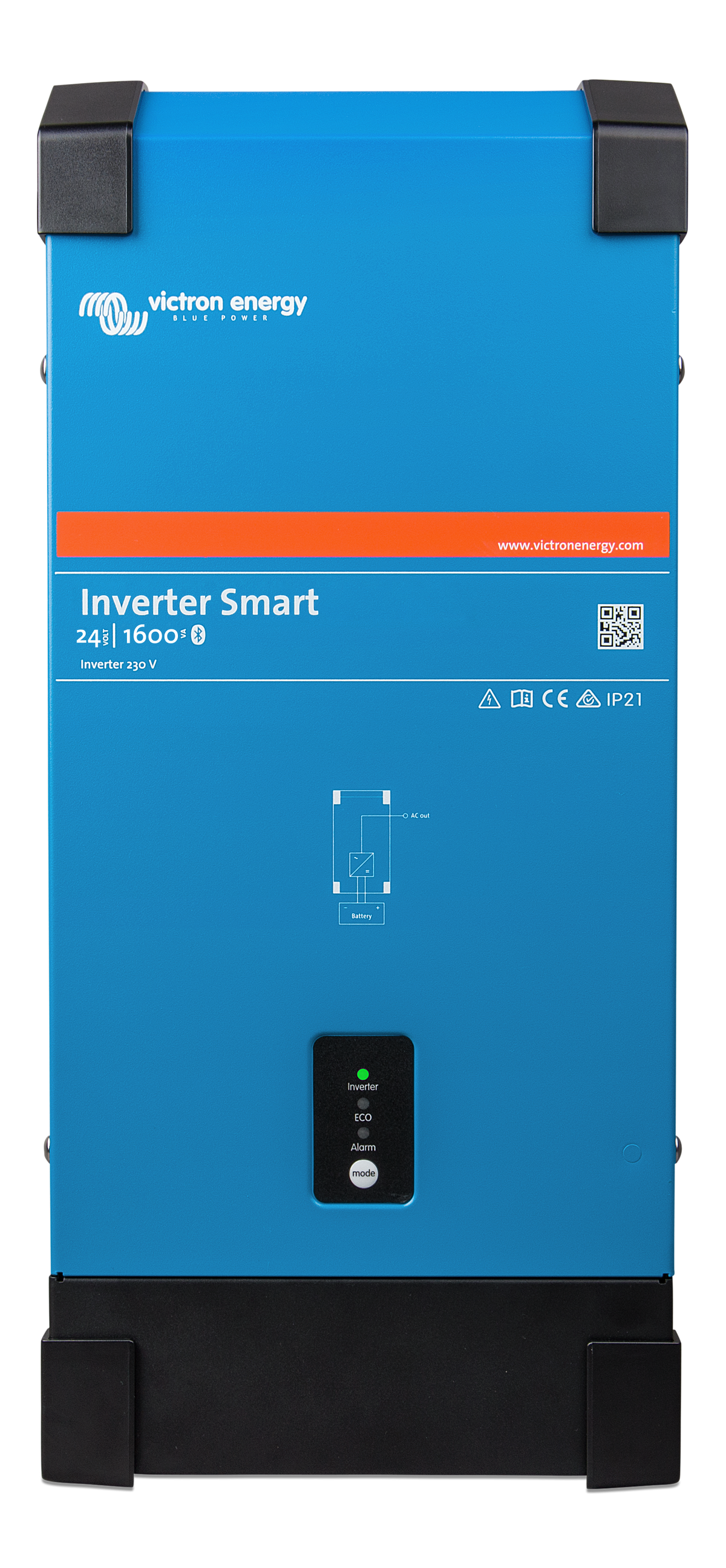

Victron Phoenix Inverter 24/1600 230V Smart
Victron Phoenix Inverter 24/1600 230V Smart
SKU:PIN242161000
Brand: Victron
In stock
This is pre-order - Available in 7 – 10 days
Couldn't load pickup availability
Product Details
Product Details
The Victron Phoenix Inverter 24/1600 230 V Smart is a compact yet powerful pure-sine inverter designed for reliable off-grid or mobile power systems. Running from a 24 V DC supply, it delivers 1,600 VA continuous output (1,300 W at 25 °C) and can handle peaks of up to 3,000 W, making it suitable for high-start-up appliances and tools.
With an input voltage range of 18.6–34 V, this inverter adapts to variable battery voltages without compromising stability. A toroidal transformer ensures a clean, stable sine wave output suitable for sensitive electronics. The built-in Bluetooth and VE.Direct communication allow configuration and monitoring of settings such as voltage thresholds, ECO mode, and alarms using the VictronConnect app or a GX device.
The inverter provides dynamic low voltage cut-off to protect the battery by adjusting the shut-down level based on the load. It also includes a programmable relay for custom automation like alarms or generator start/stop functions and a remote on/off terminal for integration with external switches or ignition circuits.
Built to endure demanding environments, the unit operates in temperatures from –40 °C to +65 °C, with fan-assisted cooling. The rugged steel housing is finished in Victron’s signature blue and black and carries an IP21 protection rating. For installation, the unit uses M8 bolts for battery connections and screw terminals for the 230 V output.
The inverter features a low idle consumption of 9 W, or 1.3 W in ECO mode, helping preserve battery energy. It is trade-friendly in size with dimensions of 485 × 219 × 125 mm and a weight of 12 kg, making it suitable for wall or floor mounting.
A 5-year warranty provides added reassurance, while robust protection mechanisms guard against overload, short-circuit, over-temperature, and excessive ripple on the DC input.
Product Specifications
Product Specifications
Electrical Specifications
- Nominal Battery Voltage: 24 V
- Cont. Output Power at 25°C: 1600 VA / 1300 W
- Cont. Output Power at 40°C: 1200 W
- Cont. Output Power at 65°C: 800 W
- Peak Power: 3000 W
- Output AC Voltage: 230 VAC (Adjustable 210 – 245 V)
- Output Frequency: 50 Hz or 60 Hz (Adjustable)
- Maximum Efficiency: 94%
- Zero Load Power: 9 W
- Zero Load Power in ECO Mode: 1.3 W
Features & Connectivity
- Bluetooth Built-in: Wireless monitoring and system integration via the VictronConnect app.
- VE.Direct Port: Allows for a wired connection to a computer or GX device for configuration and monitoring.
- ECO Mode: Automatically switches the unit to standby when the load decreases below a preset value, searching for a load every 2.5 seconds (adjustable).
- Programmable Relay: Can be configured for general alarms, DC under-voltage, or generator start/stop functions.
- Remote On/Off: Features a two-pole connector for easy remote switch integration.
- Monitoring Capabilities: Real-time tracking of input/output voltage, load percentage, and active alarms.
Integrated Protections
- Output short circuit
- Overload
- Battery voltage too high / too low
- Temperature too high
- 230 VAC on inverter output
- Input voltage ripple too high
Mechanical Specifications
- Dimensions (H x W x D): 485 x 219 x 125 mm
- Weight: 12 kg
- Material & Colour: Steel chassis (Blue RAL 5012 and Black RAL 9017)
- Protection Category: IP21
- Battery Connection: M8 bolts
- 230V AC Connection: Screw terminals
- Operating Temperature Range: -40 to +65°C (Fan-assisted cooling)
- Humidity: Max 95% (Non-condensing)
Standards & Compliance
- Safety: EN 60335-1
- Emission / Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
- Automotive Directive: ECE R10-5
Technical Specifications
Technical Specifications
| Inverter Rating | 1600VA |
|---|
