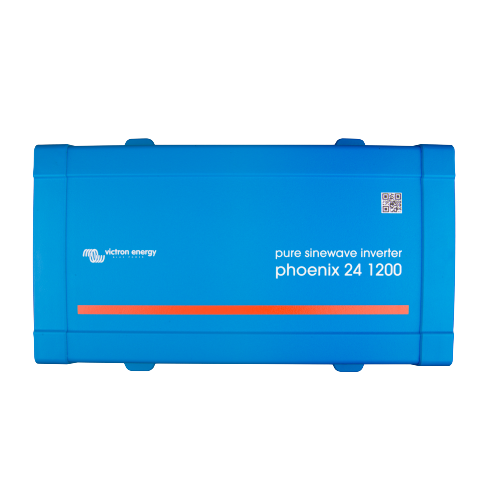

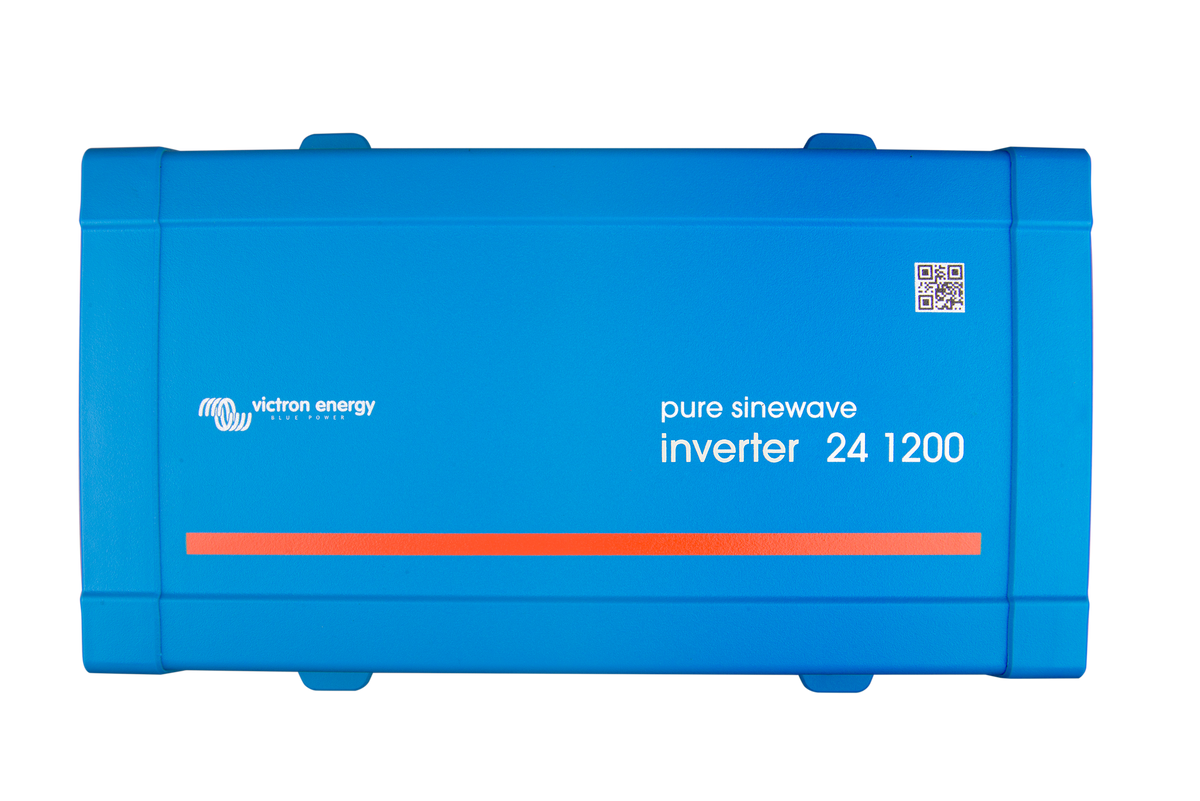

Victron Phoenix Inverter 24/1200 230V VE.Direct UK
Victron Phoenix Inverter 24/1200 230V VE.Direct UK
SKU:PIN242121400
Brand: Victron
In stock
This is pre-order - Available in 7 – 10 days
Couldn't load pickup availability
Product Details
Product Details
The Victron Phoenix Inverter 24/1200 230V VE.Direct UK is engineered to deliver high-quality, pure sine wave 230V AC power from a 24V DC battery source. With a continuous output of 1200VA (1000W), it is capable of powering a variety of devices, including sensitive electronics, in off-grid systems, marine applications, and mobile setups.
Equipped with VE.Direct connectivity, the inverter allows for remote monitoring and configuration through the VictronConnect app, providing users with real-time insights into their system's performance. The compact design ensures easy integration into installations with limited space, while the robust construction guarantees reliable operation in demanding environments.
Installation is straightforward, requiring no special tools, making it accessible for both professionals and DIY enthusiasts. Whether you're looking to power essential appliances in a remote cabin, on a boat, or in a mobile setup, the Victron Phoenix Inverter 24/1200 230V VE.Direct UK offers a dependable and efficient solution.
Product Specifications
Product Specifications
Performance & Electrical
- Cont. Power at 25°C: 1200 VA
- Peak Power: 2200 W
- Output AC Voltage: 230 VAC (Adjustable 210 – 245V)
- Output Frequency: 50 Hz or 60 Hz (Adjustable +/- 0.1%)
- Maximum Efficiency: 91%
- Zero-Load Power: 11 W
- Zero-Load Power in ECO Mode: 1.5 W (Default 2.5s retry interval)
Battery & DC Input
- Nominal Battery Voltage: 24 V
- Input Voltage Range: 18.4 – 34.0 VDC
- Low Battery Shut Down: 18.6 V (Fully adjustable)
- Low Battery Restart & Alarm: 21.8 V (Fully adjustable)
- Battery Charged Detect: 28.0 V (Fully adjustable)
- DC Connection: Screw terminals (Maximum cable cross-section: 25mm² / AWG4)
Features & Connectivity
- VE.Direct Communication Port: Allows connection to a computer (via VE.Direct to USB cable) or smartphones and tablets (via VE.Direct Bluetooth Smart dongle) for full configuration and monitoring.
- ECO Mode: Automatically switches the inverter to standby when the load drops below 15W to minimize battery drain.
- Remote On/Off: Features a two-pole connector for easy integration of a remote power switch.
- Configurable Settings: Includes adjustable low battery alarms, cut-off and restart levels, output voltage, frequency, and ECO mode sense levels.
- Monitoring: Track input/output voltage, load percentage, and active system alarms in real-time.
Protections & Reliability
- Integrated Protection: Output short circuit, overload, battery voltage too high/low, over-temperature, and high DC ripple.
- Proven Topology: Full bridge plus toroidal transformer design for maximum durability and thermal stability.
- LED Diagnosis: Front-panel indicators for power, alarm status, and ECO mode monitoring.
Mechanical Specifications
- Dimensions (H x W x D): 117 x 232 x 327 mm
- Weight: 7.4 kg
- Enclosure Material: Steel chassis with plastic cover
- Colour: Blue (RAL 5012)
- Protection Category: IP21
- AC Outlet: UK (BS 1363)
- Operating Temperature Range: -40 to +65°C (Fan-assisted cooling; derating 1.25% per °C above 40°C)
- Humidity: Max 95% (Non-condensing)
Standards & Compliance
- Safety: EN-IEC 60335-1, EN-IEC 62109-1
- EMC: EN 55014-1, EN 55014-2, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
- Automotive Directive: ECE R10-4
Technical Specifications
Technical Specifications
| Inverter Rating | 1200VA |
|---|
