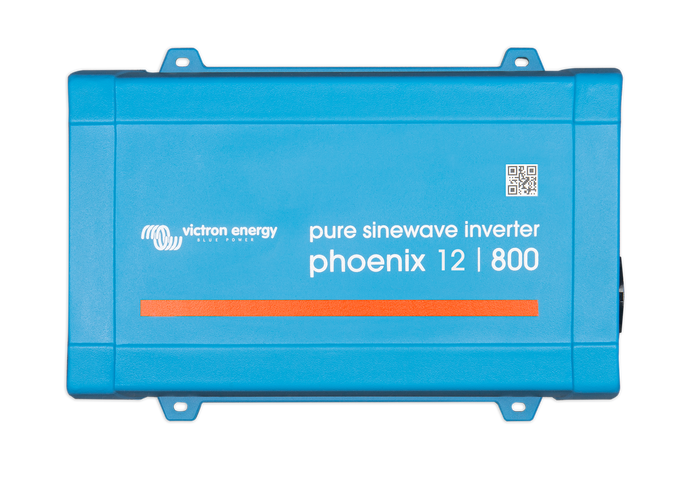

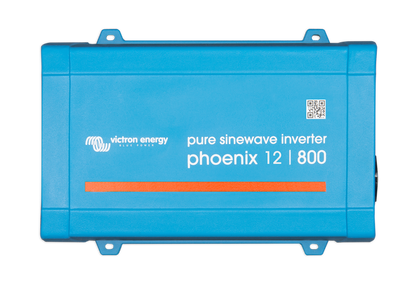

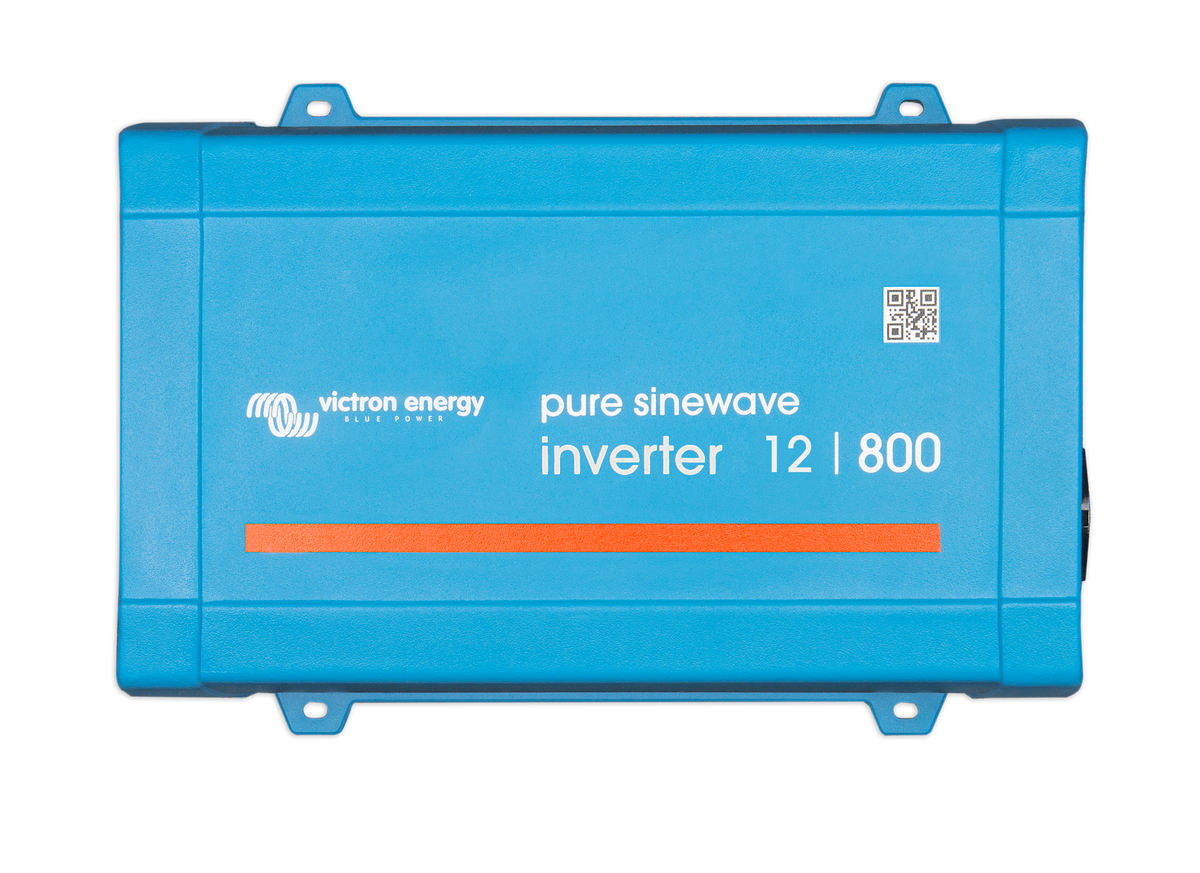

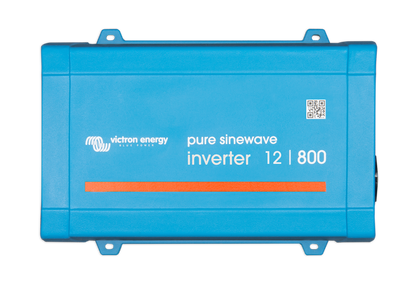

Victron Phoenix Inverter 12/800 230V VE.Direct UK
Victron Phoenix Inverter 12/800 230V VE.Direct UK
SKU:PIN121801400
Brand: Victron
Low stock: 1 left
Couldn't load pickup availability
Product Details
Product Details
The Victron Phoenix Inverter 12/800 230V VE.Direct UK (PIN121801400) is engineered to provide reliable and efficient power conversion for off-grid and mobile applications. Designed for professionals and trade customers, this inverter transforms 12V DC from leisure or automotive batteries into stable 230V AC power, enabling the use of standard UK appliances in remote locations.
Key Features:
- Power Output: Delivers 800VA (650W) continuous power with a peak capacity of 1600VA, suitable for running devices such as power tools, lighting, and small appliances.
- Pure Sine Wave Output: Ensures clean and stable power, protecting sensitive electronics from potential damage caused by modified sine wave inverters.

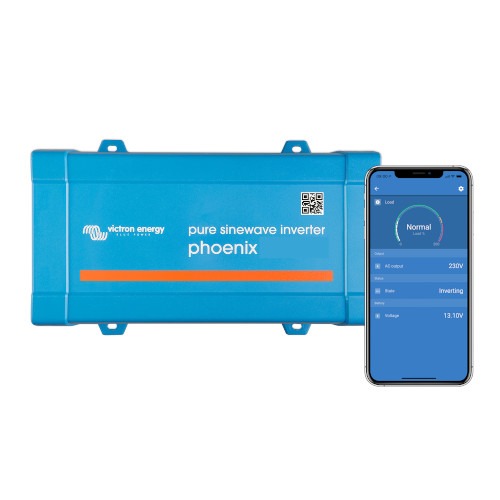

- VE.Direct Communication Port: Allows for real-time monitoring and configuration via compatible devices using the VE.Direct to USB interface cable or Bluetooth Smart dongle.
- ECO Mode: Features an energy-saving mode that reduces power consumption when the connected load is minimal.

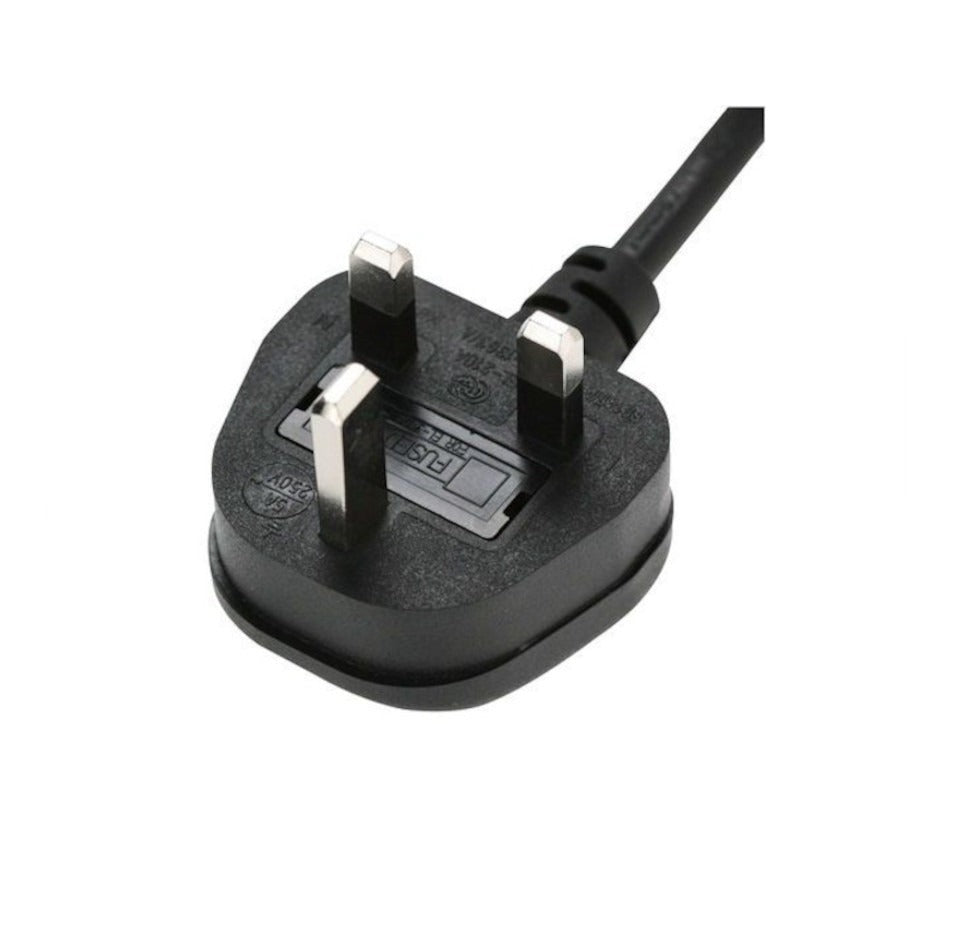

- UK BS 1363 Socket: Comes equipped with a standard UK plug, making it immediately compatible with UK appliances.
- Compact Design: Measures 105 x 216 x 305 mm and weighs 5.5 kg, facilitating easy installation in various setups.
- Safety Certifications: Complies with IEC 60335-1 standards, ensuring high safety and reliability.
Ideal for use in caravans, boats, mobile workshops, and remote construction sites, the Victron Phoenix Inverter 12/800 offers a robust solution for powering essential equipment where mains electricity is unavailable.
Product Specifications
Product Specifications
Technical Specifications
Combined for SKUs: PIN121801400
A COutlet Socket: UK (BS 1363)
AC Output Voltage: 230 V
Automotive Directive: ECE R10-4
Battery Charged Detection Voltage: 14 V
Battery Voltage Nominal: 12 V
Colour: Blue (RAL 5012)
Communication Port: VE.Direct
Continuous Power (VA, 25°C): 800 VA
Continuous Power (W, 25°C): 650 W
Continuous Power (W, 40°C): 560 W
D CLow Restart Alarm: 10.9 V
D CLow Shut Down: 9.3 V
DC Input Voltage Range: [9.2, 17] V
Depth: 325 mm
Dynamic Low DCShutdown: Yes
E MC: EN 55014-1,EN 55014-2,EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-6-3
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Frequency: 50 Hz
Fully Programable: Yes
Height: 105 mm
Material: Steel chassis and plastic cover
Max Efficiency: 90 %
Max Humidity: 95 %
Peak Power Rating: 1,500 W
Power Deration: 1.25 %
Protection Category: IP21
Protections: Excessive DC ripple,High battery voltage,Low battery voltage,Output short-circuit,Over temperature,Overload
Remote On Off Terminal: Yes
Remote Terminal: Screw terminal two pole
Safety: EN-IEC 60335-1,EN-IEC 62109-1
Weight: 5.5 kg
Width: 230 mm
Zero Load Power: 6.5 W
Zero Load Power Eco Mode: 1 W
Source: Victron
Technical Specifications
Technical Specifications
| Inverter Rating | 800VA |
|---|
