Victron 500VA Inverter 12V – Pure Sine Wave Phoenix Inverter VE.Direct

Victron 500VA Inverter 12V – Pure Sine Wave Phoenix Inverter VE.Direct

PIN121501400

Brand: Victron

High Peak & Surge Capability: Delivers strong start-up power to handle motors, compressors or heavy loads that standard inverters might struggle with. True Sine-Wave Output & Sensitive Load Safe: Ensures clean, stable AC for IT equipment, audio/visual gear and delicate electronics often found in trade, marine or investment mobile platforms. VE.Direct Communication Port: Integrates into Victron monitoring systems. Connect to computers, tablets or smartphones with optional USB/BT dongle for real-time monitoring and configuration. ECO Mode and Low Stand-By Consumption: Automatically switches to standby when load drops below ~15 W, minimising battery drain when equipment is idle. Professional Grade Build & Warranty: Rugged full-bridge/toroidal transformer design, overload/short-circuit/temperature protection, backed by a 5-year warranty for trade accountability. Dimensions: 86 x 172 x 275mm Weight: 3.9kg

In stock

This is pre-order - Available in 7 – 10 days

£135.00 GBP
£135.00 GBP
Sale Sold out

Product Details

The Victron Phoenix Inverter 12/500 230 V VE.Direct UK is designed for professional installations where reliable 230 V AC power conversion from a 12 V DC supply is required. Whether you’re outfitting a van, boat, mobile service unit or off-grid equipment, this compact unit delivers premium performance and flexibility.

With true sine-wave output, it powers sensitive electronics and motors safely. The built-in VE.Direct communication port enables system monitoring and configuration via PC or optional Bluetooth Smart dongle. High peak output capacity makes it suitable for demanding start-up loads such as power tools, fridges, lighting circuits and other high-inrush equipment. The inverter offers configurable protective features against overload, short-circuit, low battery and high temperature, ensuring the system remains robust under varied conditions.

Its ECO-mode standby function kicks in when the load falls below a pre-set value (approx. 15 W) thereby reducing parasitic battery drain in systems where minimal current draw is essential. Installation is simplified via screw-terminal DC connections and compatibility with remote on/off switch wiring.

Built using a full-bridge plus toroidal transformer topology, this inverter is engineered for durability and long service in harsh environments whether marine, mobile or remote solar-powered.

Trade buyers will appreciate the five-year warranty backing and the reputation of Victron for system reliability. The unit’s size, performance and configurability make it an excellent choice for professionals specifying power conversion equipment where reliability, flexibility and monitoring capability matter.

Product Specifications

Inverter Specifications

  • Nominal Battery Voltage: 12 V
  • Continuous Power at 25°C: 500 VA
  • Peak Power: 900 W
  • Output AC Voltage / Frequency: 230 VAC or 120 VAC +/- 3% (50 Hz or 60 Hz +/- 0.1%)
  • Input Voltage Range: 9.2 – 17 V
  • Maximum Efficiency: 90%
  • Zero-load Power: 6 W
  • Default Zero-load Power in ECO Mode: 1 W (default retry interval: 2.5 s)

Configurable Features & Monitoring

  • VE.Direct Communication Port: Connects to a computer (via VE.Direct to USB cable) or smartphones/tablets (via VE.Direct Bluetooth Smart dongle) for full configuration and monitoring.
  • Fully Configurable Parameters:
     - Low battery voltage alarm trip and reset levels.
    - Low battery voltage cut-off and restart levels.
    - Dynamic cut-off: Load-dependent cut-off level.
    - Output voltage: 210 – 245 V.
    - Frequency: 50 Hz or 60 Hz.
    - ECO mode on/off and ECO mode sense level.
  • Monitoring Capabilities: Track in- and output voltage, % load, and active alarms.
  • ECO Mode: Automatically switches the inverter to standby when the load decreases below a preset value (minimum 15W) to conserve energy.
  • Remote On/Off: Features a two-pole connector for a remote switch or battery-plus connection.

Mechanical Specifications

  • Dimensions (H x W x D): 86 x 172 x 275 mm
  • Weight: 3.9 kg (8.5 lbs)
  • Enclosure Material & Colour: Steel chassis and plastic cover (Blue RAL 5012)
  • Protection Category: IP21

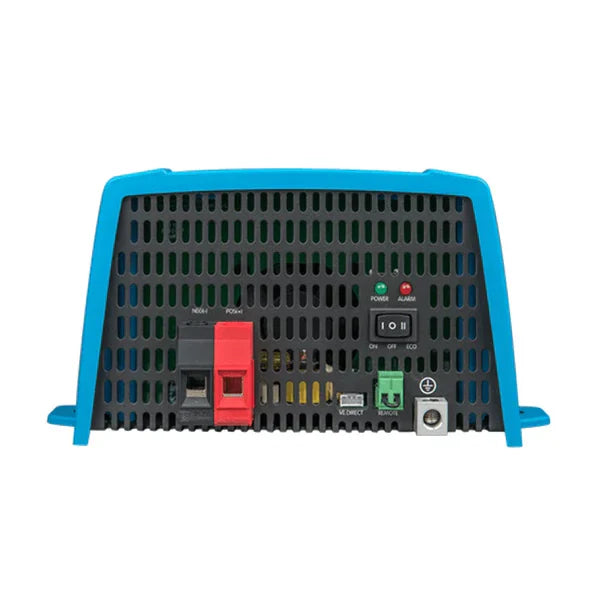

  • Battery Connection: Screw terminals
  • Maximum Cable Cross-section: 10 mm² (AWG8)
  • Standard AC Outlets: 230V: Schuko (CEE 7/4), IEC-320 (male plug included), UK (BS 1363), or AU/NZ (AS/NZS 3112).

Environmental & Protection

  • Operating Temperature Range: -40 to +65°C (Fan-assisted cooling; derating 1.25% per °C above 40°C)
  • Humidity: Max 95% non-condensing
  • Integrated Electronic Protection:
     - Output short circuit
    - Overload
    - Battery voltage too high / too low
    - Temperature too high
    - DC ripple too high

Standards & Certifications

  • Safety: EN-IEC 60335-1 / EN-IEC 62109-1
  • EMC: EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3
  • Automotive Directive: ECE R10-4

Victron 500VA Inverter 12V – Pure Sine Wave Phoenix Inverter VE.Direct – Manual

Victron 500VA Inverter 12V – Pure Sine Wave Phoenix Inverter VE.Direct – Data Sheet

Inverter Rating 500VA
