Victron 375VA Inverter 12V – Pure Sine Wave Phoenix Inverter VE.Direct
Victron 375VA Inverter 12V – Pure Sine Wave Phoenix Inverter VE.Direct
SKU:PIN121371400
Brand: Victron
Reliable Power Conversion: Delivers 375VA continuous and 750VA peak output, suitable for powering a range of sensitive electronics and appliances.
Remote Monitoring: The VE.Direct port enables connection to the VictronConnect app for real-time system monitoring and configuration.
Energy Efficiency: ECO mode reduces power consumption when the load is minimal, enhancing overall system efficiency.
Customisable Settings: Adjustable output voltage, frequency, and ECO mode sensitivity to meet specific application needs.
Comprehensive Protection: Built-in safeguards against overload, short circuit, and temperature extremes ensure safe operation in various environments.
Dimensions: 246 x 161 x 47 mm
Weight: 1.2 kg
Low stock: 6 left
Regular price
£108.00 GBP
Regular price
Sale price
£108.00 GBP
Quantity
Couldn't load pickup availability
Product Details
Product Details

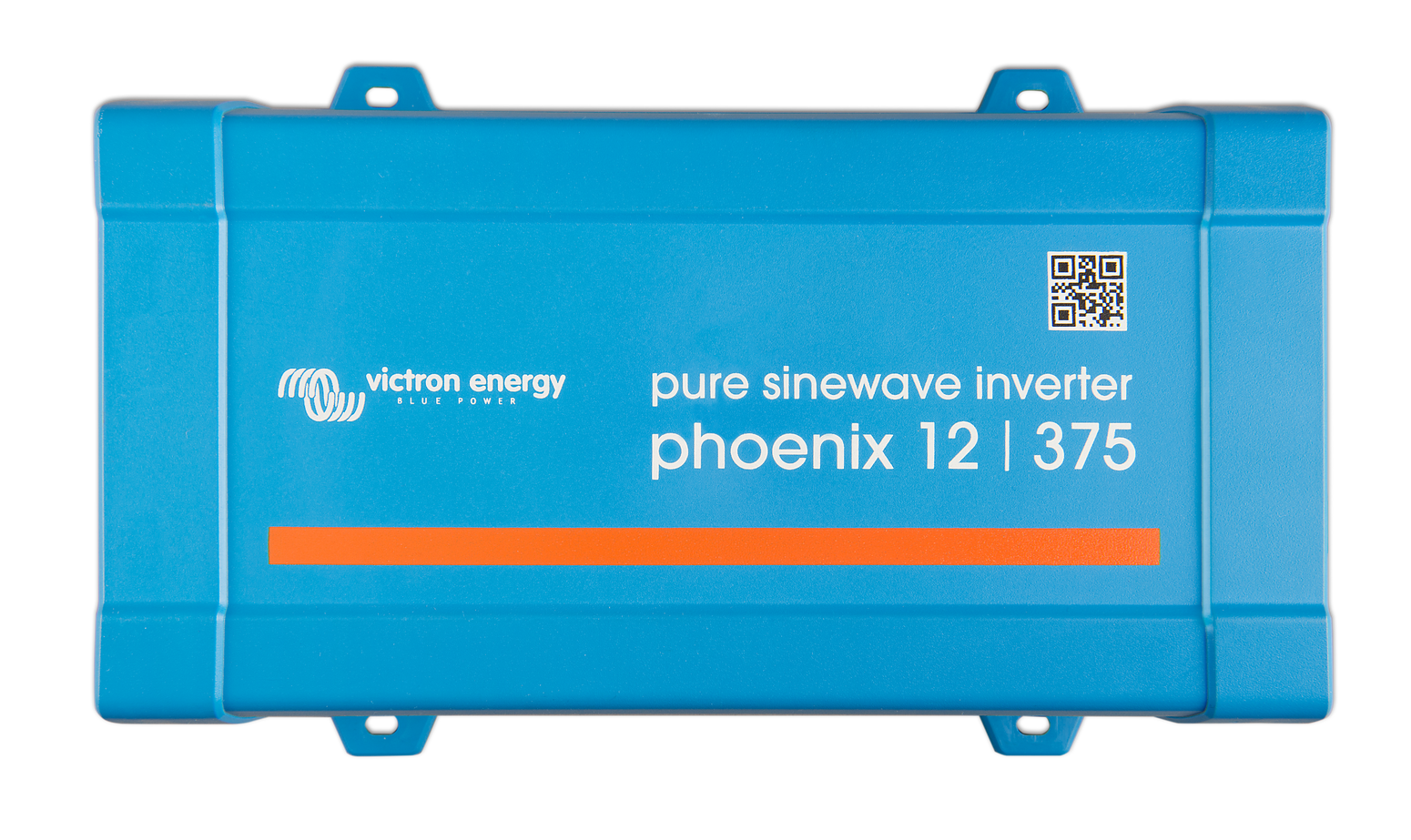

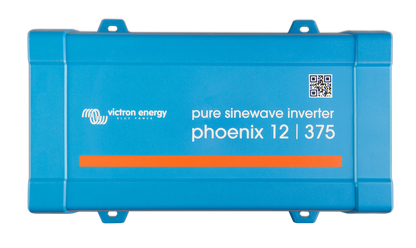

The Victron Phoenix Inverter 12/375 230V VE.Direct UK is a compact and reliable solution for converting 12V DC to 230V AC power, making it ideal for mobile, off-grid, and marine applications. With a continuous output of 375VA and a peak power capacity of 750VA, this inverter is designed to handle sensitive electronics and small appliances with ease.
Key Features:
- True Sine-Wave Output: Provides clean and stable AC power, suitable for powering sensitive equipment such as laptops, medical devices, and audio-visual systems.
- VE.Direct Communication Port: Allows for remote monitoring and configuration via the VictronConnect app, providing real-time data on system performance.
- ECO Mode: Reduces power consumption by switching to standby mode when the load is below a certain threshold, enhancing energy efficiency.
- Configurable Settings: Users can adjust parameters such as output voltage (210–245V), frequency (50/60Hz), and ECO mode sensitivity to suit specific requirements.
- Robust Protection Features: Includes protections against overload, short circuit, high/low battery voltage, and high temperature, ensuring safe and reliable operation.

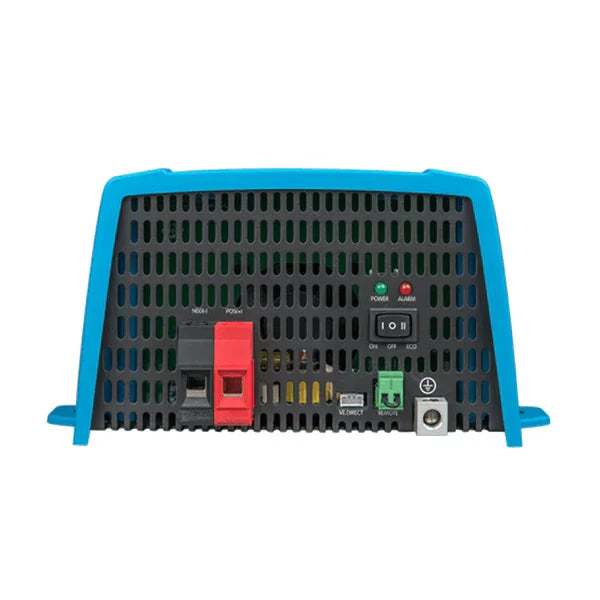

Designed for easy installation, the inverter features screw-terminal DC connections and is compatible with remote on/off switches. Its compact design and durable construction make it suitable for various applications, including caravans, boats, and remote work sites.
Product Specifications
Product Specifications
Inverter Specifications
- Nominal Battery Voltage: 12 V
- Continuous Power at 25°C: 375 VA
- Peak Power: 700 W
- Output AC Voltage / Frequency: 230 VAC or 120 VAC +/- 3% (50 Hz or 60 Hz +/- 0.1%)
- Input Voltage Range: 9.2 – 17 V
- Maximum Efficiency: 89%
- Zero-load Power: 5.6 W
- Default Zero-load Power in ECO Mode: 0.9 W (default retry interval: 2.5 s)
Configurable Features & Monitoring
- VE.Direct Communication Port: Allows connection to a computer (via VE.Direct to USB cable) or smartphones/tablets (via VE.Direct Bluetooth Smart dongle) for full setup and monitoring.
- Fully Configurable Parameters:
- Low battery voltage alarm trip and reset levels.
- Low battery voltage cut-off and restart levels.
- Dynamic cut-off: Load-dependent cut-off level.
- Output voltage: 210 – 245 V.
- Frequency: 50 Hz or 60 Hz.
- ECO mode on/off and ECO mode sense level. - Monitoring Capabilities: Track in- and output voltage, % load, and active alarms.
- ECO Mode: When active, the inverter switches to standby when the load decreases below 15W. It briefly switches on every 2.5 seconds (adjustable) to check if the load has increased.
- Remote On/Off: Includes a two-pole connector for a remote switch or battery-plus connection.
Mechanical Specifications
- Dimensions (H x W x D): 86 x 165 x 260 mm (3.4 x 6.5 x 10.2 inches)
- Weight: 3.0 kg (6.6 lbs)
- Enclosure Material & Colour: Steel chassis and plastic cover (Blue RAL 5012)
- Protection Category: IP21
- Battery Connection: Screw terminals
- Maximum Cable Cross-section: 10 mm² (AWG8)
- Standard AC Outlets: 230V: Schuko (CEE 7/4), IEC-320 (male plug included), UK (BS 1363), or AU/NZ (AS/NZS 3112).
Environmental & Protection
- Operating Temperature Range: -40 to +65°C (Fan-assisted cooling; derating 1.25% per °C above 40°C)
- Humidity: Max 95% non-condensing
- Integrated Electronic Protection:
- Output short circuit
- Overload
- Battery voltage too high / too low
- Temperature too high
- DC ripple too high
Standards & Certifications
- Safety: EN-IEC 60335-1 / EN-IEC 62109-1
- EMC: EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3
- Automotive Directive: ECE R10-4
Technical Specifications
Technical Specifications
| Inverter Rating | 375VA |
|---|
