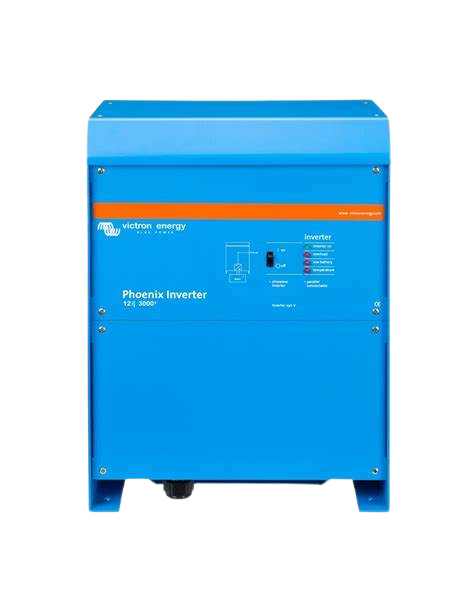

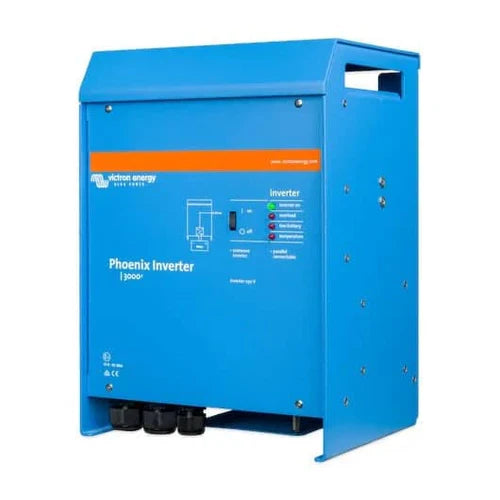

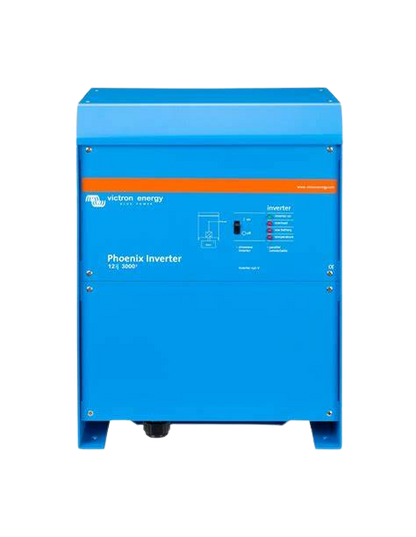

Victron Inverter 12V 3000VA 230V VE.Bus - PIN123020000
Victron Inverter 12V 3000VA 230V VE.Bus - PIN123020000
SKU:PIN123020000
Brand: Victron
In stock
This is pre-order - Available in 7 – 10 days
Couldn't load pickup availability
Product Details
Product Details
The Victron Inverter 12/3000 230 V VE.Bus is engineered for off-grid, backup and mobile power applications requiring high quality AC output from a 12 V DC battery supply. With its SinusMax hybrid high-frequency and line-frequency topology the unit delivers superior performance and efficiency.
The inverter supports parallel and three-phase operation (up to six units) to scale output for demanding installations.
With a VE.Bus port included, full system control and monitoring integration is easily achieved.
Parallel and 3-phase operation capability:
Up to 6 Inverters can operate in parallel to achieve higher power output. Six 24V 5000VA units, for example, will provide 24kW / 30kVA output power. Operation in 3-phase configuration is also possible.
Product Specifications
Product Specifications
Inverter Specifications
- Input Voltage Range: 9.5 – 17 VDC
- Output Voltage: 230 VAC ± 2% (Adjustable to 240 VAC)
- Output Frequency: 50 Hz ± 0.1% (Adjustable to 60 Hz)
- Cont. Output Power at 25°C: 3000 VA
- Cont. Output Power at 25°C: 2400 W
- Cont. Output Power at 40°C: 2200 W
- Cont. Output Power at 65°C: 1700 W
- Peak Power: 6000 W
- Maximum Efficiency: 93%
- Zero-Load Power: 20 W
- Zero-Load Power (AES Mode): 15 W
- Zero-Load Power (Search Mode): 8 W
Features & Connectivity
- VE.Bus Communication Port: Facilitates parallel operation (up to 6 units), three-phase configuration, remote monitoring, and system integration.
- Programmable Relay: Can be configured for general alarms, DC under-voltage signaling, or generator start/stop functions.
- Remote On/Off: Integrated dedicated terminal for remote control.
- Parallel Capability: Up to six 3000VA units can be paralleled to provide a total output of 14.4 kW / 18 kVA.
- Computer Integration: Settings such as output voltage, frequency, and alarm thresholds can be customized via VictronConnect or VEConfigure software (requires MK3-USB interface).
Mechanical & Enclosure
- Dimensions (H x W x D): 364 x 295 x 221 mm
- Weight: 18 kg
- Enclosure Material: Aluminium (Blue RAL 5012)
- Protection Category: IP21
- Battery Connection: M8 bolts
- 230V AC Connection: Screw terminals
Environmental & Standards
- Operating Temperature Range: -40 to +65 °C (Fan-assisted cooling)
- Humidity: Max 95% (non-condensing)
- Safety Standard: EN 60335-1
- Emission/Immunity: EN 55014-1 / EN 55014-2
- Integrated Protections: Output short circuit, overload, battery voltage too high/low, temperature too high, 230 VAC on inverter output, and input voltage ripple too high.
Technical Specifications
Technical Specifications
| Inverter Rating | 3000VA |
|---|---|
| Voltage | 12V |
| Protection | IP21 - Indoor |
| Weight KG | 18 |
