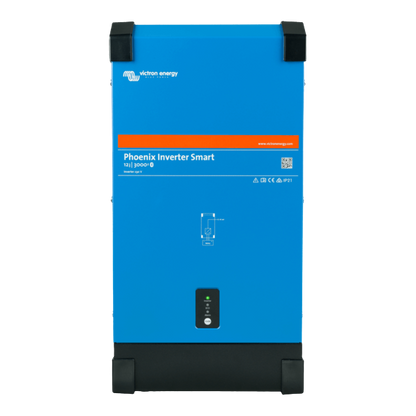

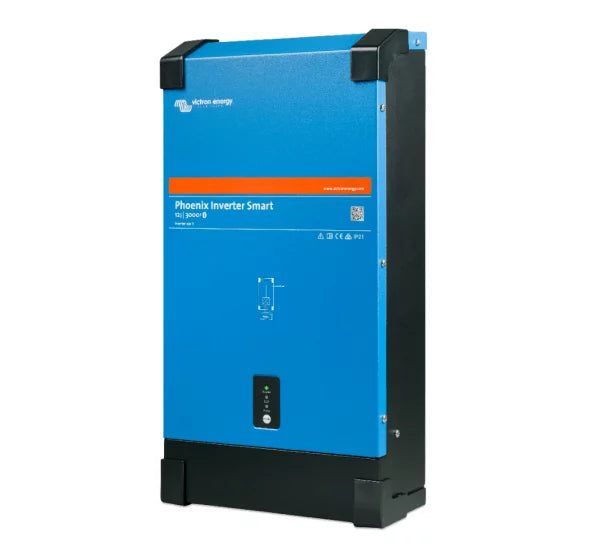

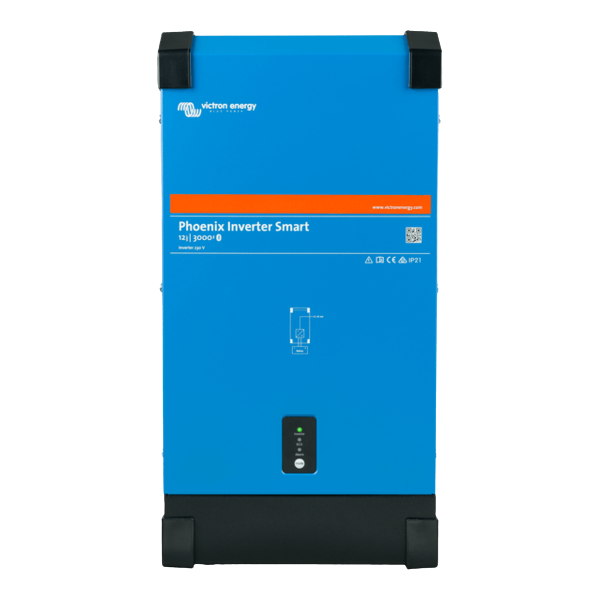

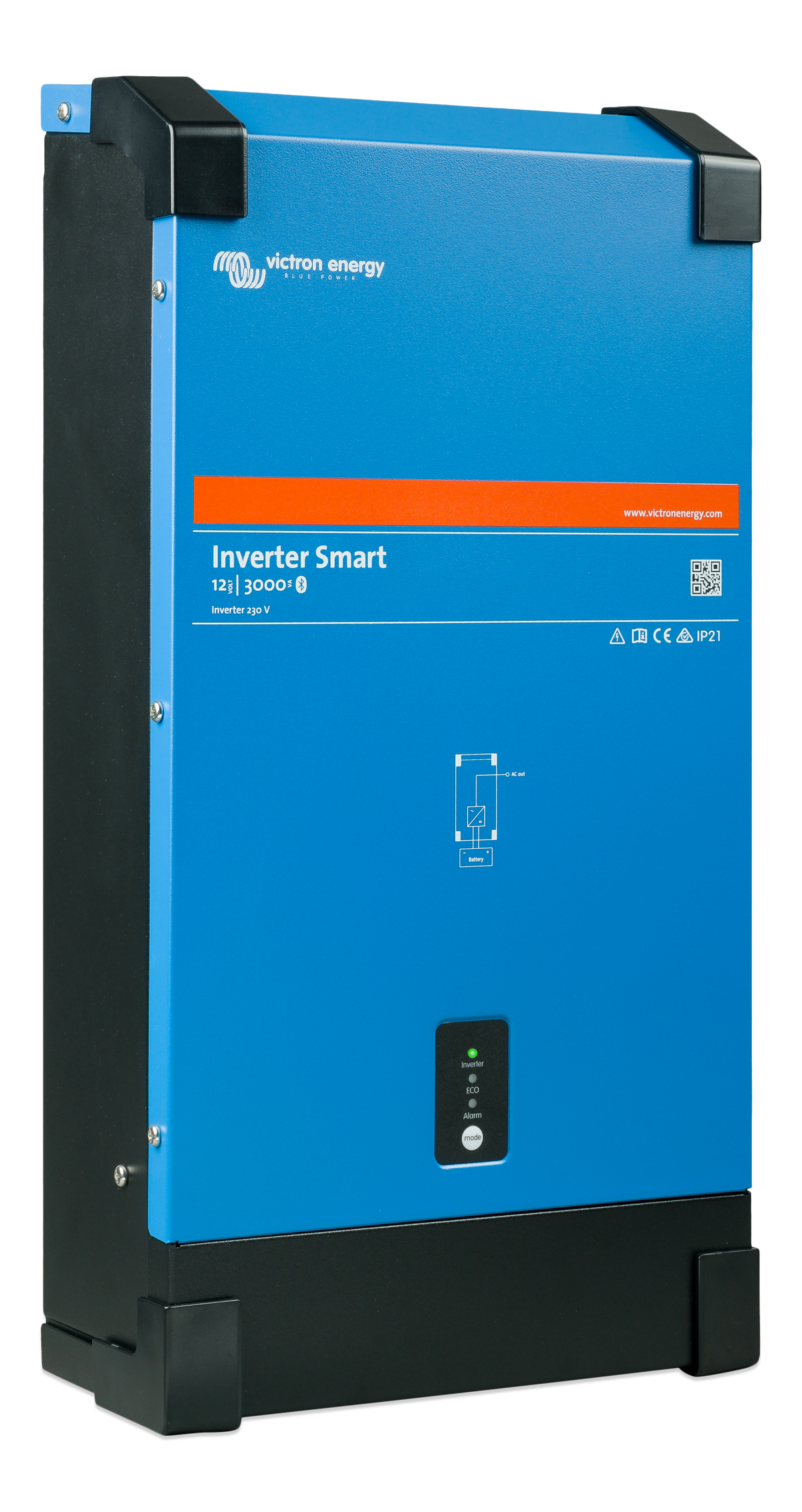

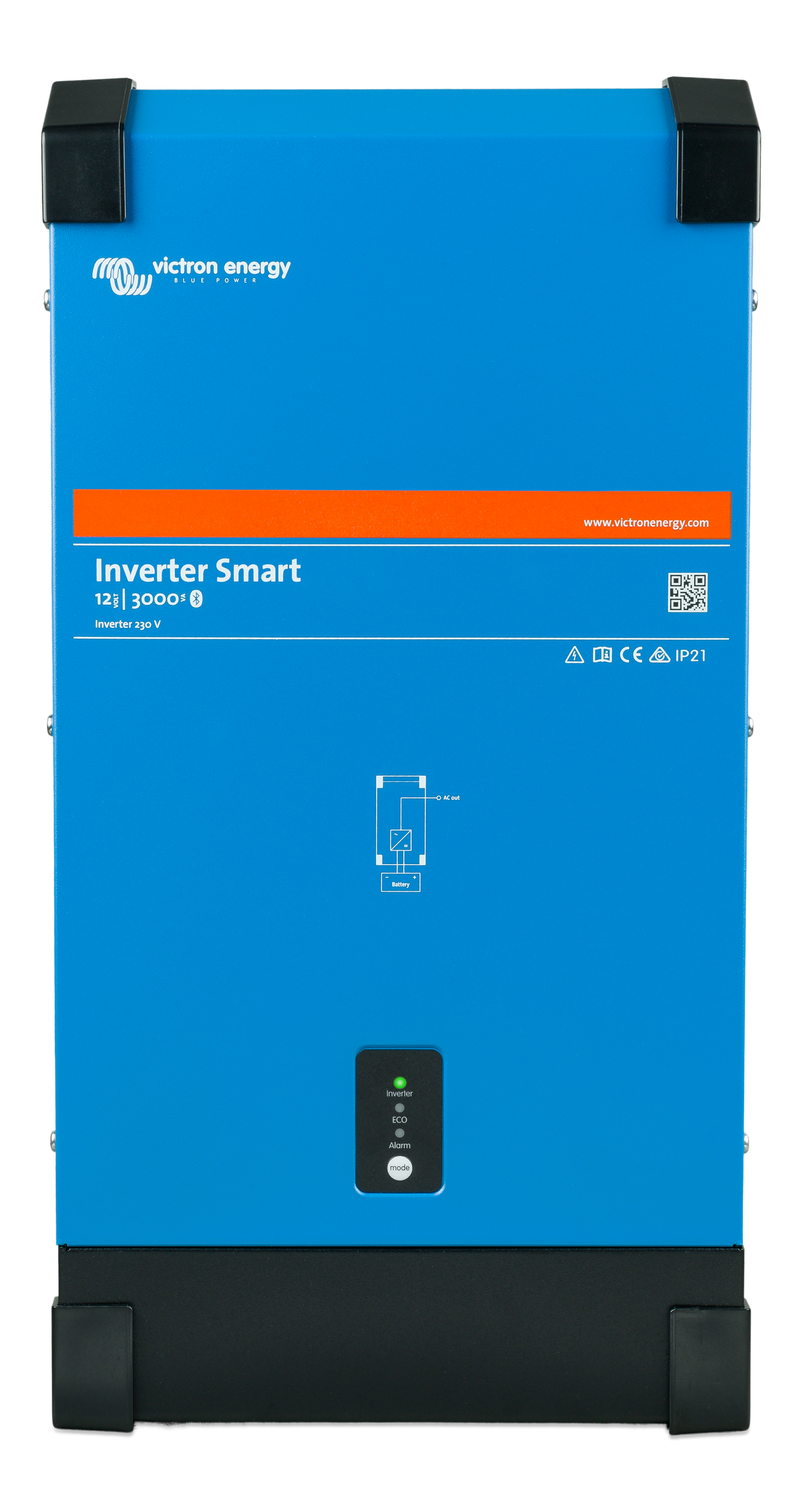

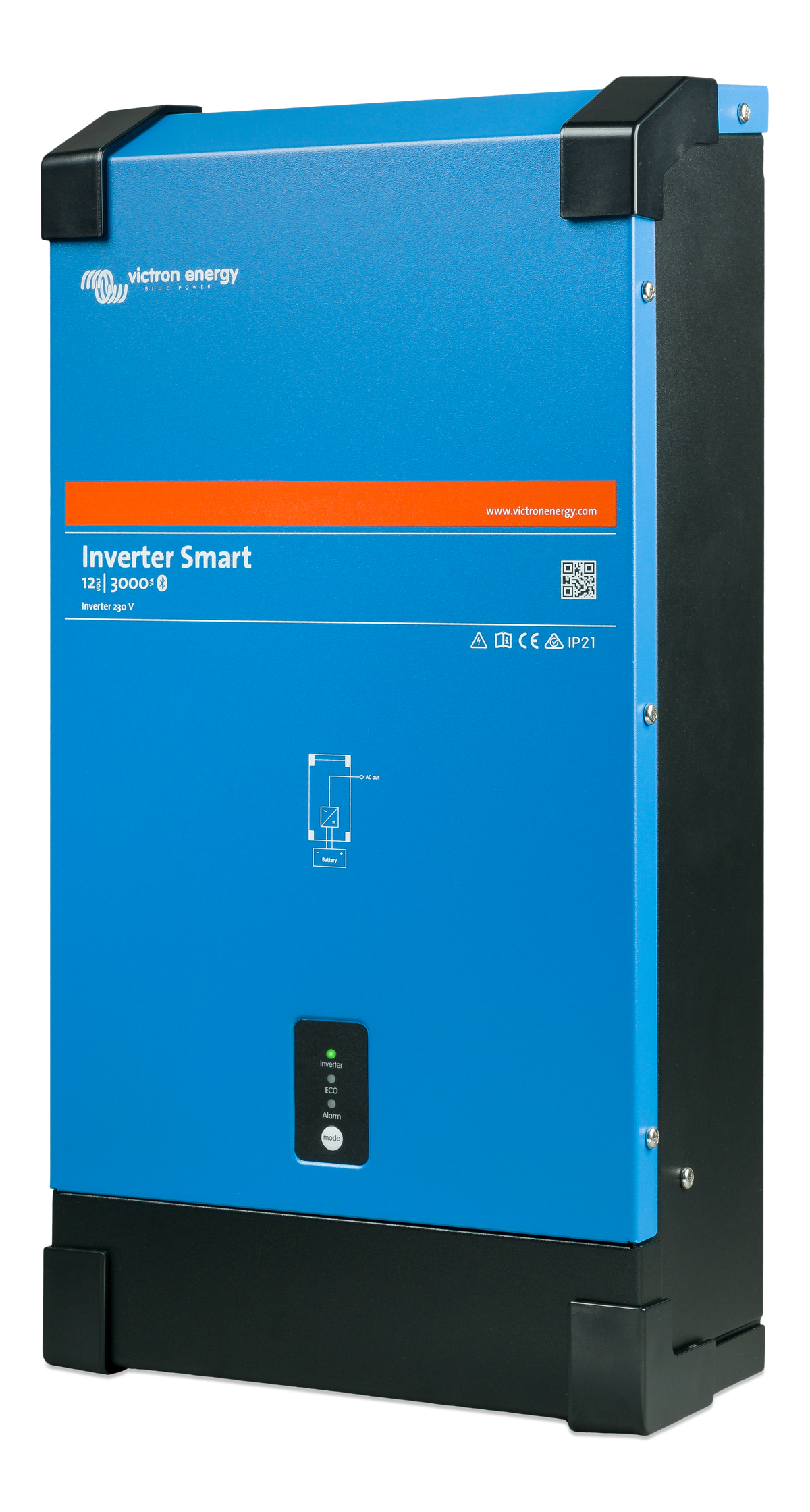

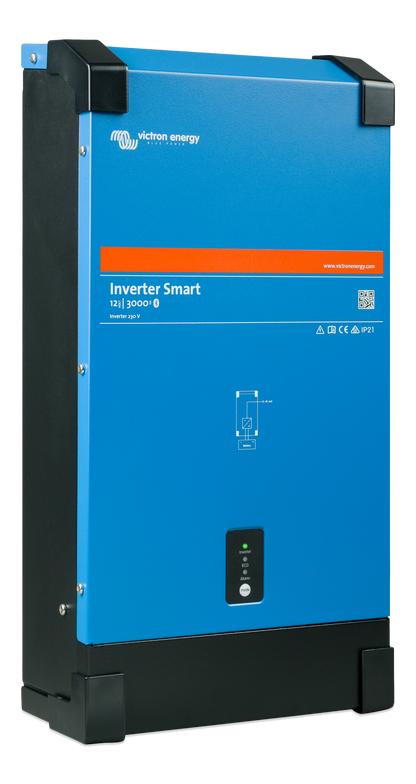

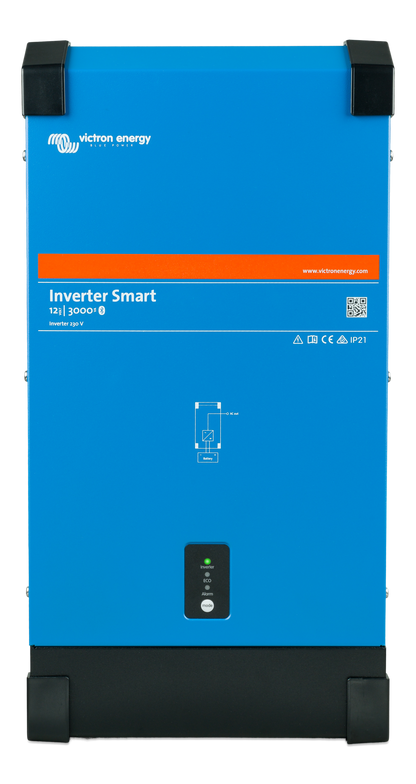

Victron 3000VA Inverter 12V - Smart Pure Sine Wave Phoenix Inverter
Victron 3000VA Inverter 12V - Smart Pure Sine Wave Phoenix Inverter
SKU:PIN122300000
Brand: Victron
Pure Sine Wave Output: Provides clean power suitable for sensitive electronics.
Smart Monitoring: Integrated Bluetooth for real-time monitoring via the Victron Connect app.
High Surge Capacity: Handles demanding loads with ease.
Compact and Durable: Space-saving design with a robust metal enclosure.
Versatile Applications: Ideal for campervans, boats, and remote cabins.
Dimensions: 533 x 285 x 150mm
Weight: 19kg
Low stock: 8 left
Regular price
£790.00 GBP
Regular price
Sale price
£790.00 GBP
Quantity
Couldn't load pickup availability
Product Details
Product Details
The Victron 3000VA 12V Smart Pure Sine Wave Phoenix Inverter (PIN122300000) is engineered for off-grid applications requiring reliable 230V AC power from a 12V DC source. With a continuous output of 3000VA and a peak surge capacity of 6000VA, this inverter is ideal for powering sensitive electronics, power tools, and household appliances in environments like campervans, boats, and remote cabins.
Key Features:
- Pure Sine Wave Output: Ensures clean and stable power, safe for all types of equipment.
- Smart Connectivity: Built-in Bluetooth allows monitoring and configuration via the Victron Connect app.
- High Surge Capacity: Capable of handling high inrush currents from devices like refrigerators and power tools.
- Compact Design: Slim profile (533 x 285 x 150 mm) for easy installation in confined spaces.
- Robust Build: Full metal casing with IP21 rating for durability in various environments.
Whether you're outfitting a mobile home or setting up a remote power system, the Victron 3000VA inverter offers the reliability and performance you need.
Product Specifications
Product Specifications
Inverter Specifications
- Nominal Battery Voltage: 12 V
- Continuous Output Power at 25°C: 3000 VA
- Continuous Output Power at 65°C: 1700 W
- Peak Power: 6000 W
- Maximum Efficiency: 93%
- Zero-Load Power: 12 W
- Zero-Load Power (ECO Mode): 1.5 W
- Output Voltage: 210 – 245 V (Configurable)
- Output Frequency: 50 Hz or 60 Hz (Configurable)
- Dynamic Cut-off: Load-dependent DC low shut-down (Fully configurable)
Features & Connectivity

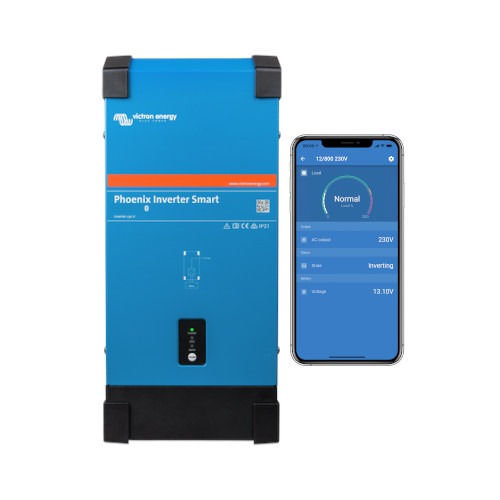

- Bluetooth Smart Built-in: Fully configurable via tablet or smartphone for monitoring voltage, load, and alarms.
- VE.Direct Communication Port: Connects to a computer (via VE.Direct to USB cable) or a GX device (e.g., Cerbo GX) for full system control and monitoring.
- ECO Mode: In standby, the inverter searches for a load every 2.5 seconds (adjustable). It remains on if the load exceeds a preset level.
- Programmable Relay: Can be configured for general alarms, DC under-voltage signaling, or generator start/stop functions.
- Relay Ratings: AC: 230 V / 4 A; DC: 4 A / 35 VDC, 1 A / 60 VDC.
- Remote On-Off: Features a two-pole connector for a remote switch or relay contact.
- Integrated Transfer Switch Compatibility: Recommended for use with a Filax Automatic Transfer Switch (switchover <20ms) for seamless power backup to sensitive electronics.
Mechanical & Enclosure
- Dimensions (H x W x D): 533 x 285 x 150 mm
- Weight: 19 kg
- Material & Colour: Steel (Blue RAL 5012 and Black RAL 9017)
- Protection Category: IP21

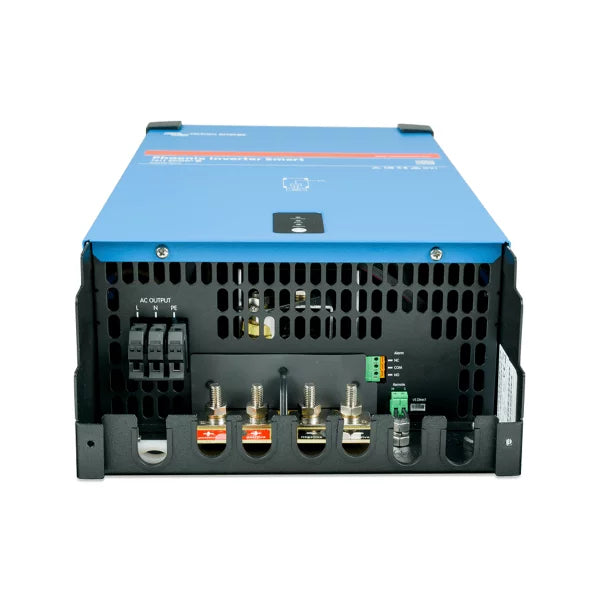

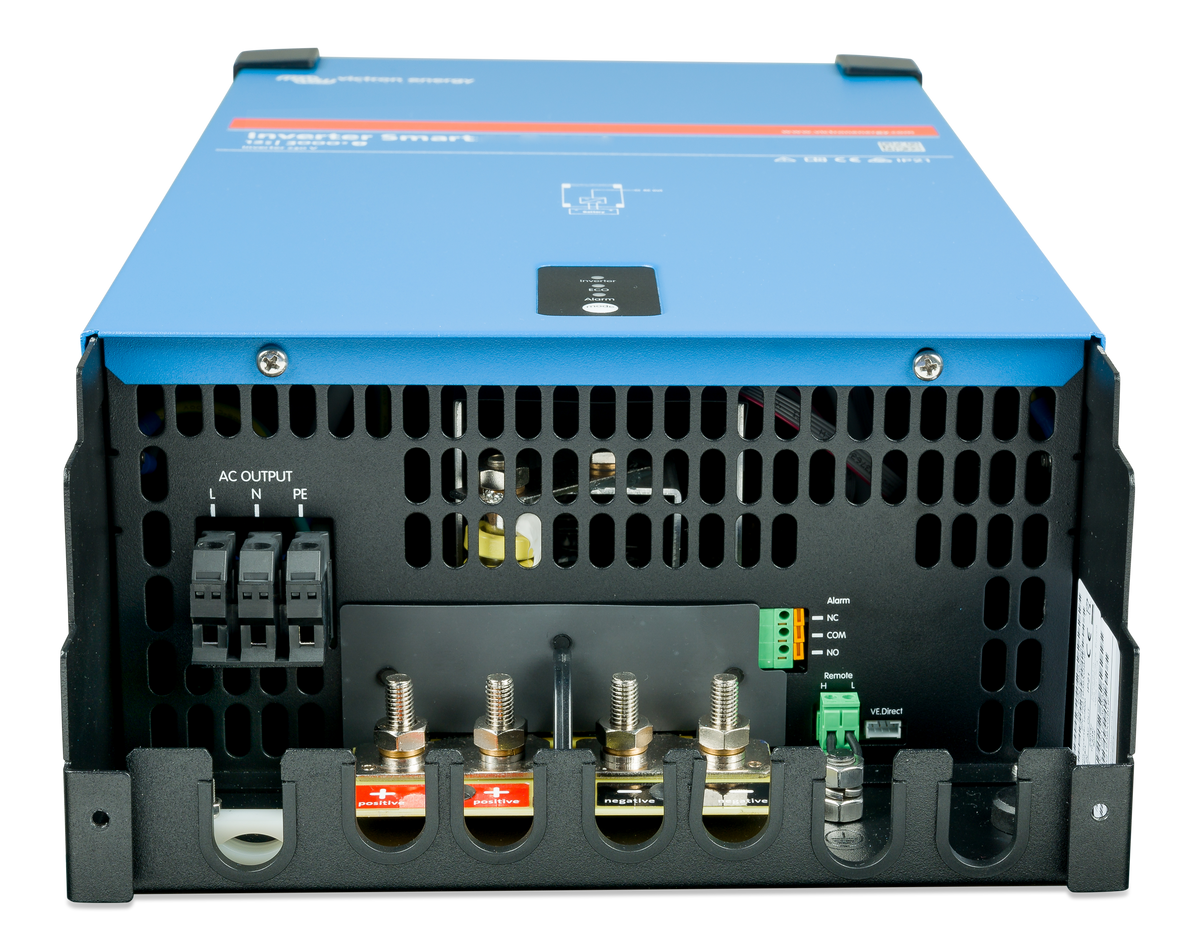

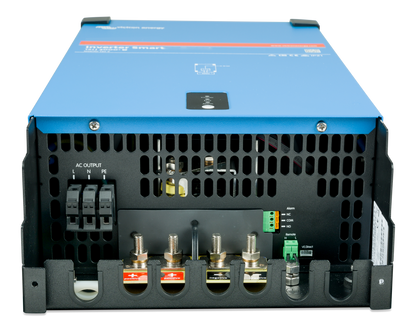

- Battery Connection: 2+2 M8 bolts
- 230V AC Connection: Screw terminals
Environmental & Standards
- Operating Temperature Range: -40 to +65°C (Fan-assisted cooling)
- Humidity: Max 95%, non-condensing
- Electronic Protections: Output short circuit, overload, battery voltage too high/low, temperature too high, 230 VAC on inverter output, and input voltage ripple too high.
- Safety Standard: EN 60335-1
- Emission/Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
- Automotive Directive: ECE R10-5
Technical Specifications
Technical Specifications
| Inverter Rating | 3000VA |
|---|
