The Victron Phoenix Inverter 12V 250VA with VE.Direct is a compact and reliable power solution designed for professional trade users who require clean and stable AC power from a 12V battery supply. Built around Victron’s proven pure sine wave technology, this inverter delivers a consistent output suitable for sensitive electronics, small appliances, lighting systems, measurement equipment and communication devices. It is a dependable choice for work vans, service vehicles, off grid cabins, marine systems and backup installations.
A key benefit of this model is its pure sine wave output, which replicates the quality of mains power. This helps protect equipment from interference and extends the operating life of electronic tools and devices. The inverter provides 250VA of continuous output power, which is ideal for low to medium power demands. Despite its performance, the unit remains compact and lightweight, making it easy to install where space is limited.
The VE.Direct communication port provides simple connectivity to monitoring systems and compatible Victron displays. Trade users can access real time status, fault information and historical data which supports faster diagnostics and improved fleet management. Optional Bluetooth connectivity (via a separate accessory) allows system checks from a mobile device, making this inverter particularly useful in fast paced working environments.
Efficiency is another important point. An ECO mode helps reduce power consumption during idle periods by automatically adjusting output when loads are low. This supports longer battery runtimes and helps reduce operational costs. The inverter also offers robust protection features, including overload shutdown, temperature monitoring and battery voltage alarms. These safeguards ensure safety and reliability even under demanding conditions.

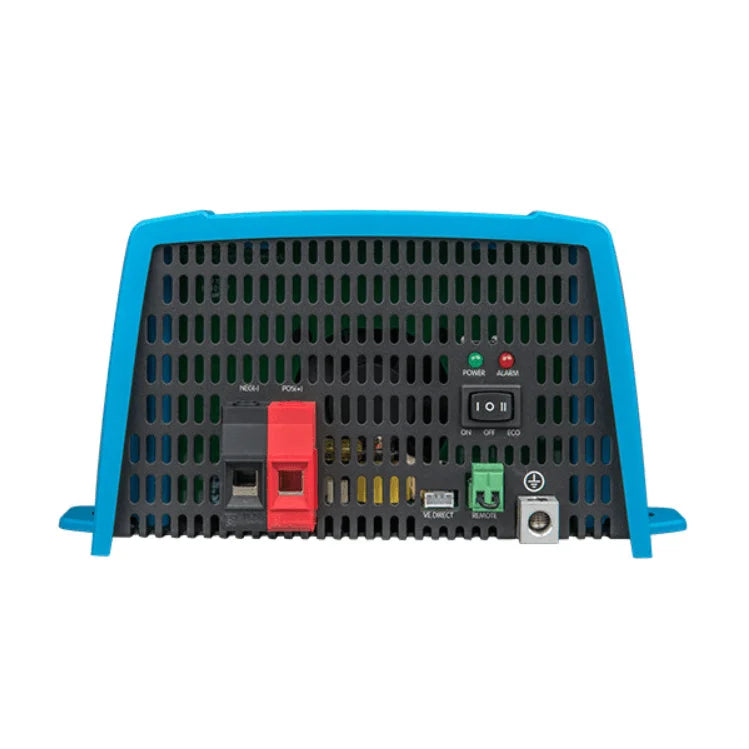

Installation is straightforward thanks to clear labelling, rear cable connections and mounting points. The durable housing is suited to mobile and fixed installations, providing resistance to vibration and general wear. When paired with the wider Victron ecosystem, including chargers, solar controllers and battery monitoring hardware, the Phoenix Inverter forms an excellent foundation for flexible and scalable power systems.
Whether supporting equipment on a service vehicle or powering small appliances in remote, off grid locations, the Victron Phoenix Inverter 12V 250VA is a trusted option for business users seeking proven quality and long term reliability. With industry leading engineering, efficient energy use and convenient communication features, it offers excellent value for trade applications.
Product Specifications
Product Specifications
Electrical Specifications
- Nominal Battery Voltage: 12 V
- Continuous Power at 25°C: 250 VA
- Peak Power: 400 W
- Output AC Voltage / Frequency: 230 VAC or 120 VAC +/- 3% (50 Hz or 60 Hz +/- 0.1%)
- Input Voltage Range: 9.2 – 17 V
- Maximum Efficiency: 87%
- Zero-load Power: 4.2 W
- Default Zero-load Power in ECO Mode: 0.8 W (default retry interval: 2.5 s)
Configurable Features & Monitoring
- VE.Direct Communication Port: Can be connected to a computer (via VE.Direct to USB interface cable) or smartphones/tablets (via VE.Direct Bluetooth Smart dongle) for full configuration and monitoring.
- Fully Configurable Parameters:Low battery voltage alarm trip and reset levels.Low battery voltage cut-off and restart levels.Dynamic cut-off: Load-dependent cut-off level.Output voltage: 210 – 245 V.Frequency: 50 Hz or 60 Hz.ECO mode on/off and ECO mode sense level.
- Monitoring Capabilities: In- and output voltage, % load, and active alarms.
- ECO Mode: When active, the inverter switches to standby when the load decreases below a preset value (minimum load: 15W). It briefly switches on every 2.5 seconds (adjustable) to check for a load.
- Remote On/Off: Features a two-pole connector for a remote switch or battery-plus connection.
Mechanical Specifications
- Dimensions (H x W x D): 86 x 165 x 260 mm (3.4 x 6.5 x 10.2 inches)
- Weight: 2.4 kg (5.3 lbs)
- Enclosure Material & Colour: Steel chassis and plastic cover (Blue RAL 5012)
- Protection Category: IP21
- Battery Connection: Screw terminals
- Maximum Cable Cross-section: 10 mm² (AWG8)
- Standard AC Outlets: 230V: Schuko (CEE 7/4), IEC-320 (male plug included), UK (BS 1363), or AU/NZ (AS/NZS 3112).
Environmental & Protection
- Operating Temperature Range: -40 to +65°C (Fan-assisted cooling; derating 1.25% per °C above 40°C)
- Humidity: Max 95% non-condensing
- Integrated Electronic Protection:Output short circuitOverloadBattery voltage too high / too lowTemperature too highDC ripple too high
Standards & Certifications
- Safety: EN-IEC 60335-1 / EN-IEC 62109-1
- EMC: EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3
- Automotive Directive: ECE R10-4
Technical Specifications
Technical Specifications
| Inverter Rating | 250VA |
|---|
