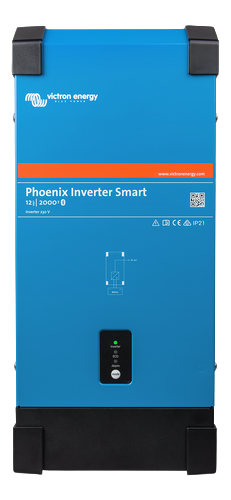

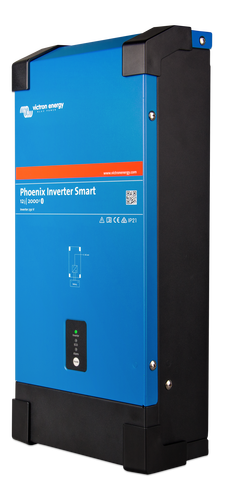

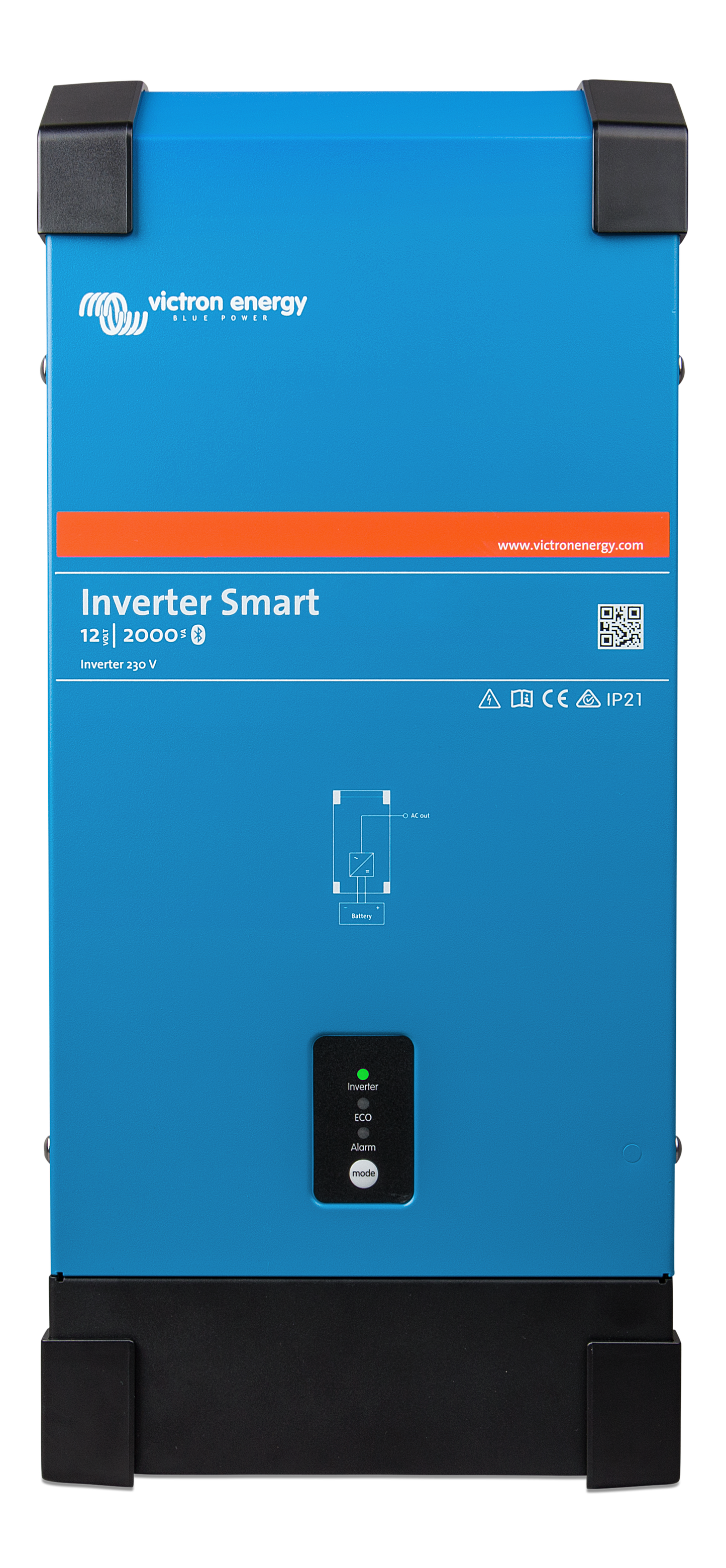

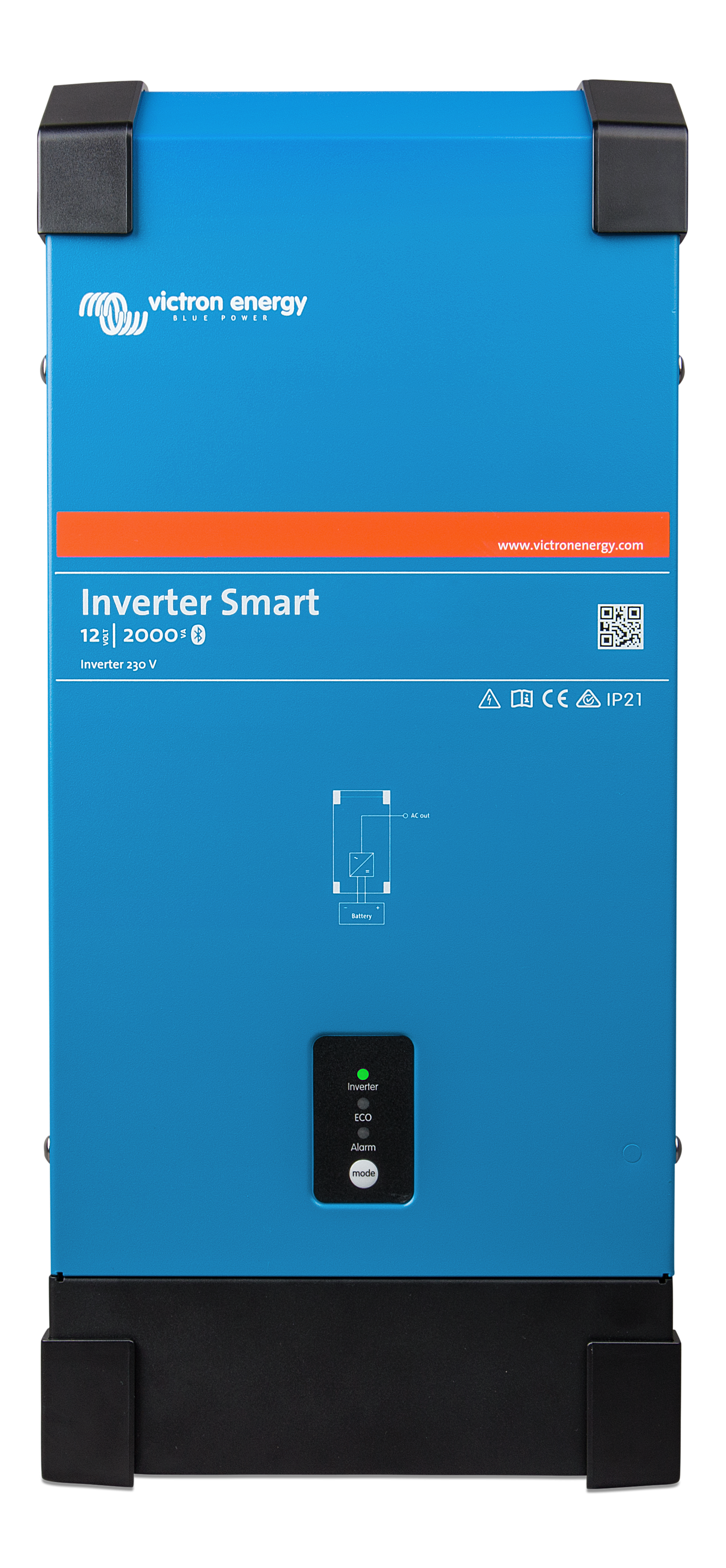

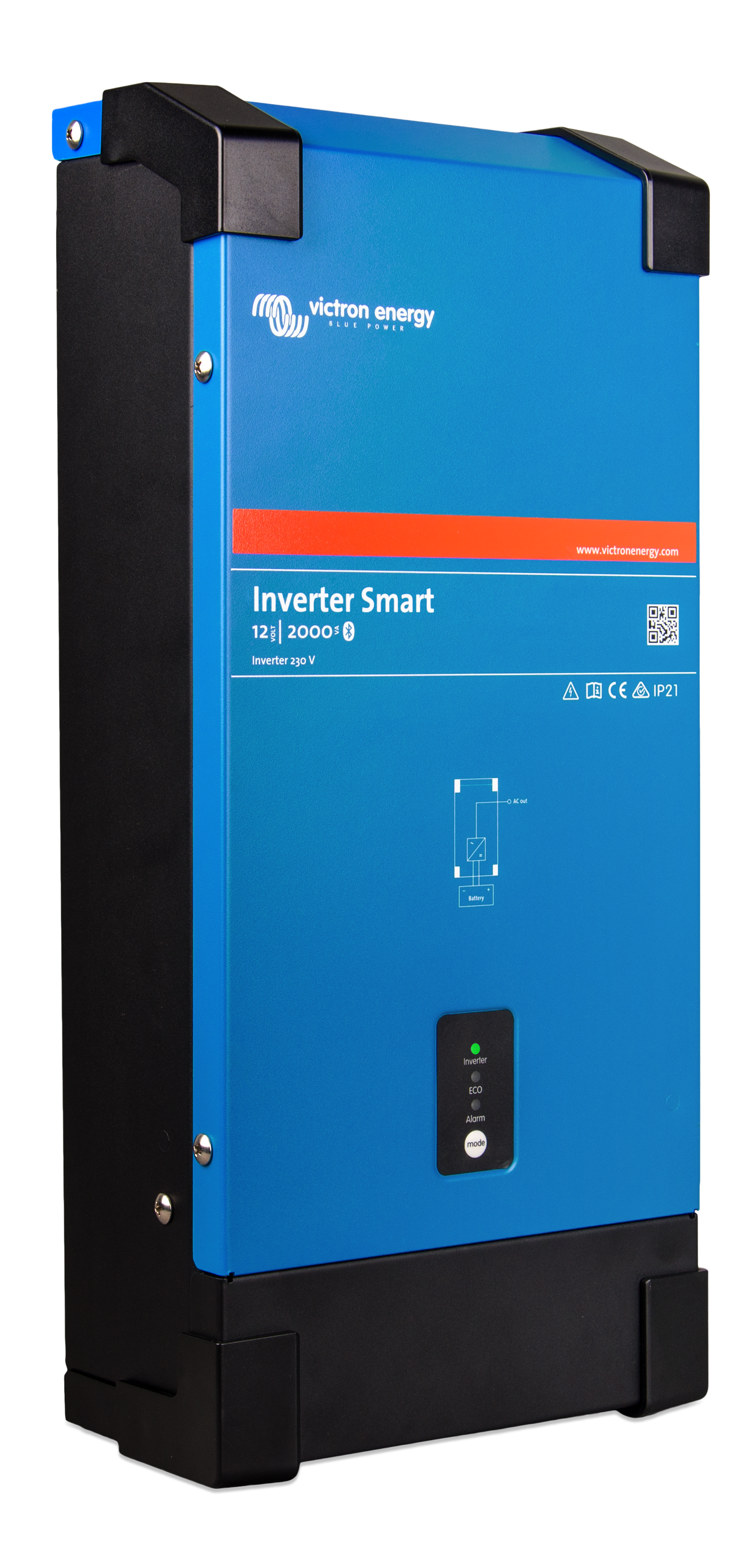

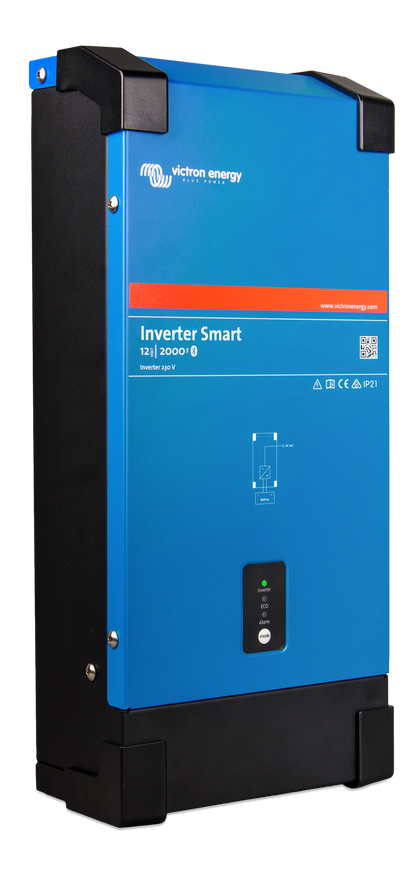

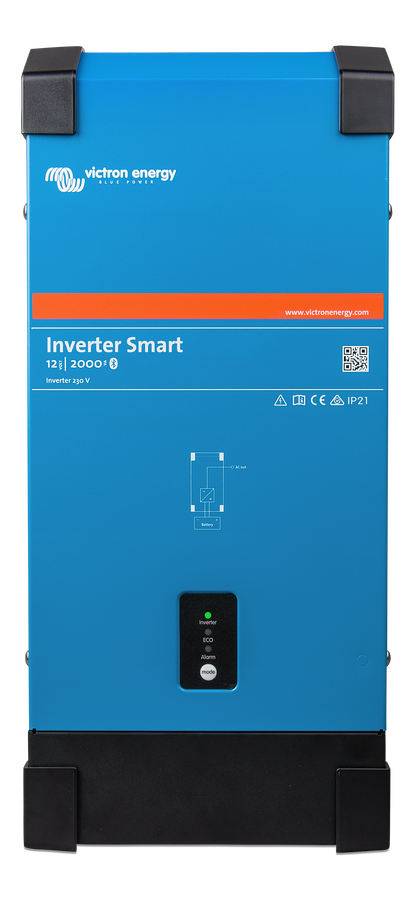

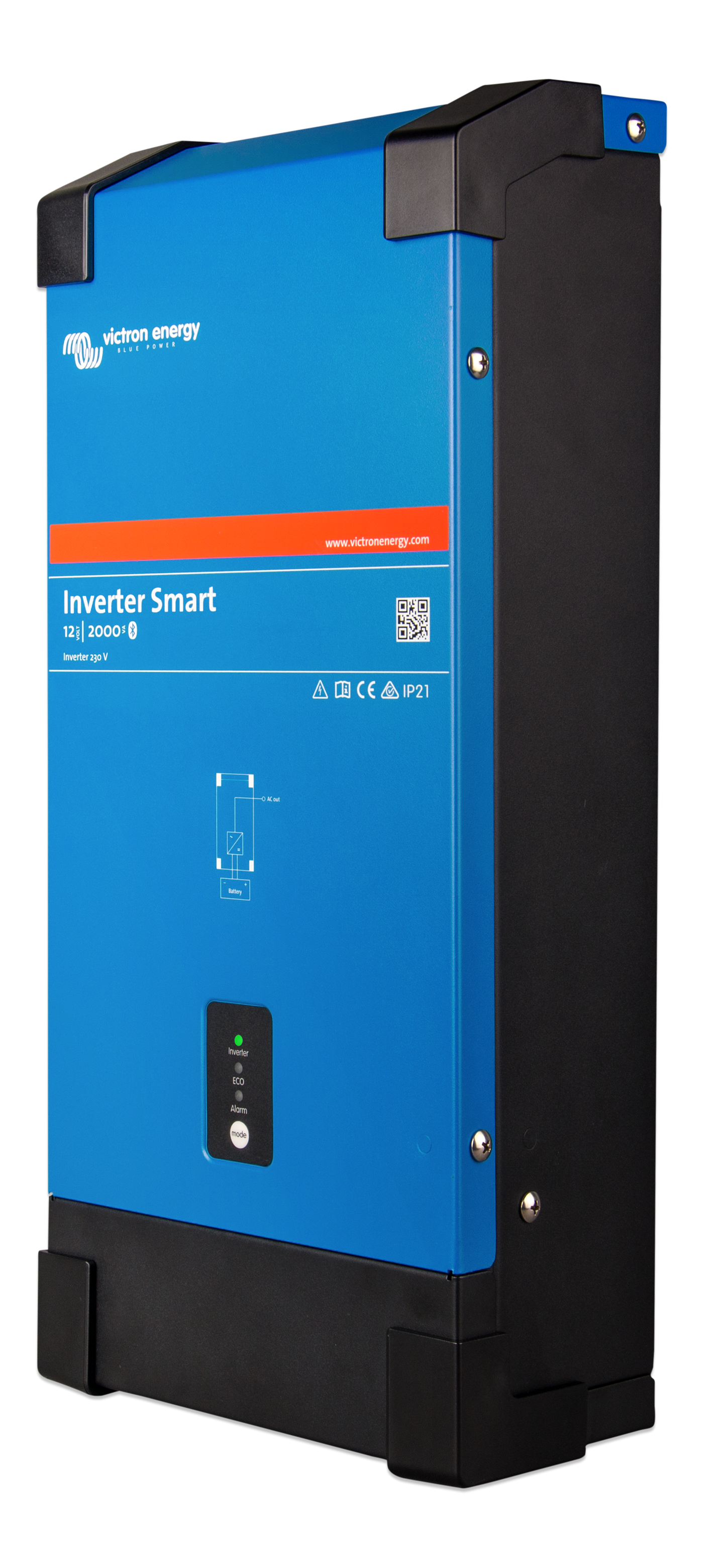

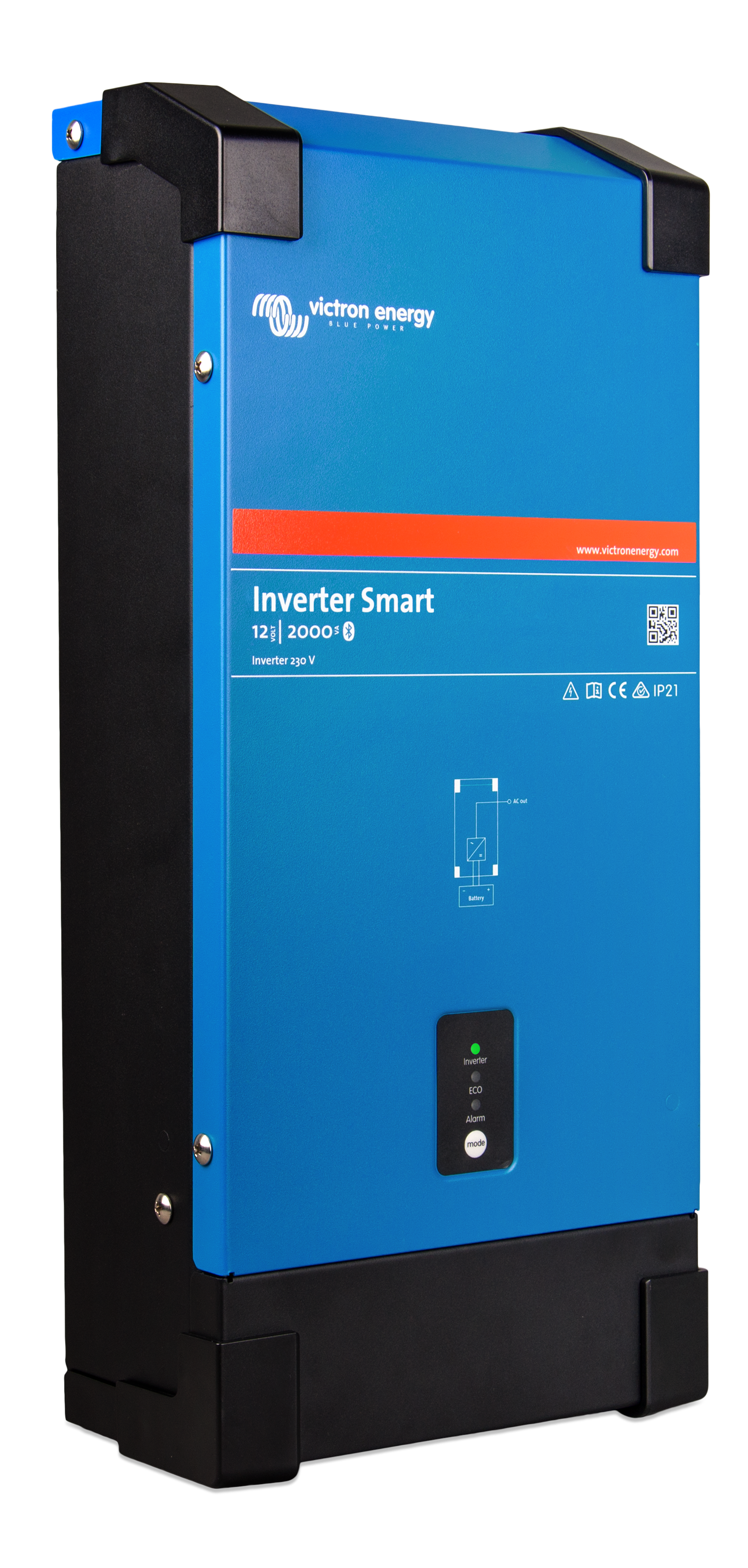

Victron 2000VA Inverter 12V - Smart Pure Sine Wave Phoenix Inverter
Victron 2000VA Inverter 12V - Smart Pure Sine Wave Phoenix Inverter
SKU:PIN122201000
Brand: Victron
Low stock: 5 left
Couldn't load pickup availability
Product Details
Product Details
The Victron 2000VA Inverter 12V Smart Pure Sine Wave Phoenix Inverter is designed to provide dependable power conversion for trade and professional applications. Built with trusted Victron engineering, it delivers a stable pure sine wave output suitable for powering sensitive electronics, tools, appliances, and on board equipment. Whether installed in a commercial vehicle, service van, boat, off grid site, or backup system, it provides consistent performance when mains power is unavailable.
A standout advantage of this inverter is its Bluetooth connectivity. Using the VictronConnect app, you can monitor operation, configure settings, and update firmware from a phone or tablet. This control allows tradespeople and installers to check load levels, adjust alarms, and ensure systems continue to run correctly.
Efficiency has also been prioritised. Smart electronics reduce standby consumption, helping to protect battery capacity throughout the working day. The integrated ECO mode minimises power draw when loads are low, making it ideal for systems where energy resources are limited. Safety protections are also built in, including overload, short circuit, and temperature safeguards to protect your investment.

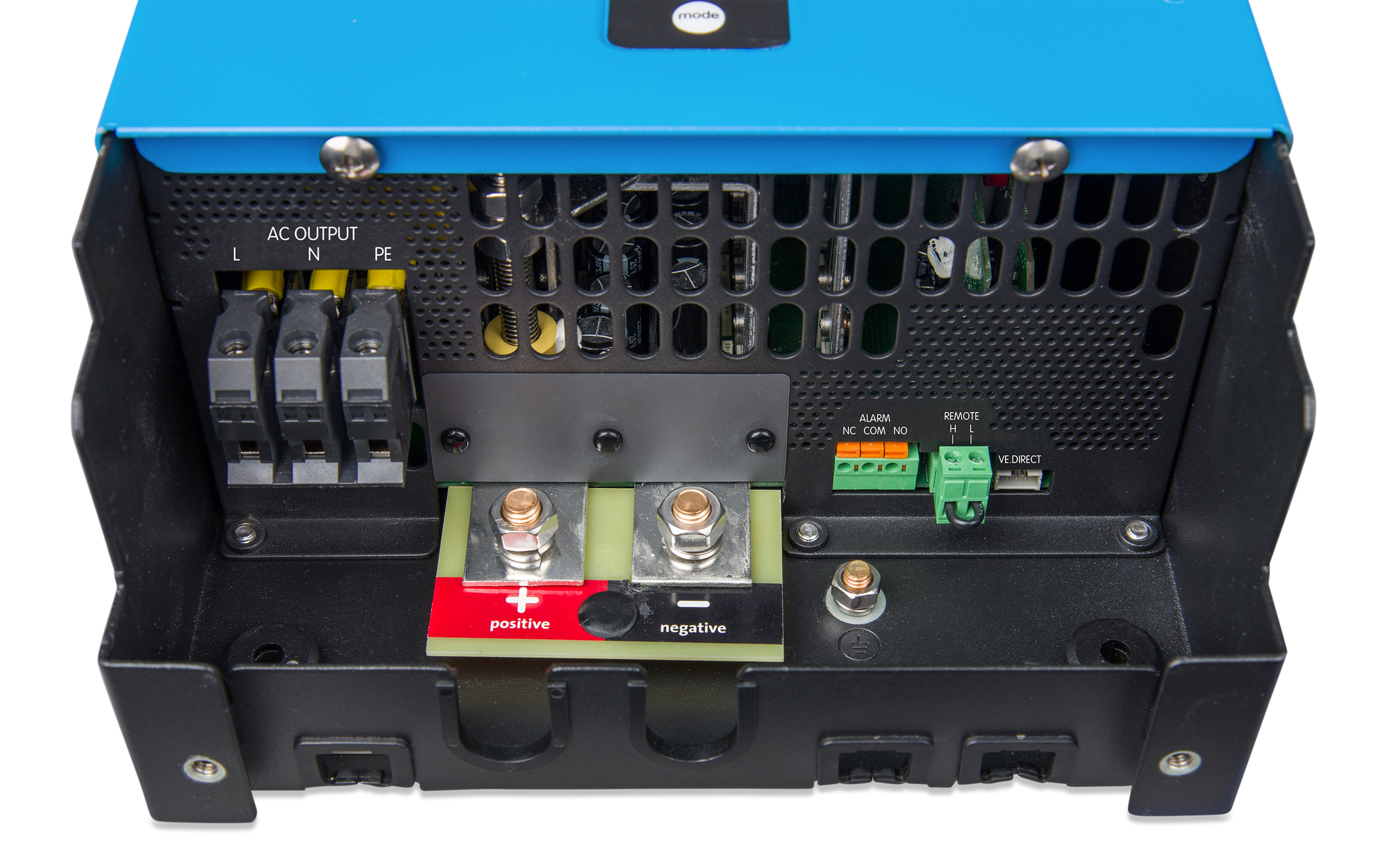

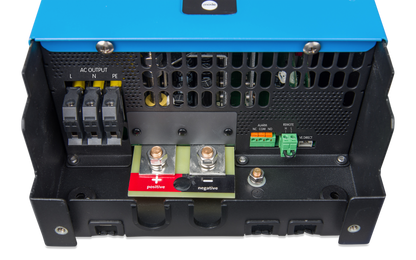

Installation has been designed to be straightforward. The inverter features a robust aluminium housing for durability, while connection points are positioned for tidy, secure wiring. It can be paired with Victron monitoring equipment and battery chargers, allowing it to form part of a complete power solution.
This model is well suited for contractors, mobile workshops, marine users, and anyone needing reliable off grid AC power. With its combination of clean power delivery, remote app control, and durable build quality, the Victron 2000VA Smart Pure Sine Wave Phoenix Inverter stands out as a dependable choice for professional power systems.
Product Specifications
Product Specifications
Inverter Specifications
- Nominal Battery Voltage: 12 V
- Input Voltage Range: 9.3 – 17 V
- Output Voltage: 230 VAC ± 2% (Adjustable 210 – 245 V)
- Output Frequency: 50 Hz or 60 Hz ± 0.1%
- Continuous Output Power at 25°C: 2000 VA
- Continuous Output Power at 25°C: 1600 W
- Continuous Output Power at 40°C: 1450 W
- Continuous Output Power at 65°C: 1000 W
- Peak Power: 4000 W
- Maximum Efficiency: 92%
- Zero-Load Power: 8 W
- Zero-Load Power in ECO Mode: 0.6 W
Features & Connectivity
- Bluetooth Smart Built-in: Wireless monitoring and configuration of alarms, voltage cut-off levels, output voltage, frequency, and ECO mode settings.
- VE.Direct Communication Port: Allows for a wired connection to a computer or GX device (such as a Cerbo GX) for system integration and monitoring.
- ECO Mode: Automatically switches the inverter to standby when the load decreases below a preset value. In standby, the inverter searches for a load every 2.5 seconds (adjustable).
- Programmable Relay: Can be configured for a general alarm, DC under-voltage, or generator start/stop functions. (AC rating: 230V / 4A; DC rating: 4A up to 35VDC).
- Remote On-Off: Features a two-pole connector for a remote switch or relay contact.
- LED Diagnosis: Provides visual status and alarm descriptions.
Mechanical & Enclosure
- Dimensions (H x W x D): 485 x 219 x 125 mm
- Weight: 13 kg
- Enclosure Material & Colour: Steel (Blue RAL 5012 and Black RAL 9017)
- Protection Category: IP21

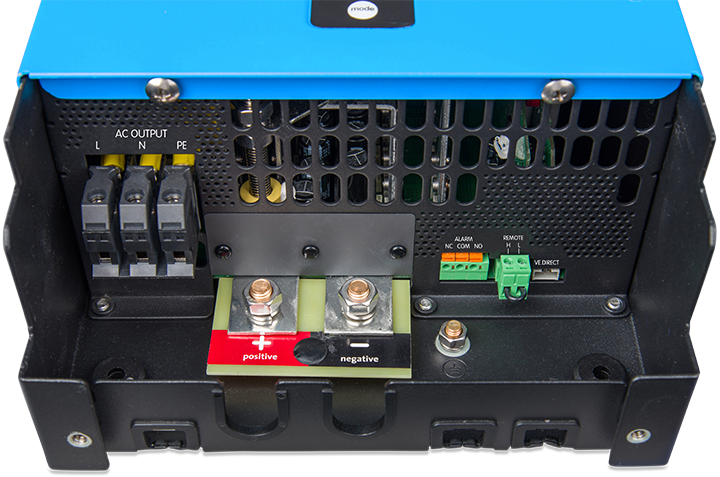

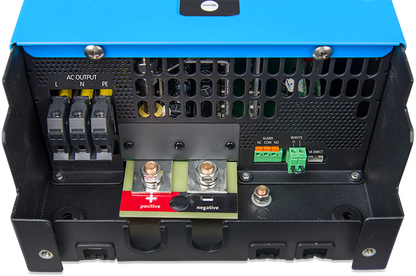

- Battery Connection: M8 bolts
- 230V AC Connection: Screw terminals
Environmental & Standards
- Operating Temperature Range: -40 to +65°C (Fan-assisted cooling)
- Humidity: Max 95% (Non-condensing)
- Integrated Electronic Protection:
- Output short circuit
- Overload
- Battery voltage too high / too low
- Temperature too high
- 230 VAC on inverter output
- Input voltage ripple too high - Safety Standards: EN 60335-1
- Emission/Immunity Standards: EN 55014-1, EN 55014-2, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
- Automotive Directive: ECE R10-5
Technical Specifications
Technical Specifications
| Inverter Rating | 2000VA |
|---|
