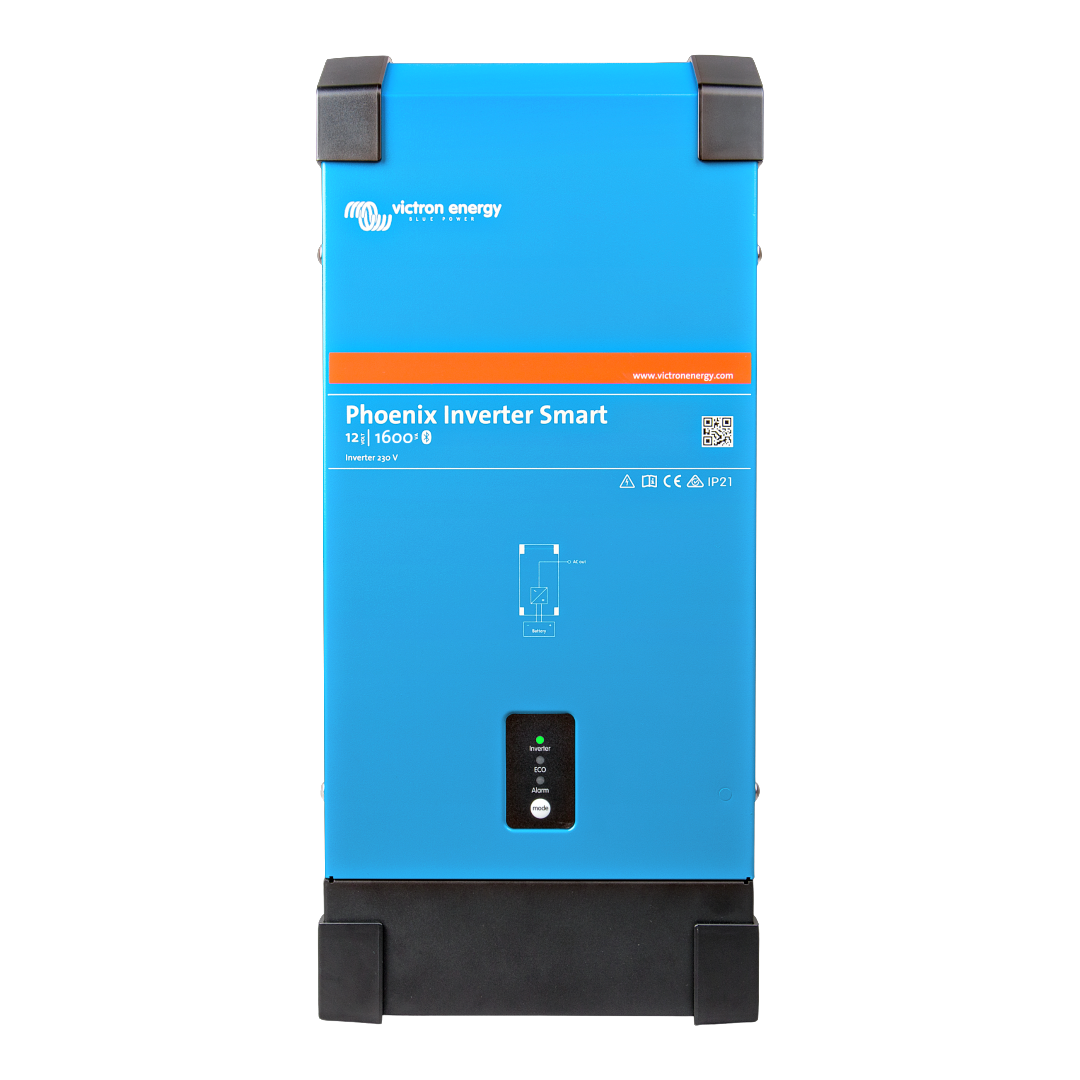

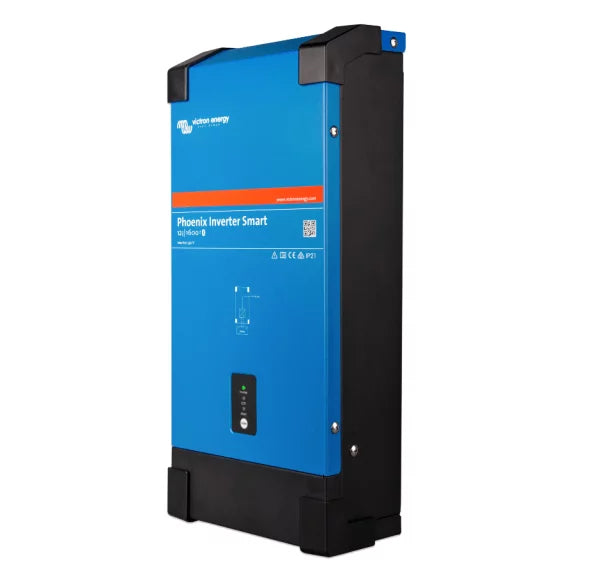

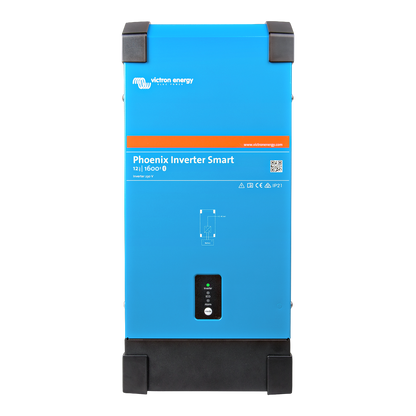

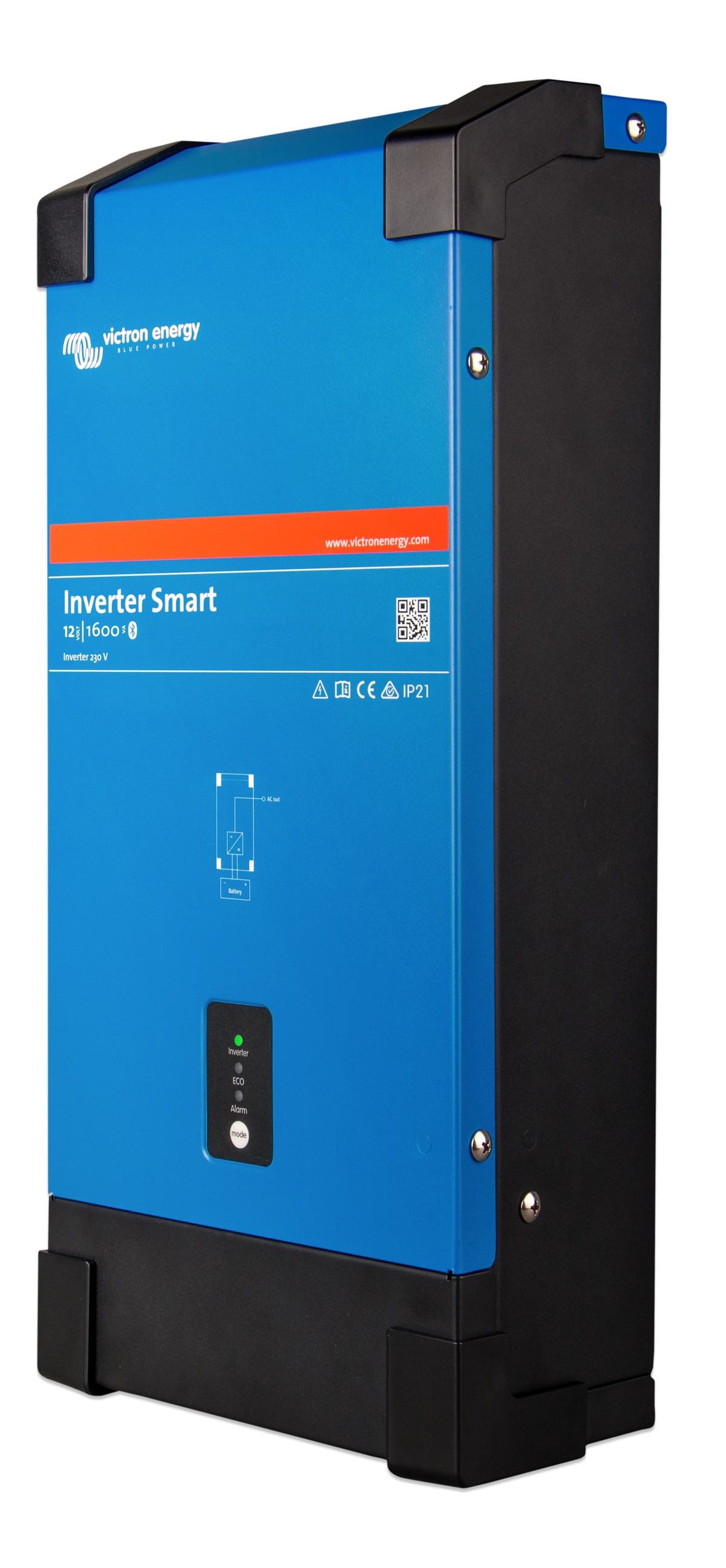

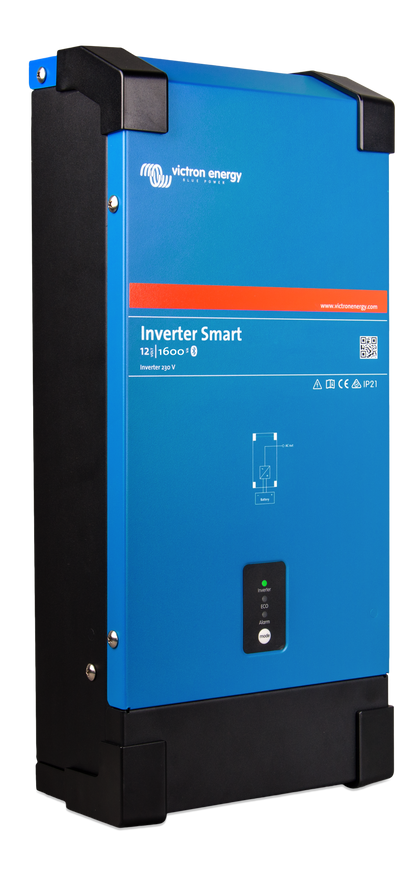

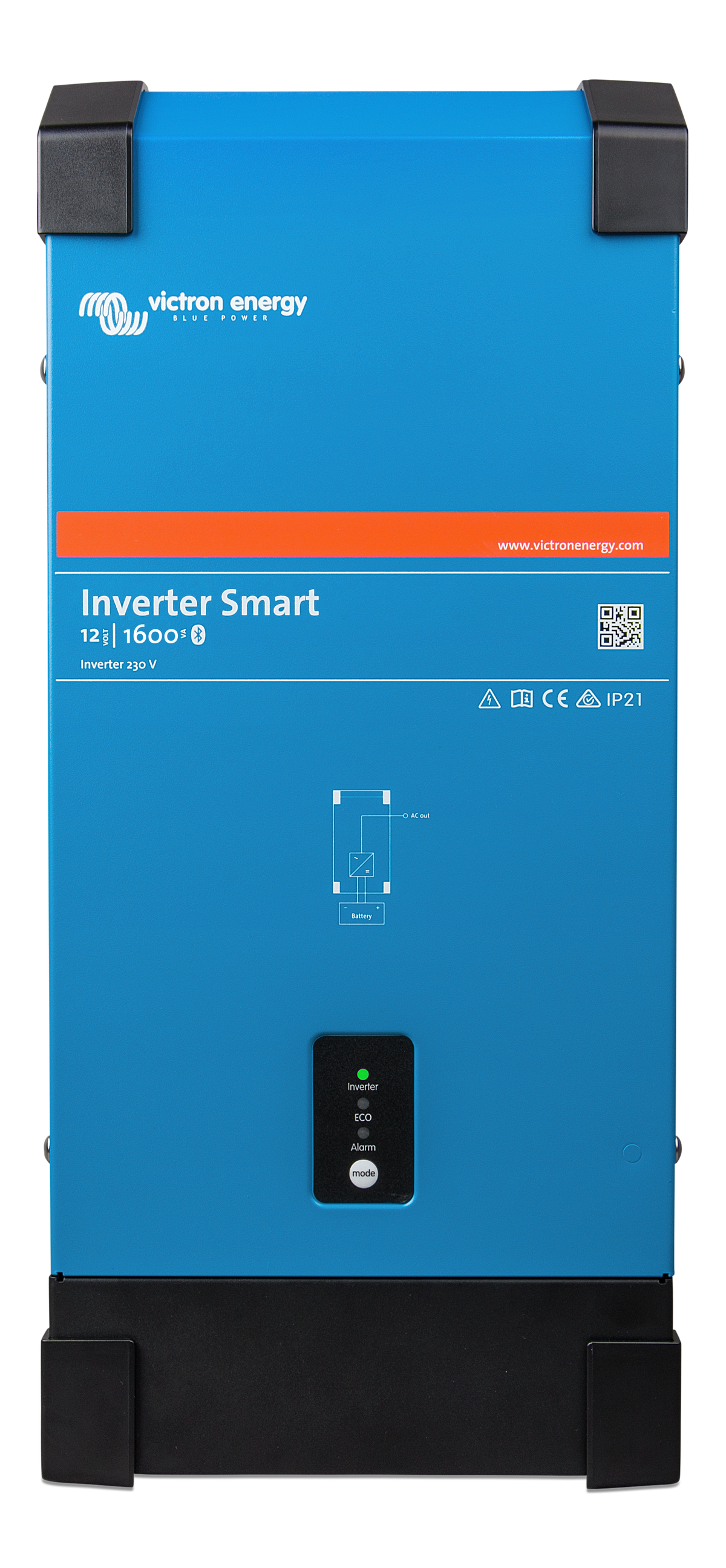

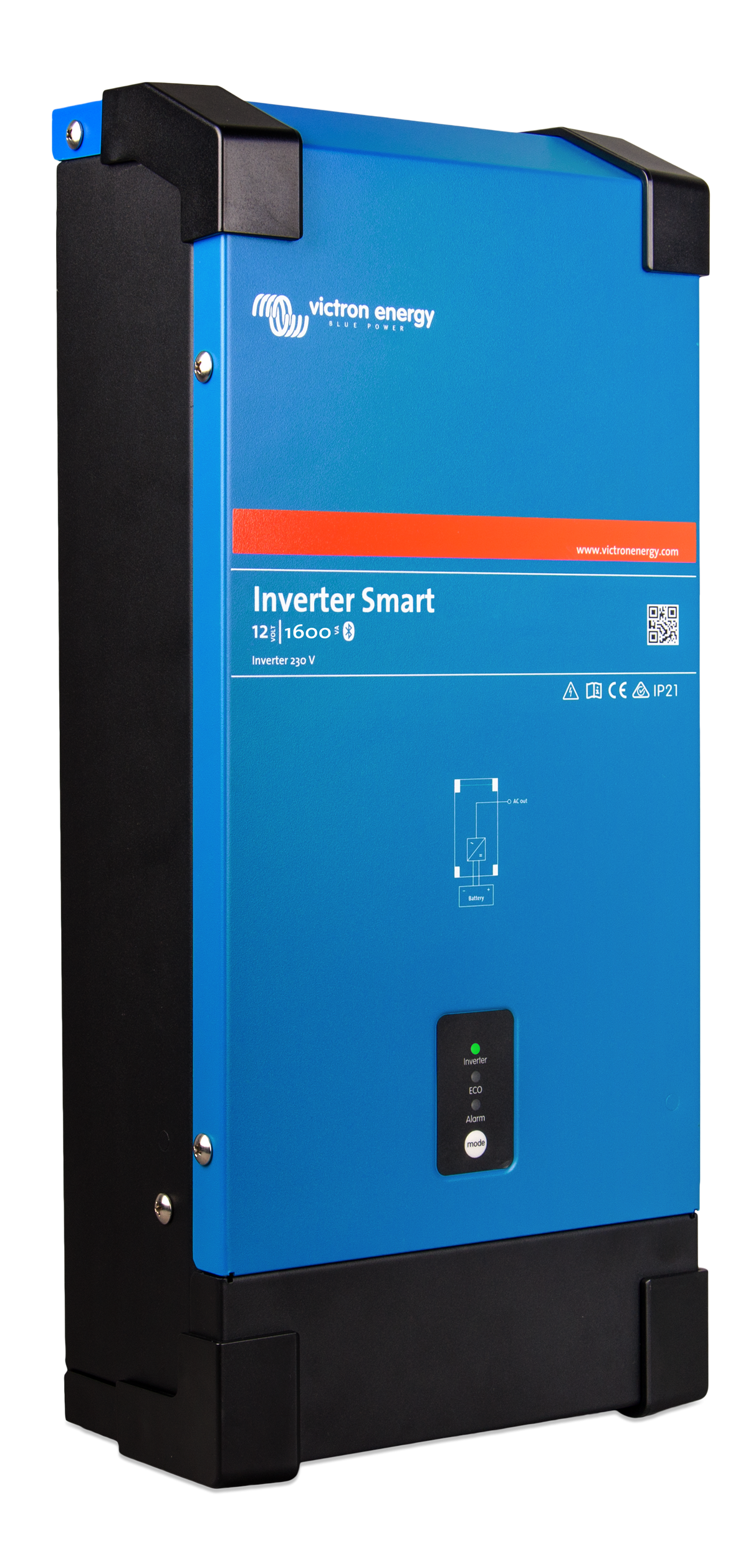

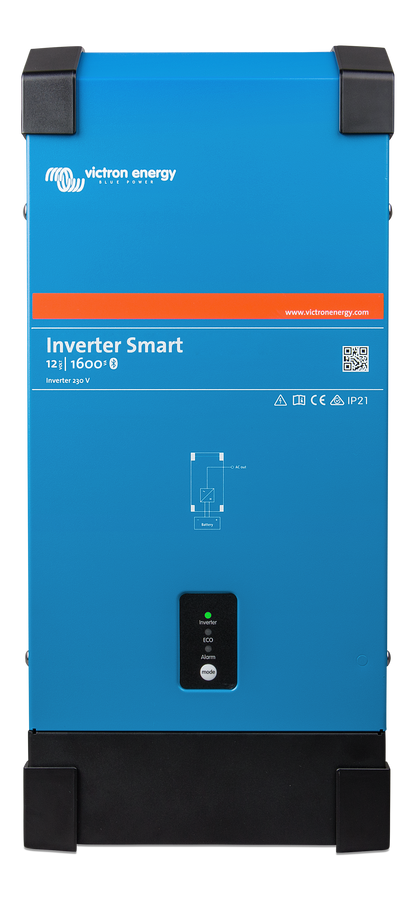

Victron 1600VA Inverter 12V - Smart Pure Sine Wave Phoenix Inverter
Victron 1600VA Inverter 12V - Smart Pure Sine Wave Phoenix Inverter
SKU:PIN122161000
Brand: Victron
In stock
This is pre-order - Available in 7 – 10 days
Couldn't load pickup availability
Product Details
Product Details
The Victron 1600VA Smart Pure Sine Wave Phoenix Inverter is designed to deliver dependable AC power from a 12V battery source. Built for professional environments such as service vans, mobile workshops, marine systems, and off grid installations, it provides a clean, stable output suitable for powering sensitive tools, appliances, and electronics. Its pure sine wave technology ensures that equipment runs smoothly, helping to extend the life of connected devices.

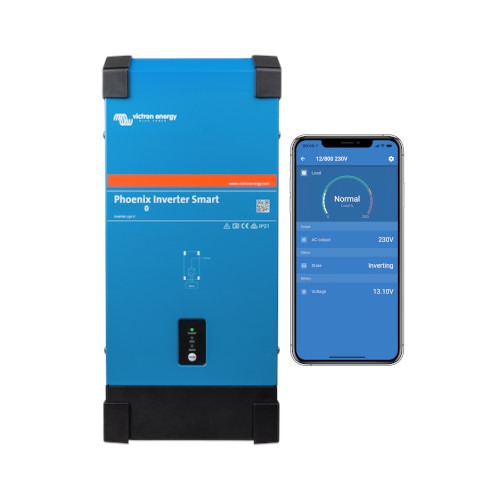

Compact and well engineered, this inverter features integrated Bluetooth for real time monitoring. Through the VictronConnect app you can view status information, adjust settings, and run diagnostics without needing additional accessories. The 1600VA output offers plenty of power for typical trade equipment, from laptop chargers to small power tools, making it a strong choice for commercial users who rely on reliable energy away from the grid.
Built in protection safeguards your system against low battery voltage, overload, and high temperature conditions. This helps to maintain safety and prevent costly damage. The high efficiency design supports long run times, reducing strain on your battery bank and supporting sustained use during busy working periods.
The inverter includes a VE.Direct communication port for optional system integration, adding flexibility for users who want to expand power management later. A fast transfer capability also helps maintain continuous power when paired with other Victron products.
Whether fitted in a marine craft, vehicle, or cabin, the Victron 1600VA Smart Pure Sine Wave Phoenix Inverter is manufactured with the quality that professional installers expect. Durable construction, simple remote control options, and proven reliability make this a practical investment for trade users who cannot afford downtime.
Product Specifications
Product Specifications
Inverter Specifications
- Nominal Battery Voltage: 12 V
- Input Voltage Range: 9.5 – 17 V
- Output Voltage: 230 VAC ± 2% (Adjustable to 240 V)
- Output Frequency: 50 Hz ± 0.1% (Adjustable to 60 Hz)
- Continuous Output Power at 25°C: 1600 VA
- Continuous Output Power at 25°C: 1300 W
- Continuous Output Power at 40°C: 1200 W
- Continuous Output Power at 65°C: 800 W
- Peak Power: 3000 W
- Maximum Efficiency: 92%
- Zero-Load Power: 8 W
- Zero-Load Power (AES Mode): 5 W
- Zero-Load Power (Search Mode): 2 W
Features & Connectivity
- SinusMax Technology: Superior engineering provides very high start-up power that conventional high-frequency technology cannot offer.
- VE.Bus Communication Port: For parallel and three-phase operation, remote monitoring, and system integration.
- Parallel Operation: Up to 6 units can operate in parallel to achieve significantly higher power output.
- Three-Phase Capability: Multiple units can be configured for three-phase power output.
- Programmable Relay: Can be configured for functions such as a general alarm, DC under-voltage, or generator start/stop. (AC rating: 230V / 4A; DC rating: 4A up to 35VDC).
- Remote On-Off: Yes
- Customizable Parameters: Use a PC and the MK3-USB interface to customize output voltage, frequency, and voltage thresholds via VictronConnect or VEConfigure software.
- Monitoring and Control: Can be connected to a GX device (e.g., Cerbo GX) for intuitive system monitoring.
Mechanical & Enclosure
- Dimensions (H x W x D): 375 x 214 x 110 mm
- Weight: 10 kg
- Material & Colour: Aluminium (Blue RAL 5012)
- Protection Category: IP21

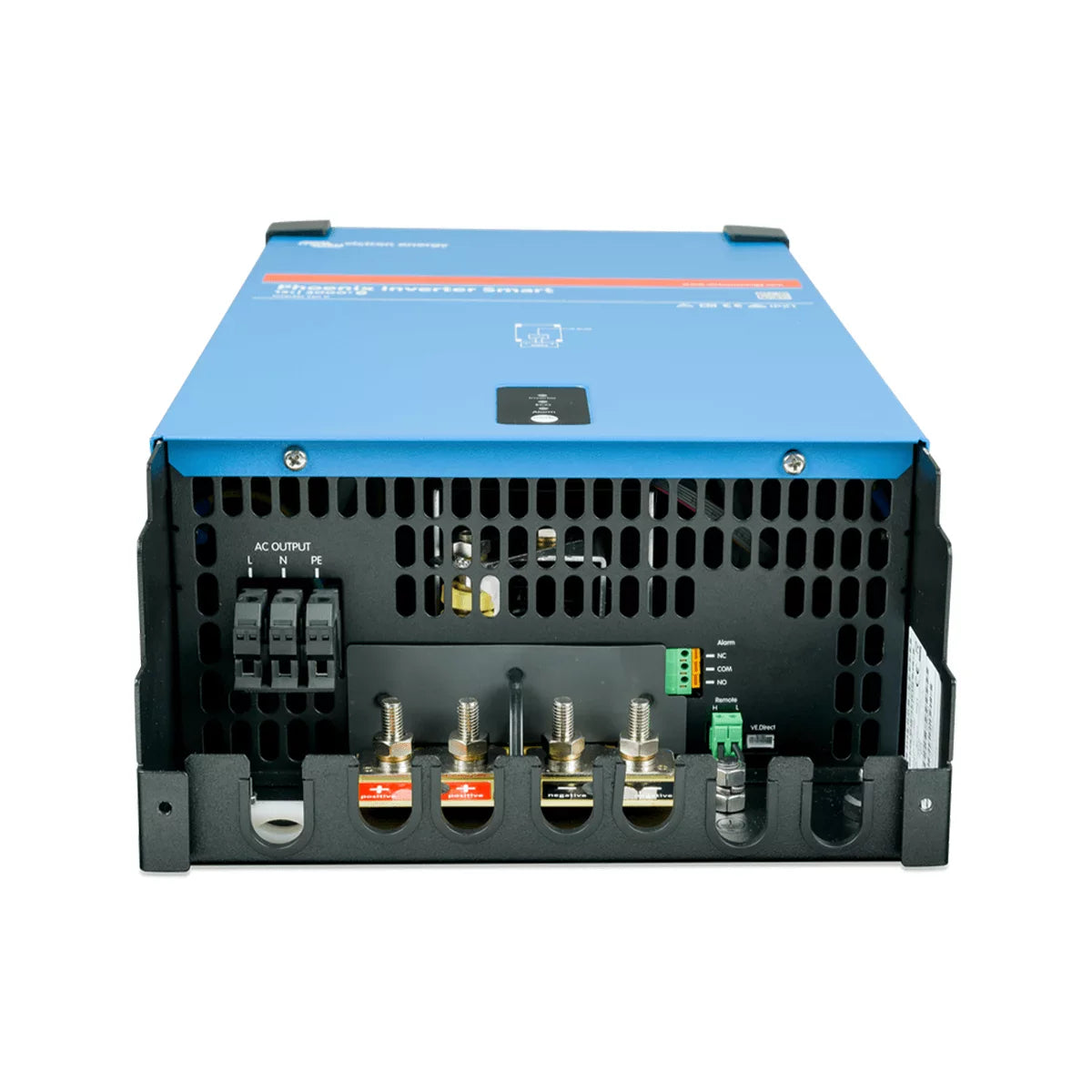

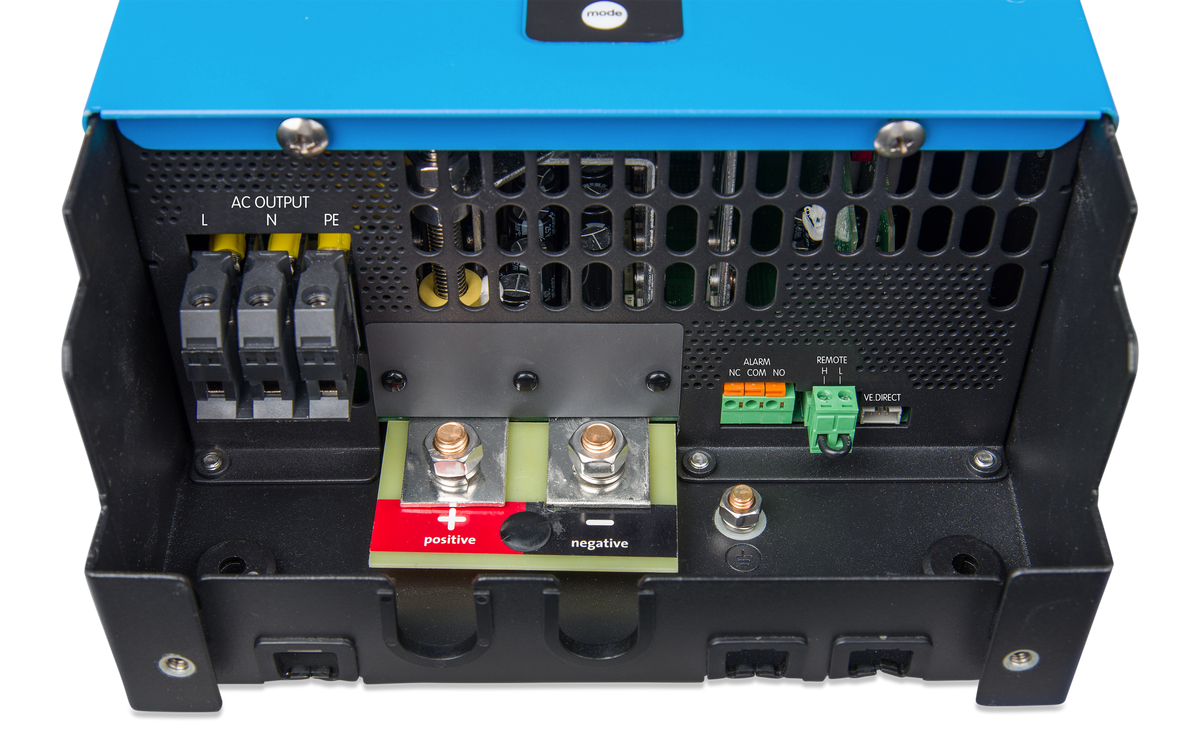

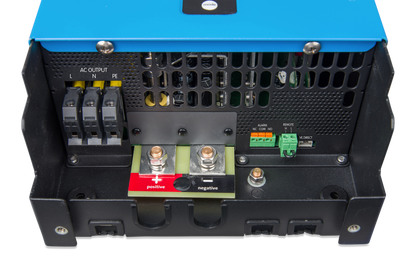

- Battery Connection: M8 bolts
- 230V AC Connection: G-ST18i plug
Environmental & Standards
- Operating Temperature Range: -40 to +65°C (Fan-assisted cooling)
- Humidity (Non-condensing): Max 95%
- Safety Standards: EN 60335-1
- Emission / Immunity: EN 55014-1 / EN 55014-2
- Integrated Protections: Output short circuit, overload, battery voltage too high, battery voltage too low, temperature too high, 230 VAC on inverter output, and input voltage ripple too high.
Technical Specifications
Technical Specifications
| Inverter Rating | 1600VA |
|---|
