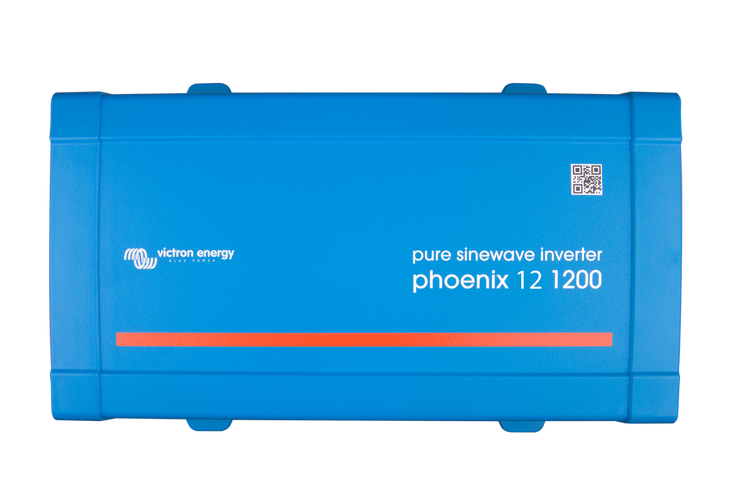

Victron Phoenix Inverter 12/1200 230V VE.Direct UK – PIN122121400
The Victron 1200VA Energy Phoenix inverter is a reliable and efficient power solution designed for off-grid applications, including campervans, motorhomes, RVs, and boats. Converting 12V DC power from your leisure batteries into 230V AC power, this 1200VA pure sine wave inverter ensures a clean and stable power supply for a variety of domestic appliances.
Key Features:
Power Output:
Provides a continuous power output of 1200VA, making it suitable for off-grid scenarios.
Ideal for running appliances such as laptops, camera chargers, and hair straighteners.
Smart Connectivity (with VE.Direct Smart Dongle):
Enhance monitoring and control by pairing with the VE.Direct smart dongle.
Utilize the Victron Connect app to monitor inverter performance and configure settings.
Set programmable alarms and cut-offs for low and high voltages.
Use Case:
Suitable for off-grid electrical systems with a total wattage of 1200VA or less.
Perfect for applications in campervans, motorhomes, RVs, and boats.
Pure Sine Wave Inverter:
Replicates the 230V AC waveform found in household mains power.
Compatible with a wide range of 230V appliances.
Prevents potential damage or operational issues associated with modified sine wave inverters.
Reliability:
Victron inverters are short circuit-proof and protected against overheating, ensuring durability.
High start-up power capability for loads like power converters, LED lamps, halogen lamps, or electric tools.
ECO Mode:
Reduces power consumption by switching to standby when the load decreases below a preset value.
Reactivates when the load exceeds the preset level, maintaining efficiency.

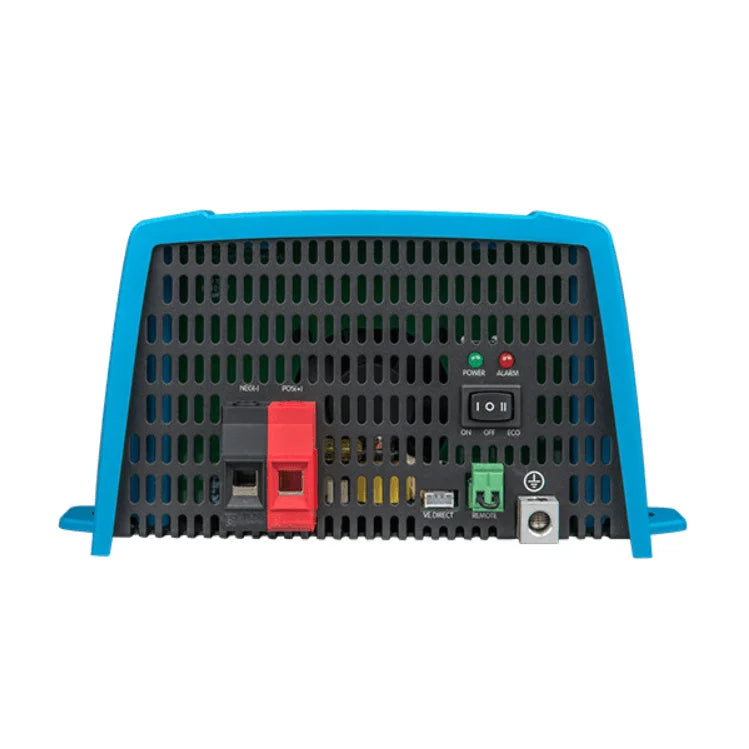

Remote On/Off:
Connect a remote on/off switch to control the inverter from a convenient location.
Provides flexibility in managing the inverter's operation.
Installation:
Comes with a UK 3-pin plug for easy installation.
MC4 connection points simplify wiring for solar panels.
Proven Performance:
Backed by Victron's reputation for reliability and performance.
Short circuit-proof and protected against environmental factors.
Product Specifications
Product Specifications
Technical Specifications
Combined for SKUs: PIN122121400
A COutlet Socket: Schuko (CEE 7/4)
AC Output Voltage: 230 V
Automotive Directive: ECE R10-4
Battery Charged Detection Voltage: 14 V
Battery Voltage Nominal: 12 V
Colour: Blue (RAL 5012)
Communication Port: VE.Direct
Continuous Power (VA, 25°C): 1,200 VA
Continuous Power (W, 25°C): 1,000 W
Continuous Power (W, 40°C): 850 W
D CLow Restart Alarm: 10.9 V
D CLow Shut Down: 9.3 V
DC Input Voltage Range: [9.2, 17] V
Depth: 362 mm
Dynamic Low DCShutdown: Yes
E MC: EN 55014-1,EN 55014-2,EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-6-3
Eco Mode Retry Interval: 2.5 s
Eco Mode Stop Start Power Setting: Adjustable
Frequency: 50 Hz
Fully Programable: Yes
Height: 117 mm
Material: Steel chassis and plastic cover
Max Efficiency: 91 %
Max Humidity: 95 %
Peak Power Rating: 2,200 W
Power Deration: 1.25 %
Protection Category: IP21
Protections: Excessive DC ripple,High battery voltage,Low battery voltage,Output short-circuit,Over temperature,Overload
Remote On Off Terminal: Yes
Remote Terminal: Screw terminal two pole
Safety: EN-IEC 60335-1,EN-IEC 62109-1
Weight: 7.4 kg
Width: 232 mm
Zero Load Power: 7 W
Zero Load Power Eco Mode: 1 W
Source: Victron
