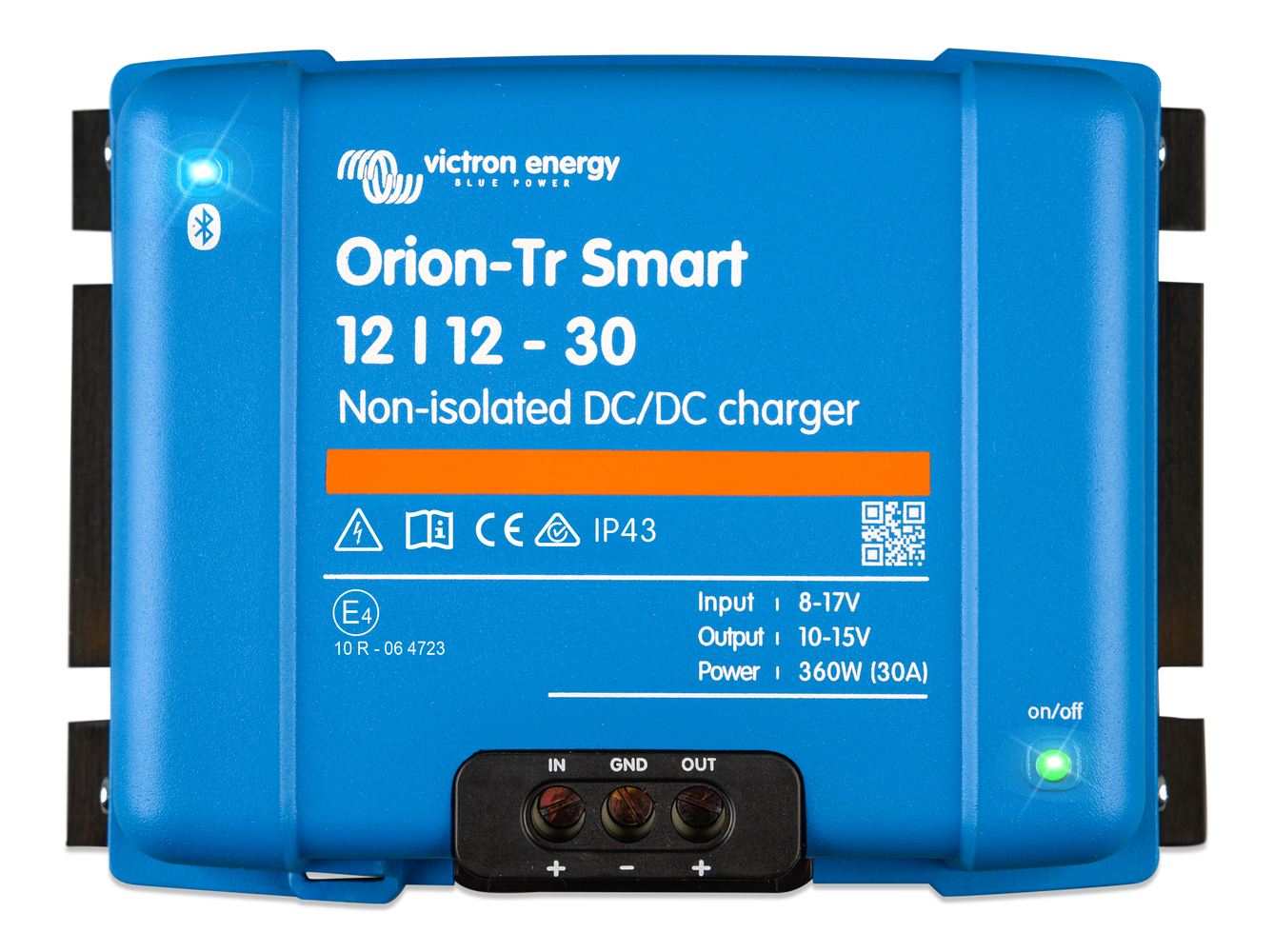

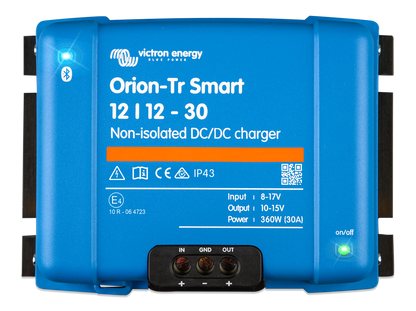

Victron Battery To Battery Charger 30A – 12/12 Orion-Tr Smart – Non-Isolated DC-DC Charger
Victron Battery To Battery Charger 30A – 12/12 Orion-Tr Smart – Non-Isolated DC-DC Charger
SKU:ORI121236140
Brand: Victron
47 in stock
Couldn't load pickup availability
Product Details
Product Details
The Victron Orion-Tr Smart 12/12-30A (360 W) is engineered to provide reliable and efficient battery-to-battery charging in 12 V systems. Ideal for vehicles, boats or off-grid systems where a service battery needs to be charged from a starter battery or alternator. Featuring a continuous output current of 30 A and rated output power of 360 W at 25 °C, this charger handles demanding loads with ease.

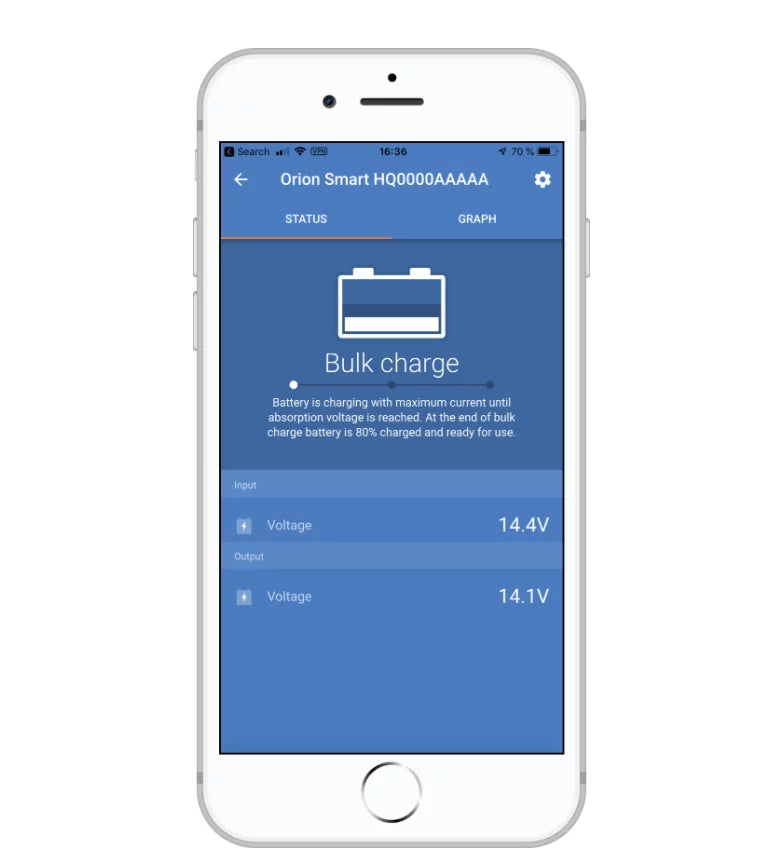

Integrated Bluetooth support via the VictronConnect app enables real-time monitoring of input/output voltages, charge states and remote configuration of battery charge profiles, all without needing additional hardware. The unit supports a fully programmable adaptive three-stage (bulk-absorption-float) charge algorithm, making it versatile across lead-acid and lithium chemistries.
Designed for professional use, the unit comes with an IP43 rated enclosure when installed with downward facing screw terminals. The build quality, programmability and compact footprint make it an excellent choice for installers requiring a reliable DC-DC charging solution.
Product Specifications
Product Specifications
Electrical Specifications
- Input Voltage Range: 8 – 17 V
- Under Voltage Shut Down: 7 V
- Under Voltage Restart: 7.5 V
- Nominal Output Voltage: 12.2 V
- Output Voltage Adjust Range: 10 – 15 V
- Output Voltage Tolerance: +/- 0.2 V
- Output Noise: 2 mV rms
- Continuous Output Current (at 40°C): 30 A
- Maximum Output Current (10 seconds): 40 A
- Short Circuit Output Current: 60 A
- Continuous Output Power at 25°C: 430 W
- Continuous Output Power at 40°C: 360 W
- Efficiency: 87%
- No Load Input Current: < 80 mA
- Standby Current: Less than 1 mA
Charge Settings & Features
- Charge Algorithm: 3-stage adaptive (Bulk, Absorption, Float)
- Bluetooth Smart Built-in: Monitor data, change settings, and update software wirelessly via any Bluetooth-enabled smartphone or tablet.
- Instant Readout: The VictronConnect App can display key data, including warnings and alarms, without requiring a direct connection to the product.
- Smart Alternator Compatibility: Includes an engine running detection mechanism to protect the starter battery from discharge.

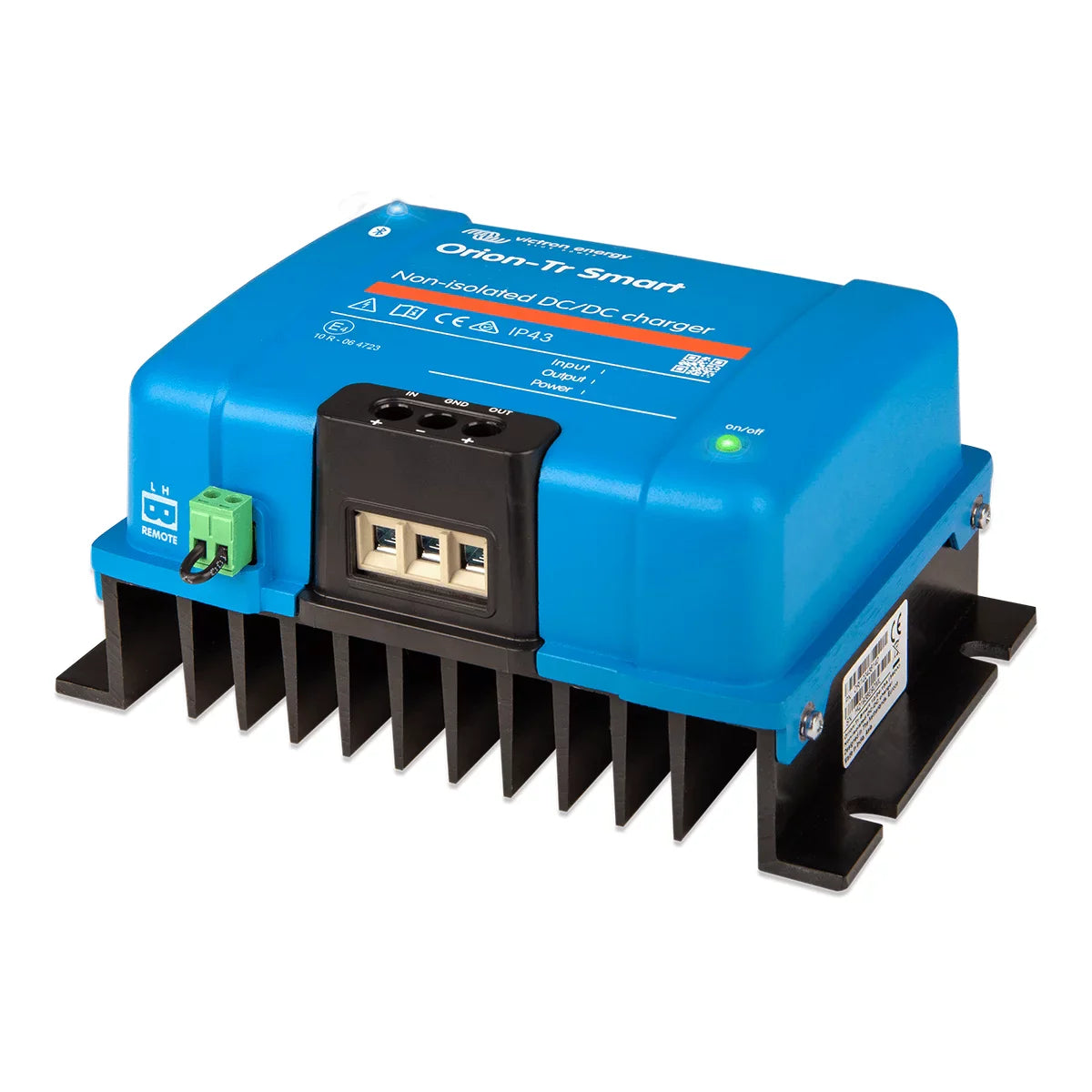

- Remote On/Off: Features a two-pole connector for a remote switch or relay contact, eliminating the need for high-current switching in the input wiring.
- Parallel Operation: An unlimited number of units can be connected in parallel to increase output current.
Mechanical Specifications
- Dimensions (H x W x D): 130 x 186 x 80 mm
- Weight: 1.8 kg

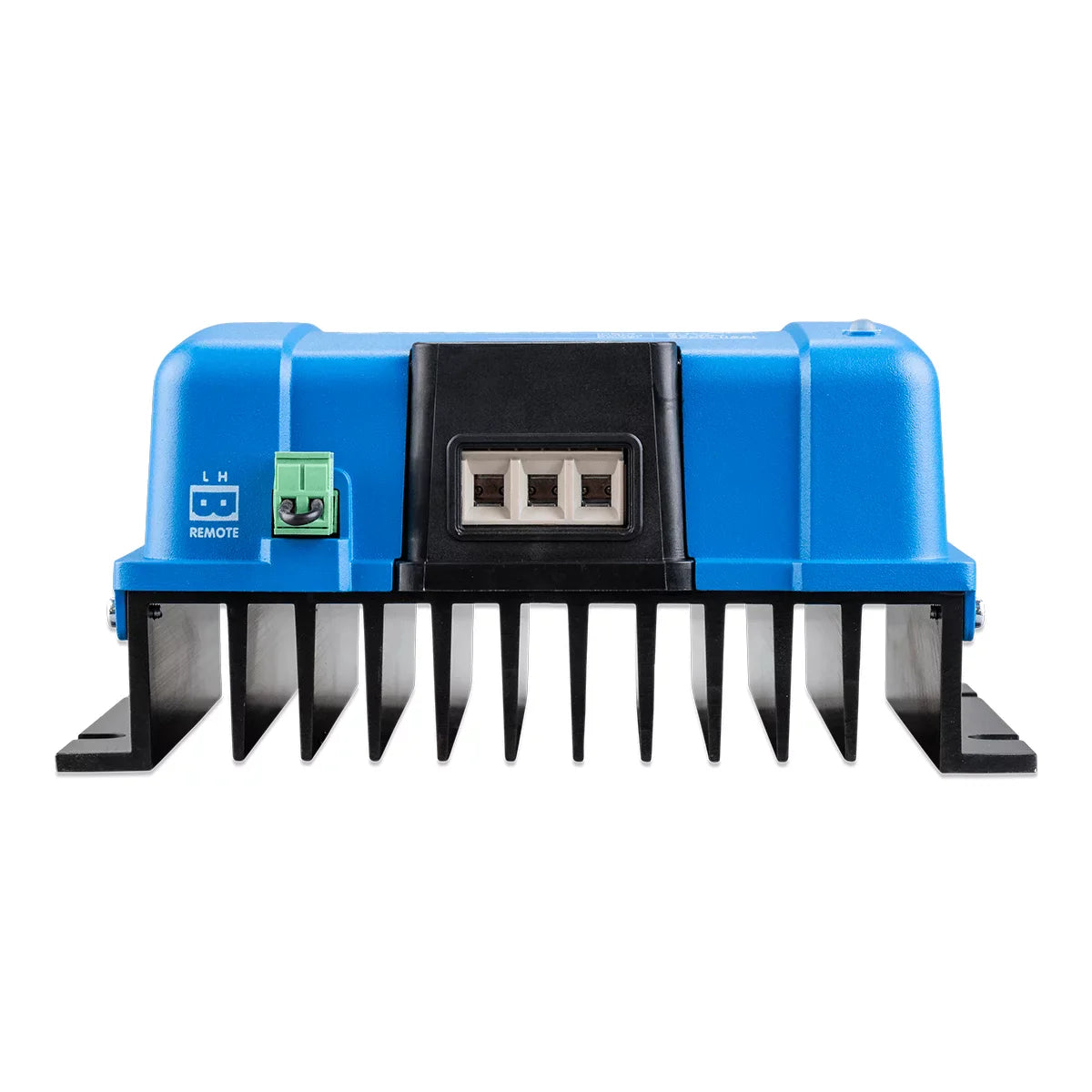

- DC Connection: Screw terminals (no special tools needed for installation)
- Maximum Cable Cross-Section: 16 mm² (AWG6)
- Protection Category: IP43 (electronic components), IP22 (connection area) when installed with screw terminals oriented downwards.
Environmental & Standards
- Operating Temperature Range: -20 to +55 °C (Output current derates by 3% per °C above 40 °C)
- Humidity: Max. 95% non-condensing
- Safety Standards: EN 60950
- Emission/Immunity Standards: EN 61000-6-3, EN 55014-1, EN 61000-6-2, EN 61000-6-1, EN 55014-2
- Automotive Directive: ECE R10-5
Technical Notes
- Monitoring: The VictronConnect App provides system status but will not display current in or current out.
- Connectivity: This model is not equipped with a VE.Direct port.
- Protection: Short-circuit proof and high-temperature protected (output current reduces at high ambient temperatures).
