Orion-Tr 12/12-9A (110W) Isolated DC-DC converter Retail
Orion-Tr 12/12-9A (110W) Isolated DC-DC converter Retail
SKU:ORI121210110
Brand: Victron
In stock
This is pre-order - Available in 7 – 10 days
Couldn't load pickup availability
Product Details
Product Details

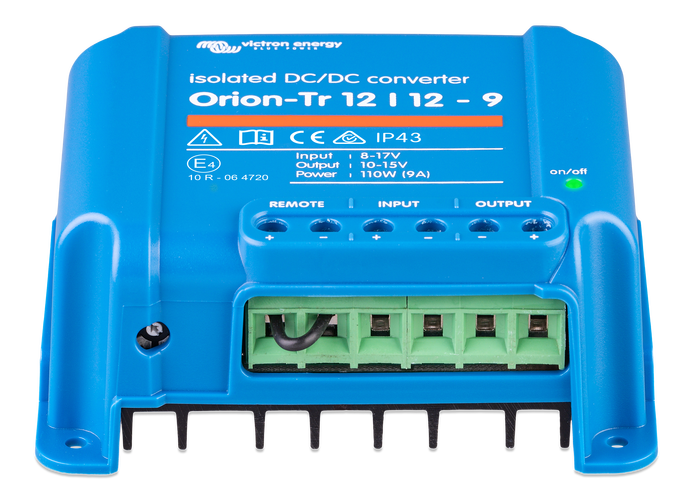

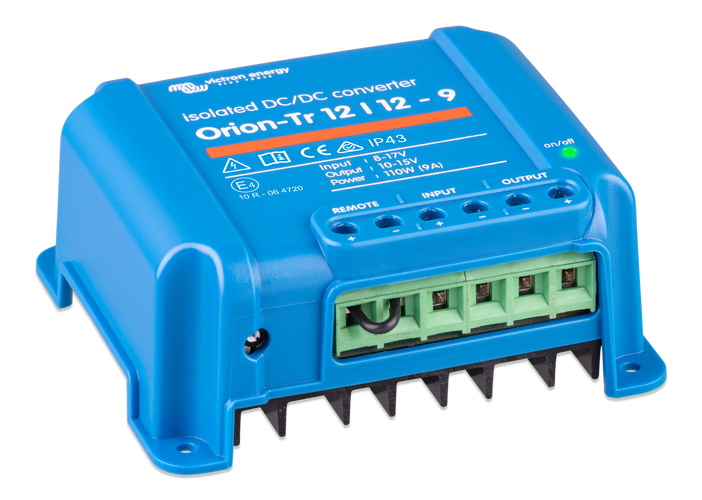

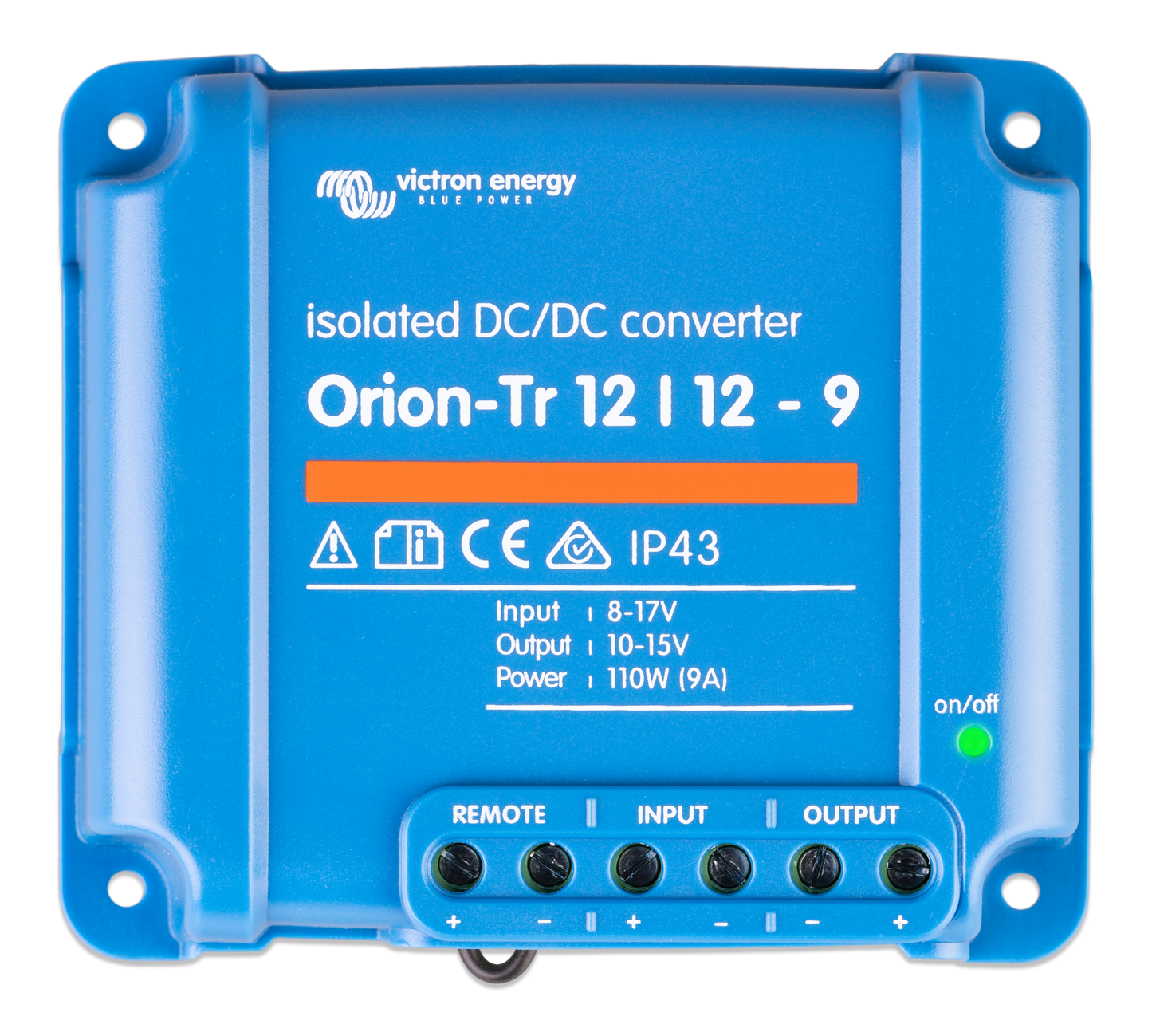

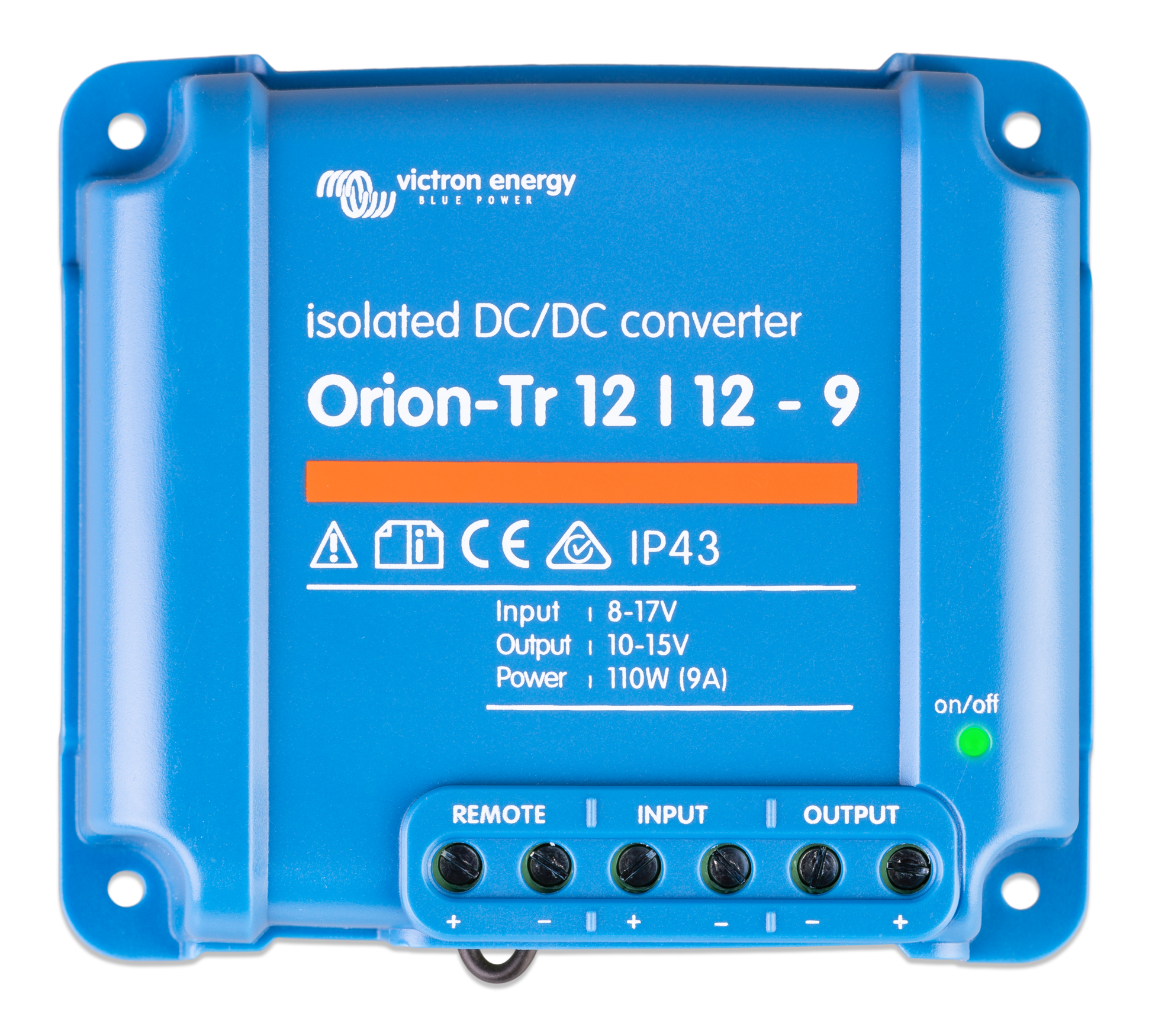

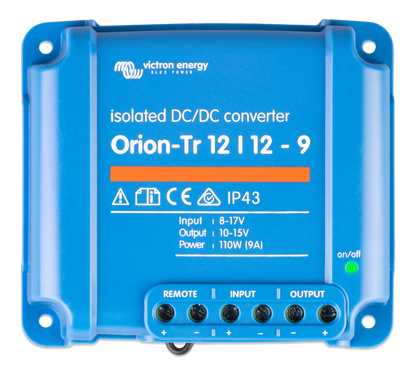

The Victron Orion-Tr 12/12-9A (110W) Isolated DC-DC Converter is engineered to provide reliable power conversion for 12V systems. With a continuous output power of 110W and a 9A output current, this converter ensures efficient and stable performance for various applications.
Key Features:
- Galvanic Isolation: Provides electrical isolation between input and output, enhancing system safety and reducing the risk of ground loops.
- Adjustable Output Voltage: Output voltage can be adjusted within a specified range, offering flexibility to meet specific system requirements.
- Short Circuit Protection: Equipped with short circuit protection to safeguard the converter and connected devices.
- Parallel Operation: Multiple units can be connected in parallel to increase output current, offering scalability for larger systems.
- Remote On/Off Function: Allows remote control of the converter, eliminating the need for a high current switch in the input wiring.
- IP43 Protection: Designed to withstand environmental factors when installed with screw terminals oriented downwards.
- Compact Dimensions: Measures 100 x 113 x 47 mm, facilitating easy integration into various setups.
Ideal for applications requiring reliable 12V power conversion, such as off-grid systems, mobile installations, and industrial equipment.
Product Specifications
Product Specifications
Technical Specifications
Combined for SKUs: ORI121210110
Automotive Directive: ECE R10-5
Colour: Blue (RAL 5012)
Continuous Output Current: 9 A
Continuous Output Power25: 110 W
Continuous Output Power40: 85 W
Depth: 47 mm
Emission: EN 55014-1,EN-IEC 61000-6-3
Galvanic Isolation: Yes
Height: 100 mm
Immunity: EN 55014-2,EN-IEC 61000-6-1, EN-IEC 61000-6-2
Input Voltage Range: [8, 17] V
Isolation: 200 VDC
Max Efficiency: 87
Max Humidity: 95 %
Maximum Output Current: 12.5 A
Maximum Shortcircuit Current: 32 A
No Load Current Consumption: 50 mA
Output Voltage: 12.2 V
Output Voltage Noise: 2 mVrms
Output Voltage Range: [10, 15] V
Output Voltage Tolerance: 200 mVrms
Protection Category: IP43
Remote On Off Terminal: Yes
Remote On Off Terminal Connection: Screw terminal two pole
Safety: EN 60950
Standby Current Consumption: 0.2 mA
Under Voltage Restart: 7.5 V
Under Voltage Shutdown: 7 V
Weight: 0.42 kg
Width: 113 mm
Source: Victron
