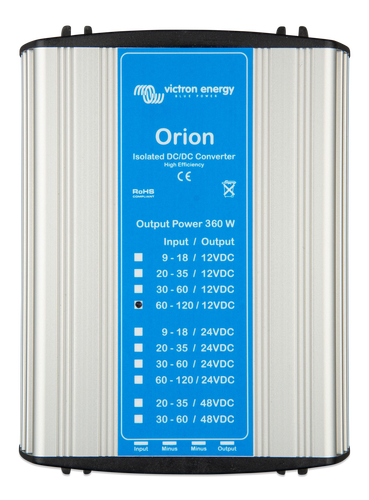

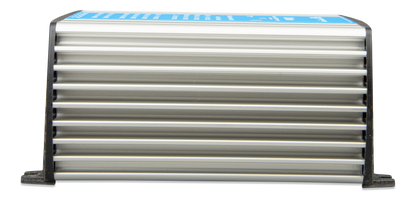

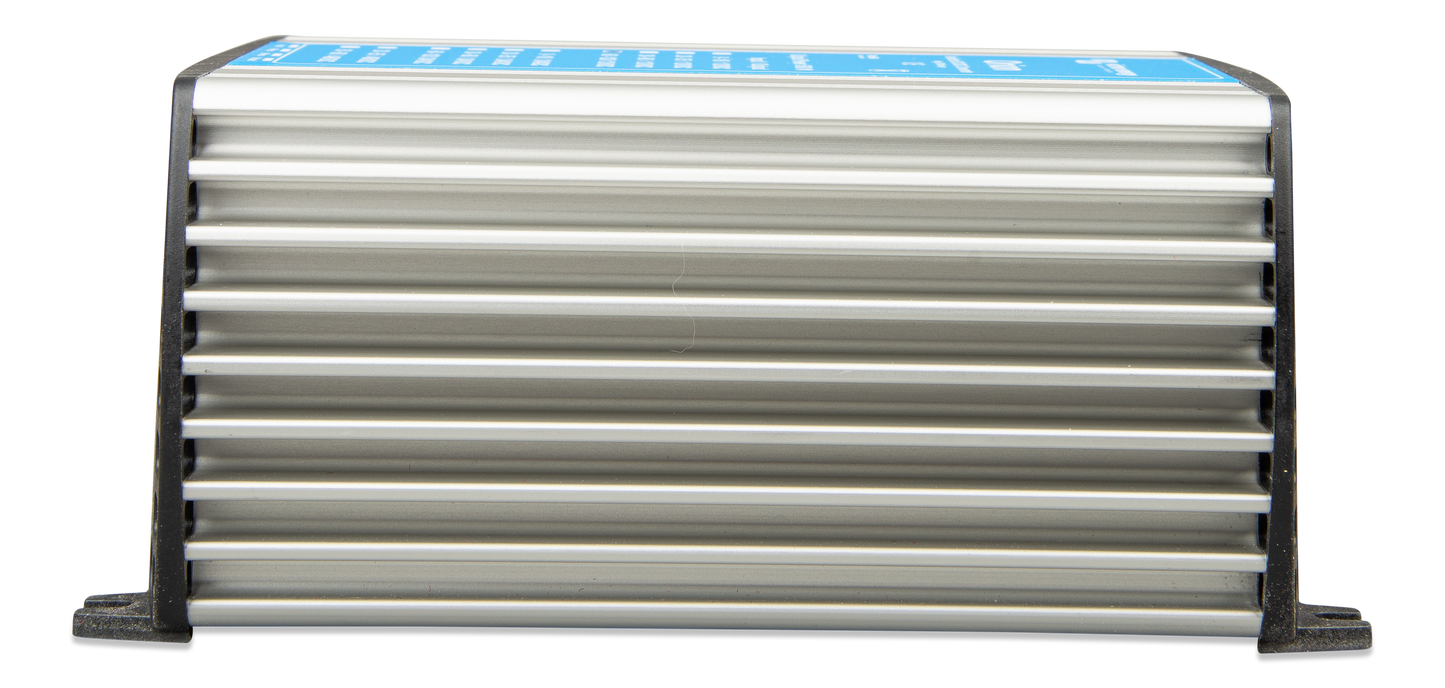

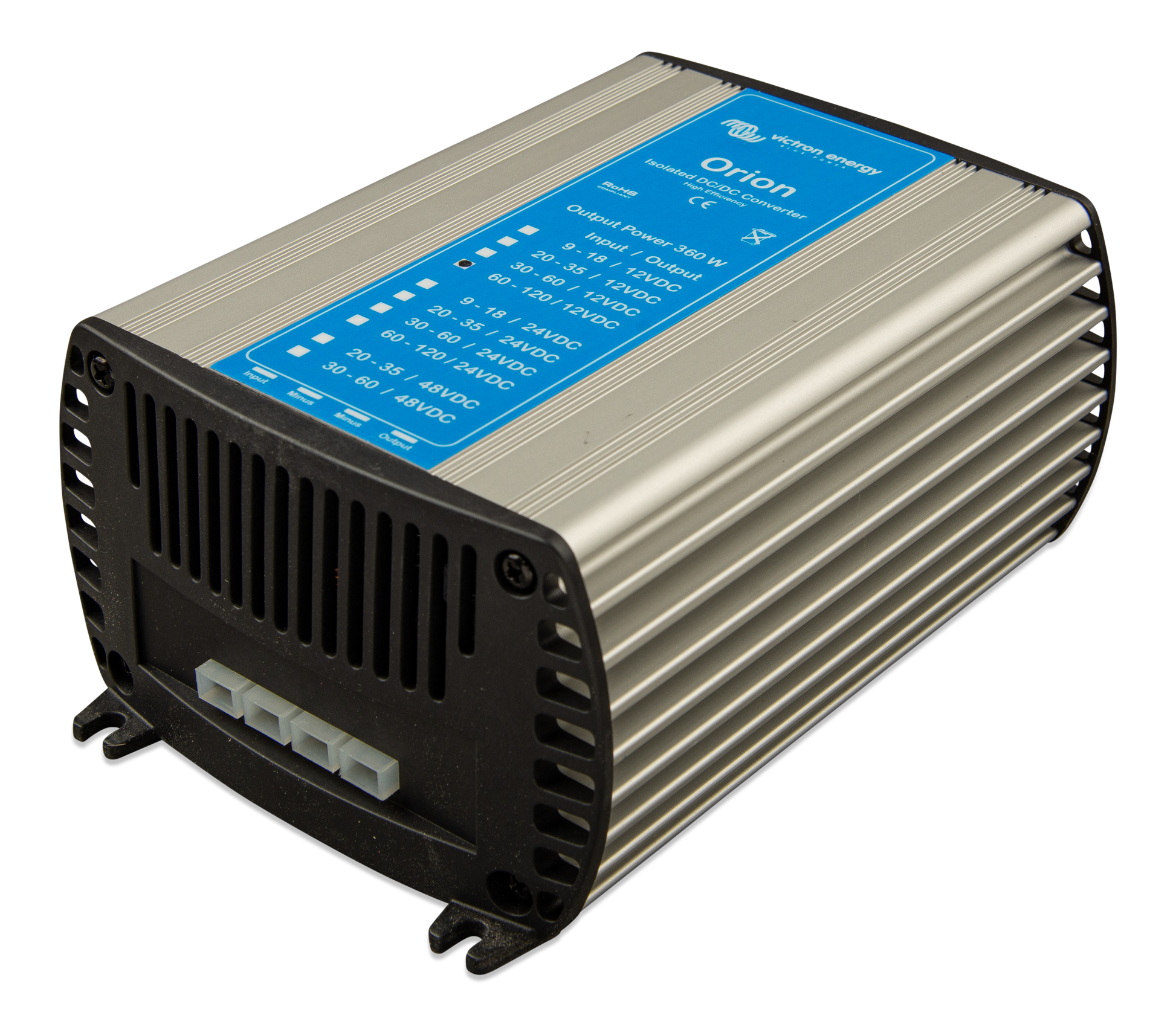

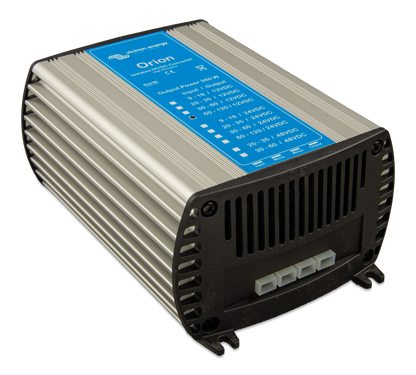

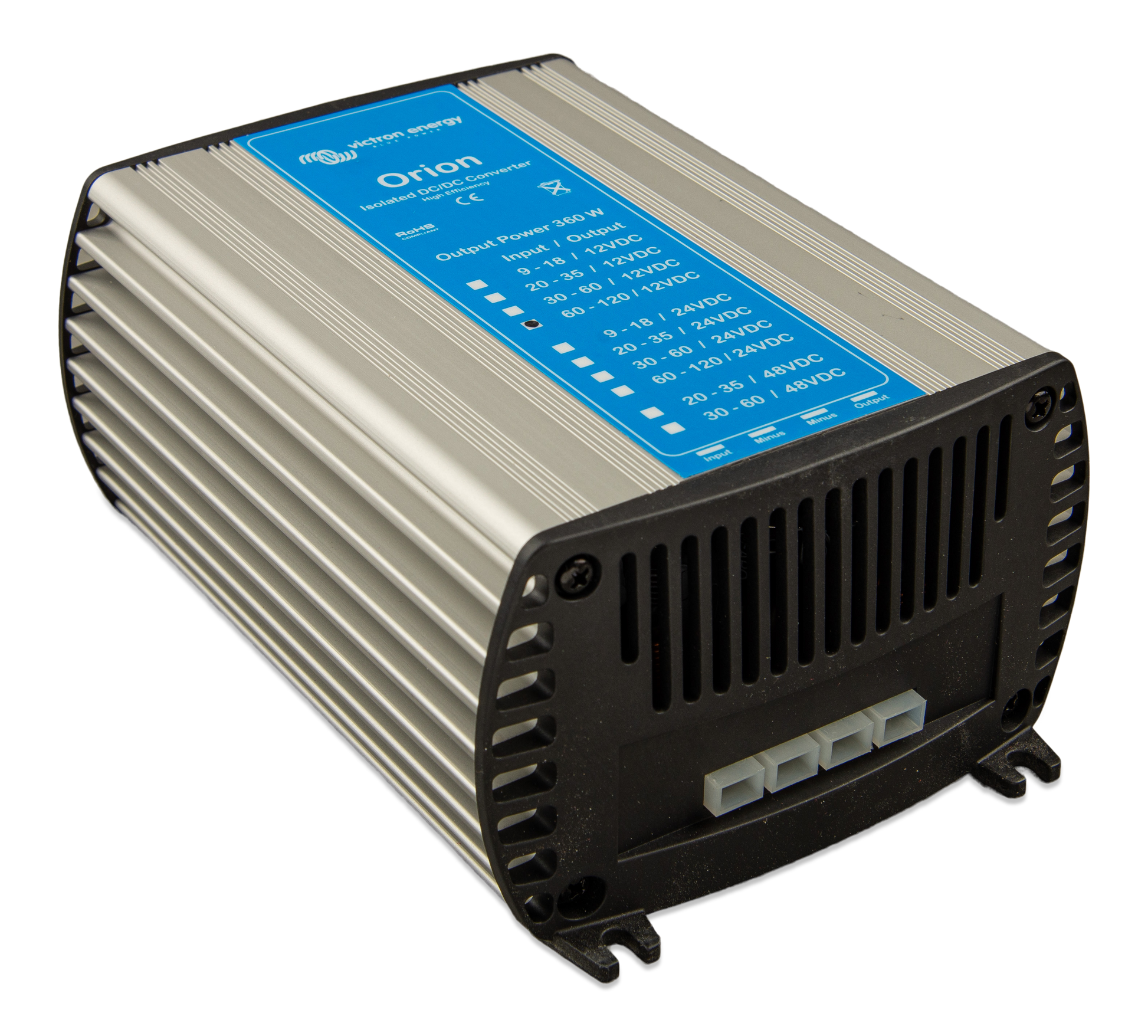

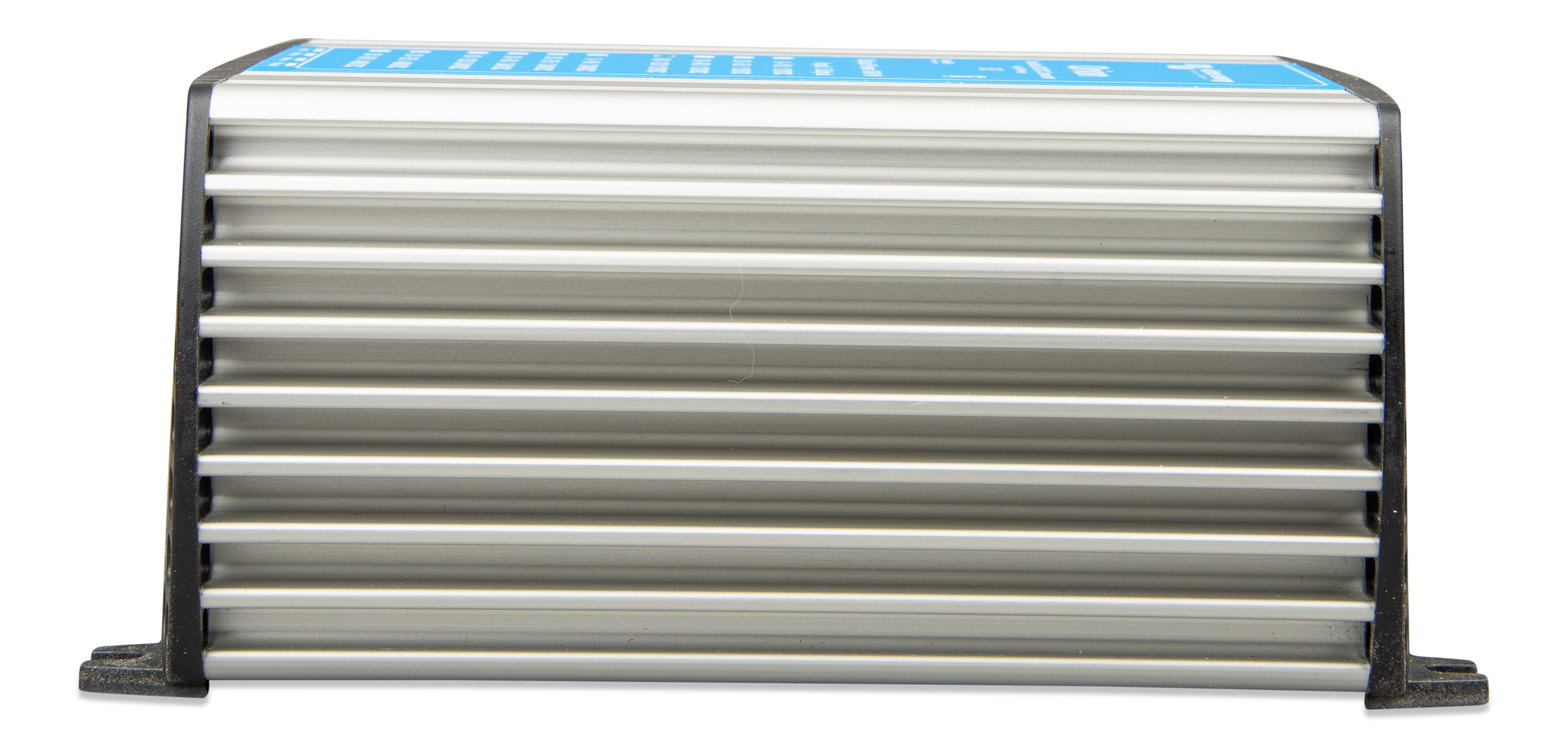

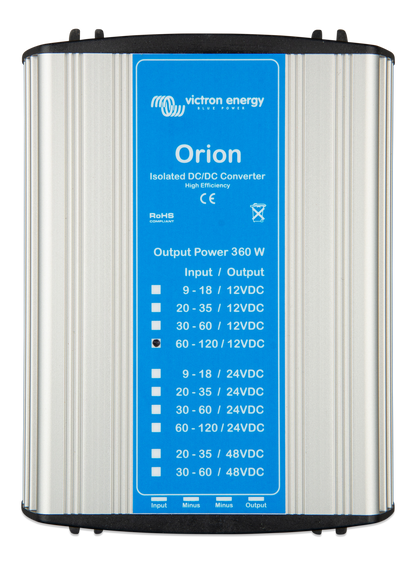

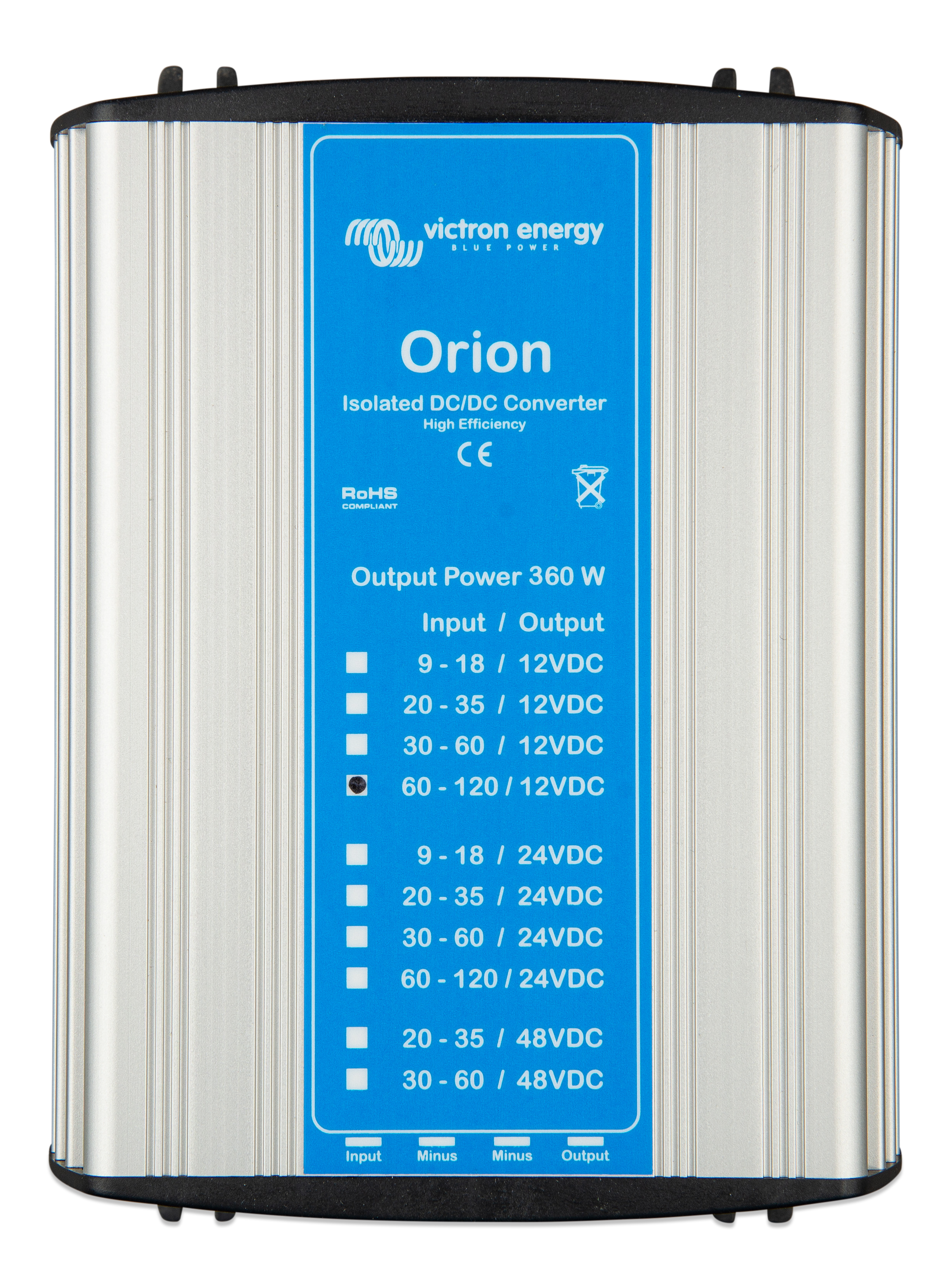

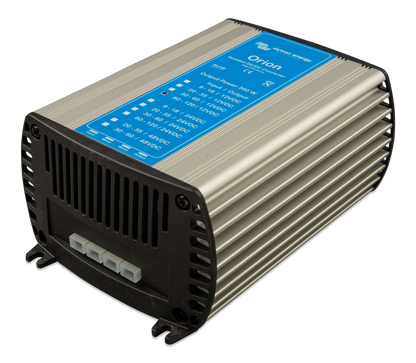

Orion 110/12-30A (360W) Isolated DC-DC converter

Orion 110/12-30A (360W) Isolated DC-DC converter

ORI110123610

Brand: Victron

Wide input voltage range – Operates from 60-140 V DC input, offering flexibility across high-voltage systems. High-performance output – Delivers 12.5 V at up to 30 A (360 W) with output stability ±2 %, enabling predictable power delivery. Robust isolation and protection – Galvanic isolation >400 V RMS protects against electrical faults; incorporates short-circuit, over-voltage, reverse-polarity and thermal protection. Trusted brand and support network – Victron Energy is known for global support, quality build and fault-resilient conversions, improving buyer confidence for trade customers. Dimensions: 82 x 132 x 190mm Weight: 1.4kg

In stock

This is pre-order - Available in 7 – 10 days

£353.00 GBP
£353.00 GBP
Sale Sold out

Product Details

Engineered for single-bus 110 V DC systems, the Victron Energy Orion 110/12-30 A (360 W) – SKU ORI110123610 – is an isolated DC-DC converter designed to deliver reliable 12.5 V output at up to 30 A continuous current (360 W) from a wide 60-140 V input range.

Constructed in a rugged anodised-aluminium case with dimensions of 82 × 132 × 190 mm and weighing approximately 1.4 kg, this unit suits demanding applications where space is at a premium.

With galvanic isolation between input, output and case in excess of 400 V RMS, the converter offers outstanding protection in industrial, marine and off-grid systems.

Key technical features include an efficiency of around 85 %, output voltage stability within ±2 %, output noise below 50 mV rms and built-in protections against reverse polarity, over-voltage, over-temperature and short-circuit conditions.

Whether you’re powering 12 V accessory systems from a high-voltage battery bus, upgrading rail-vehicle electronics or integrating telecom backup systems, the Orion 110/12-30 A offers a compact, high-performance solution with trusted Victron service and support worldwide.
Ideal where high-voltage input, space-efficient size and isolation are required, this converter brings professional-grade reliability and flexibility to your trade or corporate installation.

Product Specifications

Technical Specifications

Combined for SKUs: ORI110123610

Colour: Grey

Continuous Output Current: 30 A

Dc Connection Terminal Type: Faston tab 6.3 mm

Depth: 190 mm

Emission: EN 55014-1,EN-IEC 61000-6-3

Fan Assisted Cooling: Yes

Galvanic Isolation: Yes

Height: 82 mm

Immunity: EN 55014-2,EN-IEC 61000-6-1, EN-IEC 61000-6-2

Input Voltage Range: [60, 140] V

Isolation: 400 Vrms

Material: Anodized aluminium

Max Efficiency: 85

Max Humidity: 95 %

Off Load Current: 25

Output Voltage: 12.5 V

Output Voltage Noise: 50 mVrms

Output Voltage Stability: 2 %

Output Voltage Tolerance: 3 %

Power Rating: 360 W

Protections: Battery reverse polarity (fuse),Overload,Overcurrent,Over temperature

Safety: EN 60950

Weight: 1.4 kg

Width: 132 mm

Source: Victron

Orion 110/12-30A (360W) Isolated DC-DC converter – Manual

Orion 110/12-30A (360W) Isolated DC-DC converter – Data Sheet
