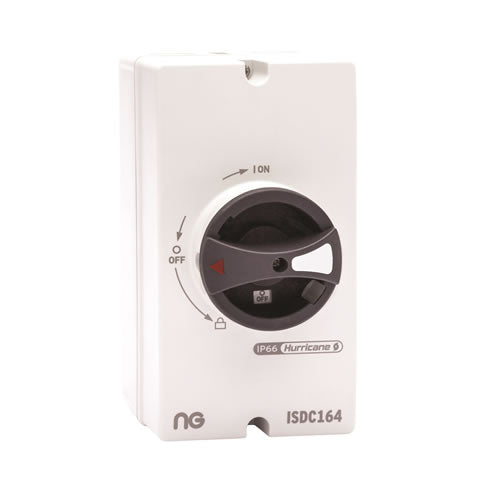

Niglon Enclosed DC Switch Disconnector - ISDC164

Niglon 16A 4 Pole Enclosed DC Switch Disconnectors ISDC164

16A 4 pole switch disconnector for use with DC voltage, rated at 1500V. VDE certification. Durable polycarbonate casing with M12 knockouts, suitable for MC4 connectors. You can use a padlock to lock it in the off position.

• IP66 / 67 Rated
• Number of Poles: 4
• Terminal Capacity flex/stranded 4mm2 / 6mm2
• Rated current 16A DC-21B
• Height of switch: 160mm
• Width of switch: 83mm
• Depth of Switch: 86mm
• Depth of Switch with handle: 116mm

Data Sheet

Niglon Enclosed DC Switch Disconnector - ISDC164 – Data Sheet
