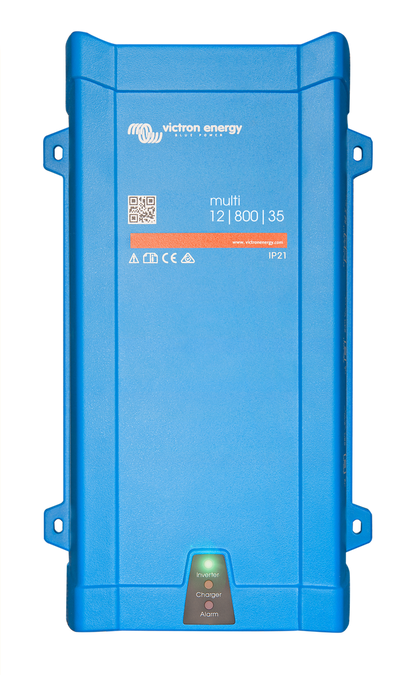

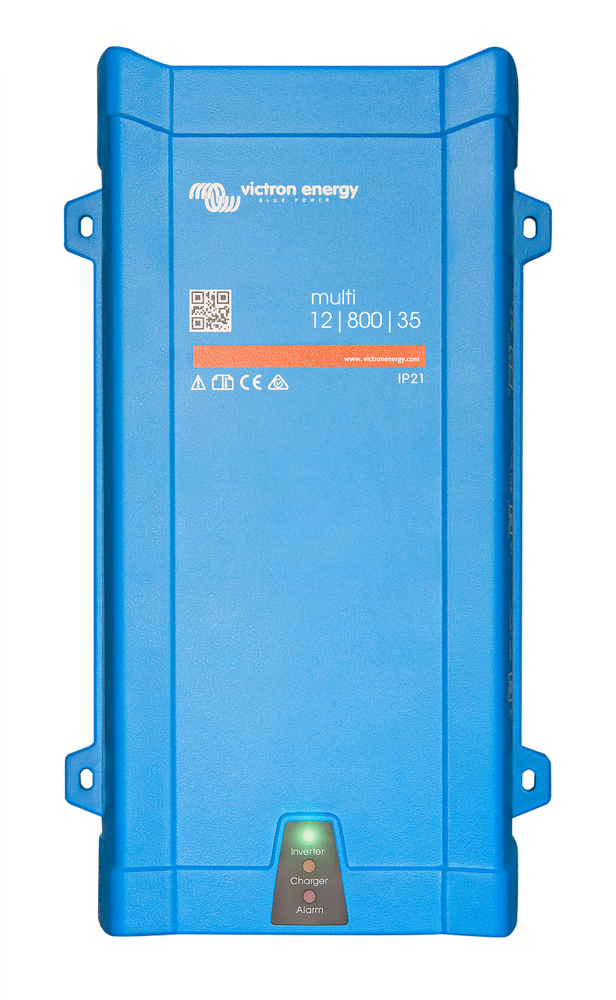

Victron MultiPlus Inverter/Charger 12/800/35-16 230V VE.Bus -PMP121800000
- Max constant power 800VA off grid.
- Use up to 3000VA on shore power.
- Pure sine wave inverter & battery charger in one.
- Charge your leisure batteries at 35A on shore power.
- For 12V systems.
The Victron MultiPlus Inverter/Charger 12/800/35-16 is a versatile and robust power solution that seamlessly combines a true sine wave inverter with a sophisticated battery charger. Tailored for off-grid applications, this 800VA model is designed to provide reliable power to domestic appliances, making it an ideal choice for campervans, motorhomes, RVs, and boats.
Key Features:
True Sine Wave Inverter:
The MultiPlus features a pure sine wave inverter, ensuring that the 12V DC power from leisure batteries is precisely converted to a clean 230V AC waveform.
Pure sine wave inverters are crucial for powering sensitive electronics, preventing potential damage or malfunctions that may occur with modified sine wave inverters.
Uninterrupted AC Power (UPS Function):
In the event of a grid failure, or when shore or generator power is disconnected, the MultiPlus activates automatically, taking over the supply to connected loads.
The transition occurs in less than 20 milliseconds, ensuring that computers and electronic equipment continue to operate without disruption.
Dual Power Source Handling:
When connected to shore power hookup, the MultiPlus powers mains appliances directly from the hookup while recharging leisure batteries.
Upon disconnection from the hookup, the MultiPlus seamlessly switches to powering mains appliances from leisure batteries, eliminating the need for manual intervention.
Charging Capability:
The 12/800/35 model allows charging of leisure batteries with a current of up to 35A, providing efficient and timely recharging.
Remote Monitoring and Control:
While lacking built-in Bluetooth or smart connectivity, the MultiPlus can be paired with the VE.Bus smart dongle.

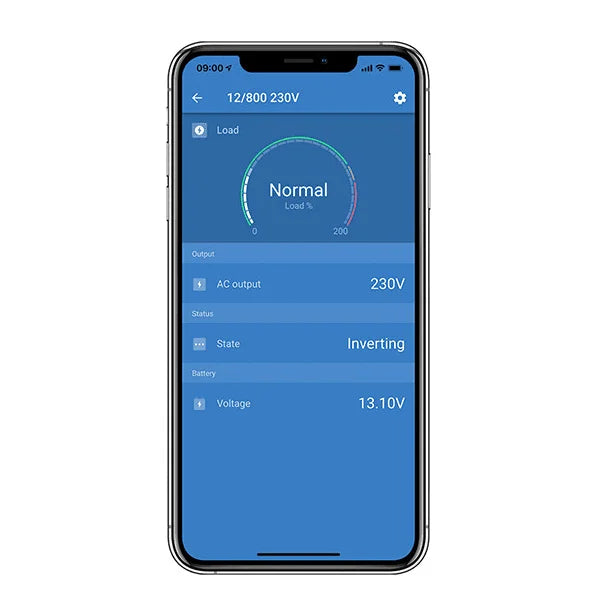

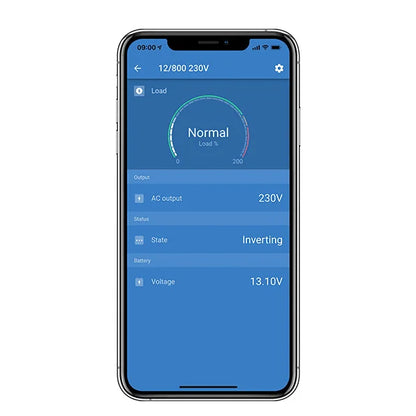

Allows monitoring of inverter performance and settings via the VictronConnect app, enabling the configuration of alarms and cut-offs for low and high voltages.
Versatile Application:
Suitable for various off-grid electrical system applications, including campervans, motorhomes, RVs, and boats.
Ideal for systems where the total wattage of mains power appliances is 800VA or less.
Advanced Control Options:
Comprehensive monitoring and control capabilities through the free VRM app and VRM portal website.
Accessible locally or remotely via the internet from various devices, offering a high level of control over system parameters.
Product Specifications
Product Specifications
Inverter Specifications
- DC Input Voltage Range: 9.5 – 17 V
- Output Voltage: 230 VAC ± 2%
- Frequency: 50 Hz ± 0.1%
- Cont. Output Power at 25°C: 800 VA
- Cont. Output Power at 25°C: 700 W
- Cont. Output Power at 40°C: 650 W
- Cont. Output Power at 65°C: 400 W
- Peak Power: 1600 W
- Maximum Efficiency: 92%
- Zero-Load Power: 7 W
- Zero-Load Power in Search Mode: 2 W
Charger Specifications
- AC Input Voltage Range: 187 – 265 VAC
- Input Frequency: 45 – 65 Hz
- Charge Voltage 'Absorption': 14.4 V
- Charge Voltage 'Float': 13.8 V
- Storage Mode: 13.2 V
- Charge Current House Battery: 35 A
- Charge Current Starter Battery: 1 A
- Battery Temperature Sensor: Yes
- Charge Algorithm: Four-stage adaptive (Bulk, Absorption, Float, Storage)

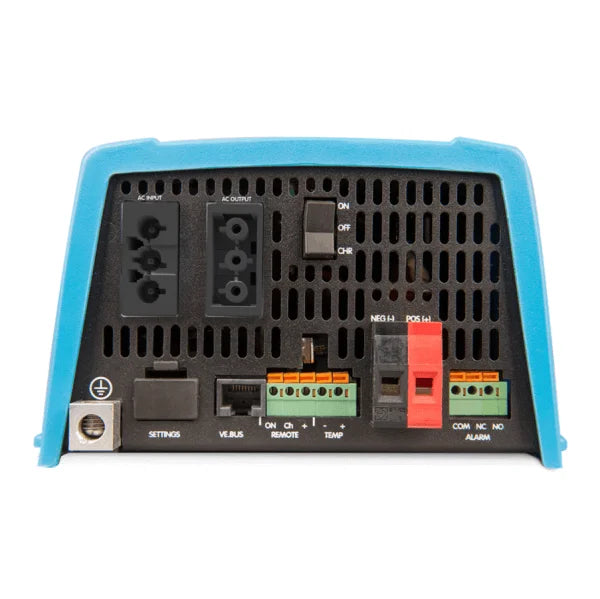

General & Connectivity
- Transfer Switch: 16 A
- PowerControl & PowerAssist: Yes
- Parallel & Three Phase Operation: Yes (Up to six units can operate in parallel)
- VE.Bus Communication Port: Yes (For parallel/three-phase operation, remote monitoring, and system integration; requires RJ45-splitter)
- Programmable Relay: Yes (Configurable for alarm, DC under voltage, or generator start/stop functions)
- Remote On-Off: Yes (Three-pole connector)
- DIP Switches: Yes (For on-site setting changes)
Mechanical & Enclosure
- Dimensions (H x W x D): 360 x 240 x 100 mm
- Weight: 6.4 kg
- Enclosure Material: Steel/ABS (Blue RAL 5012)
- Protection Category: IP21
- Battery Connection: 25 mm²
- 230V AC Connection: G-ST18i connector
- Internal DC Fuse: 150 A
Protection & Standards
- Integrated Protections: Output short circuit, overload, battery voltage too high/low, temperature too high, 230 VAC on inverter output, and input voltage ripple too high.
- Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN 62109-1
- Emission/Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
- Automotive Directive: ECE R10-5
Technical Specifications
Technical Specifications
| Inverter Rating | 800VA |
|---|---|
| Battery Charger Rating | 35A |
| Voltage | 12V |
| Protection | IP21 - Indoor |
| Weight KG | 6.4 |
