Victron MultiPlus-II 48/8000 – 48V 8000VA Inverter/Charger
Victron MultiPlus-II 48/8000 – 48V 8000VA Inverter/Charger
SKU:PMP482805000
Brand: Victron
15 in stock
Couldn't load pickup availability
Product Details
Product Details
Victrons new 48V inverter/charger for use off grid on or on grid with 110A AC - DC Charger
The MultiPlus-II combines the functions of the MultiPlus and the MultiGrid.
It has all the features of the MultiPlus, plus an external current transformer option to implement PowerControl and PowerAssist and to optimize self-consumption with external current sensing (max. 32A). It also has all the features of the MultiGrid with built-in anti-islanding and an increasingly long list of country approvals.
PowerAssist
The MultiPlus-II will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.
ESS: Energy Storage Systems
The MultiPlus-II is the key component in a Victron ESS system, providing the flexibility to combine with MPPT Solar Chargers or Grid-tie PV Inverters. For examples and more detailed information see the ESS (Energy Storage System) manual.
Uninterrupted AC power (UPS function)
In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.
Remote Monitoring and Control
Monitor and control your Multi and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, via the required Color Control GX or Venus GX, from adjusting your Multi to auto starting a back generator and more...
Product Specifications
Product Specifications
Inverter Specifications
- Continuous Output Power at 25°C: 8000 VA
- Continuous Output Power at 25°C: 6400 W
- Continuous Output Power at 40°C: 5500 W
- Continuous Output Power at 65°C: 4000 W
- Peak Power: 15,000 W
- Maximum Apparent Feed-in Power: 8000 VA
- Maximum Efficiency: 95%
- Zero-Load Power: 29 W
- Zero-Load Power (AES Mode): 19 W
- Zero-Load Power (Search Mode): 3 W
- Output Voltage: 230 VAC ± 2%
- Frequency: 50 Hz ± 0.1% (Adjustable to 60 Hz)
Charger Specifications
- AC Input Voltage Range: 187 – 265 VAC
- Input Frequency: 45 – 65 Hz
- Charge Voltage 'Absorption': 57.6 V
- Charge Voltage 'Float': 55.2 V
- Storage Mode: 52.8 V
- Maximum Battery Charge Current: 110 A (at 25°C ambient)
- Battery Temperature Sensor: Yes
- Auxiliary Output: Yes (50 A)
Features & Connectivity
- PowerControl & PowerAssist: Yes (Boosts capacity of grid or generator by supplementing with battery power)
- Transfer Switch: Integrated high-speed switch (less than 20ms transfer time)
- Parallel Operation: Up to 6 units can be connected (Note: 8k, 10k, and 15k models require an external AC transfer switch for parallel operation)
- Three-Phase Operation: Yes

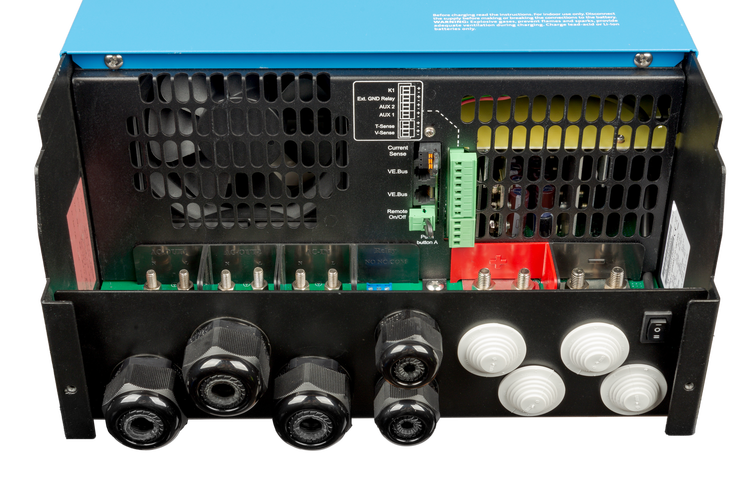

- VE.Bus Communication Port: For parallel/three-phase operation, remote monitoring, and system integration
- General Purpose Com. Ports: 2x
- Programmable Relay: Yes (Configurable for general alarm, DC under voltage, or generator start/stop)
- Remote On-Off: Yes
Mechanical & Enclosure
- Dimensions (H x W x D): 642 x 363 x 206 mm
- Weight: 42 kg
- Material & Colour: Steel, blue (RAL 5012)
- Protection Category: IP22

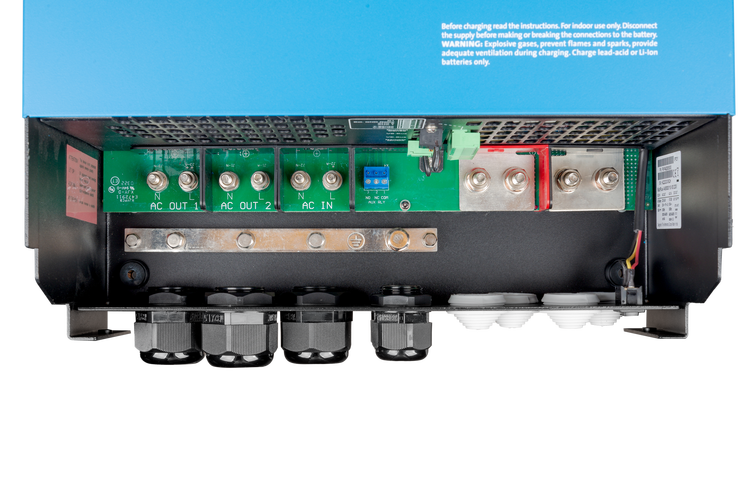

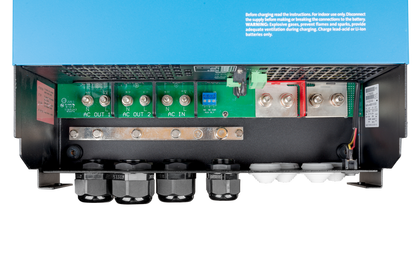

- Battery Connection: Four M8 bolts (2 positive and 2 negative connections)
- 230V AC Connection: M6 Bolts
Environmental & Standards
- Operating Temperature Range: -40 to +65 °C (Fan-assisted cooling)
- Humidity (non-condensing): Max. 95%
- Maximum Altitude: 2000 m
- Safety Standards: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2
- Emission/Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
Technical Specifications
Technical Specifications
| Inverter Rating | 8000VA |
|---|
