Victron MultiPlus-II 48/5000 – 48V 5000VA Inverter/Charger – GX Version
Victron MultiPlus-II 48/5000 – 48V 5000VA Inverter/Charger – GX Version
SKU:PMP482506000
Brand: Victron
Low stock: 1 left
Couldn't load pickup availability
Product Details
Product Details

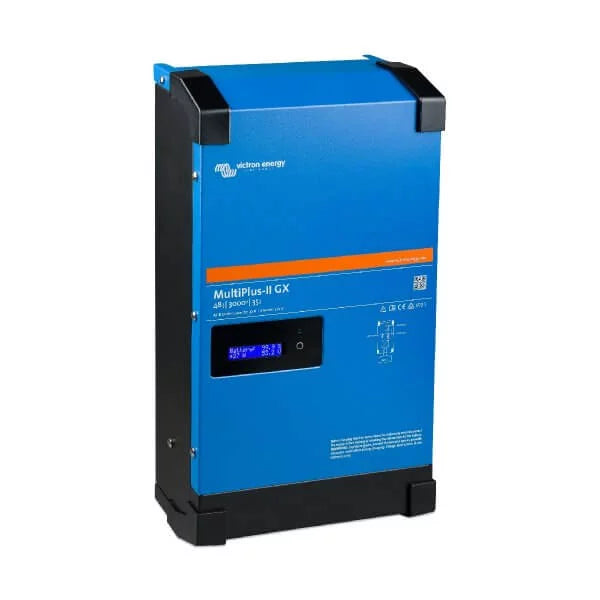

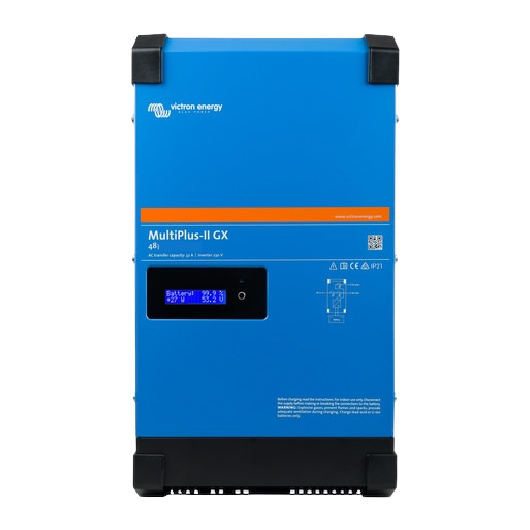

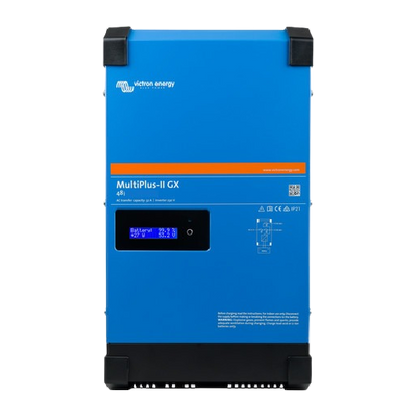

The Victron MultiPlus-II 48/5000/70-50 230V GX is a professional-grade inverter/charger designed for demanding 48 V battery systems in off-grid, mobile or hybrid applications. Built with a robust steel housing in Victron blue (RAL 5012) and rated protection IP22, this unit delivers 5000 VA continuous inverter output at 230 V AC and supports 70 A battery charging from the internal charger.
With built-in GX device functionality (USB, Ethernet, VE.Direct, VE.Can, Wi-Fi) this model offers full remote monitoring and control via the integrated display and the free VRM portal. The MultiPlus-II GX supports parallel operation and three-phase configuration, allowing you to scale up output power and battery charge rates as system requirements grow.
Key safety and system-integration features include the PowerControl and PowerAssist functions which can manage and support limited grid or generator supply by diverting battery power during peak loads and re-charging when load demand drops. A rapid transfer switch ensures uninterrupted AC power to connected loads in case of grid or shore power failure within less than 20 milliseconds.
This unit is specially suited for professional installers working on large mobile service units, marine vessels, commercial hybrid systems or remote renewable installations. With compatibility for lead-acid and lithium batteries, and designed for integration with PV, genset or grid systems, it offers a flexible, future-proof solution that supports increasing energy demands with smart networking and system scaling options.
Product Specifications
Product Specifications
Performance & Electrical Specifications (Inverter)
- Nominal Battery Voltage: 48 V
- Input Voltage Range: 38 – 66 V
- Continuous Output Power at 25°C: 5000 VA
- Continuous Output Power at 25°C: 4000 W
- Continuous Output Power at 40°C: 3700 W
- Continuous Output Power at 65°C: 3000 W
- Peak Power: 9000 W
- Maximum Efficiency: 96%
- Zero Load Power: 18 W
- Zero Load Power (AES Mode): 12 W
- Zero Load Power (Search Mode): 2 W
- Output Voltage: 230 VAC ± 2%
- Output Frequency: 50 Hz ± 0.1% (Adjustable to 60 Hz)
Charger Specifications
- AC Input Voltage Range: 187 – 265 VAC
- AC Input Frequency: 45 – 65 Hz
- Charge Voltage 'Absorption': 57.6 V
- Charge Voltage 'Float': 55.2 V
- Storage Mode: 52.8 V
- Maximum Battery Charge Current: 70 A
- Battery Temperature Sensor: Included
Key Features & System Integration
- Integrated GX Device: Includes an internal communication hub (equivalent to a Cerbo GX) for system configuration, monitoring, and control. It enables connection to the Victron Remote Management (VRM) portal for remote access and data logging.
- PowerControl & PowerAssist: Prevents overloading limited AC sources (such as a generator or shore power) by automatically adjusting battery charging. PowerAssist supplements the source with battery power during peak demand periods.

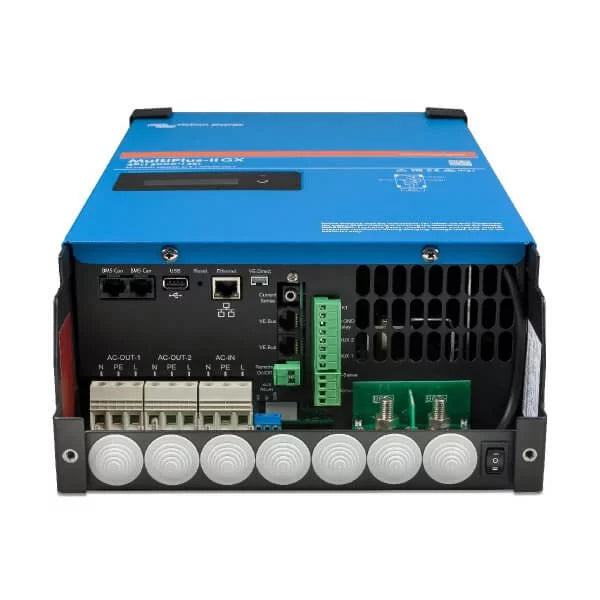

- Two AC Outputs: The main output features "no-break" functionality, taking over the supply to connected loads in less than 20 milliseconds during a grid failure. The second output is live only when AC is available on the input, preventing non-essential loads (like water heaters) from discharging the battery.
- Parallel and Three-Phase Operation: Up to 6 units can be connected in parallel to increase power output. Three units of the same model can also be configured for three-phase output.
- External Current Sensor Option: Allows for the extension of PowerControl and PowerAssist functions to 50 A or 100 A.
- Programmable Relay: Features a relay that can be configured for general alarms, DC under-voltage, or generator start/stop functions.
Mechanical Specifications
- Enclosure Material & Colour: Steel, Blue RAL 5012
- Protection Category: IP22
- Battery Connection: Four M8 bolts (2 plus and 2 minus connections)
- 230 VAC Connection: M6 bolts
- Weight: 30 kg
- Dimensions (h x w x d): 607 x 330 x 149 mm
Environmental & Standards
- Operating Temperature Range: -40 to +65 °C (fan assisted cooling)
- Humidity (non-condensing): Max 95%
- Maximum Altitude: 2000 m
- Safety Standards: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2
- EMC Standards: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
Technical Specifications
Technical Specifications
| Inverter Rating | 5000VA |
|---|
