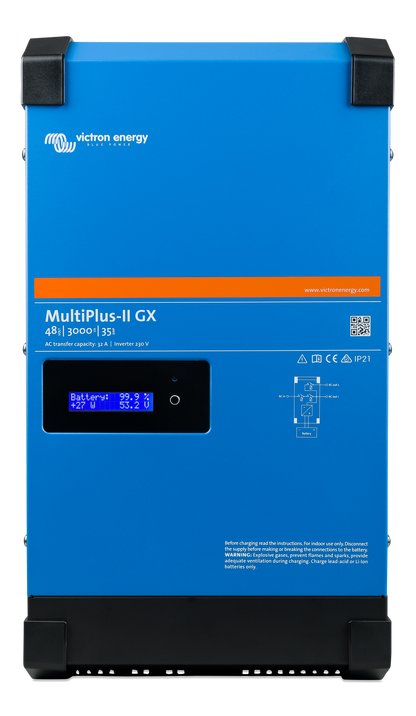

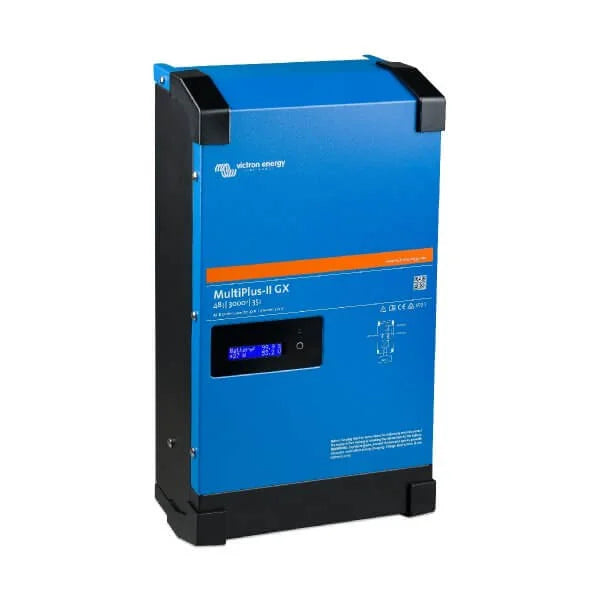

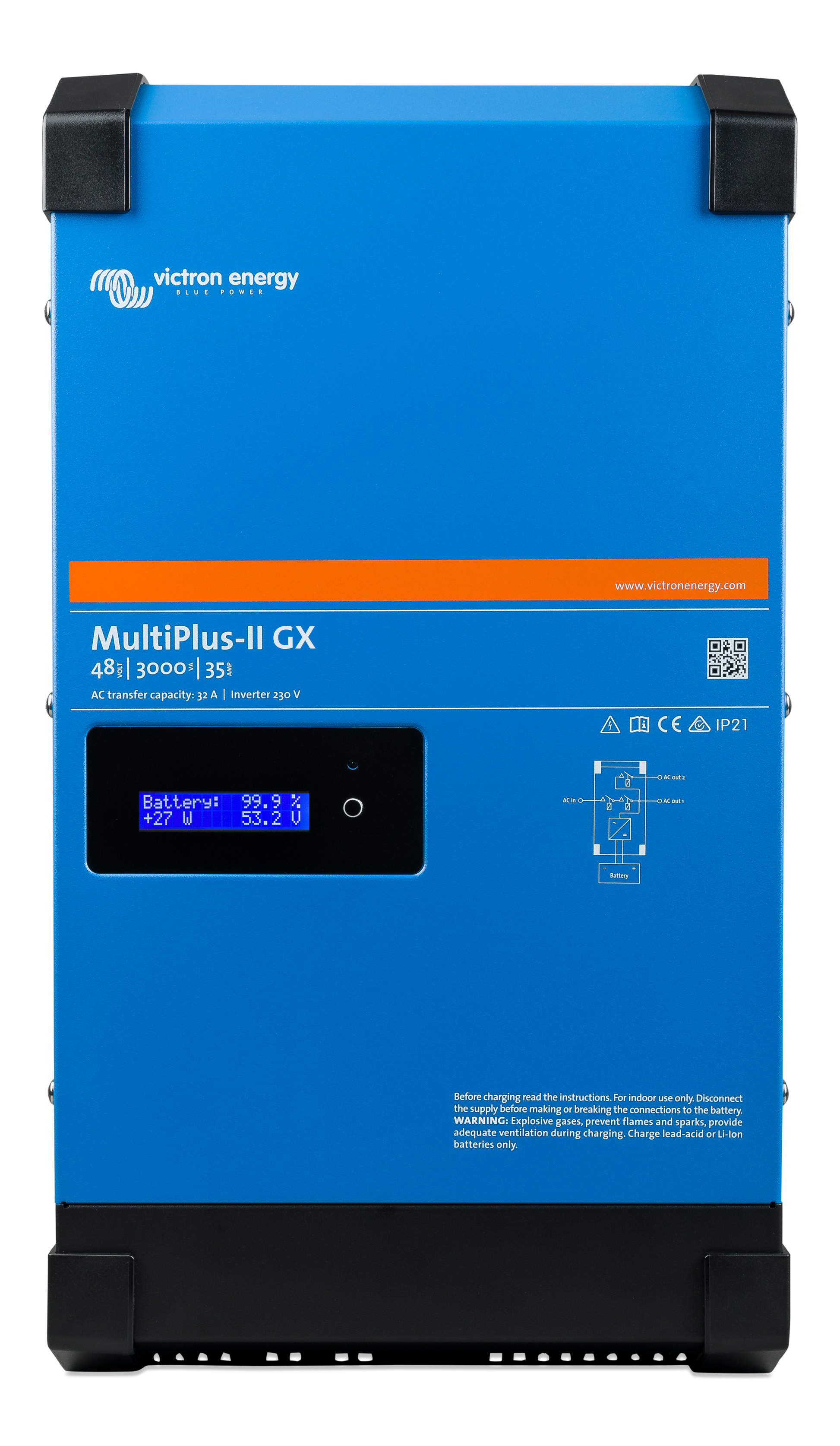

Victron MultiPlus-II 48/3000 – 48V 3000VA Inverter/Charger – GX Version
Victron MultiPlus-II 48/3000 – 48V 3000VA Inverter/Charger – GX Version
SKU:PMP482306000
Brand: Victron
Reliable Power Supply: Ensures continuous power with automatic transfer during grid failure.
Advanced Power Management: PowerAssist technology prevents overloads by supplementing AC sources with battery power.
Integrated Monitoring: Built-in GX device with LCD display allows real-time system monitoring and control.
Flexible Connectivity: Multiple ports (VE.Can, VE.Direct, USB, Ethernet) enable seamless integration with other Victron devices.
Scalable Configuration: Supports parallel and three-phase setups for increased power output and flexibility.
Dimensions: 506 x 275 x 147mm
Weight: 20kg
In stock
This is pre-order - Available in 7 – 10 days
Regular price
£642.00 GBP
Regular price
Sale price
£642.00 GBP
Quantity
Couldn't load pickup availability
Product Details
Product Details
The Victron MultiPlus-II 48/3000/35-32 230V GX is a versatile inverter/charger designed for off-grid, marine, and mobile applications. Combining a powerful sine wave inverter, a high-speed battery charger, and a transfer switch in a compact unit, it ensures uninterrupted power supply and efficient energy management.
Key Features:
- Powerful Inverter/Charger: Delivers 3000VA continuous power with a 35A charging capability, suitable for demanding applications.
- Uninterrupted Power Supply (UPS): Automatically switches to inverter mode within 20 milliseconds during grid failure, ensuring continuous power to connected loads.
- PowerAssist Technology: Boosts the capacity of limited AC sources by supplementing with battery power, preventing overloads and enhancing performance.
- Integrated GX Device: Features a built-in GX device with a 2x16 character LCD display, providing real-time system monitoring and control.
- Connectivity Options: Equipped with VE.Can, VE.Direct, USB, and Ethernet ports for seamless integration with other Victron devices and remote monitoring.
Ideal for applications requiring reliable and efficient power conversion, the MultiPlus-II GX offers flexibility and scalability, supporting parallel and three-phase configurations. Its robust design and advanced features make it a preferred choice for professionals seeking a dependable energy solution.
Product Specifications
Product Specifications
Inverter Specifications
- DC Input Voltage Range: 38 – 66 V
- Output Voltage: 230 VAC ± 2%
- Output Frequency: 50 Hz ± 0.1% (Adjustable to 60 Hz)
- Continuous Output Power at 25°C: 3000 VA
- Continuous Output Power at 25°C: 2400 W
- Continuous Output Power at 40°C: 2200 W
- Continuous Output Power at 65°C: 1700 W
- Maximum Apparent Feed-in Power: 3000 VA
- Peak Power: 5500 W
- Maximum Efficiency: 95%
- Zero Load Power: 11 W
- Zero Load Power (AES Mode): 7 W
- Zero Load Power (Search Mode): 2 W
Charger Specifications
- AC Input Voltage Range: 187 – 265 VAC
- AC Input Frequency: 45 – 65 Hz
- Charge Voltage 'Absorption': 57.6 V
- Charge Voltage 'Float': 55.2 V
- Storage Mode: 52.8 V
- Maximum Battery Charge Current: 35 A
- Battery Temperature Sensor: Yes
Integrated GX Functionality & Connectivity
- LCD Display: Built-in 2 x 16 character display for reading battery, inverter, and solar charge controller parameters.
- Wi-Fi: Built-in for local monitoring and setup via smartphone or other Wi-Fi enabled devices.
- BMS-Can Interface: For connection to compatible CAN-bus managed batteries.

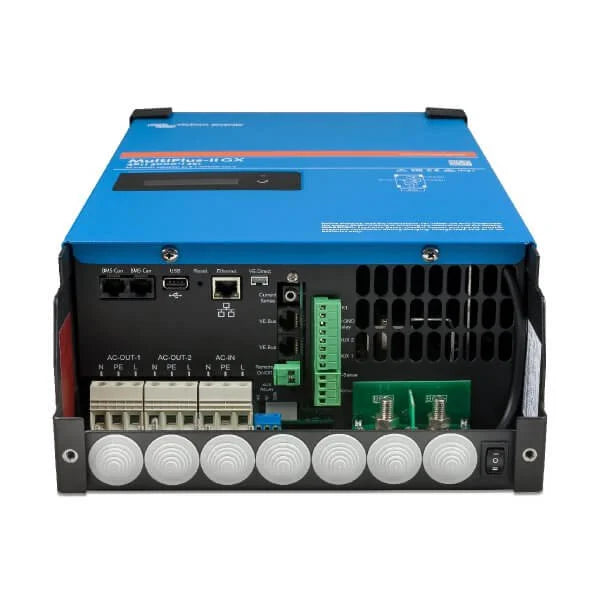

- Communication Ports: 1x USB port, 1x Ethernet port, and 1x VE.Direct port.
- VE.Bus Port: For parallel and three-phase operation, remote monitoring, and system integration.
- General Purpose COM Ports: 2x
- Programmable Relay: Can be set for general alarm, DC under-voltage, or generator start/stop functions.
Key Features
- PowerControl & PowerAssist: Automatically manages AC input to prevent overloading of a limited source and supplements power with the battery when required.
- Transfer Switch: 32 A
- Maximum AC Input Current: 32 A
- Auxiliary Output: 32 A (designed for loads that should shut down when AC input is unavailable).
- Remote Monitoring: Compatible with the Victron Remote Management (VRM) portal and VRM app.
- External Current Sensor (Optional): Supports 50 A or 100 A sensors to optimize self-consumption.
Mechanical Specifications
- Enclosure Material & Colour: Steel, Blue RAL 5012
- Protection Category: IP22
- Battery Connection: M8 bolts
- 230V AC Connection: Screw terminals 13 mm² (6 AWG)
- Weight: 20 kg
- Dimensions (h x w x d): 506 x 275 x 147 mm
- Operating Temperature Range: -40 to +65°C (fan-assisted cooling)
- Humidity: Max 95% (non-condensing)
Standards & Protection
- Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2
- Emission / Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
- Uninterruptible Power Supply: IEC 62040-1
- Electronic Protection: Output short circuit, overload, battery voltage high/low, temperature high, 230 VAC on inverter output, and input voltage ripple high.
Technical Specifications
Technical Specifications
| Inverter Rating | 3000VA |
|---|---|
| Battery Charger Rating | 35A |
| Voltage | 48V |
| Protection | IP22 - Indoor |
| Weight KG | 20 |
