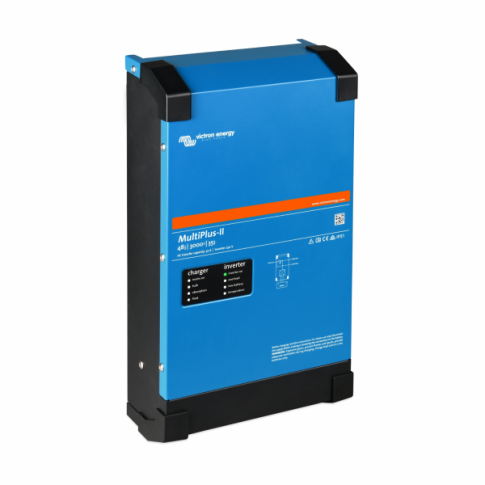

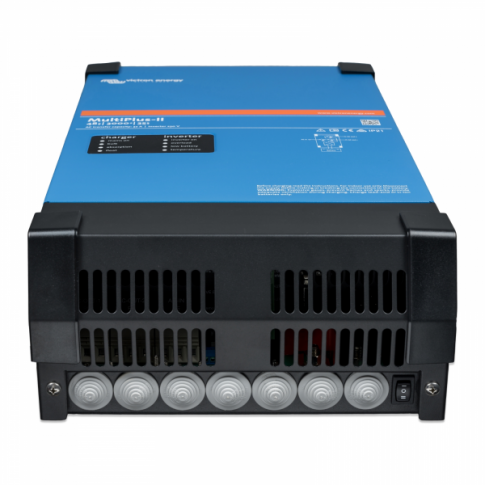

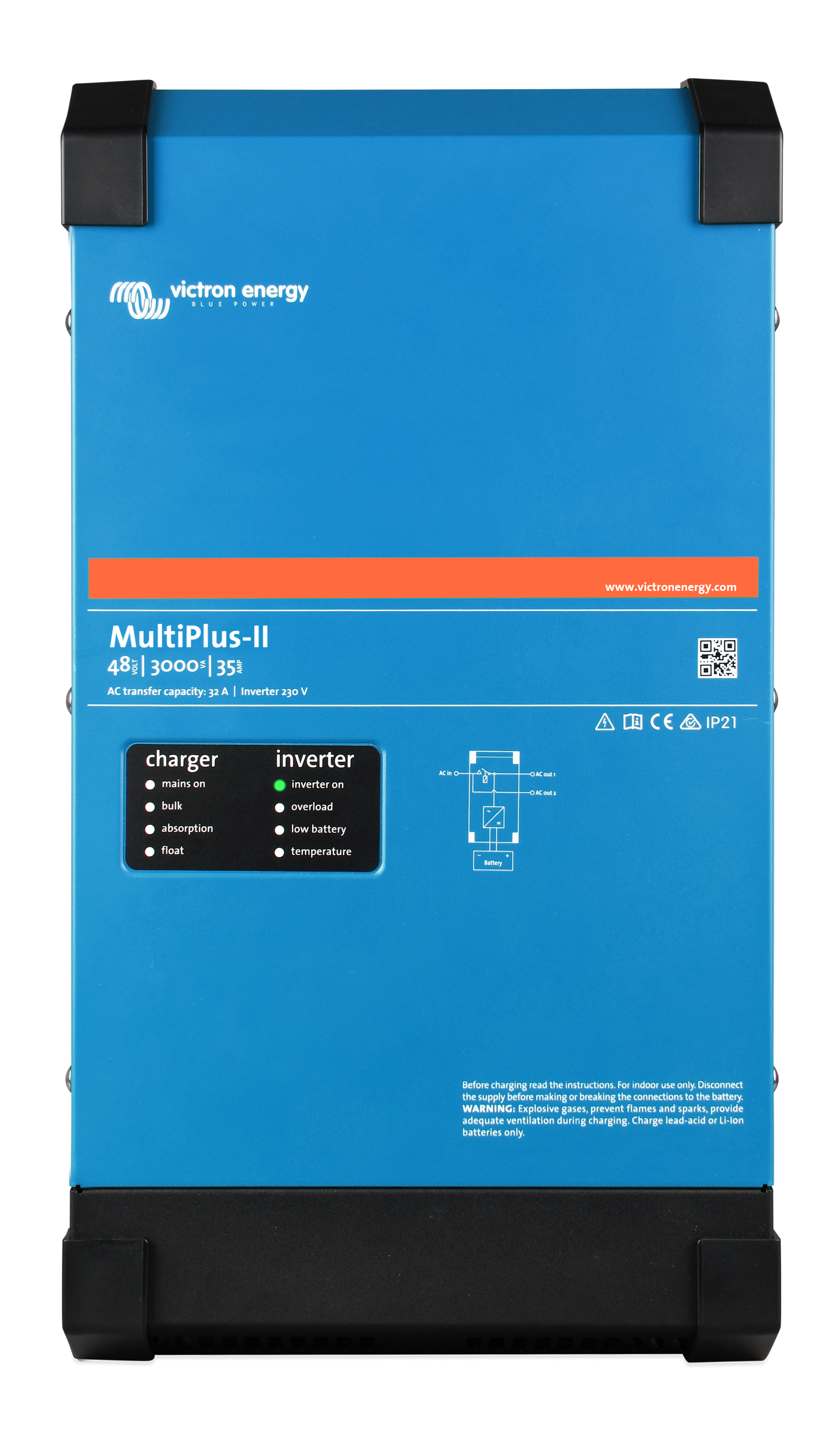

Victron MultiPlus-II 48/3000 – 48V 3000VA Inverter/Charger
Victron MultiPlus-II 48/3000 – 48V 3000VA Inverter/Charger
SKU:PMP482305012
Brand: Victron
For 48V systems.
Max constant power 3000VA off-grid.
Pure sine wave inverter and battery charger all in one.
Charge your batteries at 35A when connected to mains.
Dimensions: 499 x 268 x 141mm
Weight: 19kg
Low stock: 7 left
Regular price
£564.00 GBP
Regular price
Sale price
£564.00 GBP
Quantity
Couldn't load pickup availability
Product Details
Product Details
Victron Energy MultiPlus-II 48/3000 230V Inverter/Charger – PMP482305012
The Victron MultiPlus-II 48/3000 is a robust true sine wave inverter and advanced battery charger seamlessly integrated into a single device. Designed to convert 48V DC power from your leisure batteries into 230V AC power, this inverter/charger enables you to power up to 3000VA of domestic appliances when off-grid. Whether you're connected to a hookup or enjoying the freedom of disconnected living, the MultiPlus-II intelligently manages power sources, automatically switching between mains power and leisure batteries to ensure a continuous and reliable power supply.
Key Features:
- High Power Output and Charging Capability: The 48/3000 model supports a power output of up to 3000VA and allows for the charging of leisure batteries with a current of up to 35A. This makes it suitable for a range of off-grid applications, including houses and cabins.
- Versatile Off-Grid Solution: Ideal for those with mains power appliances totaling 3000VA or less, the MultiPlus-II facilitates off-grid living without sacrificing modern conveniences.
- Dual AC Disconnect Relay: The MultiPlus-II is equipped with a dual AC disconnect relay, ensuring compliance with various grid code standards. This feature makes it suitable for feeding back to the grid.
- Pure Sine Wave Inverter: The MultiPlus-II incorporates a pure sine wave inverter, providing a clean and stable power output. This is crucial for powering sensitive electronics and appliances that may be damaged or operate inefficiently with quasi (modified) sine wave inverters.
- Seamless UPS Functionality: In the event of a grid failure or when shore or generator power is disconnected, the MultiPlus-II acts as an Uninterrupted Power Supply (UPS). With a rapid transition time of less than 20 milliseconds, it ensures that computers and electronic equipment continue to operate without disruption.
- Remote Monitoring and Control: While the MultiPlus-II doesn't have built-in Bluetooth or smart connectivity, it can be paired with the VE.Bus smart dongle. This allows you to monitor the inverter's performance and settings using the VictronConnect app. The app enables real-time monitoring, programmable alarms, and cut-offs, enhancing control and awareness of your electrical system.
Product Specifications
Product Specifications
Inverter Specifications
- Nominal Battery Voltage: 48 V
- Continuous Output Power at 25°C: 3000 VA / 2400 W
- Continuous Output Power at 40°C: 2200 W
- Continuous Output Power at 65°C: 1700 W
- Maximum Apparent Feed-in Power: 3000 VA
- Peak Power: 5500 W
- Maximum Efficiency: 95%
- Zero Load Power: 11 W
- Zero Load Power (AES Mode): 7 W
- Zero Load Power (Search Mode): 2 W
- Output Voltage: 230 VAC ± 2%
- Output Frequency: 50 Hz ± 0.1% (Adjustable to 60 Hz)
Charger Specifications
- AC Input Voltage Range: 187 – 265 VAC
- Input Frequency: 45 – 65 Hz
- Charge Voltage 'Absorption': 57.6 VDC
- Charge Voltage 'Float': 55.2 VDC
- Storage Mode: 52.8 VDC
- Maximum Battery Charge Current: 35 A
- Battery Temperature Sensor: Yes
Key Features & Connectivity
- PowerControl & PowerAssist: Automatically manages AC input to prevent grid or generator overload, supplementing the source with battery power during peak demand.

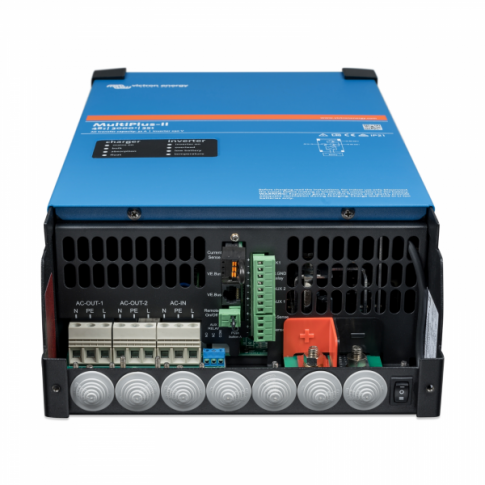

- Dual AC Outputs: The main output provides "no-break" functionality, taking over power to critical loads in less than 20ms during grid failure. The second output is live only when AC input is available, ideal for loads that should not discharge the battery (e.g., water heaters).
- Parallel and Three-Phase Operation: Up to 6 units can operate in parallel. Three units can be configured for three-phase output, and up to 6 sets of three units can be connected in parallel per phase.
- External Current Sensor (Optional): Supports 50 A or 100 A sensors to extend PowerControl and PowerAssist functionality.
- Programmable Relay: Can be configured for general alarms, DC under-voltage, or generator start/stop functions.
- Communication Ports: Includes a VE.Bus port for system integration and two general-purpose communication ports.
- Remote Monitoring: Compatible with Cerbo GX, Ekrano GX, VRM Portal, and Bluetooth (via optional VE.Bus Smart dongle).
Mechanical Specifications
- Enclosure Material & Colour: Steel, blue RAL 5012
- Protection Category: IP22
- Dimensions (h x w x d): 546 x 275 x 147 mm
- Weight: 19 kg
- Battery Connection: M8 bolts
- 230 VAC Connection: Screw terminals 13 mm² (6 AWG)
- Operating Temperature Range: -40 to +65°C (fan assisted cooling)
- Humidity: Max 95% (non-condensing)
Standards & Protection
- Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2
- Emission / Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
- Integrated Protection: Output short circuit, overload, battery voltage high/low, temperature high, 230 VAC on inverter output, and input voltage ripple high.
Technical Specifications
Technical Specifications
| Inverter Rating | 3000VA |
|---|---|
| Battery Charger Rating | 35A |
| Voltage | 48V |
| Protection | IP22 - Indoor |
| Weight KG | 19 |
