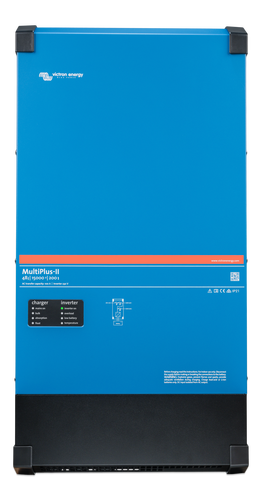

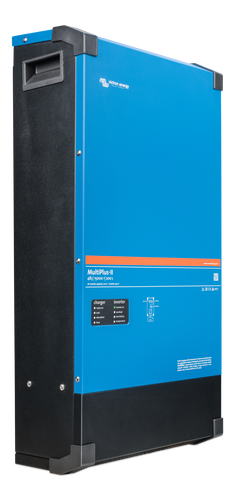

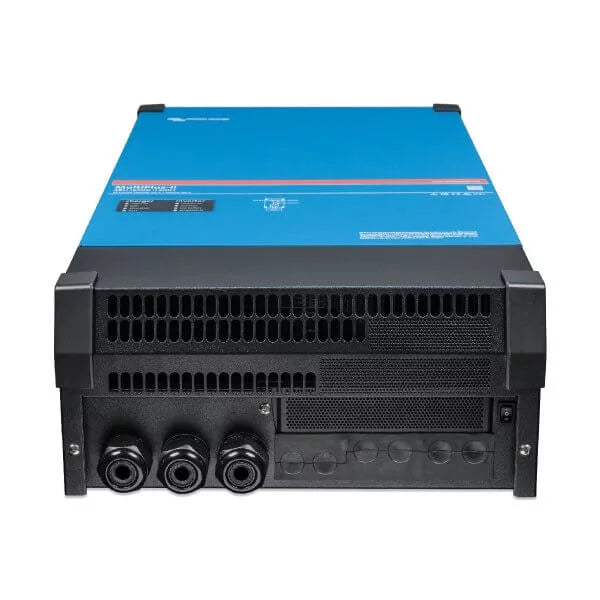

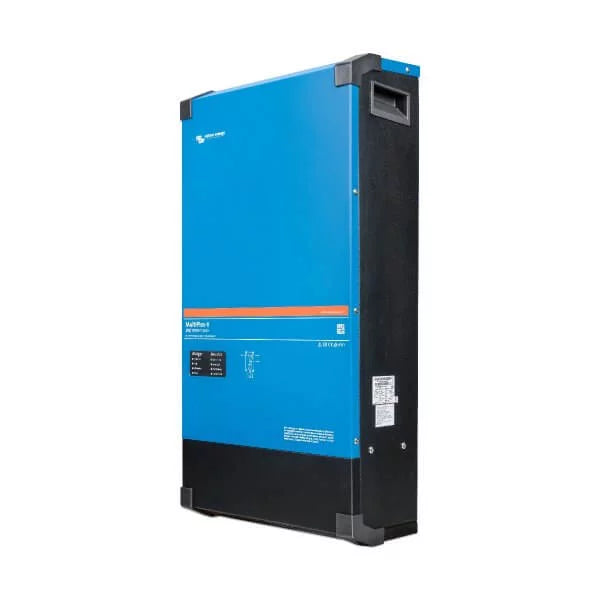

Victron MultiPlus-II 48/15000 – 48V 15kVA Inverter/Charger
Victron MultiPlus-II 48/15000 – 48V 15kVA Inverter/Charger
SKU:PMP483150000
Brand: Victron
Low stock: 6 left
Couldn't load pickup availability
Product Details
Product Details
The Victron MultiPlus-II 48/15000/200-100 230 V is a high-capacity inverter/charger designed for 48 V battery systems in demanding installations. Delivering 15 000 VA of continuous inverter output (12 000 W at 25 °C) and offering a 200 A battery charger, this model is ideal where serious power is required.
Housed in a steel enclosure finished in Victron blue with IP22 protection rating, the unit is built for robust, professional use.
It supports the advanced PowerControl and PowerAssist functions, allowing the system to manage limited AC source capability and draw on battery power during peak loads.
In the event of a grid failure or generator input loss, the MultiPlus-II switches to inverter mode in under 20 milliseconds, ensuring uninterrupted supply to critical loads.
It also offers parallel and three-phase operation for future expansion, making it suitable for large off-grid homes, commercial systems or hybrid energy storage solutions.
With true sine-wave output, anti-islanding real-time monitoring and full integration with the Victron GX ecosystem and VRM portal, this unit gives retail buyers a professional solution to meet high-power requirements in homes, workshops, mobile service units or commercial installations.
Product Specifications
Product Specifications
Inverter Specifications
- Continuous Output Power at 25°C: 15,000 VA
- Continuous Output Power at 25°C: 12,000 W
- Continuous Output Power at 40°C: 10,000 W
- Continuous Output Power at 65°C: 7,000 W
- Maximum Apparent Feed-in Power: 15,000 VA
- Peak Power: 27,000 W
- Maximum Efficiency: 95%
- Zero-Load Power: 55 W
- Zero-Load Power (AES Mode): 39 W
- Zero-Load Power (Search Mode): 6 W
- Output Voltage: 230 VAC ± 2%
- Frequency: 50 Hz ± 0.1% (Adjustable to 60 Hz)
Charger Specifications
- AC Input Voltage Range: 187 – 265 VAC
- Input Frequency: 45 – 65 Hz
- Charge Voltage 'Absorption': 57.6 V
- Charge Voltage 'Float': 55.2 V
- Storage Mode: 52.8 V
- Maximum Battery Charge Current: 200 A (at 25°C ambient)
- Battery Temperature Sensor: Yes
Features & Connectivity
- PowerControl & PowerAssist: Yes (Supplements grid or generator power with battery power to prevent overloading)
- Two AC Outputs: Main output (no-break functionality, < 20ms) and second output (live only when AC input is available)
- Transfer Switch: 100 A
- Parallel Operation: Up to 6 units (Note: 15k models require an external AC transfer switch for parallel operation)
- Three-Phase Operation: Yes
- VE.Bus Communication Port: For parallel/three-phase operation, remote monitoring, and system integration
- General Purpose Com. Ports: 2x
- Programmable Relay: Yes (Configurable for general alarm, DC under voltage, or generator start/stop)
- Remote On-Off: Yes
- External AC Current Sensor (optional): 50 A or 100 A
Mechanical & Enclosure
- Dimensions (H x W x D): 810 x 405 x 217 mm
- Weight: 80 kg
- Material & Colour: Steel, blue (RAL 5012)
- Protection Category: IP22

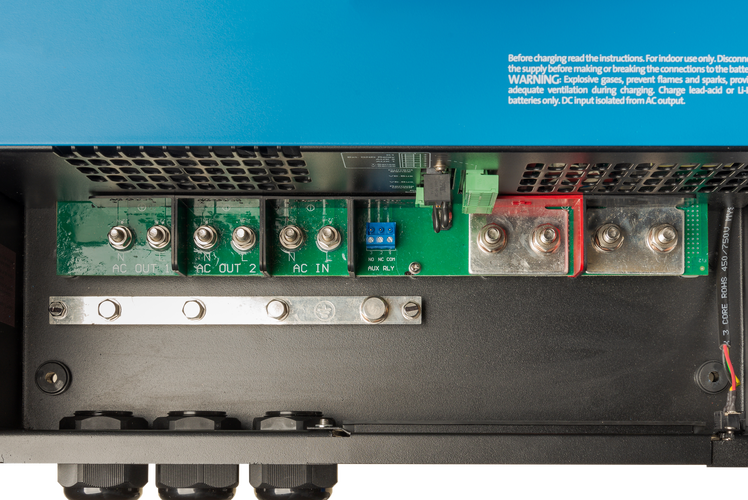

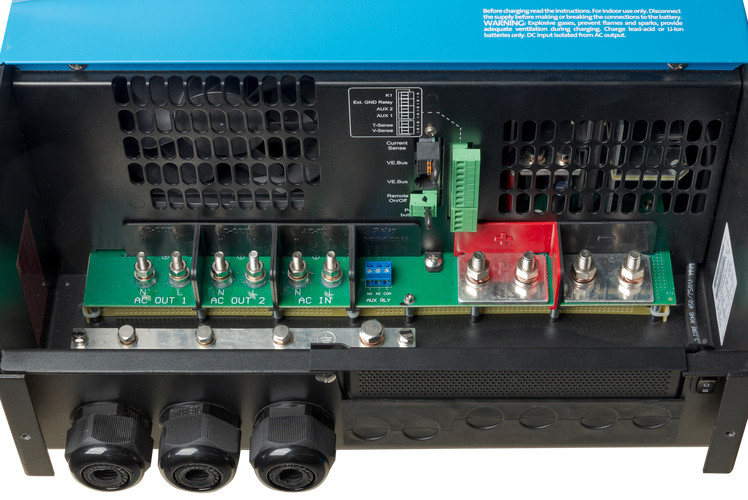

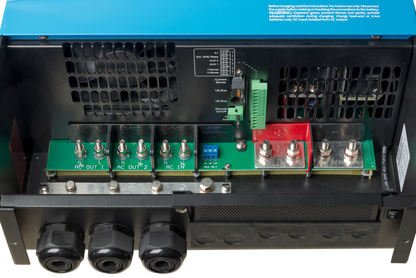

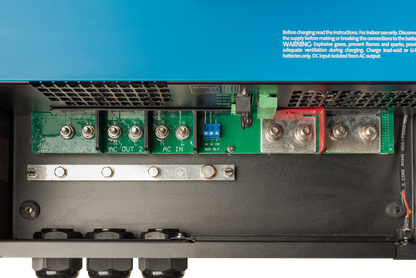

- Battery Connection: Four M8 bolts (2 positive and 2 negative connections)
- 230V AC Connection: M6 Bolts
Environmental & Standards
- Operating Temperature Range: -40 to +65 °C (Fan-assisted cooling)
- Humidity (non-condensing): Max 95%
- Maximum Altitude: 2,000 m
- Safety Standards: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2
- Emission/Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
- Integrated Protections: Output short circuit, overload, battery voltage too high/low, temperature too high, 230 VAC on inverter output, and input voltage ripple too high.
Technical Specifications
Technical Specifications
| Inverter Rating | 15000VA |
|---|---|
| Battery Charger Rating | 200A |
| Voltage | 48V |
| Protection | IP22 - Indoor |
| Weight KG | 80 |
