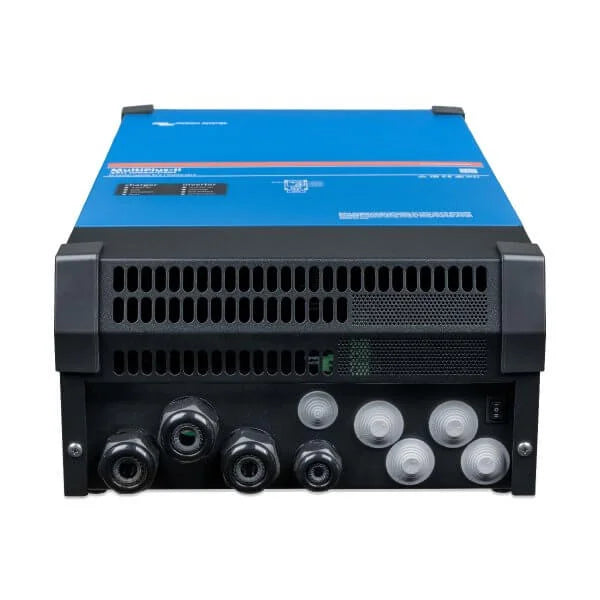

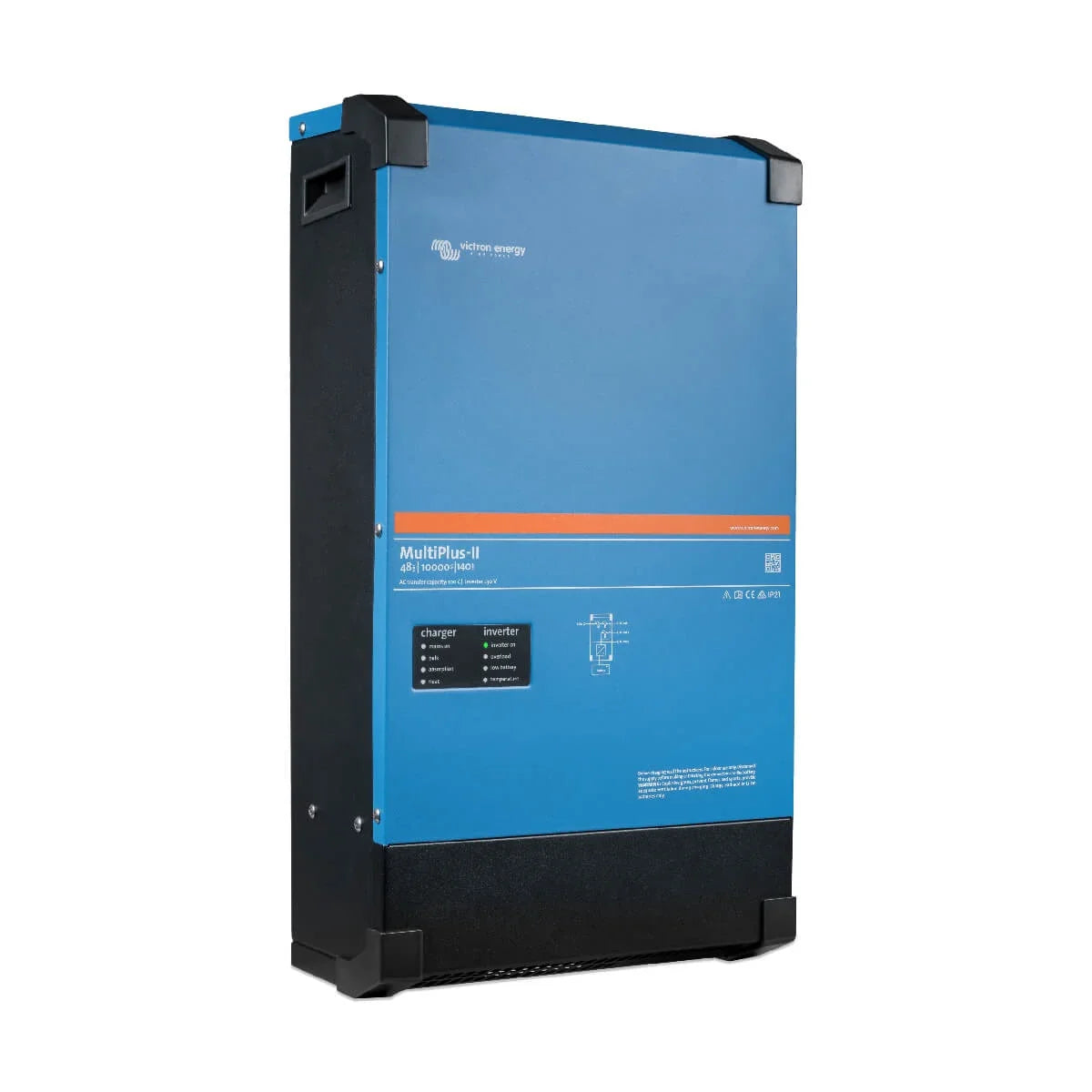

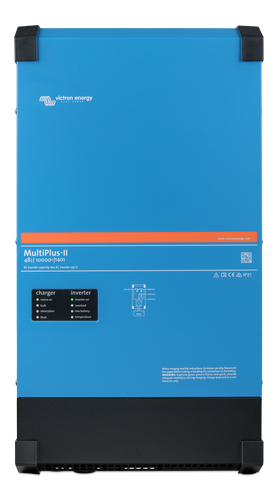

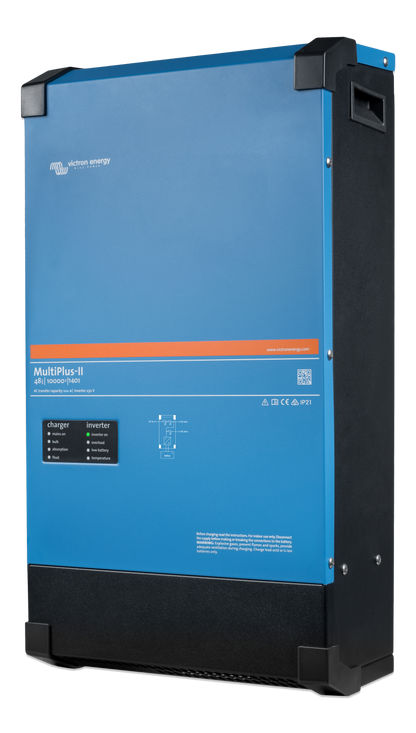

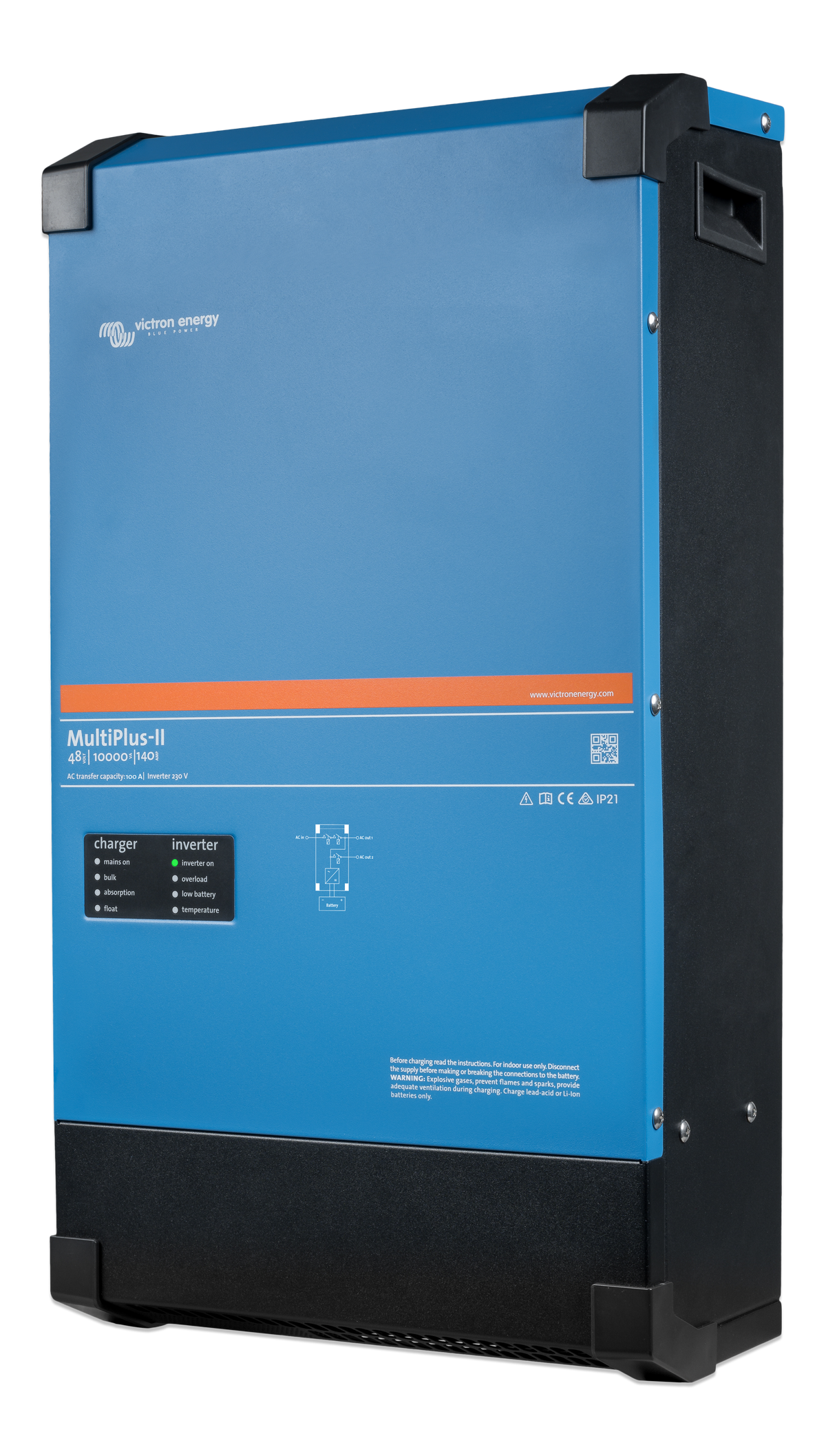

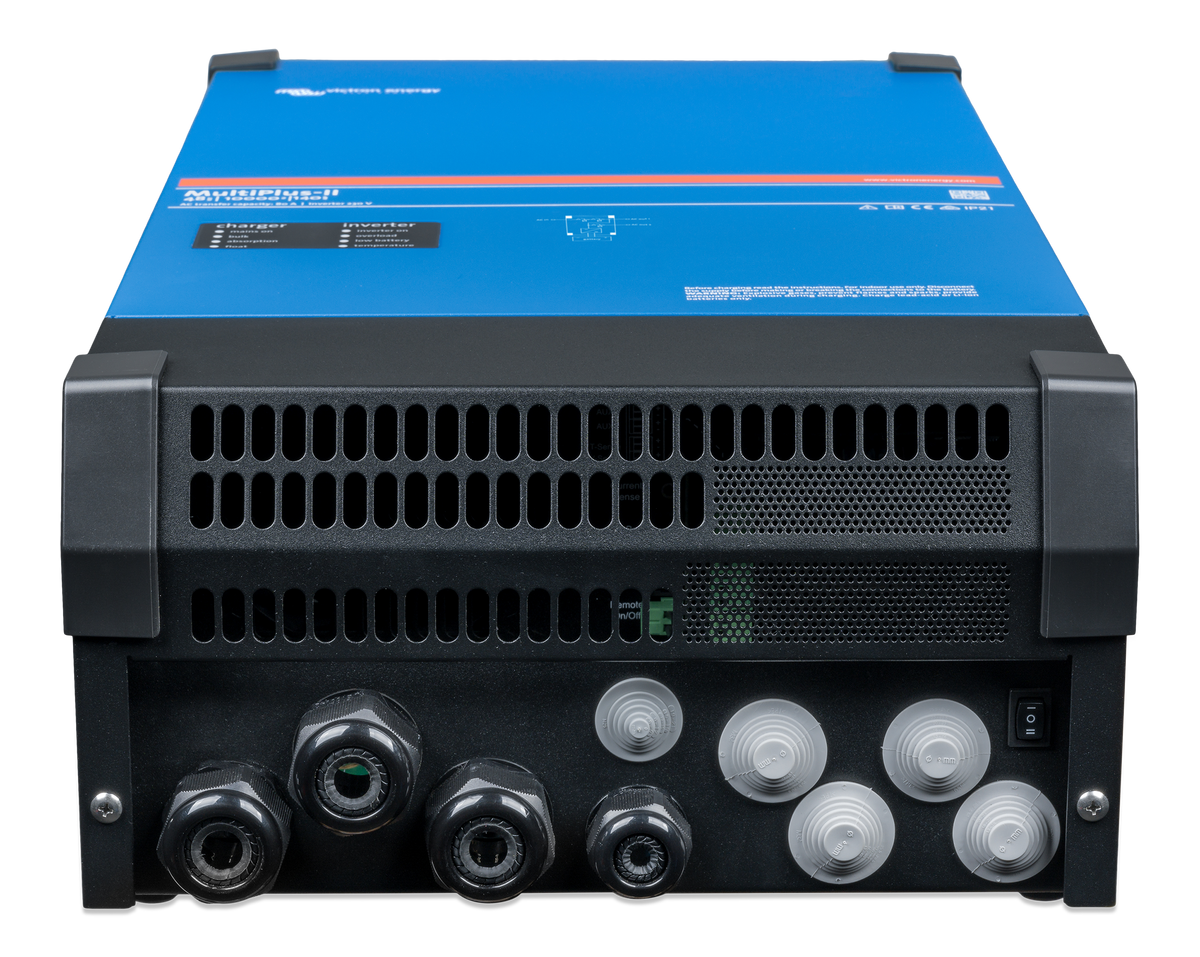

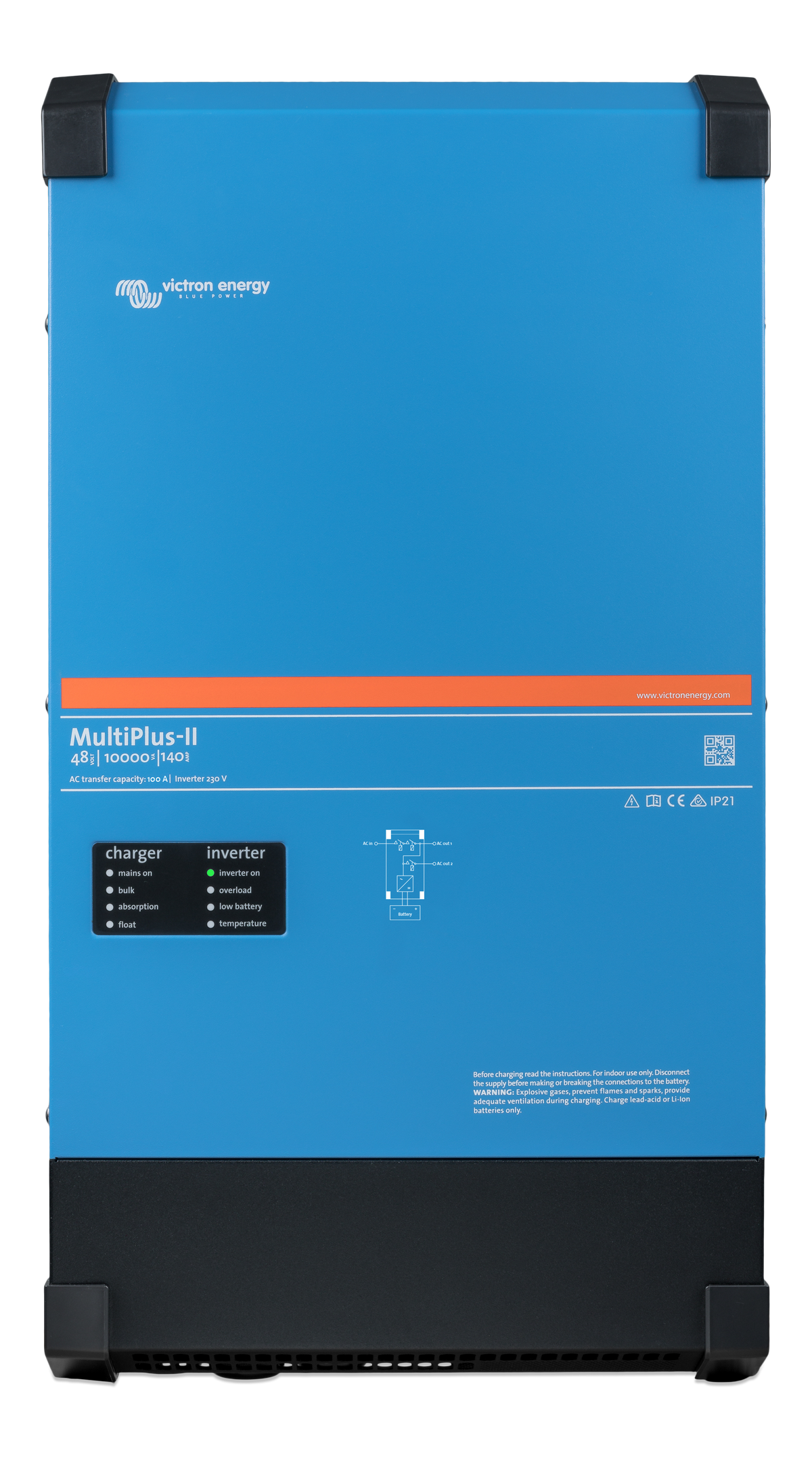

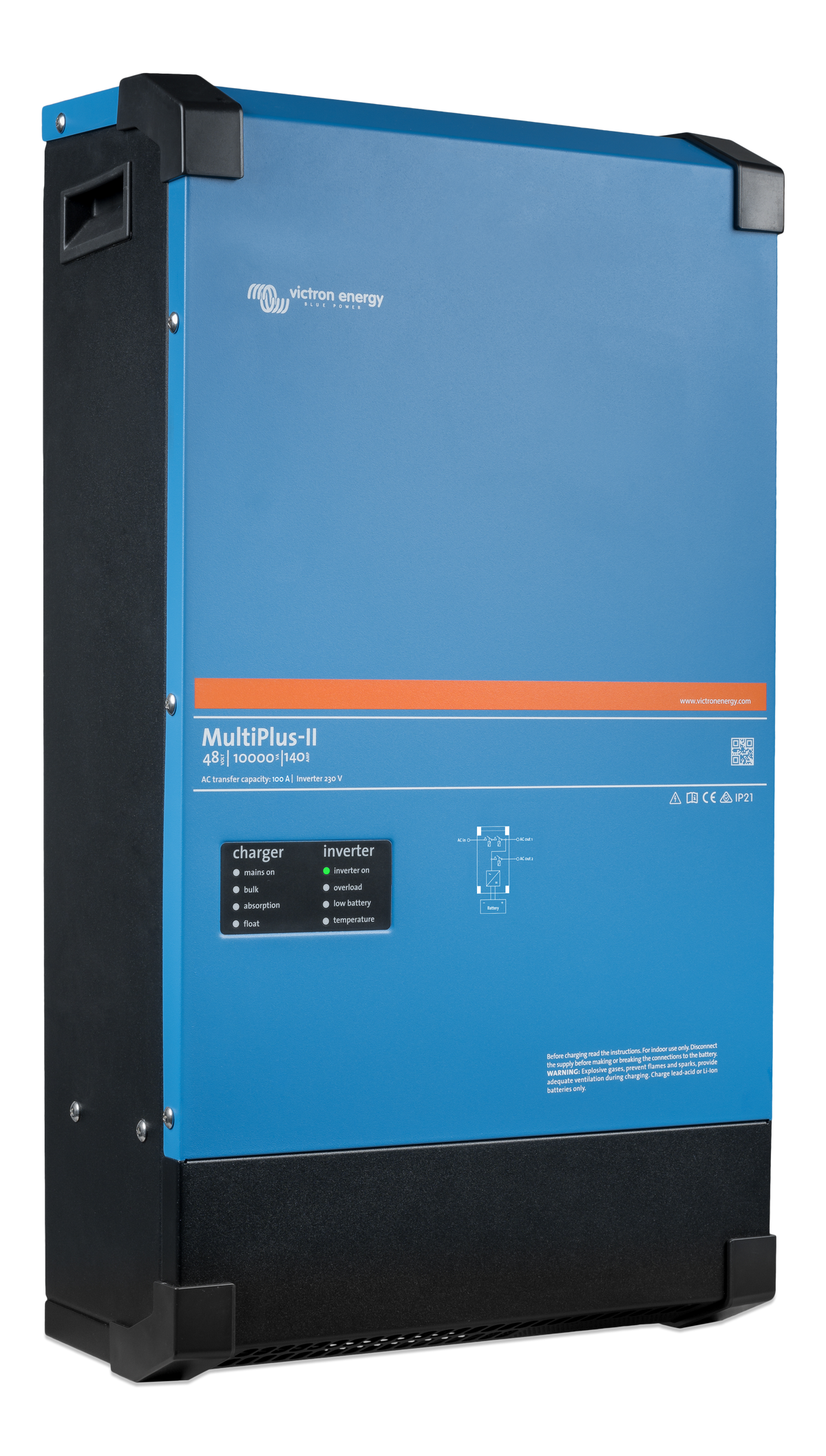

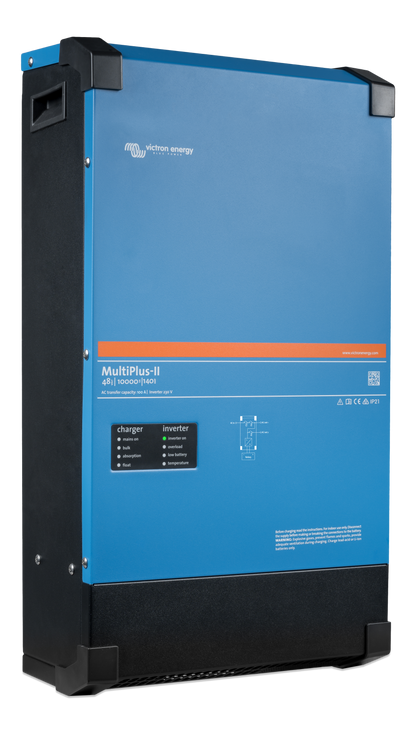

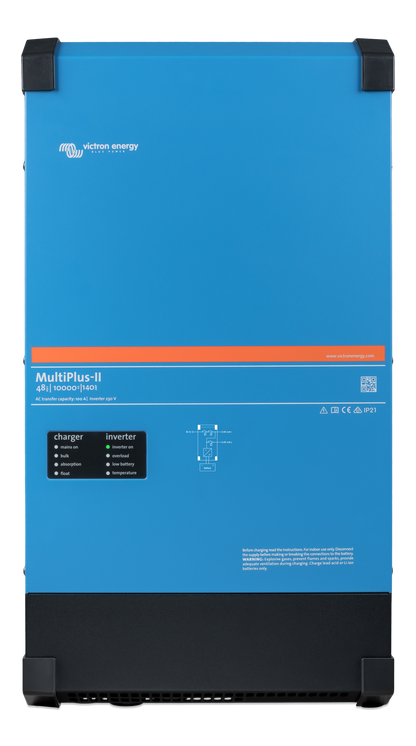

Victron MultiPlus-II 48/10000 – 48V 10kVA Inverter/Charger
Victron MultiPlus-II 48/10000 – 48V 10kVA Inverter/Charger
SKU:PMP483105000
Brand: Victron
10kVA maximum constant power off-grid.
Pure sine wave inverter and battery charger all in one.
For 48V systems.
Charge your batteries at 140A when connected to mains.
Dimensions: 677 x 363 x 206mm
Weight: 49kg
In stock
This is pre-order - Available in 7 – 10 days
Regular price
£1,673.00 GBP
Regular price
Sale price
£1,673.00 GBP
Quantity
Couldn't load pickup availability
Product Details
Product Details
Victron MultiPlus-II 48/10000/140-100 230V – Inverter/Charger – PMP483105000
The Victron MultiPlus-II 48/10000 is a robust true sine wave inverter and advanced battery charger designed for off-grid applications. With the ability to convert 48V DC power from leisure batteries to 230V AC power, it offers seamless operation for running up to 10kVA of domestic appliances. Here are the key features and details:
Key Features:
Powerful and Efficient:
True sine wave inverter with a capacity of 10kVA, providing reliable power for various domestic appliances.
Converts 48V DC power from leisure batteries to 230V AC power.
Key Features:
Powerful and Efficient:
True sine wave inverter with a capacity of 10kVA, providing reliable power for various domestic appliances.
Converts 48V DC power from leisure batteries to 230V AC power.
Automatic Power Source Switching:
When connected to hookup, the MultiPlus-II powers mains appliances directly, simultaneously recharging leisure batteries.
Upon disconnection, it automatically switches to powering mains appliances from leisure batteries, eliminating the need for manual switching.
High Charging Capacity:
Allows for charging leisure batteries with a current of up to 140A, supporting quick and efficient recharging.
Dual AC Disconnect Relay:
Compliant with grid code standards, making it suitable for feeding back to the grid.
Pure Sine Wave Inverter:
Replicates the 230V AC waveform precisely, ensuring compatibility with all 230V appliances.
Protects sensitive electronics from potential damage or improper operation.
Uninterrupted AC Power (UPS Function):
Activates automatically in less than 20 milliseconds in case of a grid failure, ensuring continuous operation of computers and electronic equipment.
Remote Monitoring and Control:
Compatible with VE.Bus smart dongle for remote monitoring via the VictronConnect app.
Set programmable alarms and cut-offs for low and high voltages, enhancing system control.
Versatile Applications:
Ideal for off-grid electrical systems in houses, cabins, and other remote locations.
Suitable for a total wattage of 10kVA or less in mains power appliances.
VRM App and Portal:
Access and control the system locally (LAN) or remotely via the internet using the VRM app and VRM portal.
Compatible with various devices, including phones, tablets, laptops, and PCs.
Product Specifications
Product Specifications
Inverter Specifications
- Continuous Output Power at 25°C: 10,000 VA
- Continuous Output Power at 25°C: 8,000 W
- Continuous Output Power at 40°C: 7,000 W
- Continuous Output Power at 65°C: 6,000 W
- Peak Power: 18,000 W
- Maximum Apparent Feed-in Power: 10,000 VA
- Maximum Efficiency: 96%
- Zero-Load Power: 38 W
- Zero-Load Power (AES Mode): 27 W
- Zero-Load Power (Search Mode): 4 W
- Output Voltage: 230 VAC ± 2%
- Frequency: 50 Hz ± 0.1% (Adjustable to 60 Hz)
Charger Specifications
- AC Input Voltage Range: 187 – 265 VAC
- Input Frequency: 45 – 65 Hz
- Charge Voltage 'Absorption': 57.6 V
- Charge Voltage 'Float': 55.2 V
- Storage Mode: 52.8 V
- Maximum Battery Charge Current: 140 A (at 25°C ambient)
- Battery Temperature Sensor: Yes
- Auxiliary Output: Yes (50 A)
Features & Connectivity
- PowerControl & PowerAssist: Yes (Boosts grid or generator capacity by supplementing with battery power)
- Transfer Switch: Integrated high-speed switch (less than 20ms transfer time)
- Parallel Operation: Up to 6 units (Note: 10k models require an external AC transfer switch for parallel operation)
- Three-Phase Operation: Yes
- VE.Bus Communication Port: For parallel/three-phase operation, remote monitoring, and system integration
- General Purpose Com. Ports: 2x
- Programmable Relay: Yes (Configurable for general alarm, DC under voltage, or generator start/stop)
- Remote On-Off: Yes
- External AC Current Sensor (Optional): 50 A or 100 A
Mechanical & Enclosure
- Dimensions (H x W x D): 677 x 363 x 206 mm
- Weight: 49 kg
- Material & Colour: Steel, blue (RAL 5012)
- Protection Category: IP22

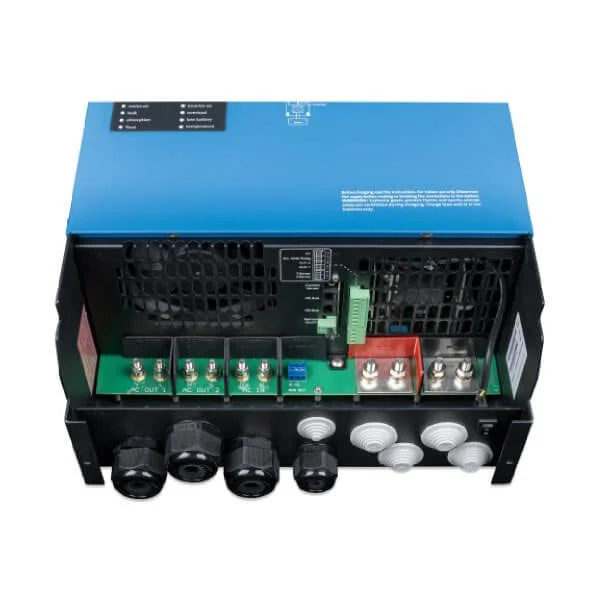

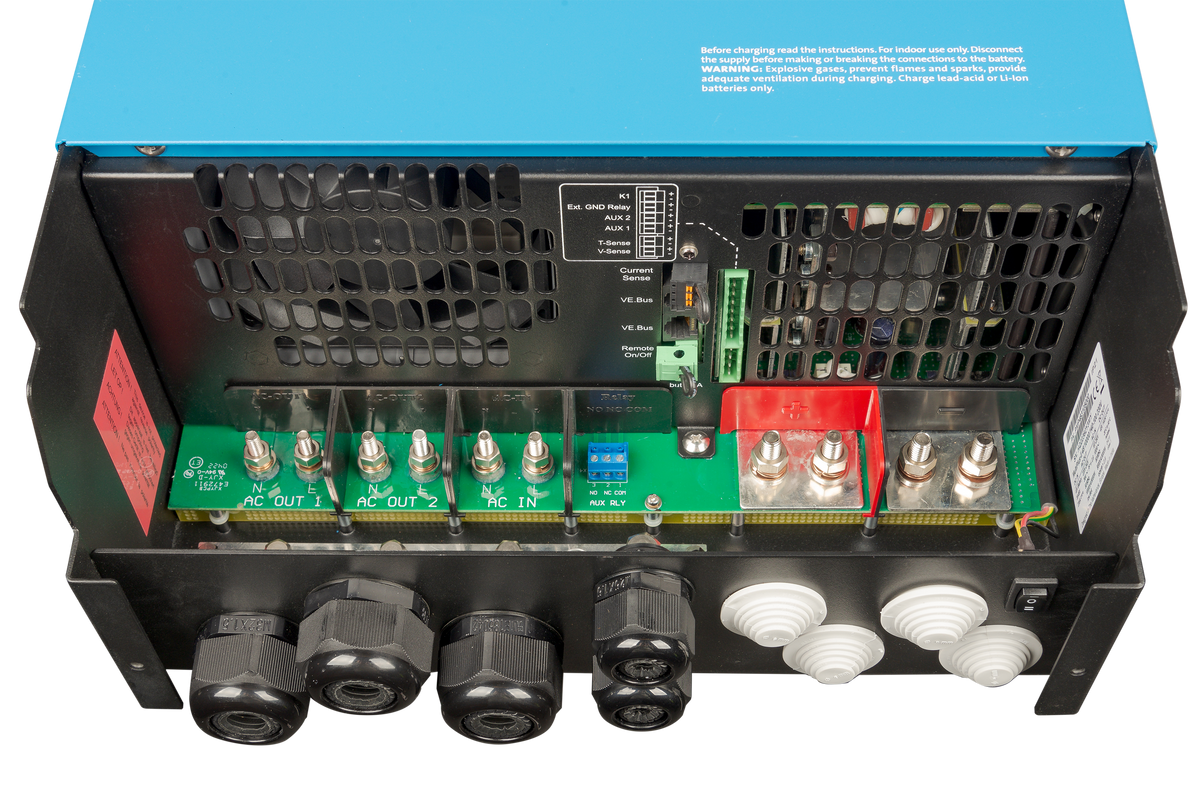

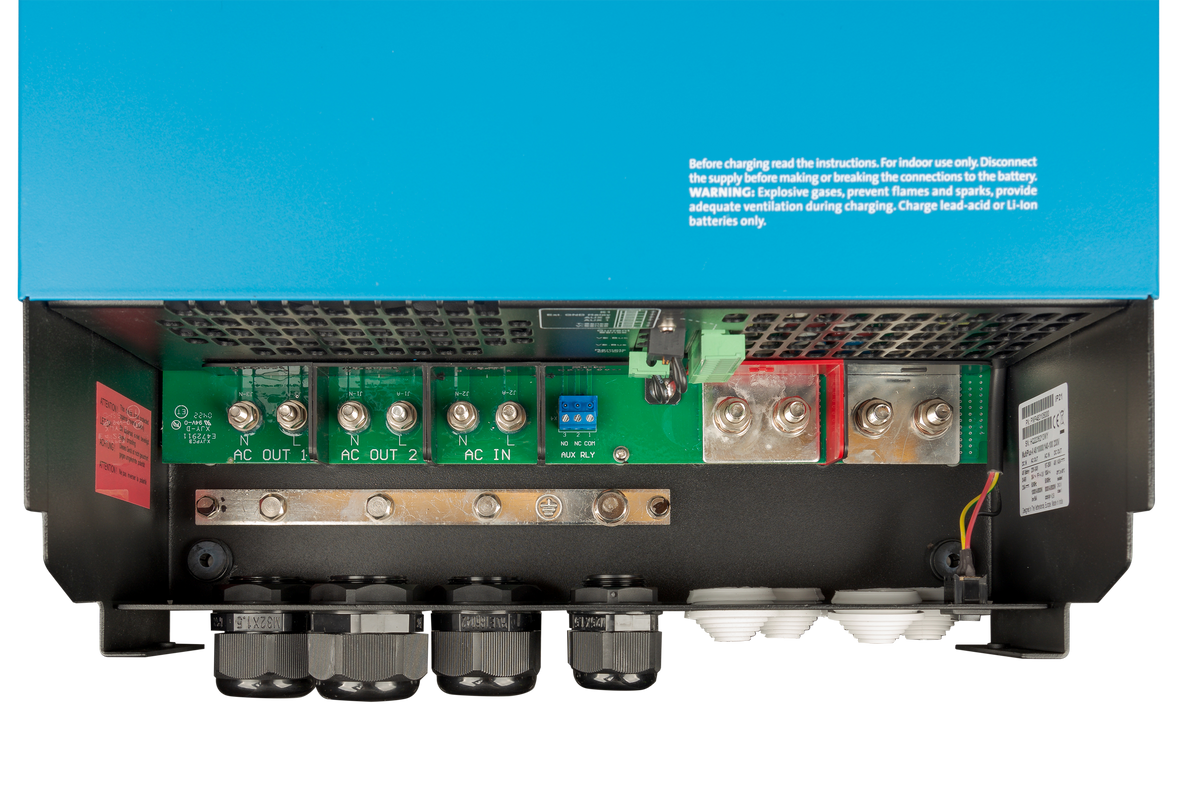

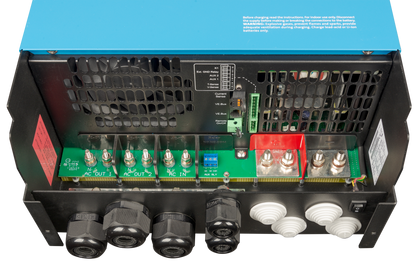

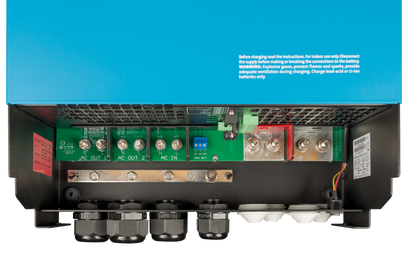

- Battery Connection: Four M8 bolts (2 positive and 2 negative connections)
- 230V AC Connection: M6 Bolts
Environmental & Standards
- Operating Temperature Range: -40 to +65 °C (Fan-assisted cooling)
- Humidity (non-condensing): Max 95%
- Maximum Altitude: 2,000 m
- Safety Standards: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2
- Emission/Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
- Integrated Protections: Output short circuit, overload, battery voltage too high/low, temperature too high, 230 VAC on inverter output, and input voltage ripple too high.
Technical Specifications
Technical Specifications
| Inverter Rating | 10000VA |
|---|
