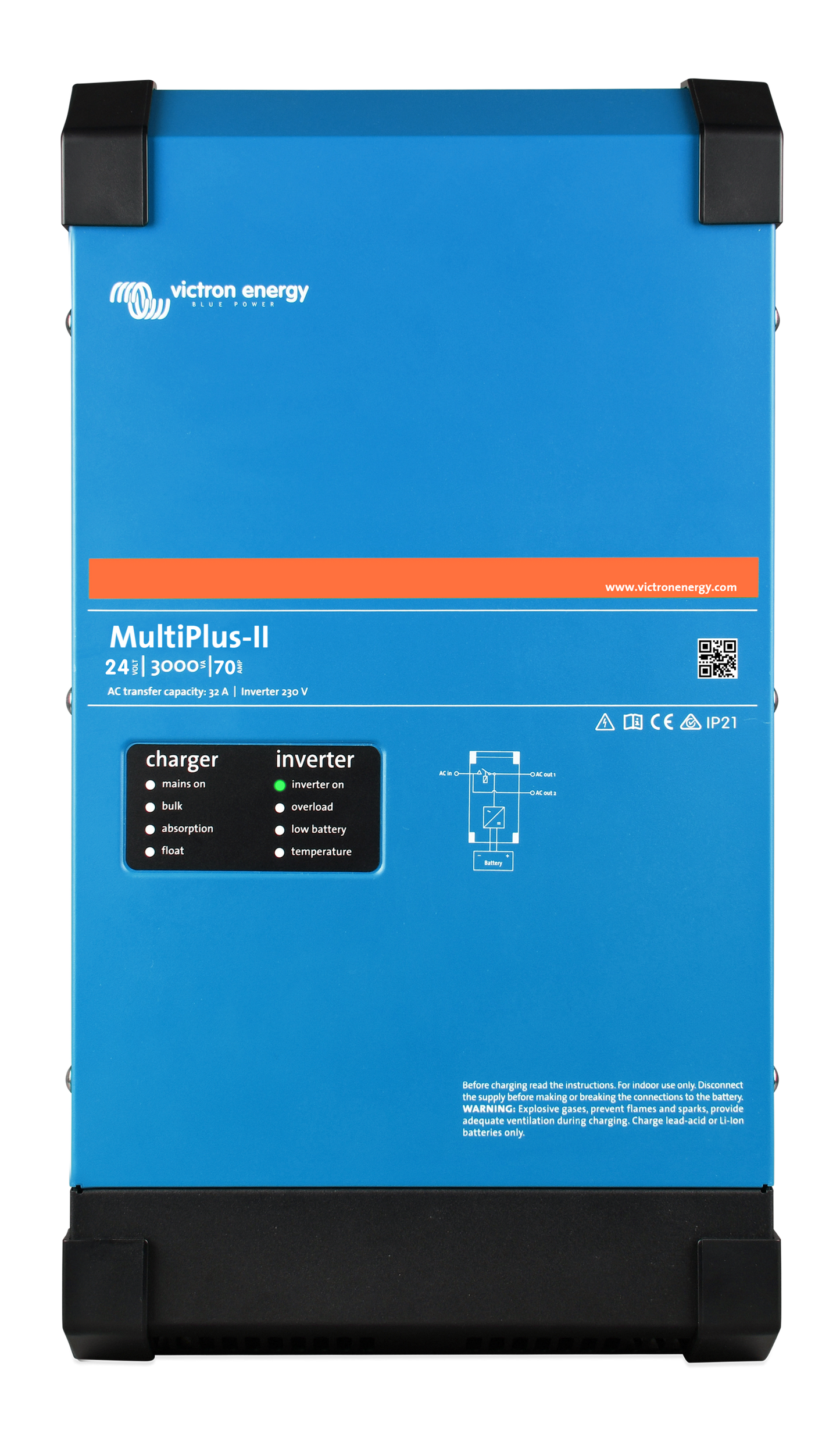

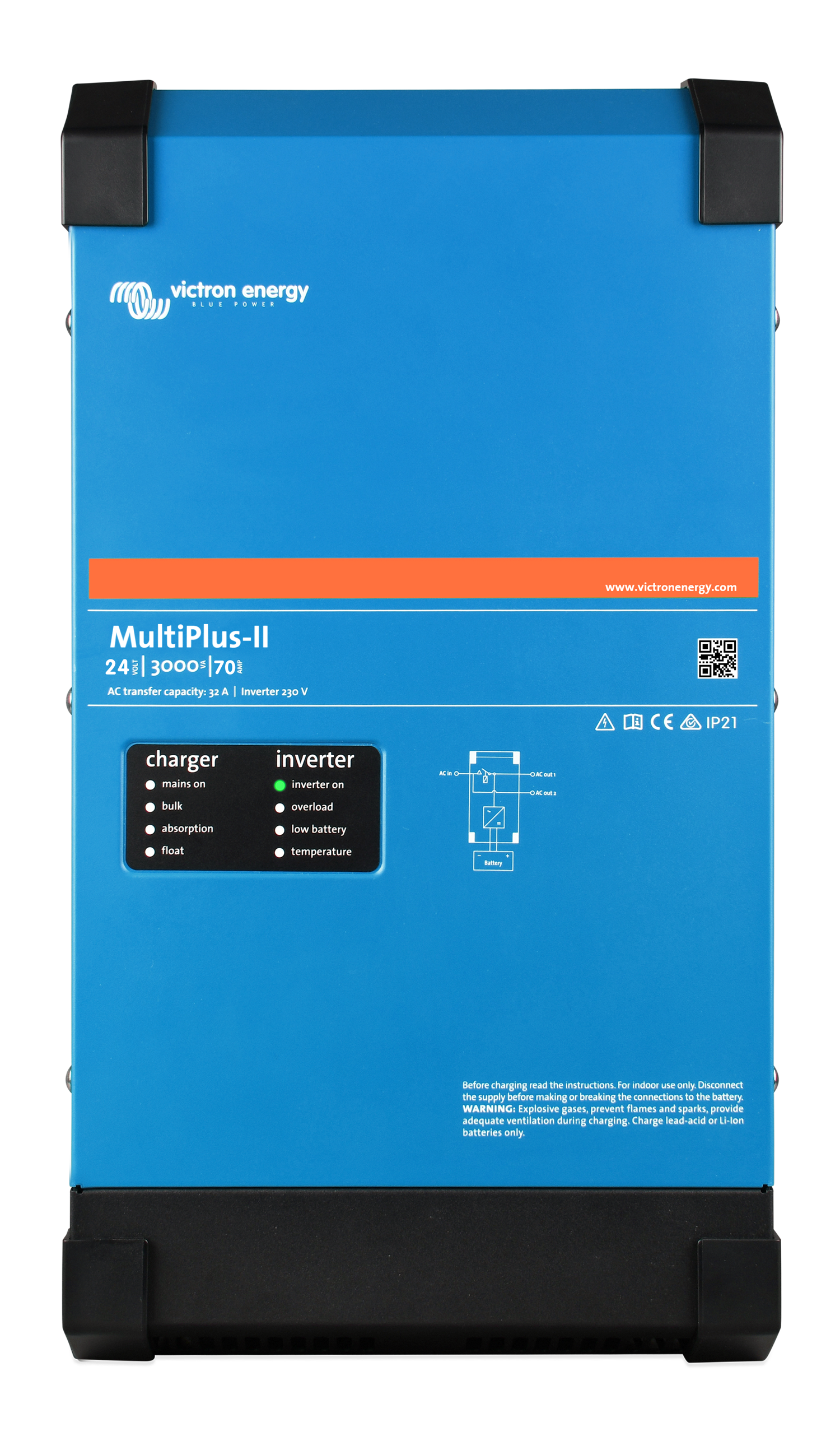

Victron MultiPlus-II 24/3000/70-32 230V
Victron MultiPlus-II 24/3000/70-32 230V
SKU:PMP242305010
Brand: Victron
Low stock: 1 left
Couldn't load pickup availability
Product Details
Product Details
The Victron MultiPlus-II 24/3000/70-32 230 V is a high-performance inverter-charger engineered for professional off-grid, marine and commercial power systems. Designed for 24 V battery banks, this unit delivers 3 kVA continuous output at 230 V and offers up to approximately 2.4 kW of continuous power (at 25 °C). With an enclosure of steel in blue RAL 5012 and weighing just 19 kg, it facilitates installation in compact spaces.
It features dual AC outputs: the main output takes over instantly (less than 20 ms) in the event of grid or generator failure, guaranteeing uninterrupted power to critical loads. The second output remains live only when external AC input is available, making it ideal for non-critical loads that should not discharge the battery. The built-in PowerControl and PowerAssist functions allow the unit to monitor and manage grid or generator input, protecting your supply from overload and enabling battery support during peak demands. With anti-islanding protection and compatibility with solar charge controllers and grid-tie inverters, it suits energy storage systems as well as traditional installations.
On-site configuration is streamlined via Victron’s VE.Configure software, while remote monitoring and control are possible through the VRM portal or Bluetooth with the VE.Bus Smart Dongle. The sturdy IP22 steel enclosure allows operation from –40 °C up to +65 °C, making this a dependable solution for challenging installations and business-grade power systems.
In summary, the MultiPlus-II 24/3000/70-32 230 V is ideal for commercial installers, marine electricians and system integrators looking for a compact, flexible, professional-grade inverter-charger that delivers strong output, smart grid/generator interaction and remote manageability.
Product Specifications
Product Specifications
Inverter Specifications
- Nominal DC Input Voltage: 24 V
- Continuous Output Power at 25°C: 3000 VA
- Continuous Output Power at 25°C: 2400 W
- Continuous Output Power at 40°C: 2200 W
- Continuous Output Power at 65°C: 1700 W
- Maximum Apparent Feed-in Power: 3000 VA
- Peak Power: 5500 W
- Maximum Efficiency: 94%
- Zero Load Power: 13 W
- Zero Load Power (AES Mode): 9 W
- Zero Load Power (Search Mode): 3 W
- Output Voltage: 230 VAC ± 2%
- Frequency: 50 Hz ± 0.1% (Adjustable to 60 Hz)
Charger Specifications
- AC Input Voltage Range: 187 – 265 VAC
- Input Frequency: 45 – 65 Hz
- Charge Voltage 'Absorption': 28.8 V
- Charge Voltage 'Float': 27.6 V
- Storage Mode: 26.4 V
- Maximum Battery Charge Current: 70 A
- Battery Temperature Sensor: Yes
Key Features & Connectivity
- PowerControl & PowerAssist: Prevents overloading a limited AC source (like a generator or shore power) by automatically reducing battery charging and supplementing the supply with battery power during peak loads.
- Two AC Outputs: The main output features "no-break" functionality, taking over the load in less than 20ms during power failures. The second output is active only when AC input is available, ideal for heavy loads that should not discharge the battery.
- Transfer Switch: 32 A
- ESS (Energy Storage System) Ready: Supports self-consumption optimization and grid-feed prevention.
- Parallel and 3-Phase Capability: Up to 6 units can operate in parallel. Three units of the same model can be configured for three-phase output.
- Programmable Relay: Can be set for general alarm, DC under-voltage, or generator start/stop functions.
- VE.Bus Port: For system integration, parallel/three-phase operation, and remote monitoring.
Mechanical Specifications
- Dimensions (H x W x D): 546 x 275 x 147 mm
- Weight: 19 kg
- Enclosure Material: Steel, blue (RAL 5012)
- Protection Category: IP22
- Battery Connection: M8 bolts
- 230V AC Connection: Screw terminals 13 mm² (6 AWG)
Environmental & Standards
- Operating Temperature Range: -40 to +65°C (Fan-assisted cooling)
- Humidity: Max 95% (Non-condensing)
- Maximum Altitude: 2000 m
- Safety Standards: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2
- Emission/Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
- Integrated Protections: Output short circuit, overload, battery voltage too high/low, temperature too high, 230 VAC on inverter output, and input voltage ripple too high.
Technical Specifications
Technical Specifications
| Inverter Rating | 3000VA |
|---|---|
| Battery Charger Rating | 70A |
