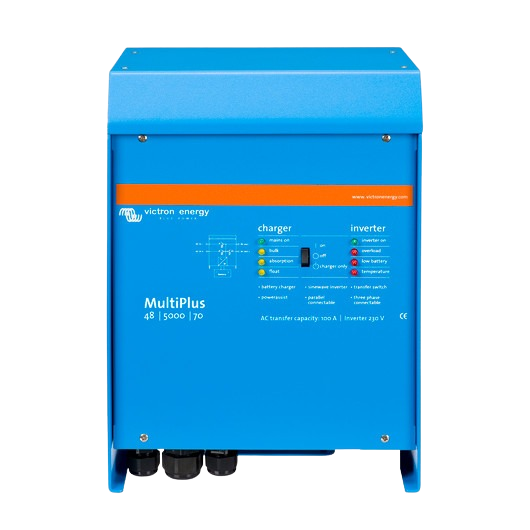

Victron MultiPlus 48V 5000VA Inverter/Charger
Victron MultiPlus 48V 5000VA Inverter/Charger
SKU:PMP485021010
Brand: Victron
Low stock: 2 left
Couldn't load pickup availability
Product Details
Product Details
The Victron MultiPlus 48V 5000VA Inverter/Charger is engineered for demanding commercial, off-grid, and industrial applications requiring robust and reliable AC power solutions. This unit combines a high-efficiency true sine wave inverter with a powerful 70A adaptive battery charger, ensuring seamless power delivery and optimal battery health.
Key Features:
- 5000VA True Sine Wave Inverter: Delivers clean and stable AC power, suitable for sensitive equipment and critical loads.
- 70A Adaptive Battery Charger: Utilises advanced charging algorithms to optimise battery performance and longevity.
- 50A High-Speed AC Transfer Switch: Provides rapid switchover between power sources, ensuring uninterrupted supply to connected loads.
- VE.Bus Communication Port: Facilitates system integration and remote monitoring capabilities.
- Parallel and Three-Phase Operation: Supports scalability by allowing multiple units to operate in parallel or configure for three-phase output.
Designed for professional installations, the MultiPlus 48V 5000VA is ideal for applications in marine, automotive, and off-grid energy systems, offering the isolation and redundancy required for Energy Storage Systems (ESS). Its PowerControl and PowerAssist features prevent overloads and optimise energy usage, while the ultra-fast transfer switch ensures continuous operation of critical systems during power interruptions.
Product Specifications
Product Specifications
Performance & Electrical Specifications (Inverter)
- Nominal Battery Voltage: 48 V
- Input Voltage Range: 38 – 66 VDC
- Continuous Output Power at 25°C: 5000 VA
- Continuous Output Power at 25°C: 4000 W
- Continuous Output Power at 40°C: 3700 W
- Continuous Output Power at 65°C: 3000 W
- Peak Power: 10,000 W
- Maximum Continuous Output Current: 19 A
- Output Voltage: 230 VAC ± 2%
- Output Frequency: 50 Hz ± 0.1% (Adjustable to 60 Hz)
- Maximum Efficiency: 95%
- Zero Load Power: 35 W
- Zero Load Power (AES Mode): 30 W
- Zero Load Power (Search Mode): 15 W
Charger Specifications
- AC Input Voltage Range: 187 – 265 VAC
- AC Input Frequency: 45 – 65 Hz
- Charge Voltage 'Absorption': 57.6 VDC
- Charge Voltage 'Float': 55.2 VDC
- Storage Mode Voltage: 52.8 VDC
- Charge Current House Battery: 70 A
- Battery Temperature Sensor: Included
- Lithium-Ion Battery Compatible: Yes
Key Features & System Integration
- Two AC Outputs: The primary output provides uninterruptible power. The second auxiliary output (rated at 50A) is live only when AC is available on the input, preventing heavy loads like water heaters from discharging the battery bank.
- PowerControl: Prevents overloading of a limited AC source (generator or shore power) by automatically adjusting the battery charging current.
- PowerAssist: Supplements the capacity of the alternative source with battery power during peak demand periods.
- Parallel Operation: Up to 6 units can operate in parallel to achieve higher power output (up to 30 kVA).
- Three-Phase Capability: Three units can be configured for three-phase output.
- Programmable Relay: Can be set for general alarms, DC under-voltage, or generator start/stop functions.
Mechanical Specifications
- Enclosure Material: Aluminium (Blue RAL 5012)
- Protection Category: IP20
- Dimensions (h x w x d): 444 x 328 x 240 mm
- Weight: 30 kg
- Battery Connection: Four M8 bolts (2 positive and 2 negative connections)
- 230 VAC Connection: M6 bolts
- Operating Temperature Range: -40 to +65 °C (Fan-assisted cooling)
- Humidity: Max 95% (non-condensing)
Standards & Compliance
- Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1
- Emission/Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
Technical Specifications
Technical Specifications
| Inverter Rating | 5000VA |
|---|
