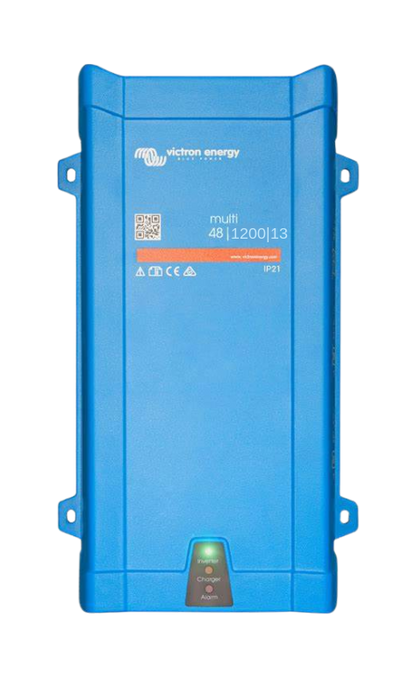

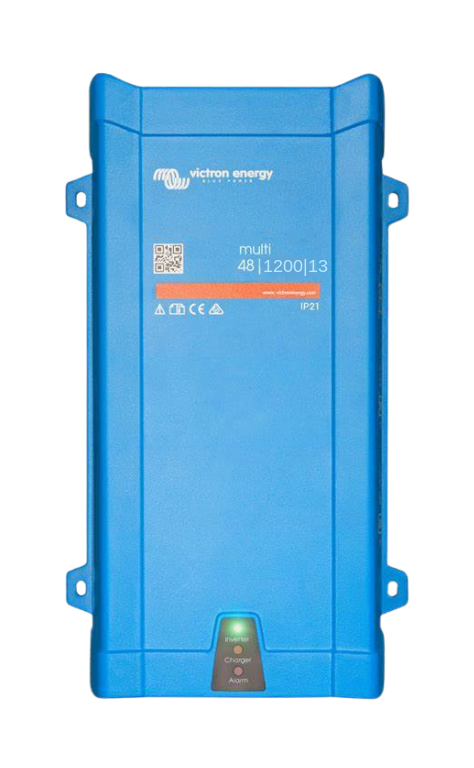

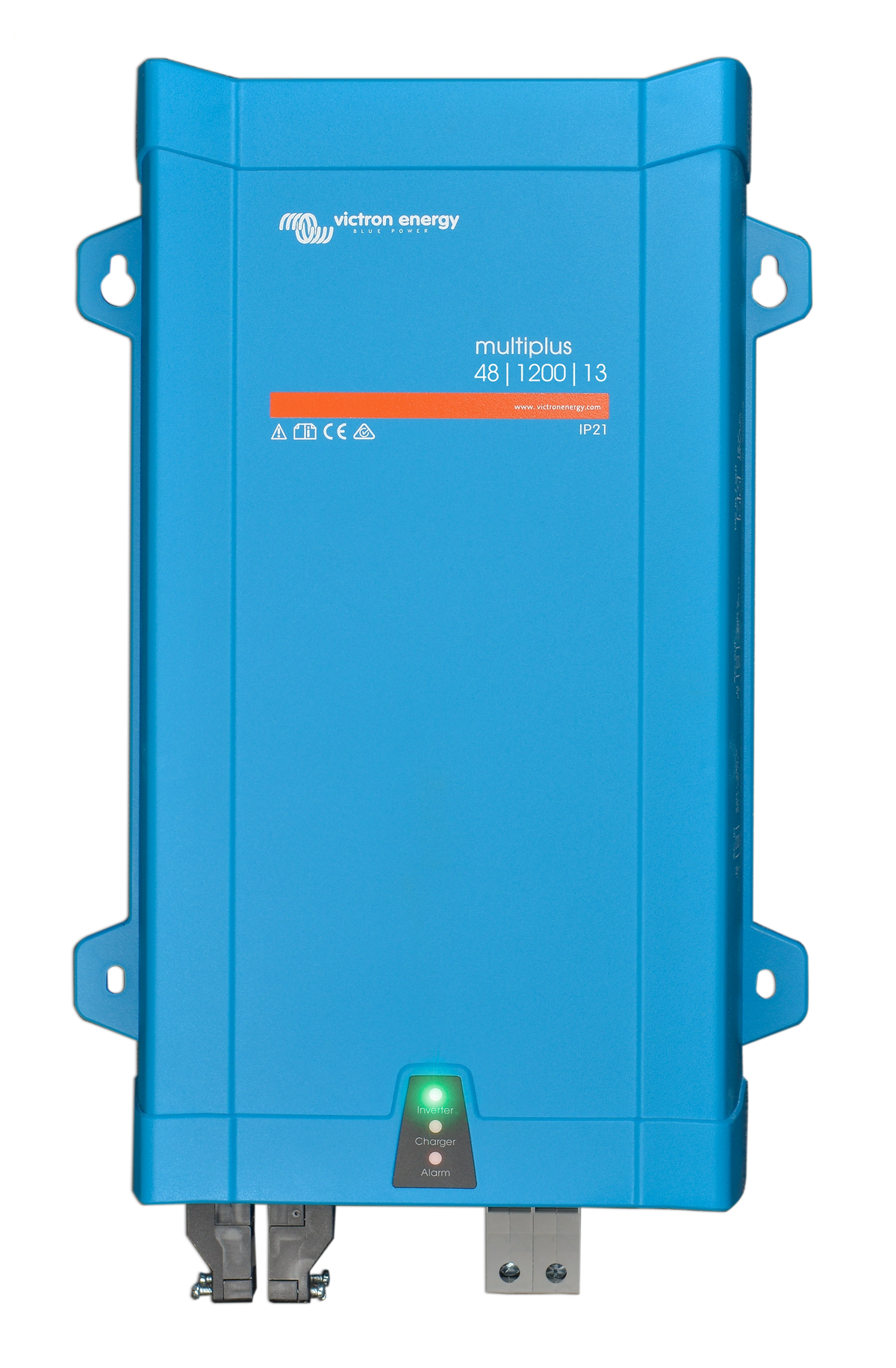

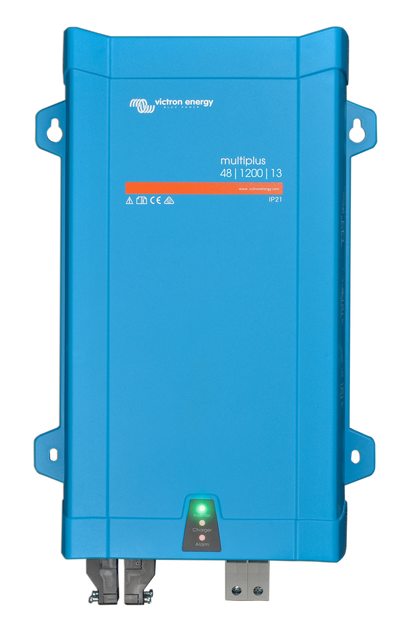

Victron MultiPlus 48V 1200VA Inverter/Charger
Victron MultiPlus 48V 1200VA Inverter/Charger
SKU:PMP482120000
Brand: Victron
In stock
This is pre-order - Available in 7 – 10 days
Couldn't load pickup availability
Product Details
Product Details
Victron MultiPlus 48/1200/13-16 230V VE.Bus – PMP482120000
- Max constant power 1200VA off-grid.
- Use up to 3000VA on shore power.
- For use with 48V systems.
- Pure sine wave inverter & battery charger all in one system.
- Charge your leisure batteries at 13A on shore power.
The Victron MultiPlus 48/1200/13-16 is a robust and versatile true sine wave inverter combined with a sophisticated battery charger, designed to deliver reliable power in off-grid applications. This 1200VA inverter/charger efficiently converts 48V DC power from your leisure batteries into 230V AC power, allowing you to run up to 1200VA of domestic appliances when off-grid or up to 3000VA when connected to a shore power hookup.
Key Features:
Powerful Inverter/Charger Combo:
Combines a true sine wave inverter and a battery charger in a single compact unit.
Capable of handling a total wattage of 1200VA for off-grid use.
Seamless Power Transition:
Automatically switches power sources, ensuring uninterrupted AC power supply.
Powers mains appliances directly from the hookup when connected, with automatic transition to leisure batteries when the hookup is disconnected.
Charging Flexibility:
Allows you to charge your leisure batteries with a current of up to 13A.
Suitable for a variety of off-grid electrical systems, including campervans, motorhomes, RVs, and boats.
Pure Sine Wave Inverter:
Produces a clean and stable 230V AC waveform, replicating household mains power.
Ensures compatibility with a wide range of 230V appliances, avoiding potential damage associated with modified sine wave inverters.
Fast and Uninterrupted AC Power:
Functions as an Uninterrupted Power Supply (UPS) in the event of a grid failure or when shore or generator power is disconnected.
Switches seamlessly, with a response time of less than 20 milliseconds, ensuring continuous operation of sensitive electronic equipment.
Remote Monitoring and Control:
While lacking built-in Bluetooth or smart connectivity, the MultiPlus can be paired with the VE.Bus smart dongle.
Enables remote monitoring and control via the VictronConnect app, allowing users to customize settings and receive alerts for low and high voltages.
Versatile Application:
Ideal for various off-grid applications, offering reliable power for electrical systems with a total wattage of 1200VA or less.
Internet Connectivity:
Monitor and control the MultiPlus remotely via the internet using the free VRM app and VRM portal website.
Accessible from multiple devices, providing comprehensive control options.
Product Specifications
Product Specifications
Technical Specifications
Combined for SKUs: PMP482120000
A CConnection Terminal Type: G-ST18i plug
AC Input Frequency Range: [45, 65] Hz
AC Input Voltage Range: [187, 265] VAC
AC Output Frequency: 50 Hz
AC Output Voltage: 230 VAC
Automotive Directive: ECE R10-4
Battery Voltage Nominal: 48 V
Charge Algorithm: Adaptive, 4-stage
Charge Voltage Absorption: 57.6 VDC
Charge Voltage Float: 55.2 VDC
Charge Voltage Storage: 52.8 VDC
Colour: Blue (RAL 5012)
Communication Port: VE.Bus
Computer Programming: Yes
Continuous Power (VA, 25°C): 1,200 VA
Continuous Power (W, 25°C): 1,000 W
Continuous Power (W, 40°C): 900 W
Continuous Power (W, 65°C): 600 W
D IPSwitches Programming: Yes
DC Input Voltage Range: [38, 66] VDC
Depth: 100 mm
Emission Immunity: EN 55014-1,EN 55014-2,EN-IEC 61000-3-2,EN-IEC 61000-3-3,EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-6-3
Fan Assist Cooling: Yes
Height: 406 mm
Internal DCFuse Rating: 50 A
Material: Steel chassis with ABS cover
Max Altitude: 2,000 m
Max Efficiency: 95 %
Max Humidity: 95 %
Maximum Battery Charge Current: 13 A
Parallel Operation: Yes
Peak Power Rating: 2,400 W
Power Assist: Yes
Power Control: Yes
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Protection Category: IP21
Protections: Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,AC voltage on inverter output,Excessive DC ripple
Relay Terminal: Screw terminal 3-pole
Remote Terminal: On / Off / Charger only
Remote Terminal Type: Screw terminal two pole
Safety: EN-IEC 60335-1,EN-IEC 60335-2-29,EN-IEC 62109-1
Temperature Sensor: Included
Three-phase Operation: Yes
Transfer Switch Current Rating: 16 A
VE.Bus Terminal Type: One RJ45 terminal, RJ45-spliter ASS030065510 to expand to two ports
Weight: 8.2 kg
Width: 250 mm
Zero Load Power: 10 W
Zero Load Power (Search): 3 W
Source: Victron
Shipping & Collection
Shipping & Collection
Technical Specifications
Technical Specifications
| Inverter Rating | 1200VA |
|---|
