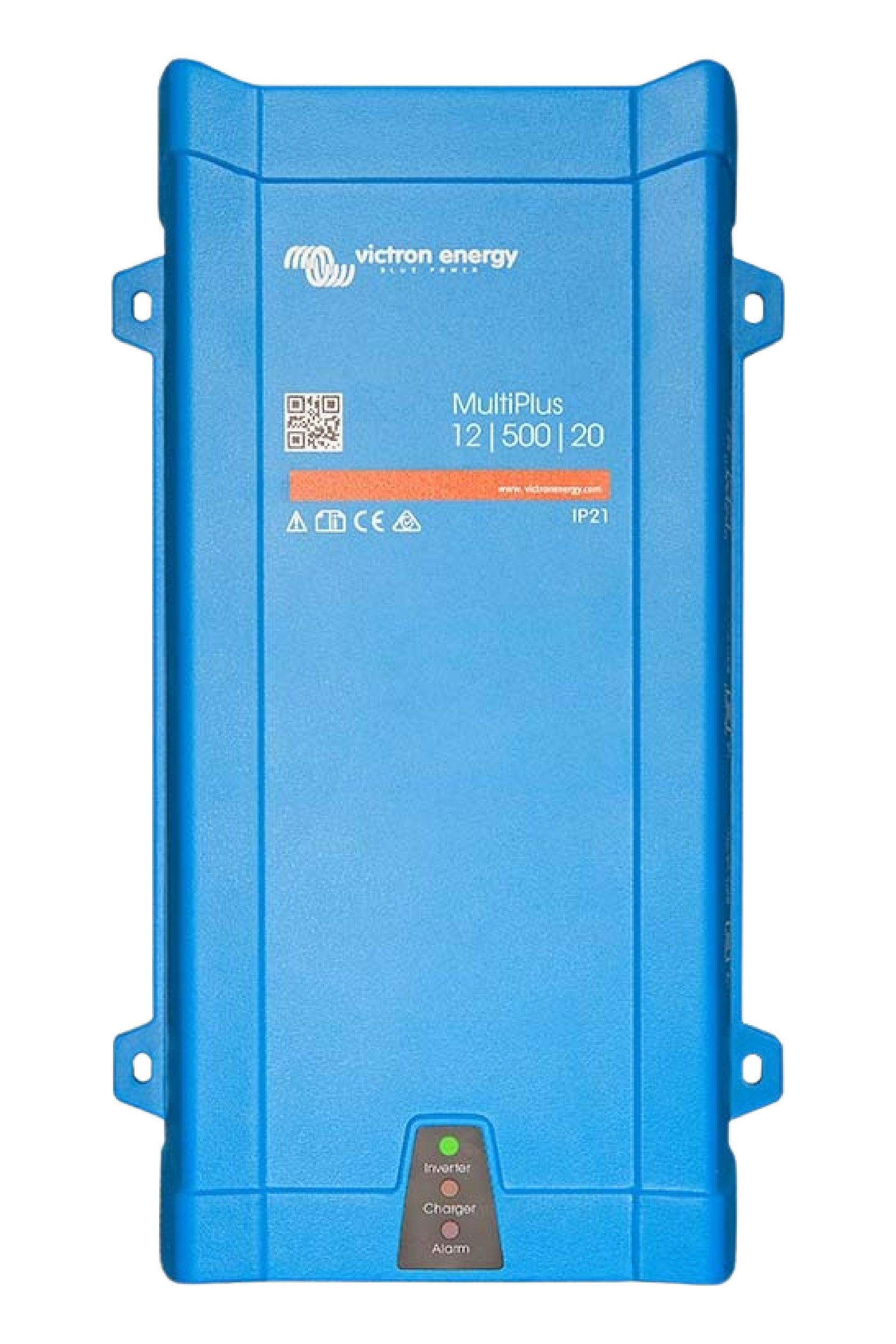

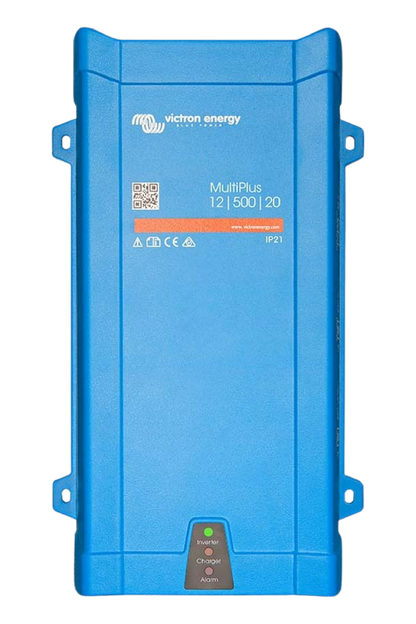

Victron MultiPlus 12/500/20-16 230V VE.Bus - PMP121500000
The Victron MultiPlus 12/500/20-16 is a versatile power solution that combines a 500VA true sine wave inverter with a sophisticated battery charger in a single device. Engineered to cater to the diverse needs of off-grid applications, this inverter/charger seamlessly converts 12V DC power from leisure batteries to 230V AC power. Whether you're running domestic appliances off-grid or connected to shore power hookup, the MultiPlus ensures uninterrupted power supply by automatically switching between sources. The 12/500/20 model supports charging leisure batteries with a current of up to 20A.
Key Features:
500VA True Sine Wave Inverter:
Converts 12V DC power to a reliable 230V AC pure sine wave, ideal for powering various domestic appliances.
Reproduces the household mains socket waveform accurately.
Sophisticated Battery Charger:
Charges leisure batteries efficiently, supporting a charging current of up to 20A.
Ensures rapid and effective charging for optimal battery health.
Seamless Power Source Switching:
Automatically activates the inverter during a grid failure or when disconnected from shore or generator power.
Swift transition in less than 20 milliseconds ensures continuous operation of electronic equipment.
Remote Monitoring and Control:
While lacking built-in Bluetooth or smart connectivity, the MultiPlus can be paired with the VE.Bus smart dongle.

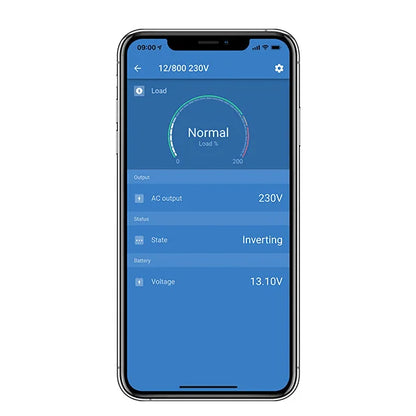

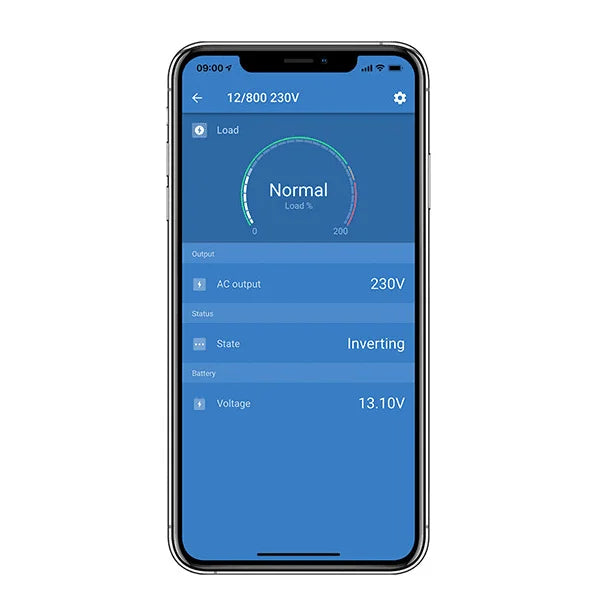

Allows users to monitor inverter performance and settings via the VictronConnect app.
Programmable alarms and cut-offs provide warnings for low and high voltages, enhancing control.
Versatile Applications:
Suitable for a range of off-grid electrical systems, including campervans, motorhomes, RVs, and boats.
Accommodates mains power appliances with a total wattage of 500VA or less.
Uninterrupted AC Power (UPS Function):
Swift UPS function activation in the event of a grid failure ensures continuity for computers and electronic equipment.
VRM App and Portal Connectivity:
Access and control the MultiPlus and the entire system locally or remotely via the internet using the free VRM app and portal.
Compatible with phones, tablets, laptops, or PCs on multiple operating systems.
Pure Sine Wave Inverter Benefits:
Compatible with a wide range of 230V appliances.
Prevents damage or improper operation of certain appliances that may occur with quasi (modified) sine wave inverters.
Product Specifications
Product Specifications
Technical Specifications
Combined for SKUs: PMP121500000
A CConnection Terminal Type: G-ST18i plug
AC Input Frequency Range: [45, 65] Hz
AC Input Voltage Range: [187, 265] VAC
AC Output Frequency: 50 Hz
AC Output Voltage: 230 VAC
Anti Islanding Standard: Please consult the certificates on our website
Automotive Directive: ECE R10-5
Battery Voltage Nominal: 12 V
Charge Algorithm: Adaptive, 4-stage
Charge Voltage Absorption: 14.4 VDC
Charge Voltage Float: 13.8 VDC
Charge Voltage Storage: 13.2 VDC
Colour: Blue (RAL 5012)
Communication Port: VE.Bus
Communication Port General: No
Computer Programming: Yes
Continuous Power (VA, 25°C): 500 VA
Continuous Power (W, 25°C): 430 W
Continuous Power (W, 40°C): 400 W
Continuous Power (W, 65°C): 300 W
D IPSwitches Programming: Yes
DC Input Voltage Range: [9.5, 17] VDC
Depth: 100 mm
Emission Immunity: EN 55014-1,EN 55014-2,EN-IEC 61000-3-2,EN-IEC 61000-3-3,EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-6-3
Fan Assist Cooling: Yes
Height: 311 mm
Internal DCFuse Rating: 125 A
Max Altitude: 2,000 m
Max Efficiency: 90 %
Max Humidity: 95 %
Maximum Battery Charge Current: 20 A
Parallel Operation: Yes
Peak Power Rating: 900 W
Power Assist: Yes
Power Control: Yes
Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Protection Category: IP21
Protections: Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,AC voltage on inverter output,Excessive DC ripple

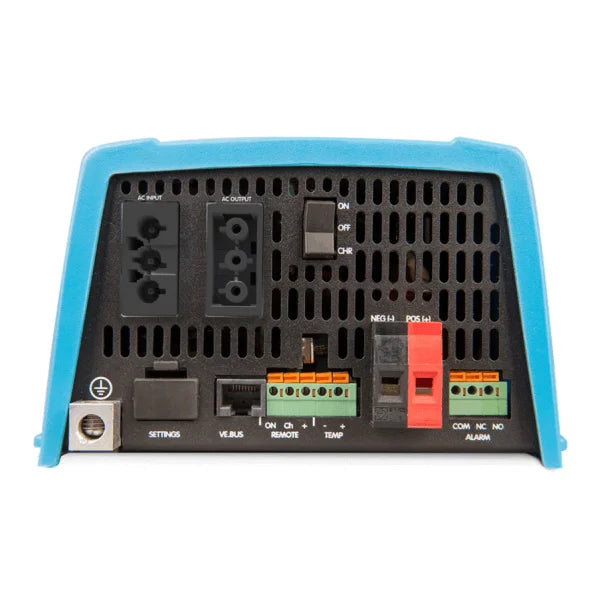

Relay Terminal: Screw terminal 3-pole
Remote Terminal: On / Off / Charger only
Remote Terminal Type: Screw terminal two pole
Safety: EN-IEC 60335-1,EN-IEC 60335-2-29,EN-IEC 62109-1
Starter Battery Charge Output: Yes
Temperature Sensor: Included
Three-phase Operation: Yes
Transfer Switch Current Rating: 16 A
Ups Standard: Please consult the certificates on our website
VE.Bus Terminal Type: One RJ45 terminal, RJ45-spliter ASS030065510 to expand to two ports
Weight: 4.4 kg
Width: 182 mm
Zero Load Power: 6 W
Zero Load Power (Search): 2 W
Source: Victron
