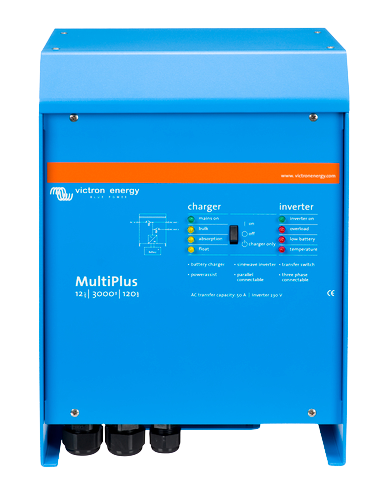

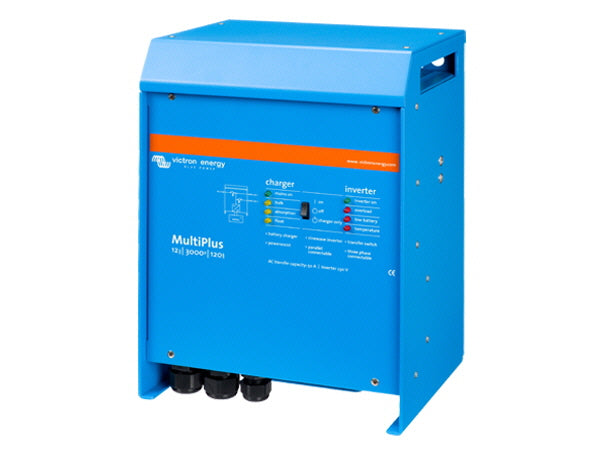

Victron MultiPlus 12V 3000VA Inverter/Charger - 12/3000/120-50 230V VE.Bus
Victron MultiPlus 12V 3000VA Inverter/Charger - 12/3000/120-50 230V VE.Bus
SKU:PMP123021010
Brand: Victron
In stock
This is pre-order - Available in 7 – 10 days
Couldn't load pickup availability
Product Details
Product Details
The Victron MultiPlus 12V 3000VA Inverter and Charger is designed for environments where reliable, stable power matters. Built to support professional, trade, and mobile applications, it combines a powerful pure sine wave inverter with an intelligent battery charger in a single compact unit. This makes it ideal for workshops, marine systems, commercial vehicles, off-grid installations, and backup power use.
A standout feature is Victron’s PowerAssist technology. When shore power or a generator cannot meet peak demand, the MultiPlus draws energy from the battery to prevent system overload. This helps protect your equipment and reduces the risk of tripped breakers while ensuring smooth operation during high-load periods.
For customers needing constant power, the built-in UPS function activates within milliseconds if the grid fails. Sensitive equipment such as computers, servers, or communications gear continue operating without interruption, avoiding downtime or data loss.
When power requirements grow, the MultiPlus scales with your needs. Up to six units can be connected in parallel for increased output, and three-phase or split-phase configurations are supported. This flexibility makes it an excellent choice for expanding systems or upgrading existing power infrastructure.
Remote connectivity is another key advantage. When connected to a Cerbo GX device, the MultiPlus can be monitored and controlled from anywhere through the free VRM portal or app. Adjust settings, view system performance, start a backup generator, or diagnose issues without visiting site, improving efficiency and reducing service time.
Connectivity options include compatibility with GX Touch, MFD integrations, and the VictronConnect app. Bluetooth access makes configuration more straightforward during installation and maintenance.
Engineered with Victron’s trusted build quality, the MultiPlus features a robust design suitable for demanding environments. Its integration options, smart management features, and protective power functions provide peace of mind for professional users and installers.
Whether you are managing critical equipment or supplying power to a mobile workforce, the MultiPlus 12V 3000VA delivers dependable performance and valuable long-term flexibility.
Product Specifications
Product Specifications
Inverter Specifications
- Input Voltage Range: 9.5 – 17 VDC
- Output Voltage: 230 VAC ± 2%
- Output Frequency: 50 Hz ± 0.1% (Adjustable to 60 Hz)
- Continuous Output Power at 25°C: 3000 VA
- Continuous Output Power at 25°C: 2400 W
- Continuous Output Power at 40°C: 2200 W
- Continuous Output Power at 65°C: 1700 W
- Peak Power: 6000 W
- Maximum Efficiency: 93%
- Zero-Load Power: 20 W
- Zero-Load Power (AES Mode): 15 W
- Zero-Load Power (Search Mode): 8 W
- Maximum Continuous Output Current: 11 A
- Maximum Output Fault Current: 32 A peak (1 second)
Charger Specifications
- AC Input Voltage Range: 187 – 265 VAC
- Input Frequency: 45 – 65 Hz
- Power Factor: 1
- Charge Voltage 'Absorption': 14.4 VDC
- Charge Voltage 'Float': 13.8 VDC
- Storage Mode: 13.2 VDC
- Charge Current House Battery: 120 A (at 25°C ambient)
- Charge Current Starter Battery: 4 A
- Battery Temperature Sensor: Yes
Features & Connectivity
- Two AC Outputs: Main output features "no-break" functionality. The second output is live only when AC is available on the input, preventing loads like water heaters from discharging the battery.
- PowerControl & PowerAssist: Allows setting a maximum generator or shore current. The unit will supplement source power with battery power when peak demand exceeds the limit.
- Parallel Operation: Up to 6 units can be connected in parallel to achieve higher power output.
- Three-Phase Capability: Three units of the same model can be configured for three-phase output.
- Transfer Switch: 50 A
- Programmable Relay: Can be configured for general alarms, DC under-voltage, or generator start/stop functions.
- Auxiliary Output: Yes (16 A)
- VE.Bus Communication Port: For parallel/three-phase operation, remote monitoring, and system integration.
- Remote On-Off: Yes
- Lithium-Ion Compatible: Yes
Mechanical & Enclosure
- Dimensions (H x W x D): 362 x 258 x 218 mm
- Weight: 18 kg
- Material & Colour: Aluminium (Blue RAL 5012)
- Protection Category: IP21
- Battery Connection: Four M8 bolts (2 positive and 2 negative connections)
- 230V AC Connection: Screw terminals 13 mm² (6 AWG)
Environmental & Standards
- Operating Temperature Range: -40 to +65°C (Fan-assisted cooling)
- Humidity (Non-condensing): Max 95%
- Maximum Altitude: 2000 m
- Safety Standards: EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1
- Emission / Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
- Road Vehicles: ECE R10-4
- Integrated Protections: Output short circuit, overload, battery voltage too high/low, temperature too high, 230 VAC on inverter output, and input voltage ripple too high.
Technical Specifications
Technical Specifications
| Inverter Rating | 3000VA |
|---|
