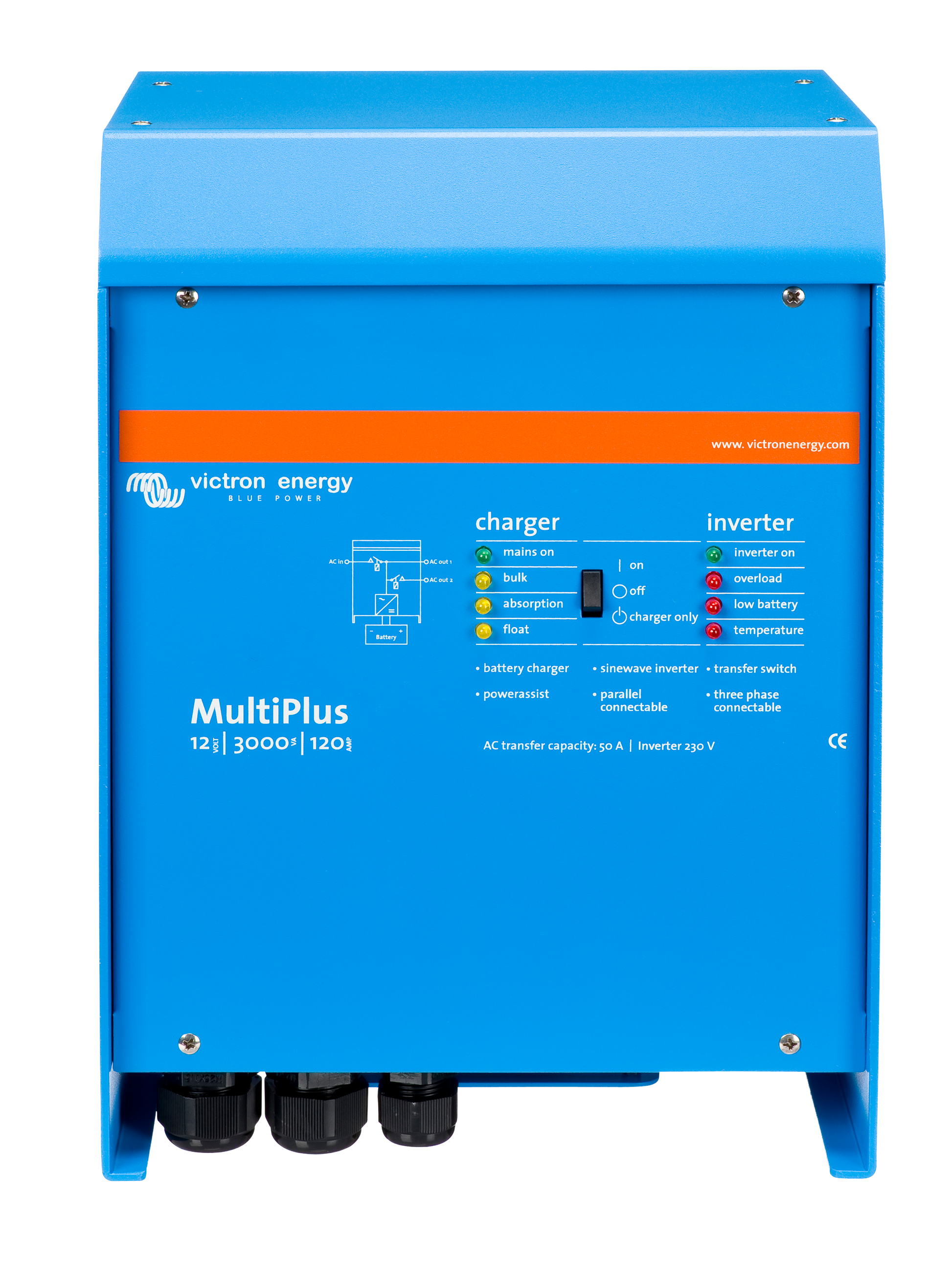

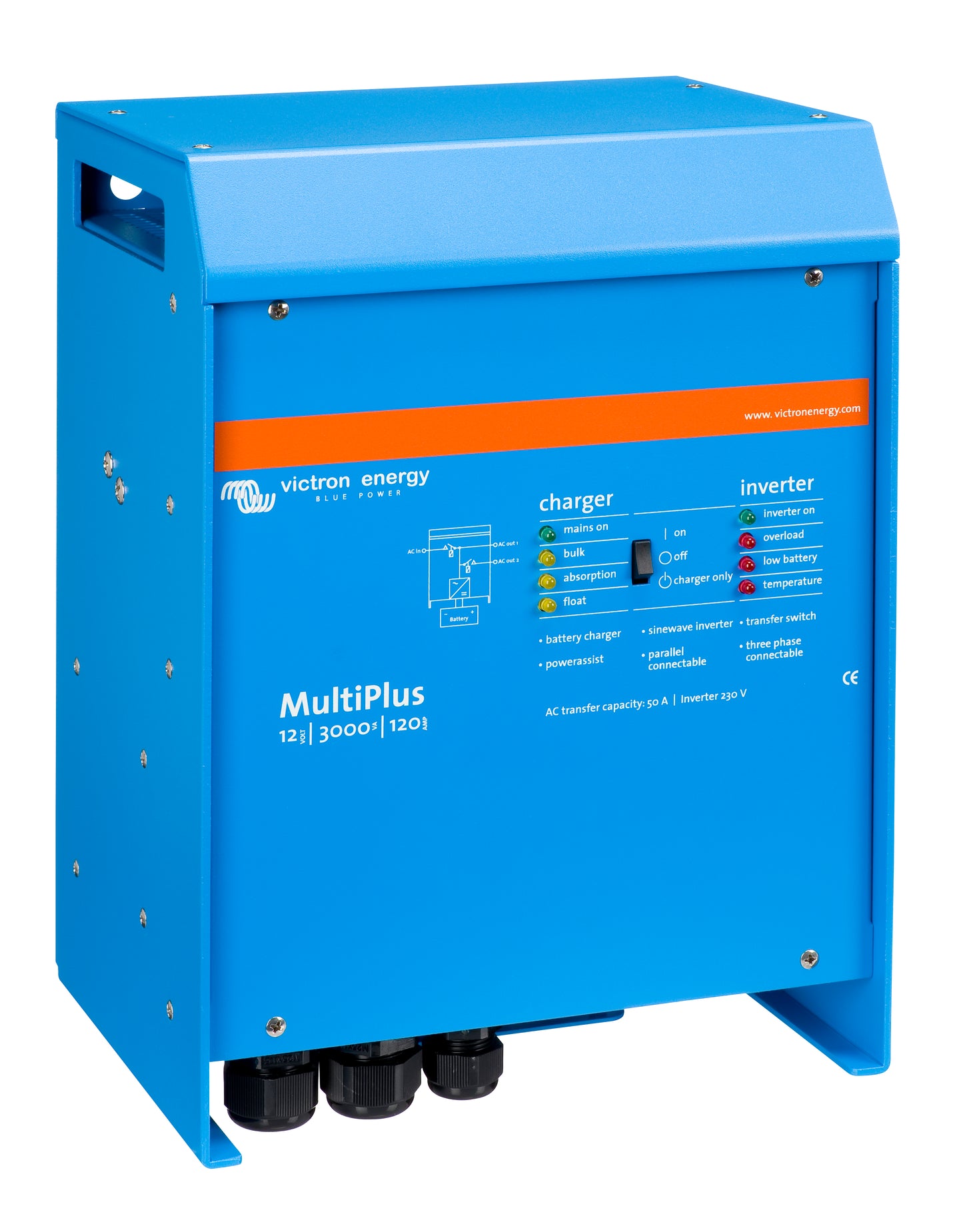

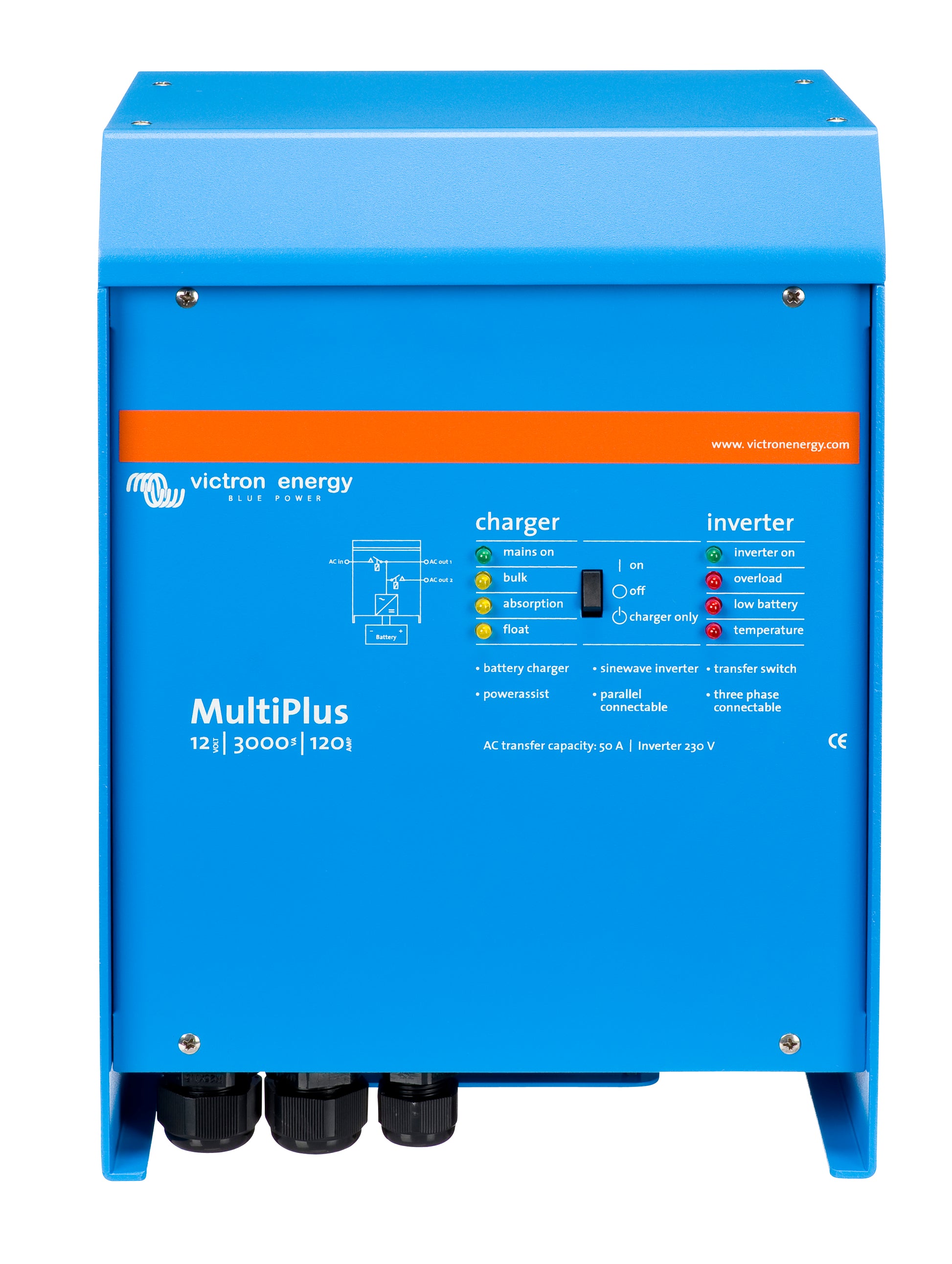

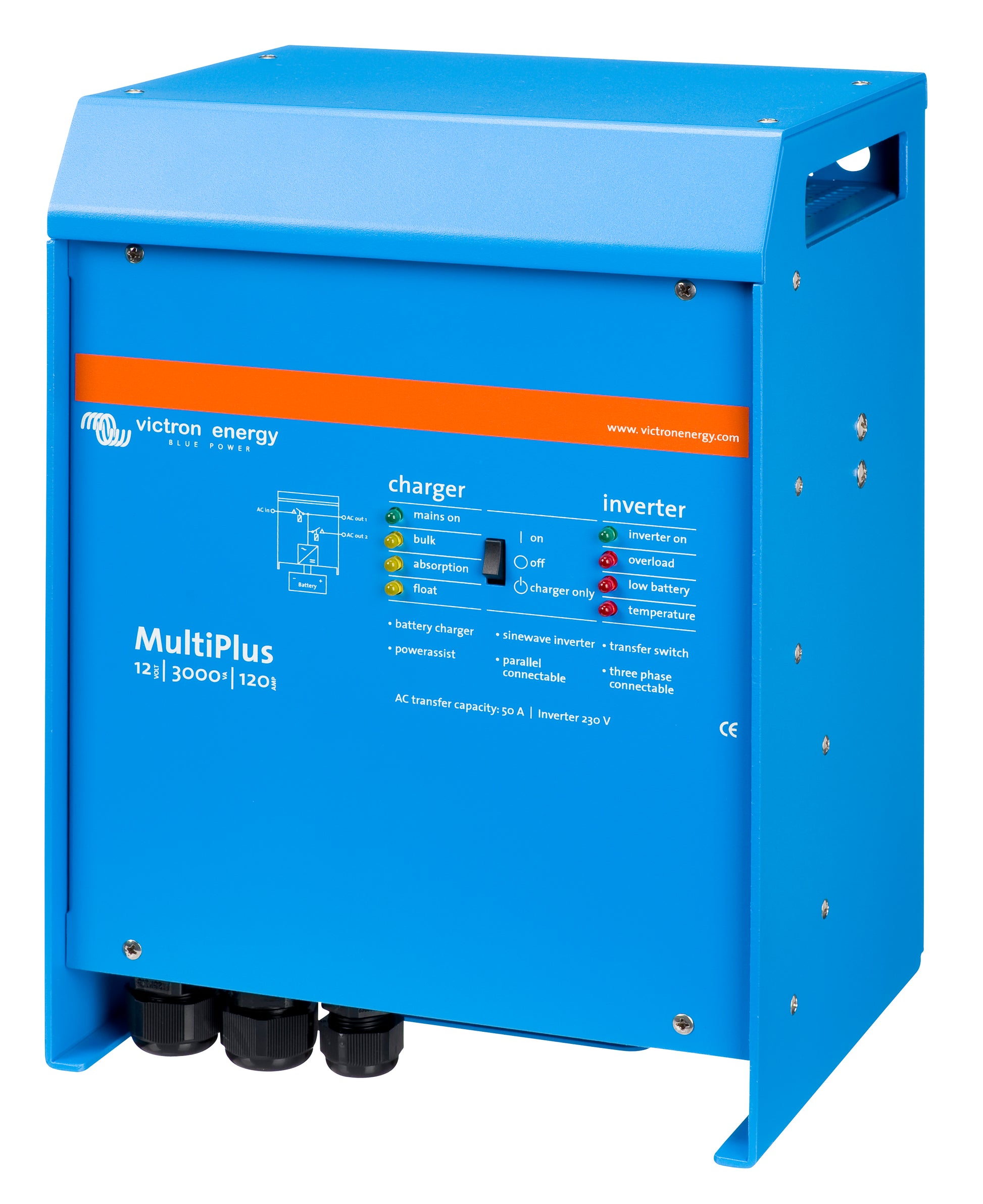

Victron MultiPlus 12V/3000VA Inverter/Charger - 12/3000/120-16 230V VE.Bus

Technical Specifications

Combined for SKUs: PMP122300001

A CInput Voltage Range1: [187, 250] VAC

AC Input Frequency Range: [45, 65] Hz

AC Input Voltage Range: [187, 265] VAC

AC Output Frequency: 50 Hz

AC Output Voltage: 230 VAC

Anti Islanding Standard: See our website

Automotive Directive: ECE R10-4

Auxiliary Output: Yes

Battery Connection Terminal Type: M8 bolts (two for positive and two for negative connection)

Battery Voltage Nominal: 12 V

Charge Algorithm: Adaptive, 4-stage

Charge Voltage Absorption: 14.4 VDC

Charge Voltage Float: 13.8 VDC

Charge Voltage Storage: 13.2 VDC

Colour: Blue (RAL 5012)

Communication Port: VE.Bus

Communication Port General: Yes

Computer Programming: Yes

Continuous Power (VA, 25°C): 3,000 VA

Continuous Power (W, 25°C): 2,400 W

Continuous Power (W, 40°C): 2,200 W

Continuous Power (W, 65°C): 1,700 W

D CInput Current: 250 V

D IPSwitches Programming: Yes

DC Input Voltage Range: [9.5, 17] VDC

Depth: 218 mm

Emission Immunity: EN 55014-1,EN 55014-2,EN-IEC 61000-3-2,EN-IEC 61000-3-3,EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-6-3

Fan Assist Cooling: Yes

Frequency Select: 50Hz or 60Hz

Height: 362 mm

Material: Aluminium

Max Altitude: 2,000 m

Max Efficiency: 93 %

Max Humidity: 95 %

Max Output Ac Current: 11 A

Max Output Ac Current Fault: 32 A

Maximum Battery Charge Current: 120 A

Ovciii Icw: 6kA 30mS

Parallel Operation: Yes

Peak Power Rating: 6,000 W

Pollution Degree: 2

Power Assist: Yes

Power Control: Yes

Power Factor: 1

Programmable Relay: AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC

Protection Category: IP20

Protections: Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,AC voltage on inverter output,Excessive DC ripple

Relay Terminal: Screw terminal 3-pole

Remote Terminal: On / Off / Charger only

Remote Terminal Type: Screw terminal two pole

Safety: EN-IEC 60335-1,EN-IEC 60335-2-29,EN-IEC 62109-1

Starter Battery Charge Current: 4 A

Starter Battery Charge Output: Yes

Temperature Sensor: Included

Three-phase Operation: Yes

Transfer Switch Current Rating: 16 A

VE.Bus Terminal Type: Two RJ45 terminals

Weight: 18 kg

Width: 258 mm

Zero Load Power: 20 W

Zero Load Power (AES): 15 W

Zero Load Power (Search): 8 W

Source: Victron
