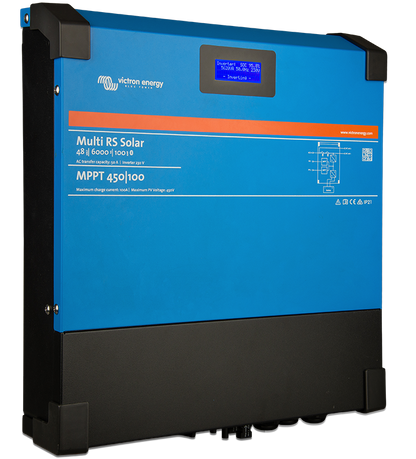

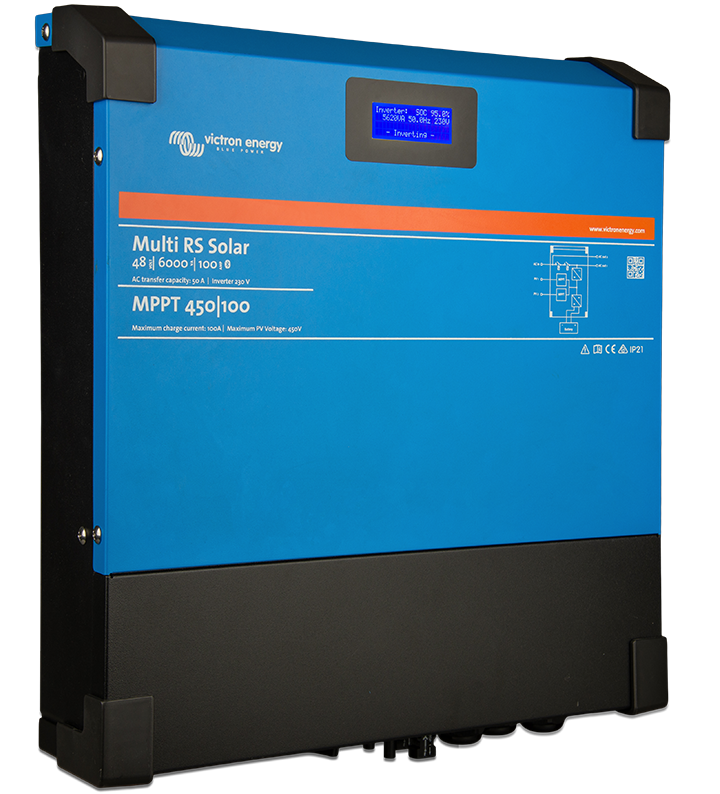

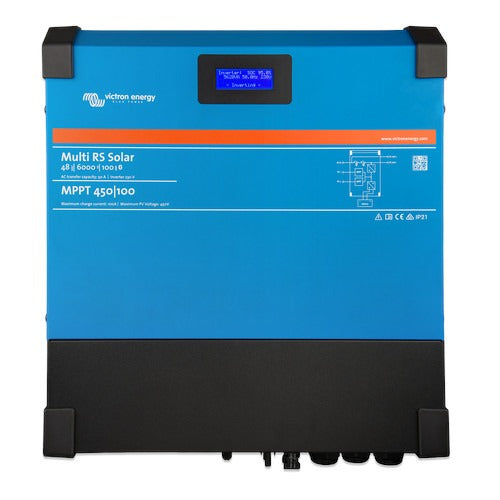

Victron Energy Multi RS Solar 48/6000/100-450/100 – PMR482602020
Victron Energy Multi RS Solar 48/6000/100-450/100 – PMR482602020
SKU:PMR482602020
Brand: Victron
Low stock: 3 left
Couldn't load pickup availability
Product Details
Product Details
The Victron Energy Multi RS Solar 48/6000 is a smart choice for managing power in off grid or hybrid solar systems. Designed to combine several key functions into one compact unit, it delivers reliable performance for homes, small commercial sites, and remote installations. Acting as an inverter, AC charger, and MPPT solar charge controller, it allows you to maximise energy produced from your solar array while keeping your battery storage well managed throughout the day.
With support for up to 4kWp of solar input at 450V DC, the built in MPPT controller helps ensure that your solar panels work at optimum efficiency. The system can charge batteries from solar or an AC supply, offering flexibility during periods of low sunlight or increased demand. It also produces a clean sine wave output suitable for sensitive electronic equipment and high powered appliances.
Weighing only 11kg, this model is easy to install, handle, and mount thanks to its lightweight design. High frequency technology contributes to its impressive efficiency, low standby consumption, and quiet operation, making it suitable for both residential and professional environments.
Communication and connectivity are central to this device. VE.Can and VE.Direct ports allow simple integration with a GX device for enhanced system monitoring and data logging. When paired with the Victron Remote Management (VRM) portal, users can view performance graphs, receive alerts, and adjust settings from anywhere with an internet connection. Direct on site control is also available using the GX Touch or VictronConnect App via Bluetooth.
Additional I/O connections include a programmable relay and temperature and voltage sensor options. The remote input can be configured to work with the Victron smallBMS, supporting lithium battery systems for improved battery protection. For configuration and firmware updates, the unit is compatible with the MK3 USB interface, helping keep your system up to date.
Overall, the Multi RS Solar 48/6000 offers a comprehensive and flexible solution for modern energy management. It combines efficient solar charging, dependable power delivery, advanced remote control, and straightforward installation into one well engineered package. It is ideal for users looking to improve energy independence and achieve greater control over their power systems.
Product Specifications
Product Specifications
Inverter Specifications
- DC Input Voltage Range: 38 – 62 V (Minimum start-up voltage: 41 VDC)
- Output Voltage: 230 VAC ± 2% (Adjustable to 240 VAC)
- Output Frequency: 50 Hz ± 0.1% (Adjustable to 60 Hz)
- Continuous Output Power at 40°C: 4500 W
- Continuous Output Power at 65°C: 3000 W
- Peak Power: 9 kW for 3 seconds / 7 kW for 4 minutes
- Maximum Efficiency: 96.5% at 1 kW load / 94% at 5 kW load
- Zero Load Power Consumption: 20 W
- Short-circuit Output Current: 45 A
- Maximum AC Output Overcurrent Protection: 30 A
Solar Charger (MPPT) Specifications
- Maximum Open Circuit PV Voltage: 450 V
- PV Start-up Voltage: 120 V
- MPPT Operating Voltage Range: 65 – 450 V
- Number of MPPT Trackers: 2
- Maximum Operational PV Input Current Limit: 12 A per tracker
- Maximum PV Short Circuit Current: 16 A per tracker
- Maximum PV Conversion Power: 6 kW total (3 kW per tracker)
- Total Maximum DC Output Charge Power: 5760 W
Battery Charger Specifications
- AC Input Voltage Range: 187 – 265 VAC
- AC Input Frequency Range: 45 – 65 Hz
- Programmable Charge Voltage Range: 36 – 60 V (Equalization max 62 V)
- Charge Voltage 'Absorption' (Default): 57.6 V (Adjustable)
- Charge Voltage 'Float' (Default): 55.2 V (Adjustable)
- Maximum Charge Current from AC: 88 A @ 57.6 VDC
- Total Maximum Charge Current (AC + PV): 100 A DC
- Battery Temperature Sensor: Included
- Battery Voltage Sense: Yes
Operating Modes
- Hybrid Mode: Stores excess solar energy in the battery for use at night or during high demand.
- Backup Mode: Automatically switches to battery power during a grid outage.
- Off-grid Mode: Operates entirely without a grid connection.
- Generator Mode: Controls the generator to minimize run-hours while supplementing power from the battery when demand exceeds generator capacity.
- PV Inverter Mode: Operates as a standard PV inverter without a battery.
Connectivity & Integrated Features
- Display: Integrated 32-character backlit LCD for real-time battery, inverter, and solar parameters.
- Bluetooth Smart: Built-in for configuration and monitoring via the VictronConnect app.
- VE.Can Port: For connection to a GX device (e.g., Cerbo GX) for system monitoring, data logging, and remote updates.
- VE.Direct Port: For connection to a GlobalLink 520 for remote data monitoring.
- Programmable Relay: Can be set for general alarms, DC under-voltage, or generator start/stop functions.
- I/O Connections: Includes 2x programmable analog/digital input/output ports.
- Remote On-Off: Yes
- Three-Phase Support: Compatible with one unit per phase (Parallel operation not supported).
Mechanical Specifications
- Enclosure Material & Colour: Steel, Blue RAL 5012
- Protection Category: IP21
- Weight: 12.3 kg
- Dimensions (h x w x d): 462 x 425 x 127 mm
- Battery Connection: M8 bolts
- PV Connection: 2 strings, each with positive and negative MC4 connectors
- 230 VAC Connection: Screw terminals 10 mm² (6 AWG)
Environmental & Standards
- Operating Temperature Range: -40 to +65 °C (fan-assisted cooling)
- Maximum Altitude: 2000 m
- Humidity: Max 95% (non-condensing)
- Safety Standards: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2, IEC 62040, IEC 62477
- EMC Standards: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
Technical Specifications
Technical Specifications
| Inverter Rating | 6000VA |
|---|
