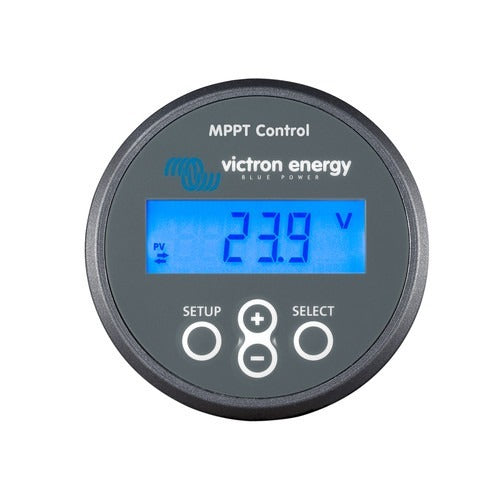

Victron MPPT Control - Screen For MPPT Charge Controllers
Victron MPPT Control - Screen For MPPT Charge Controllers
SKU:SCC900500000
Brand: Victron
In stock
This is pre-order - Available in 7 – 10 days
Couldn't load pickup availability
Product Details
Product Details
The Victron MPPT Control is designed for users who want clear, reliable visibility and configuration of their solar charging system. Created for use with Victron BlueSolar MPPT Charge Controllers that feature a VE.Direct communications port, this display provides instant access to live performance data. This allows system owners to monitor solar watts, battery voltage, charge current and load current, helping ensure installations are performing as expected.
The MPPT Control gives a clean and uniform appearance when installed alongside existing Victron monitoring equipment. This consistency is valued in both small and large system panels where professional presentation matters. Installation is typically flush mounted into a panel, although a wall mount enclosure option is available for situations where panel mounting is not practical.
The MPPT Control offers a useful combination of live metrics and historic data. Users can review a full set of all-time charging values, ideal for understanding long term performance trends. There is also 30-day historical information that can highlight any charging irregularities or changes in energy production. This level of insight helps inform both system maintenance and capacity planning.
In addition to viewing information, the device enables setup of compatible BlueSolar MPPT Charge Controllers. Adjustments can be made on demand, allowing installers and system owners to optimise charging behaviour without needing to connect external diagnostic equipment. This makes the MPPT Control suitable for off-grid power systems, leisure vehicles, marine applications and small commercial renewable installations.
The screen and navigation are designed to be clear and straightforward, ensuring that readings are easy to interpret at a glance. For installations where space is limited, the compact housing helps reduce panel clutter, while still providing essential monitoring capability.
For those looking to mount the device on a wall rather than recessed into a panel, Victron offers matching wall mount enclosures. These preserve the professional look while giving more flexibility in placement, especially in equipment rooms where accessibility is important.
The Victron MPPT Control is a practical upgrade for anyone seeking better oversight and configuration of their solar charging setup. It improves system visibility, helps identify inefficiencies and strengthens overall confidence in renewable power performance. Combined with its tidy design and proven brand reliability, it is a useful addition to any Victron-based installation.
Product Specifications
Product Specifications
Live Monitoring Data: The display provides real-time readout of the following parameters:
- Solar (PV) Data: Voltage, Current, and Power (Watts).
- Battery Data: Voltage, Charge Current, and Charge Stage (Bulk, Absorption, Float, Storage, or Fault).
- Load Output: State (On/Off) and Current (only for controllers equipped with a physical load output).
- Daily Yield: Cumulative solar energy received for the current day.
Historical Data (30-Day & Lifetime)The internal memory allows users to scroll through 30 days of daily history as well as cumulative lifetime values:
- Daily Stats: Yield (kWh), Maximum Power (W), Maximum PV Voltage (V), and Maximum/Minimum Battery Voltage.
- Charge Stage Timing: Daily time spent in Bulk, Absorption, and Float stages.
- Error Logging: Access to the last four active or historical errors.
- Cumulative Data: Total lifetime yield (kWh) and maximum recorded values since the last history reset.
Configurable Parameters The MPPT Control allows for deep system configuration directly from the front panel:
- Battery Setup: System voltage, battery type (fixed or user-defined), and maximum charge current.
- Voltage Setpoints: Absorption voltage, Float voltage, and Equalisation voltage.
- Charger Logic: Absorption time limits, Bulk time limits, and temperature compensation coefficients.
- Load Output Management: Low-voltage disconnect/reconnect levels and lighting timer modes.
- System Actions: Manual equalization initiation, factory reset, and clearing of historical data.
Product Compatibility
- Supported Range: Entire BlueSolar and SmartSolar MPPT range featuring a VE.Direct port.
- Exception: Not compatible with the long-discontinued BlueSolar MPPT 70/15.
- Recommendation: For solar chargers rated 60A and above, the SmartSolar Control display is often a better-suited alternative for direct plug-in use.
Electrical Specifications
- Supply Voltage (via Battery): 6.5 – 95 Vdc
- Supply Voltage (via VE.Direct): 5 Vdc
- Power Consumption (Backlight Off): < 0.05W
- Operating Temperature Range: -20°C to +50°C
- Power Cable Fuse Rating: 100mA

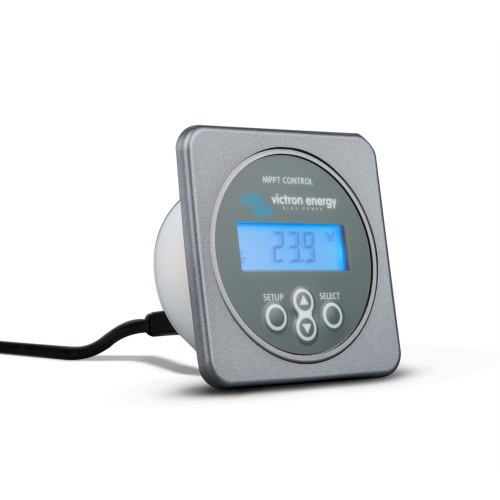

Mechanical Specifications
- Display Type: Backlit monochrome LCD
- Controls: 4 push buttons for menu navigation
- Installation Type: Flush mount (standard) or surface mount (via optional enclosure)
- Front Diameter: 63 mm (2.5")
- Front Bezel Dimensions: 69 x 69 mm (2.7" x 2.7")
- Body Diameter: 52 mm (2.0")
- Body Depth: 31 mm (1.2")
- Weight: 50 g
