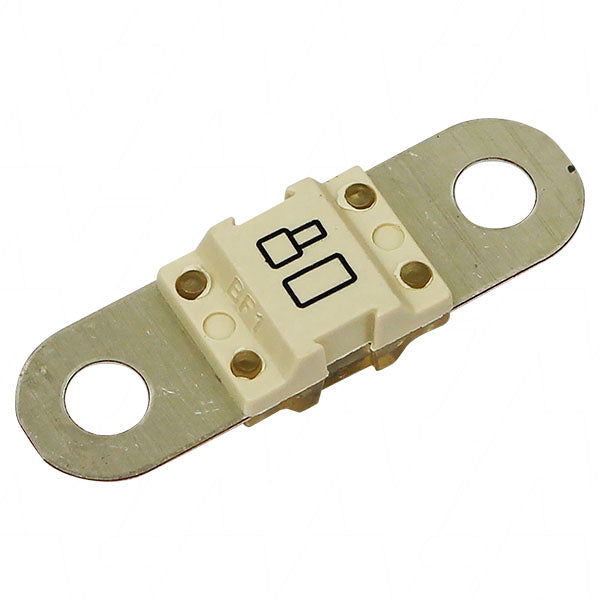

MIDI-fuse 80A/32V-M6 - Single Piece
MIDI-fuse 80A/32V-M6 - Single Piece
SKU:CIP134080020
Brand: Victron
Rated current: 80 A at 56 V DC
Approximate voltage drop: 60 mV
Cold resistance: ~0.55 mΩ
Compact inline MIDI format
Low-loss fuse for efficient DC protection
Sold as a single unit
In stock
This is pre-order - Available in 7 – 10 days
Regular price
£2.20 GBP
Regular price
Sale price
£2.20 GBP
Quantity
Couldn't load pickup availability
Product Details
Product Details
The Victron MIDI-fuse 80A/58V-M6 is a high-performance inline protective fuse designed for DC circuits in solar, battery storage and power installations. It features a nominal voltage drop of approximately 60 mV and a cold resistance of 0.55 mΩ at full load.
Compact and efficient, it offers dependable protection with minimal power loss. Suitable for clean and professional system designs.
Sold as a single unit.
Product Specifications
Product Specifications
Electrical Specifications
- Current Rating: 80 A
- Voltage Rating: 58 V
- Approximate Voltage Drop: 70 mV
- Cold Resistance: 0.42 mΩ
Mechanical Specifications
- Fuse Type: MIDI
- Total Length: 42.3 mm
- Width: 12 mm
- Mounting Hole Spacing: 29.3 ± 0.2 mm
- Connection Type: Bolt-on (compatible with M6 studs as per product designation)
Installation Compatibility
- Compatible Holders: Designed for use with Victron MIDI-fuse holders.
- Applications: Ideal for protecting high-current DC circuits in 48V battery systems, marine installations, and off-grid power systems.
