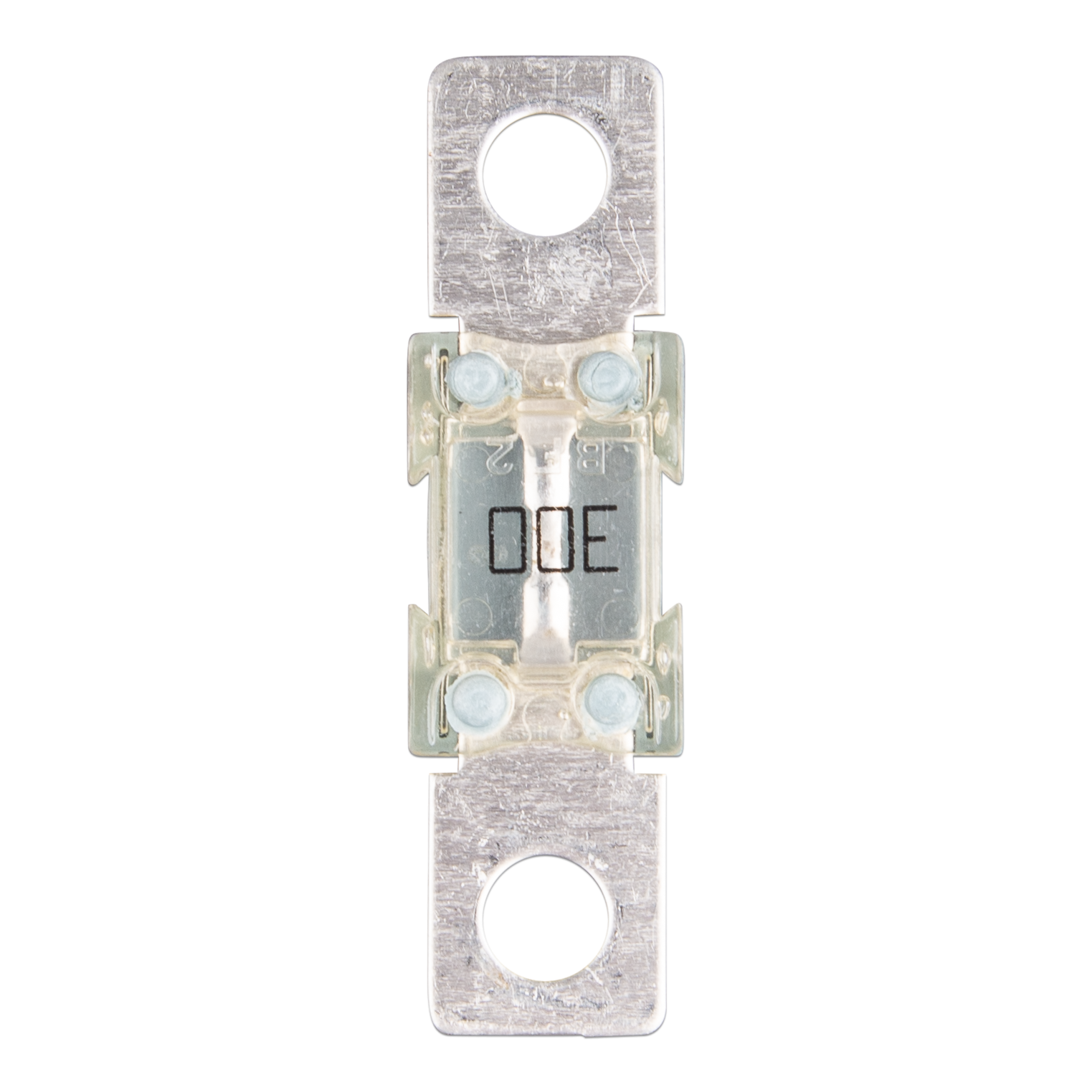

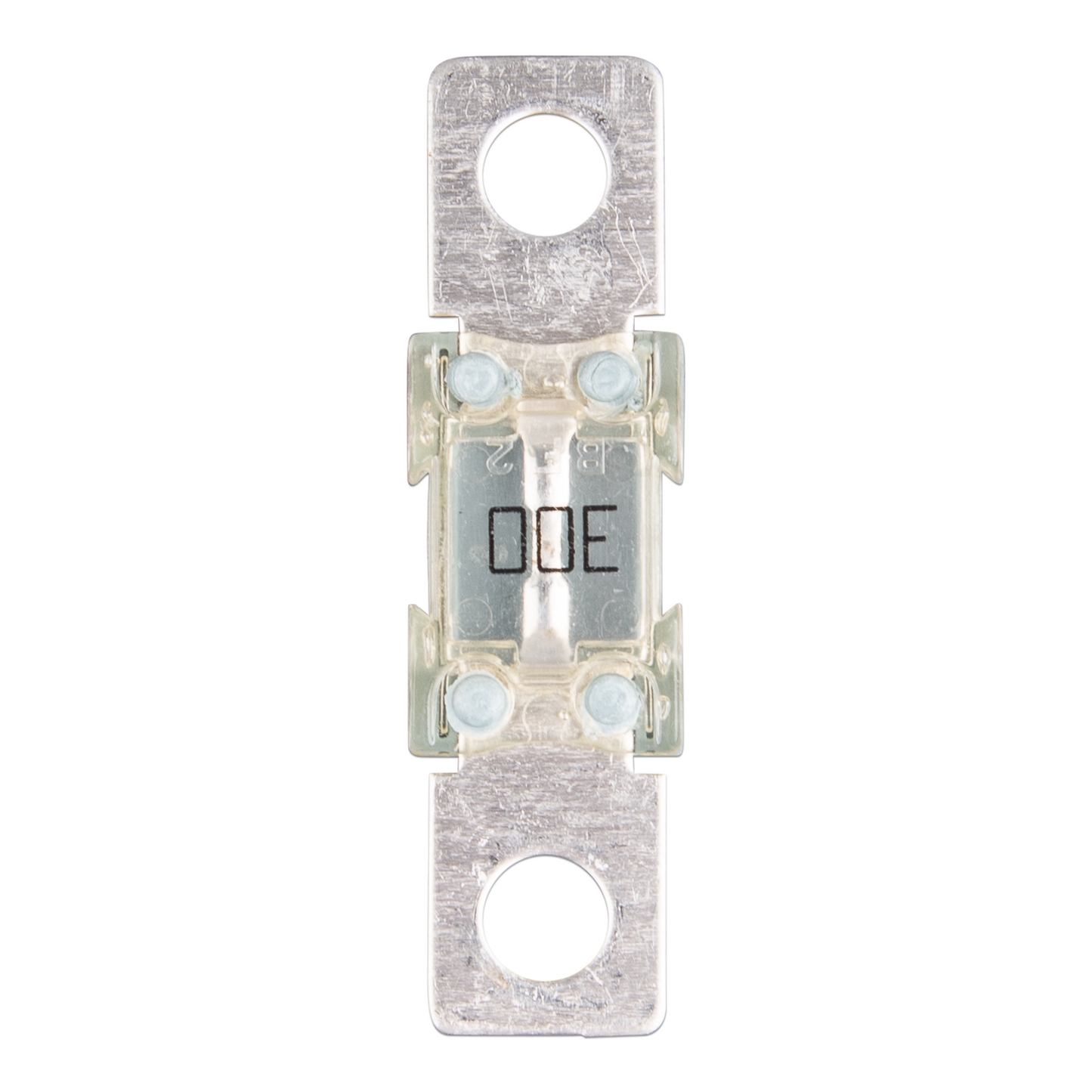

MIDI-fuse 100A/32V (Singular Piece)
MIDI-fuse 100A/32V (Singular Piece)
SKU:CIP132100010
Brand: Victron
Rated 100 A at 32 V DC
Approximate voltage drop: 60 mV
Cold resistance: ~0.45 mΩ
Compact inline MIDI-form design
Optimised for low-loss, reliable DC protection
Sold as a single unit
Dimensions: 8 x 12 x 42mm
Low stock: 10 left
Regular price
£1.80 GBP
Regular price
Sale price
£1.80 GBP
Quantity
Couldn't load pickup availability
Product Details
Product Details
The Victron MIDI-fuse 100A/32V is a high quality inline fuse designed for DC protection in energy, solar and battery systems. It features a low voltage drop of approximately 60 mV and a cold resistance of about 0.45 mΩ at full load.
Compact and efficient, this fuse is ideal for installations where performance, reliability and minimal losses are critical.
Sold as a single unit.
Product Specifications
Product Specifications
Electrical Specifications
- Current Rating: 100 A
- Voltage Rating: 32 V
- Approximate Voltage Drop: 60 mV
- Cold Resistance: 0.45 mΩ
Mechanical Specifications
- Fuse Type: MIDI
- Total Length: 42.3 mm
- Body Length: 29.3 ± 0.2 mm
- Total Height: 12 mm
- Terminal Width: 13 mm
Compatibility & Installation
- Required Accessories: Designed for use with a dedicated Victron MIDI fuse holder.
- Application: Optimized for 12V and 24V DC systems requiring secure overcurrent protection for battery chargers, inverters, and distribution circuits.
