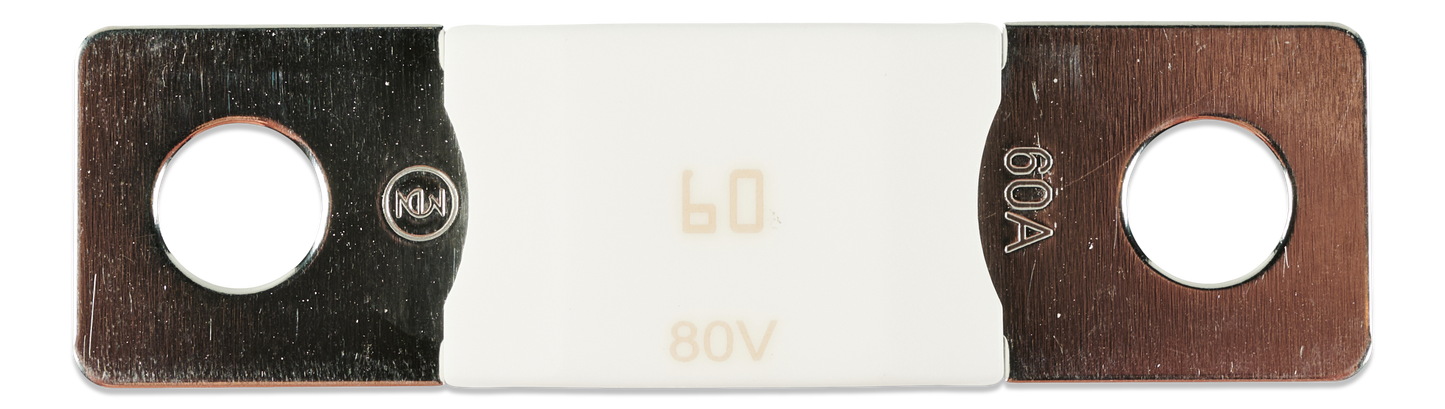

MEGA-fuse 60A/80V (Single pc)

The Victron MEGA‑fuse 60 A / 80 V is a ceramic, bolt‑down DC fuse optimised for high-current applications in Victron systems. It is designed to protect medium-load DC circuits - such as battery banks, inverters, and solar equipment - in installations with voltages up to 80 V.

This fuse delivers a 60 amp current rating at up to 80 V DC, offering strong protection for 48 V and other high-voltage systems. On load, it has a typical voltage drop of 135 mV, with a cold resistance of around 1.017 mΩ, so it provides reliable fault interruption without excessive degradation or energy loss.

The construction is robust: the fuse uses ceramic material, which provides heat resistance and stable performance under stress. It comes with M8 bolt-on terminals, allowing a secure, reliable connection in DC distribution panels or fuse holders.

To ensure safe system design, this fuse complies with Victron’s quality standards, as confirmed by its Declaration of Conformity. It is specifically for DC systems and is used widely in Victron’s own distribution setups.

Being sold as a single unit, this fuse gives trade customers flexibility. Whether you're replacing a blown fuse in a dealer-installed system or stocking up on spares for on-site service, you can efficiently order exactly what you need.

MEGA-fuse 60A/80V (Single pc) – Data Sheet
